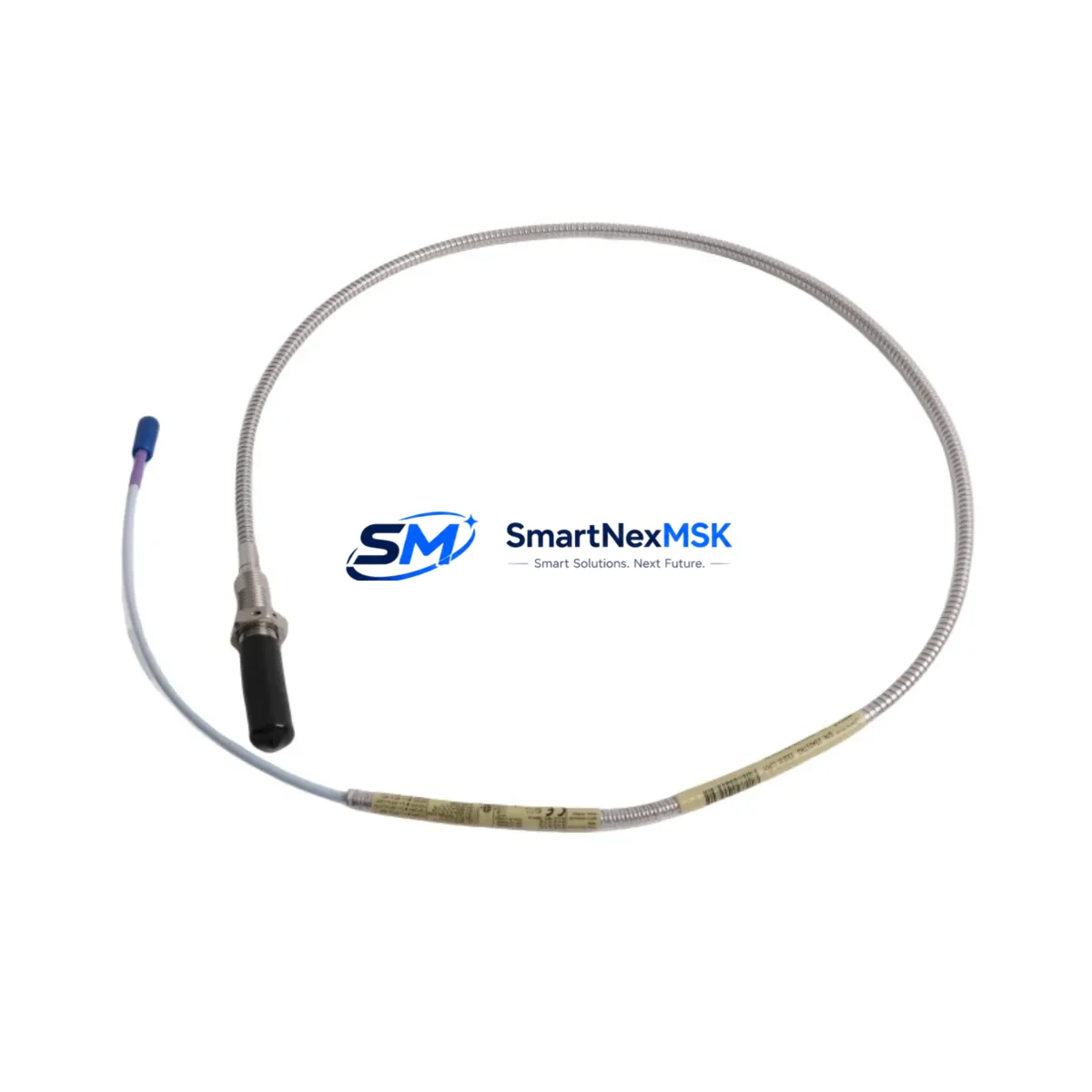

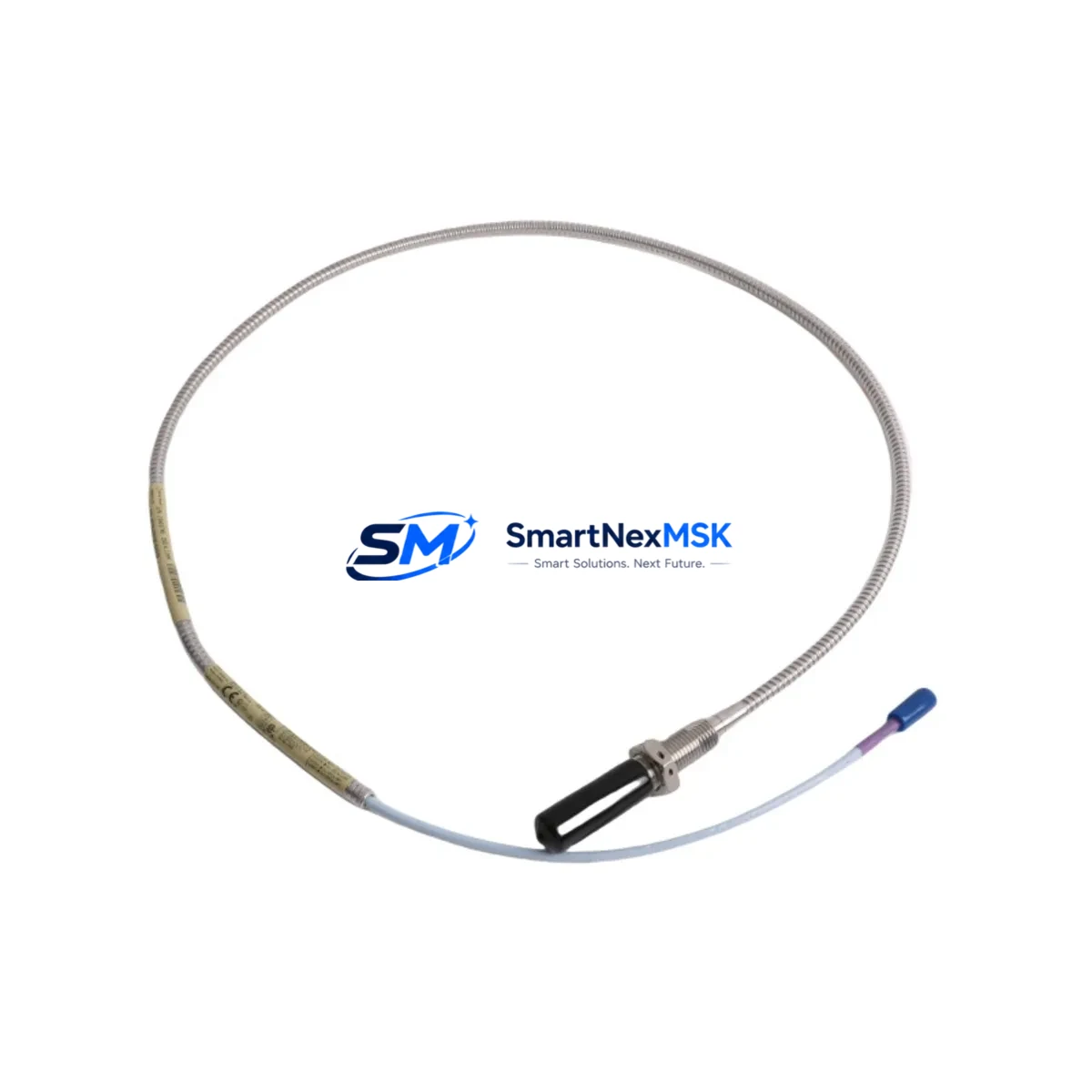

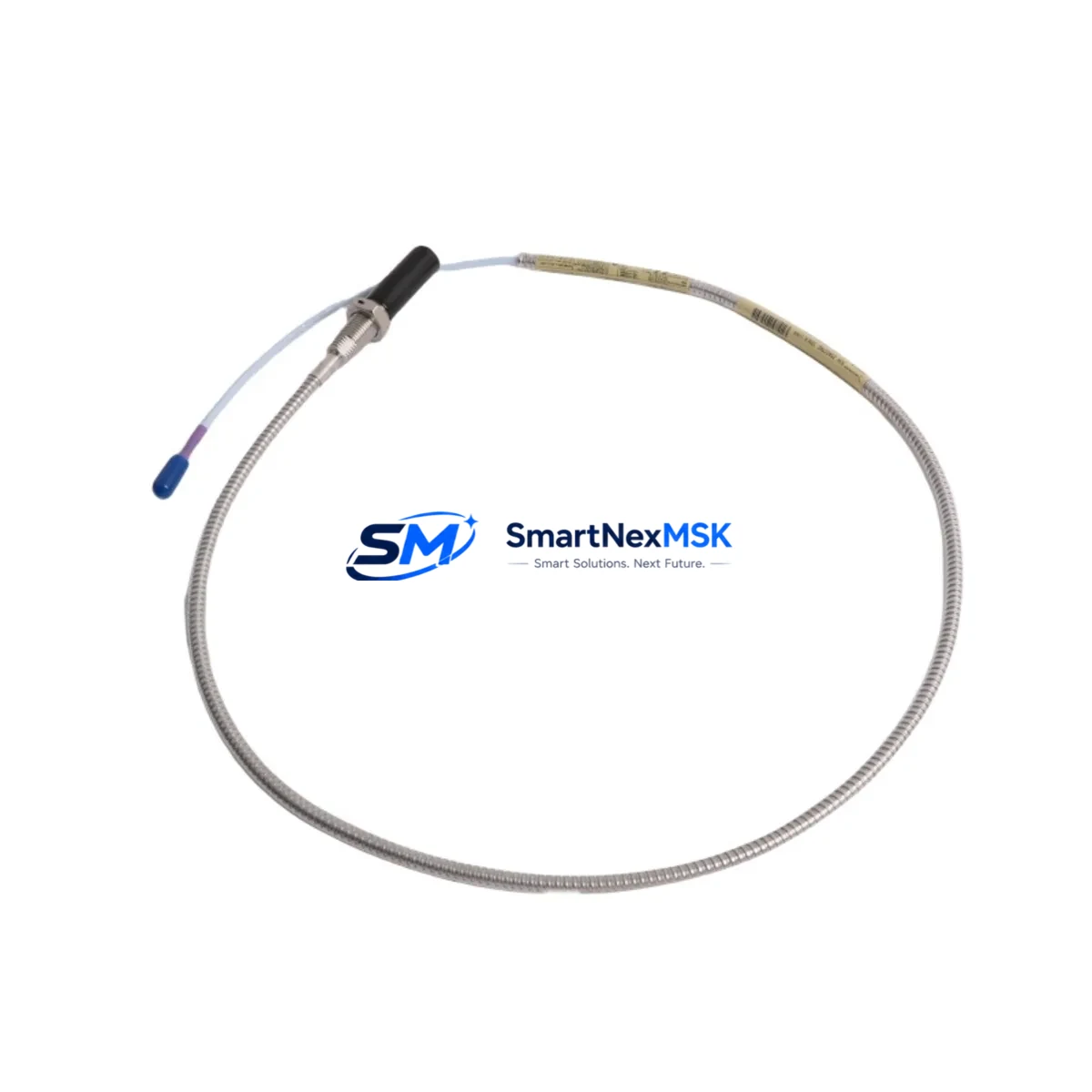

Bently Nevada 330704-000-026-50-02-CN Retrofit Probe for 3300 XL

Bently Nevada 330704-000-026-50-02-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

The Bently Nevada 330704-000-026-50-02-CN is a 3300 XL Series proximity probe engineered for direct retrofit into legacy vibration monitoring and machinery protection systems. As original Bently Nevada 3300 XL installations age and OEM support windows close, plant engineers and reliability teams increasingly require verified drop-in replacements that maintain signal integrity, dimensional compatibility, and full system interoperability — without triggering a full platform migration. This probe is stocked, tested, and ready to ship with a 12-month warranty.

Whether you are replacing a failed probe on a critical rotating machine, upgrading a worn sensor in a turbine protection loop, or consolidating spare parts inventory ahead of a planned outage, the 330704-000-026-50-02-CN delivers the dimensional and electrical specifications required for seamless integration into existing 3300 XL monitor racks.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330704-000-026-50-02-CN into a live machinery protection system requires careful pre-outage planning. Begin by auditing the existing probe driver — typically a Bently Nevada 330180-91-05 or 330130-080-00-00 proximitor/driver — to confirm output sensitivity (7.87 V/mm or 200 mV/mil) and supply voltage compatibility. Mismatched drivers are the most common cause of erroneous vibration readings after probe replacement.

Next, verify the 3300 XL monitor module channel configuration. The 3300/16 and 3300/20 monitor cards accept standard Bently Nevada probe inputs, but channel scaling parameters stored in the monitor’s non-volatile memory must be reviewed. If the previous probe had a different sensitivity factor, the monitor’s full-scale and alarm setpoints will require recalibration using the System 1 configuration software or the front-panel keypad interface.

For installations where the probe feeds into a Bently Nevada 3500 Series rack — a common upgrade path when a 3300 XL rack is being partially modernized — confirm that the 3500/42M or 3500/40M monitor module is configured for the correct transducer type. The 3500 platform supports both 3300 XL-era probes and newer TK Series sensors, but the configuration must explicitly match the probe’s sensitivity and gap range.

Cable routing is equally critical. The 330704-000-026-50-02-CN ships with a 2.0 m probe cable, which in most installations must be extended using a 330130 or 330180 extension cable to reach the proximitor mounted at the junction box or in the control cabinet. Ensure all cable connectors are torqued to specification and that the cable is routed away from high-voltage conductors to prevent EMI-induced noise on the vibration signal.

In control cabinets where the 3300 XL rack shares a backplane with I/O modules — such as the Bently Nevada 3300/55 I/O module or a third-party DCS analog input card — verify that the probe signal is correctly terminated and that the shield drain wire is grounded at one end only to prevent ground loops. Ground loops are a frequent source of spurious high-vibration alarms during commissioning.

For plants running Modbus RTU or FOUNDATION Fieldbus communication from the 3300 XL system to a DCS or SCADA platform, confirm that the communication gateway — often a Bently Nevada 3500/92 communication gateway or a third-party Modbus bridge — continues to map the correct register addresses after the probe channel is reconfigured. A probe replacement that triggers a monitor reconfiguration can inadvertently shift register offsets if the configuration is not carefully managed.

HMI screens connected to the machinery protection system should be reviewed before returning the machine to service. Faceplates displaying vibration trend data, alarm banners, and gap voltage indicators should be verified against the newly calibrated monitor output to ensure that displayed values are accurate and that alarm thresholds reflect the updated configuration.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe retrofit requires a structured hot-swap protocol. Where process conditions permit, the 330704-000-026-50-02-CN can be pre-gapped and bench-tested against a spare 330180 proximitor before the machine is taken offline. This allows the technician to confirm probe sensitivity, gap voltage, and cable continuity before the outage window begins, reducing in-field troubleshooting time to near zero.

During the outage, follow a defined sequence: isolate the monitor channel, remove the failed probe, install the replacement, set the mechanical gap to the OEM-specified nominal (typically 1.0 mm for 11 mm probes), and verify gap voltage at the proximitor output before reconnecting the monitor input. This sequence protects the original program logic in the monitor from being overwritten by an inadvertent configuration reset.

For systems where the 3300 XL monitor is integrated into a larger DCS control loop — for example, where vibration-high signals interlock with turbine trip logic or compressor surge control — coordinate with the control room to place the affected interlock in bypass mode for the duration of the probe replacement. Document the bypass activation and restoration in the plant’s management of change (MOC) system to maintain audit compliance.

After reinstallation, perform a full channel functional test: apply a known mechanical displacement to the probe target and verify that the monitor displays the correct vibration amplitude and that the 4–20 mA output to the DCS analog input card tracks correctly. Restore all bypasses, confirm alarm setpoints, and log the as-left gap voltage and sensitivity values in the equipment history record before returning the machine to service.

Retrofit Support FAQ

Q1: Is the 330704-000-026-50-02-CN a direct replacement for the original Bently Nevada 330704 probe?
Yes. The 330704-000-026-50-02-CN is dimensionally and electrically equivalent to the original 330704 series proximity probe. It is designed as a drop-in replacement for 3300 XL Series machinery protection systems without requiring mechanical modification or monitor reconfiguration, provided the existing driver and monitor channel settings are verified prior to installation.

Q2: What commissioning checks are required after installation?
After mechanical installation, set the probe-to-target gap to the nominal value specified in the machine’s vibration monitoring datasheet (typically 1.0 mm for 11 mm probes). Measure the gap voltage at the proximitor output — target −12 VDC ±1 VDC at nominal gap. Verify the monitor channel displays the correct static gap reading, then perform a dynamic check by briefly displacing the target and confirming the vibration amplitude reading is within expected range. Record all as-left values.

Q3: Can this probe be used with a Bently Nevada 3500 Series monitor rack?
Yes, with configuration verification. The 3500/42M and 3500/40M monitor modules support 3300 XL-era proximity probes when the channel is configured for the correct transducer sensitivity (7.87 V/mm). Confirm the System 1 or rack configuration matches the probe’s sensitivity factor before energizing the channel. No hardware modification to the 3500 rack is required.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, premature failure under normal operating conditions, and dead-on-arrival (DOA) units. Each probe is functionally tested before shipment, including gap voltage verification and cable continuity check. Warranty claims are processed with a replacement unit dispatched upon confirmation of the defect. Physical damage caused by improper installation or mechanical impact is not covered.
