Bently Nevada 330704-000-050-10-01-00 3300 XL Probe

Bently Nevada 330704-000-050-10-01-00: Retrofit-Ready 3300 XL Proximity Probe for Legacy Vibration Monitoring System Upgrades

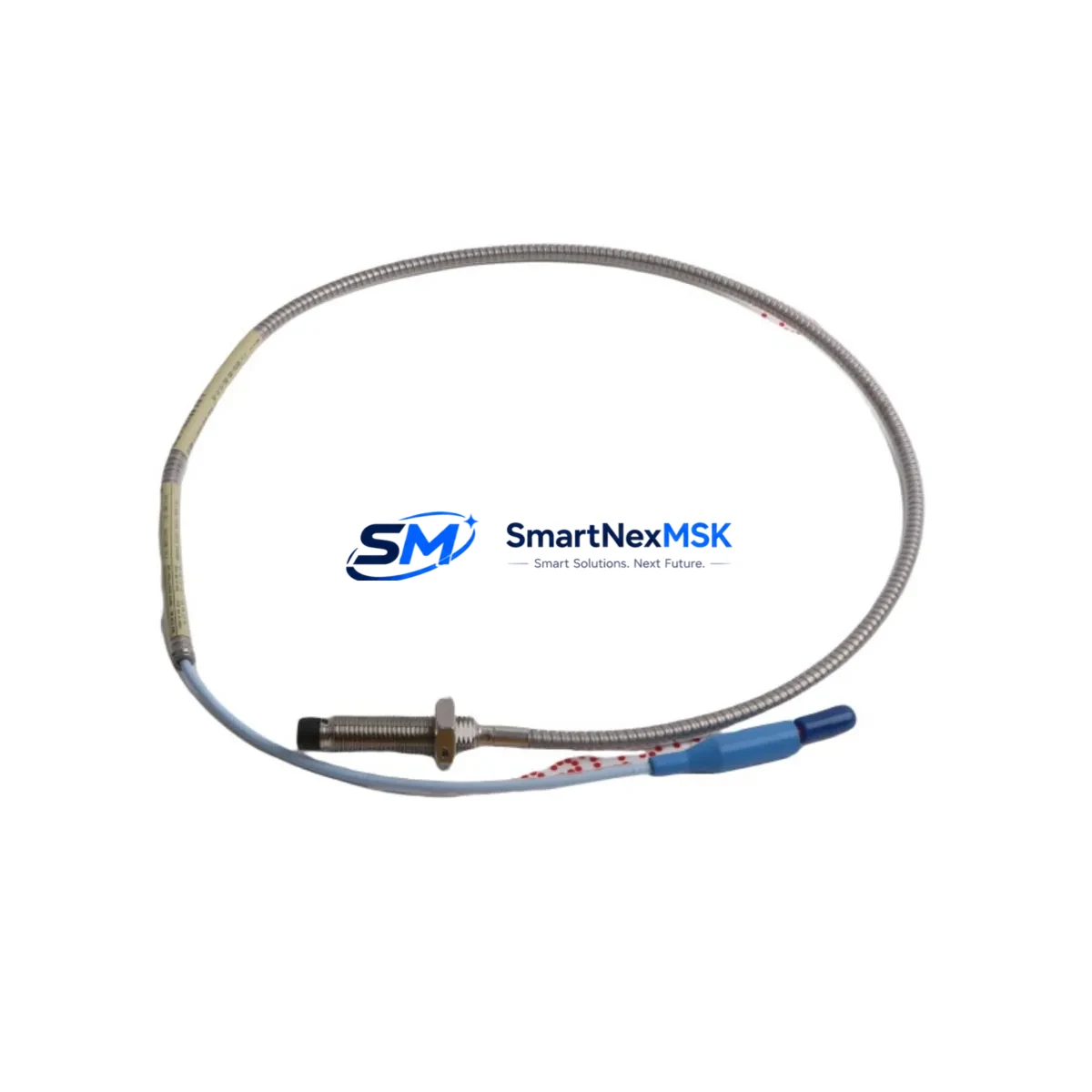

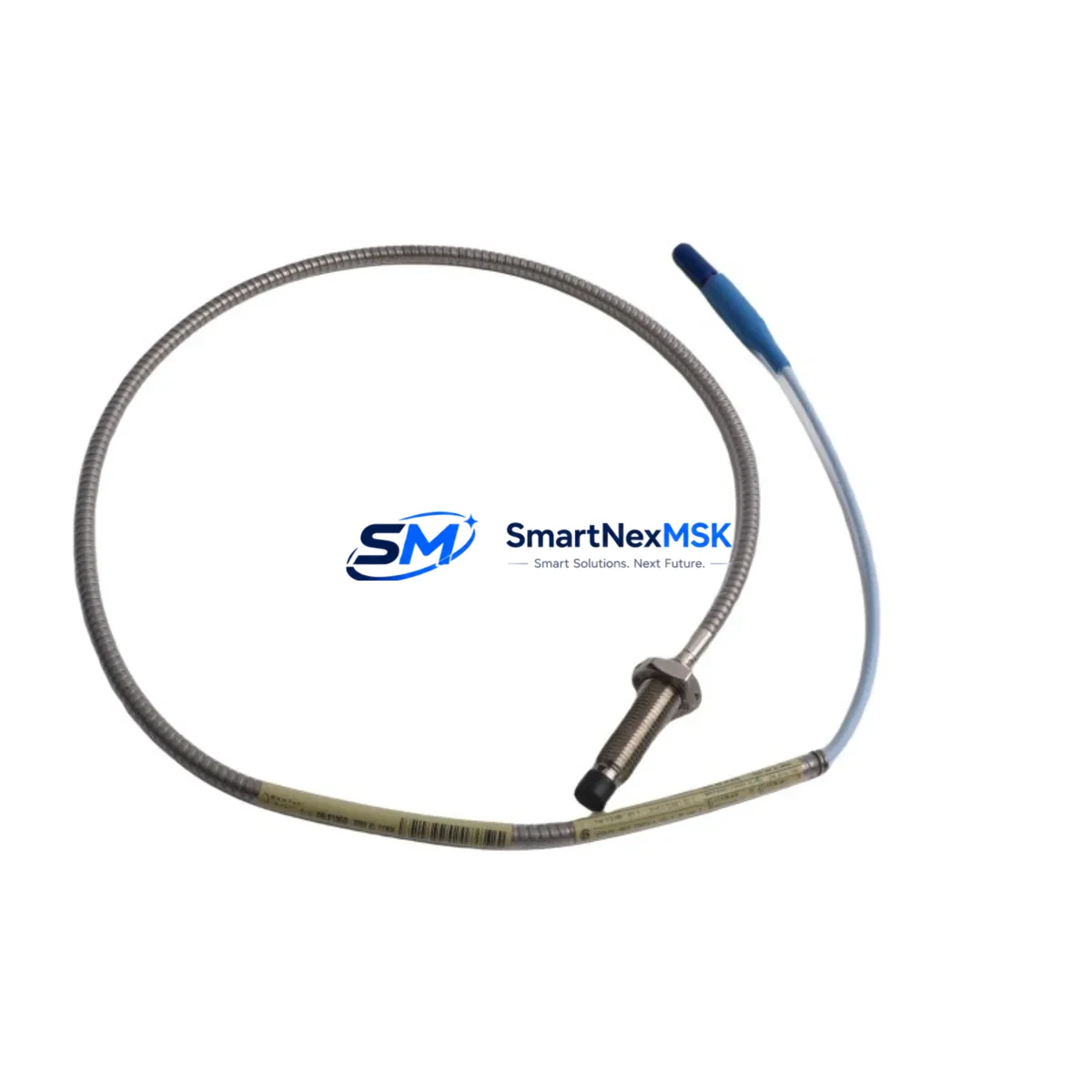

The Bently Nevada 330704-000-050-10-01-00 is an 11mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. Widely deployed across turbomachinery, compressor trains, steam turbines, and rotating equipment in oil & gas, power generation, and petrochemical facilities, this probe remains one of the most requested replacement components in legacy system modernization projects. Whether you are executing a planned outage upgrade, responding to an unplanned probe failure, or migrating an aging 3300 Series rack to the current 3300 XL architecture, the 330704-000-050-10-01-00 delivers a verified drop-in solution with full signal chain compatibility.

SMARTNEXMSK maintains ready stock of the 330704-000-050-10-01-00 to support emergency procurement, scheduled turnarounds, and long-term spares programs. Each unit ships with a 12-month warranty covering manufacturing defects and signal performance, and is functionally tested prior to dispatch to reduce commissioning risk on site.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330704-000-050-10-01-00 in an operating plant requires careful coordination across the mechanical, electrical, and control system layers. Before the outage window opens, engineers should confirm that the existing 3300 XL driver module — typically a 330180-51-05 or equivalent — is within its own service life and that the driver gap voltage output remains within the calibrated range for the new probe. A mismatched driver will produce erroneous vibration readings even with a new probe installed, so driver verification is a mandatory pre-commissioning step.

On the rack side, the 3300 XL monitor card receiving the probe signal must be confirmed operational. Cards such as the 3300/16 Dual Voting or the 3300/20 Radial Vibration Monitor should be inspected for relay output integrity and alarm setpoint retention before the new probe is brought online. If the rack itself is a legacy 3300 (non-XL) chassis, the backplane connector pinout and power supply loading must be reviewed — the 3300 XL Power Supply (e.g. 3300/05) may need to be assessed for available current headroom if additional I/O modules are being added during the same outage.

Wiring adaptation is another common challenge. The coaxial cable assembly connecting the probe to the driver must be inspected for jacket integrity, connector seating, and shield continuity. In many retrofit projects, the original cable assembly — often a 330130 or 330140 series extension cable — is replaced at the same time as the probe to eliminate a latent failure point. Technicians should also verify conduit routing and cable separation from high-voltage power conductors to maintain signal integrity in electrically noisy environments.

For facilities migrating from a legacy SCADA or DCS platform to a modern system such as a Honeywell Experion PKS or an Emerson DeltaV, the analog output from the 3300 XL monitor rack is typically re-terminated at a new I/O marshalling panel. In these cases, the existing 3300 XL Termination Module (TM) wiring should be documented before disconnection, and the new I/O channel scaling must be configured to match the probe’s millivolt-per-mil output characteristic. HMI faceplate graphics referencing the vibration tag should be updated to reflect the new I/O address and engineering unit range to avoid operator confusion during the first post-commissioning shift.

Where the control system includes a Bently Nevada System 1 condition monitoring software instance, the probe configuration record — including probe type, gap voltage, sensitivity, and alarm thresholds — must be updated in the System 1 database to match the replacement unit. Failure to update this record can result in suppressed alarms or false trips during the initial run-up period. If the plant also operates a 3500 Series rack in parallel for critical machinery protection, the 3500/42M Proximitor I/O Module configuration should be reviewed to ensure consistent alarm philosophy across both platforms. For sites running a 3500/22M Transient Data Interface alongside the 3300 XL rack, the channel mapping and sample rate settings should also be verified after the probe swap to maintain data continuity in the condition monitoring historian.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging all components before the maintenance window. The 330704-000-050-10-01-00 probe, the associated 330130 extension cable, and any required 330180 driver module should be on-site and functionally verified before the equipment is taken offline. A bench test using a portable oscilloscope or a Bently Nevada field calibrator confirms probe sensitivity and gap voltage response before installation, eliminating the risk of discovering a defective unit after the machine is already shut down.

During the replacement, the original program logic in the PLC or safety system — including any vibration-based shutdown interlocks — should be placed in bypass mode through the plant’s management of change procedure. This protects against nuisance trips during the gap-setting procedure while the probe is being positioned and locked. Once the probe is mechanically secured and the gap voltage is confirmed within specification, the bypass is removed and the system is returned to normal protection mode. For facilities using a 3300/55 Keyphasor Module to synchronize vibration phase measurements, the Keyphasor signal should be verified independently after the probe replacement to confirm that phase reference data remains valid.

For facilities with redundant probe configurations (X-Y radial vibration measurement), one channel can often remain active while the other is replaced, maintaining partial protection throughout the maintenance activity. This approach is particularly valuable on critical compressors or turbines where a full protection bypass carries significant process risk. After both probes are replaced and verified, a slow-roll run-up is recommended to confirm vibration baseline readings before returning the machine to full load.

Post-commissioning documentation — including the as-found and as-left gap voltage readings, the probe serial number, and the installation date — should be recorded in the plant’s maintenance management system to support future predictive maintenance scheduling and warranty tracking.

Retrofit Support FAQ

Q: Is the 330704-000-050-10-01-00 a direct replacement for earlier 330704 variants?
A: The 330704-000-050-10-01-00 is the current standard configuration for the 3300 XL 11mm proximity probe. Earlier 330704 variants with different cable lengths or connector configurations may require a cable assembly change. Confirm the suffix codes against your existing installation drawing before ordering.

Q: What gap voltage should I set after installing the replacement probe?
A: The standard gap voltage for the 3300 XL 11mm probe system is typically –10.0 VDC at the nominal gap distance specified in the OEM installation drawing. Always refer to the specific monitor card and driver datasheet for the exact gap setting procedure, as target materials and surface finish affect the calibration.

Q: Does SMARTNEXMSK test units before shipment?
A: Yes. Each 330704-000-050-10-01-00 unit is functionally tested for signal output and connector integrity prior to dispatch. A test record is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: Can this probe be used with a 3500 Series rack instead of a 3300 XL rack?
A: The 330704-000-050-10-01-00 is designed for the 3300 XL platform. While the eddy-current sensing principle is shared with 3500 Series probes, the 3500 platform uses its own Proximitor sensor family (e.g. 330900 series). Cross-platform use requires engineering review of driver compatibility and signal conditioning before installation.
