Bently Nevada 330704-000-070-10-02-00 Spare for 3300 XL

Bently Nevada 330704-000-070-10-02-00 Maintenance-Ready Spare for 3300 XL Automation

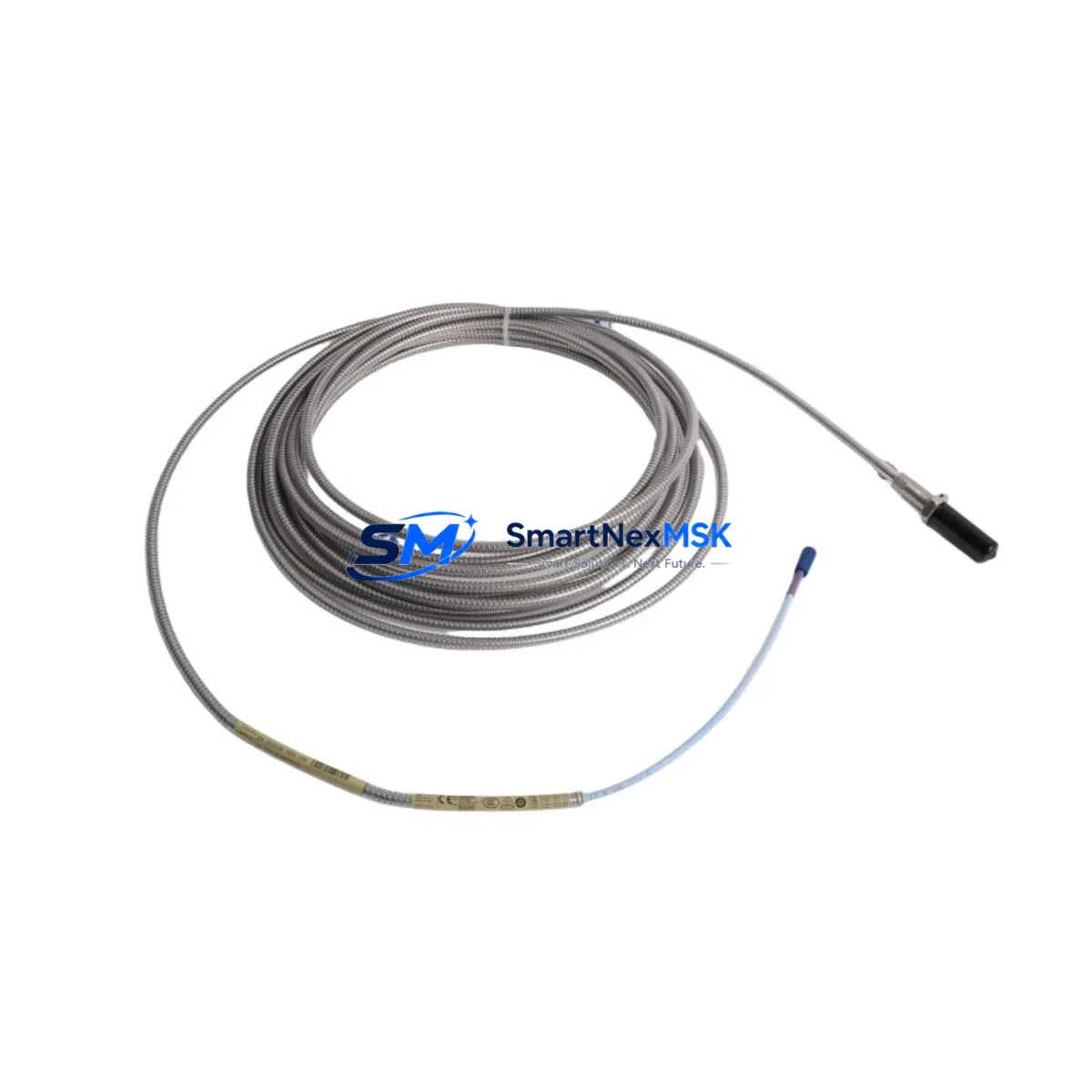

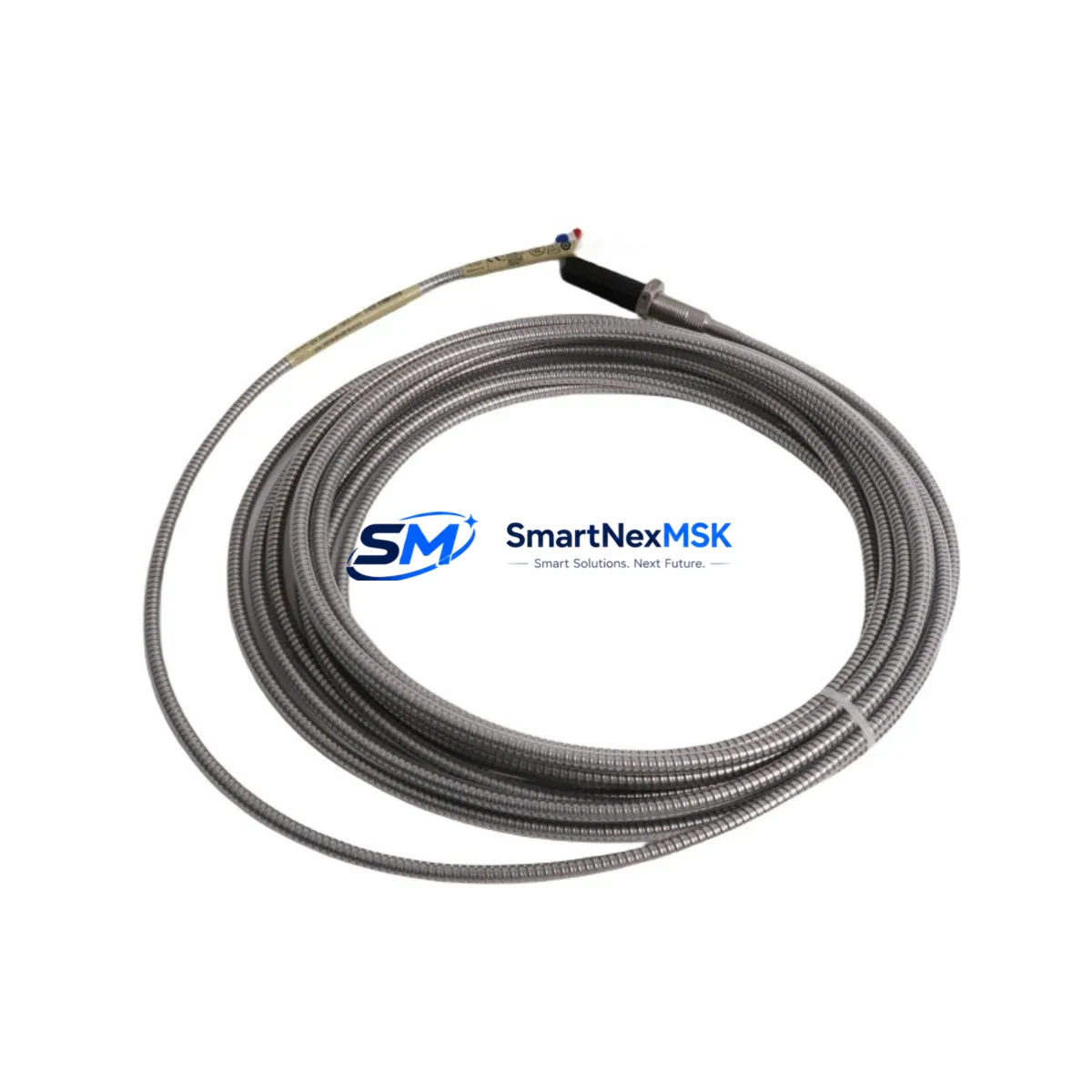

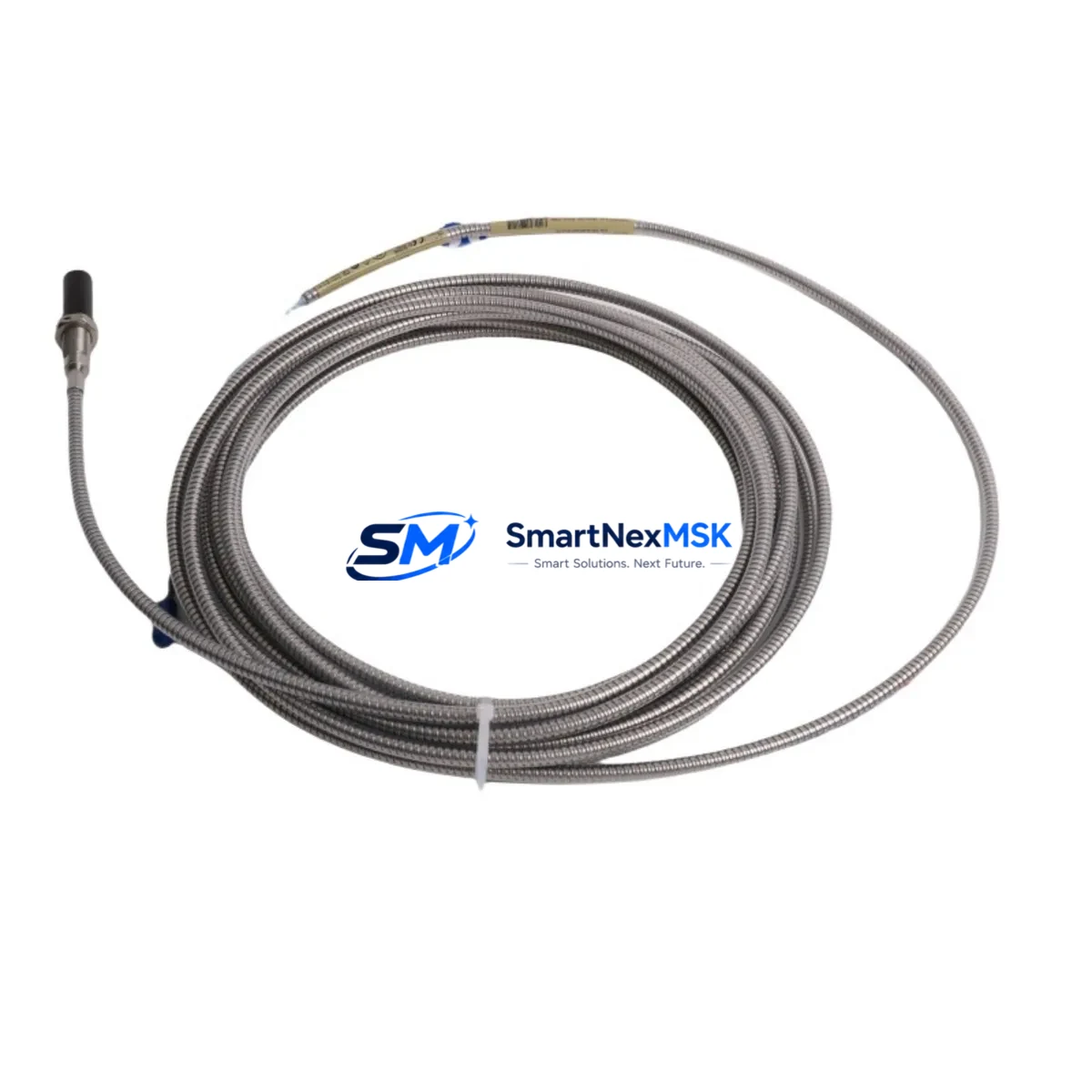

The Bently Nevada 330704-000-070-10-02-00 is an original 11mm eddy-current proximity probe engineered for the 3300 XL series vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a critical front-line sensor. When it fails or degrades, the entire vibration monitoring loop is compromised, triggering unplanned shutdowns and costly downtime. Stocking a verified replacement unit is the single most effective step a maintenance team can take to protect continuous operation.

This unit is sourced as an original spare, fully tested prior to shipment, and backed by a 12-month warranty. It is compatible with the Bently Nevada 3300 XL proximitor/monitor system and is designed for direct drop-in replacement without recalibration of the full loop — provided the extension cable and proximitor are matched to the same system configuration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330704-000-070-10-02-00 proximity probe in the field, a disciplined maintenance engineer will not stop at the probe itself. The 3300 XL vibration monitoring loop is a system — and a degraded component anywhere in the chain can mask or misrepresent the probe’s output. Before returning the machine to service, the following components should be inspected or tested as part of the same work order:

The Bently Nevada 3300 XL Proximitor (e.g., 330180-X1-05) is the signal conditioning module that powers the probe and converts gap distance to a DC voltage. If the probe has failed due to moisture ingress or mechanical impact, the proximitor may have sustained damage as well — verify its output voltage and linearity before closing out the job. Similarly, the extension cable (e.g., 330130-080-00-00) connecting the probe to the proximitor is a frequent failure point in high-vibration environments; inspect for chafing, connector corrosion, and continuity.

At the monitor level, confirm that the 3300/16 or 3500/42 vibration monitor card is reading correctly after probe replacement. These cards provide the 4–20 mA or relay output that feeds the DCS or safety system — a misconfigured or drifted card will generate false alarms even with a new probe installed. If the plant runs a Bently Nevada 3500 series rack, also check the 3500/20 power supply module for output voltage stability, as probe sensitivity is directly dependent on a clean –24 VDC supply.

For plants integrating vibration data into a DCS or PLC, verify the signal isolator or barrier (such as a Pepperl+Fuchs or MTL Zener barrier in hazardous-area installations) is within calibration. A degraded barrier will attenuate the probe signal and produce erroneous gap readings. Also review the terminal block and field junction box connections — loose terminals are a leading cause of intermittent vibration faults that are misdiagnosed as probe failures.

If the machine is part of an API 670-compliant protection system, the replacement probe installation must be documented and the full loop — probe, extension cable, proximitor, and monitor — must be verified against the original calibration record. Spare units of the 330704 series (including variants such as 330704-000-050-10-02-00 and 330704-000-100-10-02-00 for different probe lengths) should be stocked alongside the extension cable and proximitor to enable a complete loop swap during a planned outage window.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the proximitor supply at the monitor rack before disconnecting the probe. Do not disconnect the probe under live –24 VDC supply, as this can damage the proximitor input circuit.

Step 2 — Physical removal: Unscrew the probe from the probe holder. Note the gap distance (typically 50 mil / 1.27 mm for most shaft applications) using a feeler gauge or the original installation record. Inspect the probe tip for mechanical damage, pitting, or contamination.

Step 3 — Extension cable inspection: Disconnect the extension cable at both ends. Perform a continuity and insulation resistance check. Replace the cable if resistance is below specification or if the connector shows corrosion.

Step 4 — New probe installation: Thread the 330704-000-070-10-02-00 replacement probe into the holder. Set the gap to the specified distance. Reconnect the extension cable and proximitor. Re-energize the supply and verify the DC gap voltage falls within the linear range (typically –10 to –18 VDC for a 50 mil gap).

Step 5 — Loop verification: Confirm the monitor is reading the correct gap and vibration values. Check relay setpoints and 4–20 mA output against the original calibration sheet. Log the replacement in the maintenance management system (CMMS) and update the spare parts inventory.

This workflow minimizes machine downtime to under two hours for a trained technician and ensures the replacement is fully validated before the machine returns to service — eliminating the risk of a repeat trip due to an undetected secondary fault.

Spare Parts Support FAQ

Q1: Is the 330704-000-070-10-02-00 a direct replacement for older Bently Nevada 7200 series probes?
The 330704 series is part of the 3300 XL system and is not a direct pin-compatible replacement for the 7200 series. The 7200 series uses a different proximitor and cable system. If your plant is running 7200 series hardware, you will need to either source 7200-series probes or plan a full loop upgrade to 3300 XL. Contact our technical team to confirm compatibility before ordering.

Q2: How do you verify the probe before shipment?
Each unit undergoes a pre-shipment functional test: gap voltage linearity is verified across the full measurement range, connector integrity is checked, and the cable is tested for continuity and insulation resistance. A test report is available upon request. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q3: What is the recommended spare parts stocking strategy for a 3300 XL loop?
For critical rotating machinery, we recommend stocking at minimum: one probe (330704-000-070-10-02-00 or the applicable length variant), one matched extension cable, and one proximitor per monitored shaft. For plants with multiple identical machines, a 10% spare ratio per probe model is a common industry benchmark. Storing spares in a climate-controlled cabinet away from vibration and moisture will preserve calibration and extend shelf life.

Q4: Can this probe be used in hazardous-area (Ex) installations?
The 330704-000-070-10-02-00 is designed for use with the 3300 XL system, which supports intrinsically safe (IS) installations when used with approved barriers. Verify the Ex certification of your specific installation against the Bently Nevada system documentation and local regulatory requirements. Our team can provide the relevant certification documentation upon request.
