Bently Nevada 330704-010-060-10-11-00 3300 XL Retrofit-Ready Proximity Transducer: Seamless Compatibility for Legacy System Upgrades

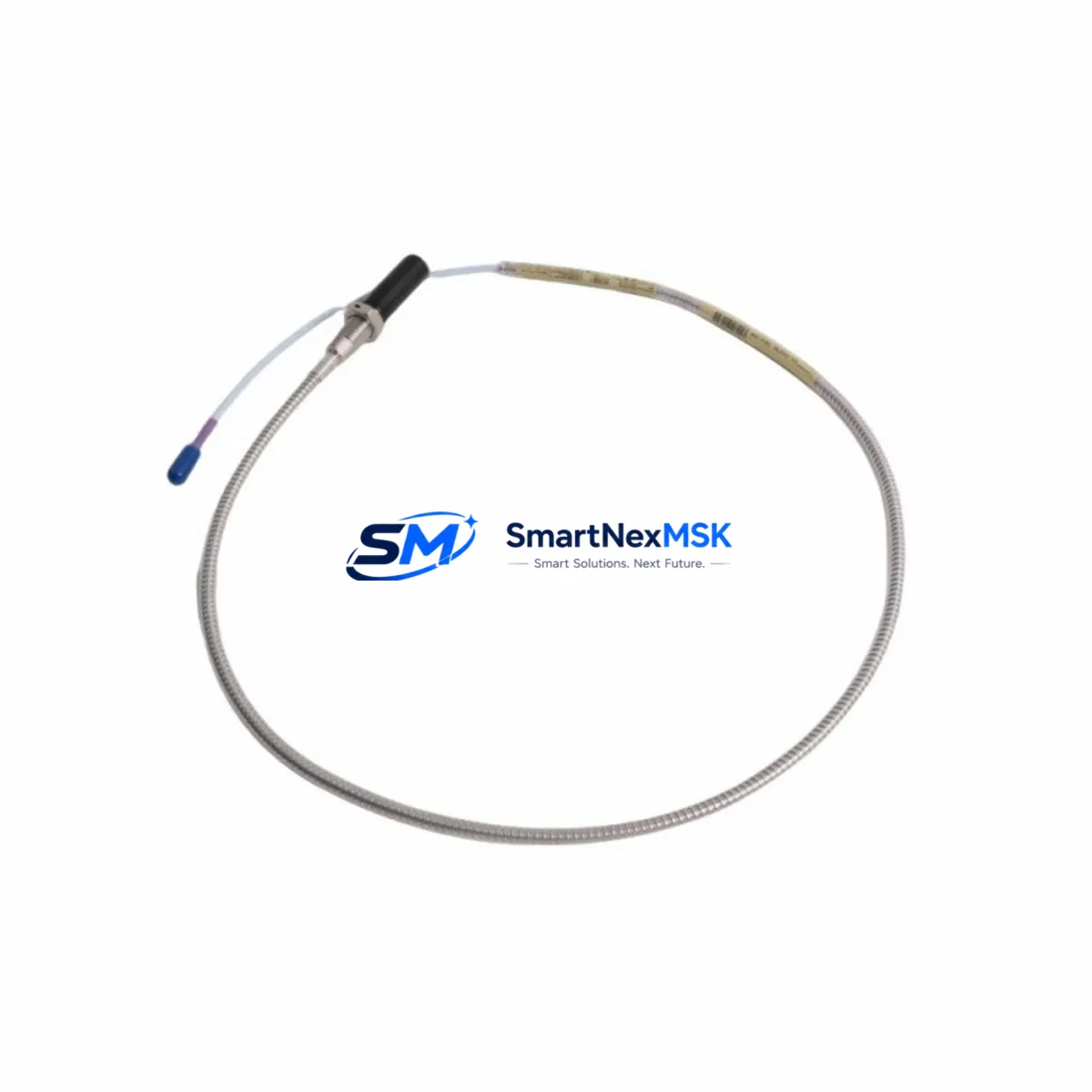

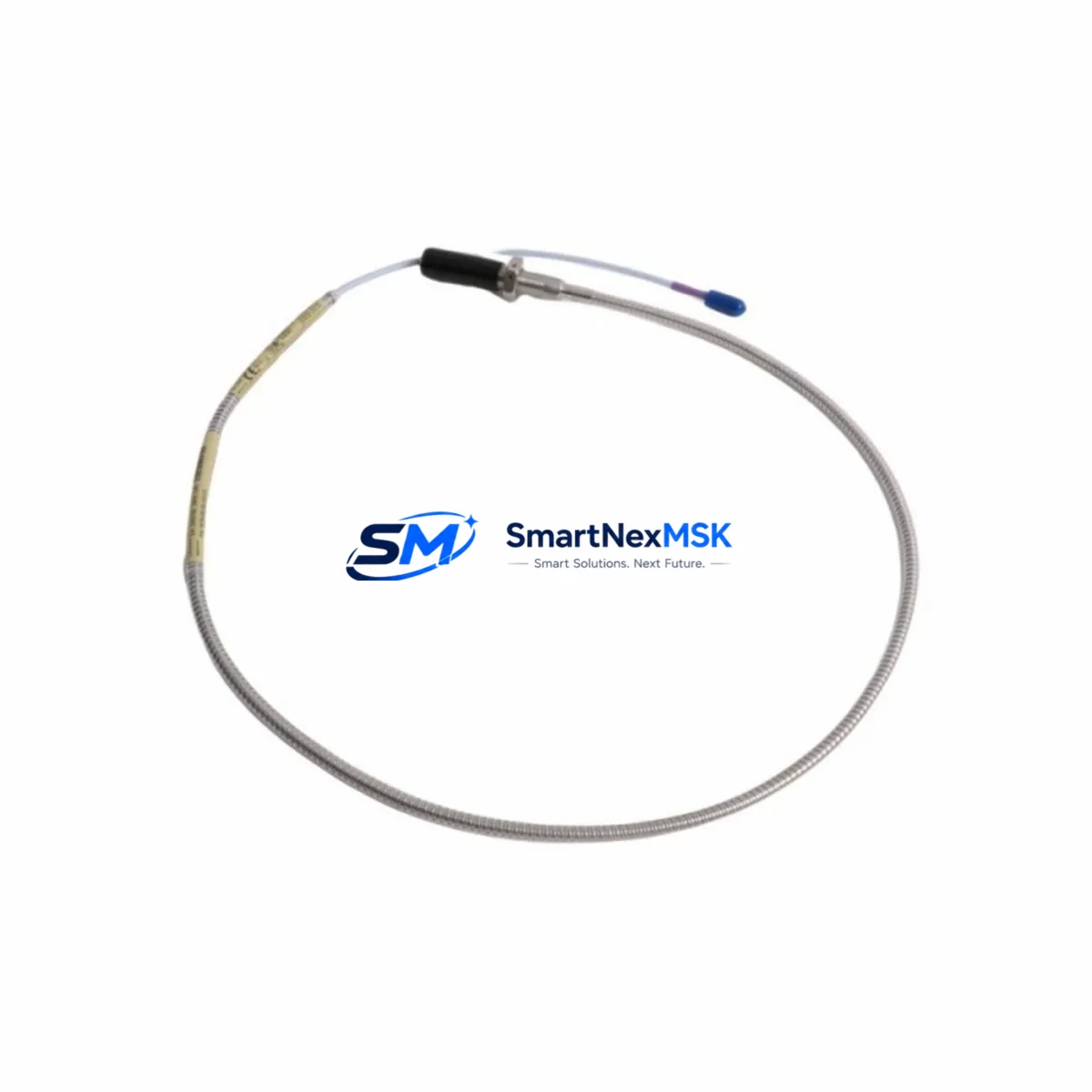

The Bently Nevada 330704-010-060-10-11-00 is an 11mm proximity transducer engineered for the 3300 XL Series continuous machinery monitoring platform. Designed to serve as a direct retrofit replacement for discontinued or end-of-life transducer assemblies in rotating machinery protection systems, this unit delivers the same eddy-current sensing performance as the original factory configuration — without requiring modifications to existing wiring, conduit runs, or monitor channel assignments.
Industrial facilities operating legacy vibration monitoring systems frequently encounter the challenge of sourcing compatible replacement transducers when original components reach end-of-life or are discontinued by the OEM. The 330704-010-060-10-11-00 addresses this directly: it maintains full electrical and mechanical compatibility with the 3300 XL monitor rack, allowing maintenance teams to execute a like-for-like swap during planned outages or emergency shutdowns without reprogramming the 3300 XL monitor or reconfiguring alarm setpoints.
When integrating this transducer into an existing 3300 XL installation, engineers should verify the power supply capacity of the installed 3300 XL Power Supply module, as the system’s 24 VDC rail must support the full transducer chain including any co-installed 3300 XL Velomitor or acceleration-based channels. Terminal block wiring at the I/O junction box should be confirmed against the original loop drawing — the standard three-wire configuration (power, common, output) is preserved, but cable shield termination at the field junction must be inspected for continuity before energizing the replacement unit.
Backplane slot assignment within the 3300 XL rack does not change when replacing a transducer of the same series and gap voltage specification. However, if the retrofit is part of a broader rack consolidation — for example, migrating from a legacy 3300 Series rack to a current 3300 XL rack — the channel address mapping within System 1 Evolution software must be updated to reflect the new physical slot positions. Any existing trend data and alarm history associated with the original channel should be archived before the migration to preserve the machinery health baseline.
For facilities upgrading from older Bently Nevada 7200 Series or 3000 Series transducer systems, the 330704-010-060-10-11-00 represents a forward-compatible migration path. The 3300 XL monitor accepts the standard Bently Nevada proximitor output range, and the 3300 XL Proximitor/Velomitor Input Module can be configured to accept the gap voltage and sensitivity (V/mm) of this transducer without hardware modification. Technicians should confirm that the installed 3300 XL I/O Module firmware revision supports the transducer’s output characteristics prior to commissioning.
In control cabinet upgrade projects where the 3300 XL rack is being relocated or a new marshalling panel is being constructed, the 330704-010-060-10-11-00 can be pre-tested on a bench using a standard Bently Nevada proximitor driver and a calibrated target disc before installation. This pre-shipment functional test — which is included with every unit supplied by SMARTNEXMSK — verifies gap voltage linearity, output impedance, and cable continuity across the full 5-metre extension cable assembly.
All units are supplied with a 12-month warranty covering manufacturing defects and electrical performance within published specifications. Stock is maintained for immediate dispatch, supporting both planned maintenance schedules and unplanned emergency replacement scenarios.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | 330704-010-060-10-11-00 |
| Brand / OEM | Bently Nevada |
| Series Compatibility | 3300 XL Machinery Monitoring System |
| Transducer Type | Eddy-Current Proximity Transducer, 11mm |
| Cable Length | 5 metres (extension cable included) |
| Output Sensitivity | 7.87 V/mm (standard Bently Nevada scale factor) |
| Power Requirement | -24 VDC (supplied via 3300 XL Proximitor driver) |
| Connector / Interface | Standard Bently Nevada coaxial, compatible with 3300 XL I/O Module |
| Installation Type | Direct drop-in replacement; no rack modification required |
| Communication Compatibility | Analog output; compatible with System 1 Evolution and System 1 Classic |
| Replacement Recommendation | Suitable replacement for discontinued 330704 series variants |
| Commissioning Note | Verify gap voltage (–10.0 to –18.0 VDC) at target after installation |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330704-010-060-10-11-00 into an operating plant begins with a thorough review of the existing machinery protection architecture. In most 3300 XL installations, the transducer is paired with a dedicated 3300 XL Proximitor driver module mounted in the monitor rack. Before removing the legacy transducer, the maintenance team should document the current gap voltage reading displayed on the 3300 XL monitor front panel or within System 1 Evolution, as this baseline value will be used to verify correct installation of the replacement unit.
Where the retrofit is part of a larger control system modernization — for example, integrating the 3300 XL rack with a new DCS or safety instrumented system — the 4–20 mA output from the 3300 XL monitor can be wired directly to the analogue input card of the new control platform without replacing the transducer chain. In such cases, the 3300 XL Power Supply module should be inspected to confirm it can sustain the additional load from any newly added 3300 XL Velomitor channels or 3300 XL Dual Voting Logic modules being introduced as part of the upgrade.
For facilities that are simultaneously upgrading their HMI infrastructure, the System 1 Evolution software platform supports OPC-DA and OPC-UA communication, allowing the 3300 XL data to be surfaced on modern SCADA displays without replacing the transducer or monitor hardware. The existing Ethernet communication module within the 3300 XL rack can be retained, and only the server-side OPC configuration requires updating.
In projects involving I/O expansion — for example, adding radial vibration monitoring to a previously unmonitored bearing position — the 330704-010-060-10-11-00 can be installed alongside existing channels in the same 3300 XL rack, provided a free slot is available in the 3300 XL I/O Module. If the rack is fully populated, a 3300 XL expansion rack with a dedicated 3300 XL Rack Interface Module can be added to the system without disrupting the existing channel configuration.
Programming cable access is not required for transducer replacement on the 3300 XL platform, as channel configuration is stored in the monitor module rather than the transducer. However, if the replacement is being performed as part of a firmware update to the 3300 XL monitor, a Bently Nevada-compatible RS-232 or USB programming cable will be needed to connect a laptop running System 1 Evolution to the monitor’s configuration port.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern when replacing a proximity transducer in a live machinery protection system. The 330704-010-060-10-11-00 is designed to support a rapid swap procedure: because it is electrically and mechanically identical to the original 330704 series assembly, the replacement can be completed within a single planned maintenance window without requiring changes to the 3300 XL monitor configuration, alarm setpoints, or System 1 Evolution database.
To protect the original program logic during the swap, the 3300 XL monitor channel should be placed in bypass mode before disconnecting the field transducer. This prevents a spurious vibration alarm from triggering a machine trip during the installation period. Once the 330704-010-060-10-11-00 is installed and the gap voltage has been verified within the acceptable range (–10.0 to –18.0 VDC), the bypass can be removed and the channel returned to normal monitoring mode.
For critical machinery where continuous monitoring is required, a temporary portable vibration analyser can be connected to the machine bearing housing during the transducer swap to maintain surveillance of shaft vibration levels. This approach allows the 3300 XL channel to be taken offline for the replacement procedure without creating an unmonitored period in the machinery protection record.
All units supplied by SMARTNEXMSK are pre-tested prior to shipment, including gap voltage linearity verification and cable continuity checks, reducing the risk of a failed installation and the associated additional downtime. The 12-month warranty provides further assurance that the replacement unit will perform within specification for the duration of the next planned maintenance interval.
Retrofit Support FAQ
Q: Is the 330704-010-060-10-11-00 a direct replacement for other 330704 series variants?
A: The 330704-010-060-10-11-00 is compatible with 3300 XL monitor racks configured for 11mm proximity transducers with standard Bently Nevada sensitivity (7.87 V/mm). Other 330704 suffix variants may differ in cable length or connector type — confirm the suffix against your existing loop drawing before ordering.
Q: Does replacing the transducer require reprogramming the 3300 XL monitor?
A: No. Channel configuration, alarm setpoints, and gap voltage thresholds are stored in the 3300 XL monitor module, not in the transducer. A like-for-like replacement of the 330704-010-060-10-11-00 does not require any changes to the monitor configuration or System 1 Evolution database.
Q: What wiring checks should be performed before commissioning the replacement unit?
A: Verify cable shield continuity from the transducer tip to the junction box termination, confirm the three-wire connection (power, common, output) matches the original loop drawing, and measure the gap voltage at the installed target to confirm it falls within –10.0 to –18.0 VDC before removing the monitor bypass.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and electrical performance within published specifications for 12 months from the date of shipment. Units that fail within the warranty period will be replaced or repaired at no charge. All units are functionally tested prior to dispatch to minimize the risk of DOA failures on site.
