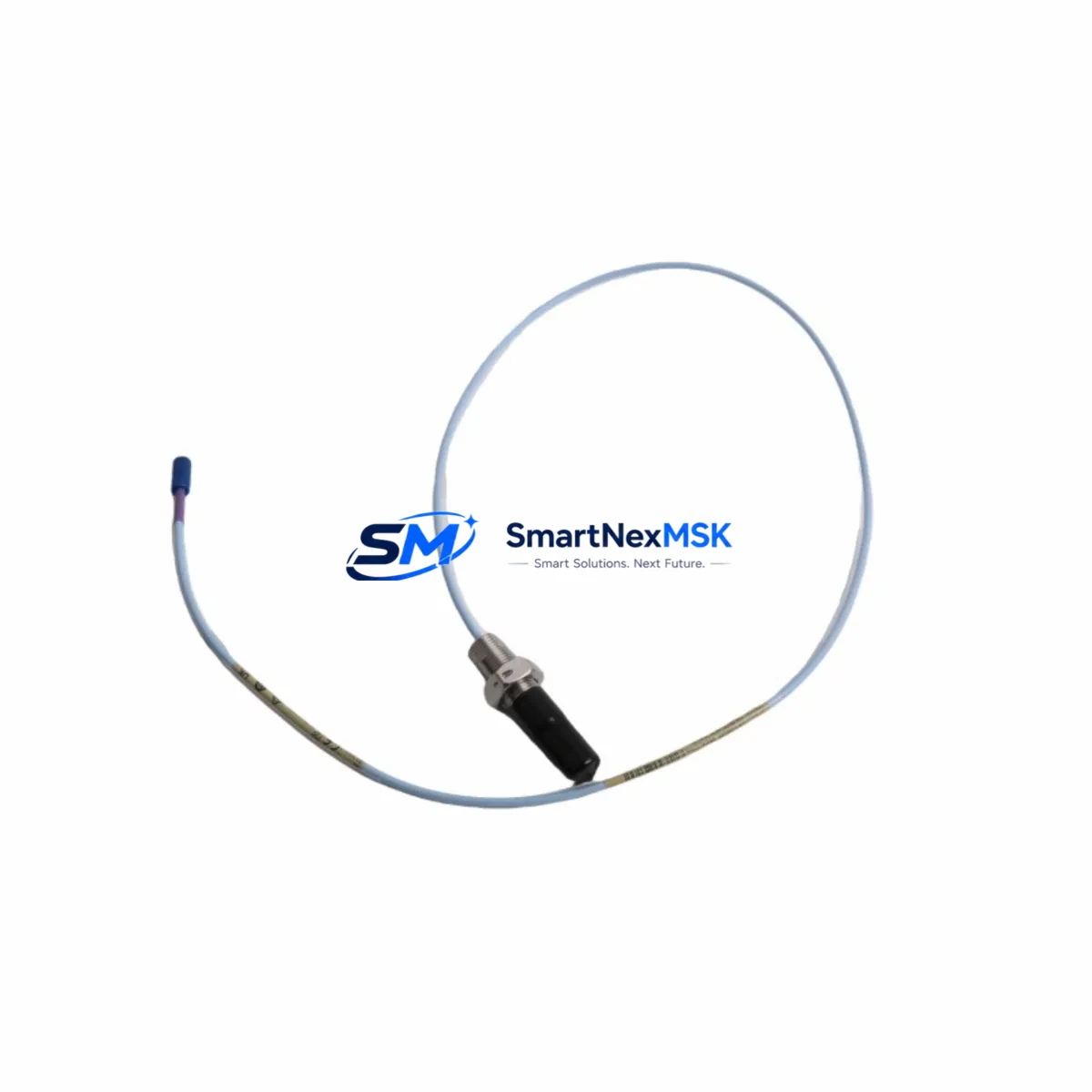

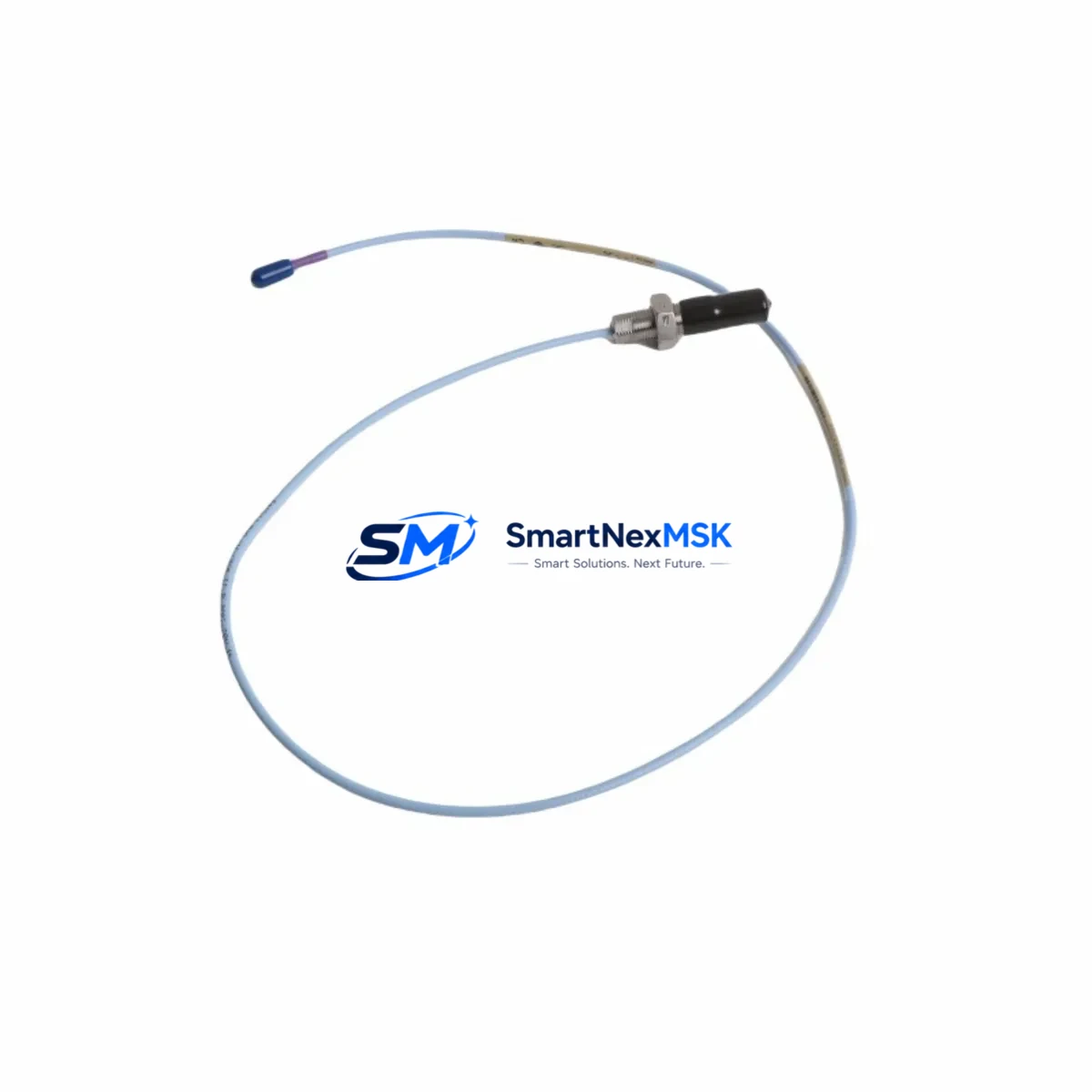

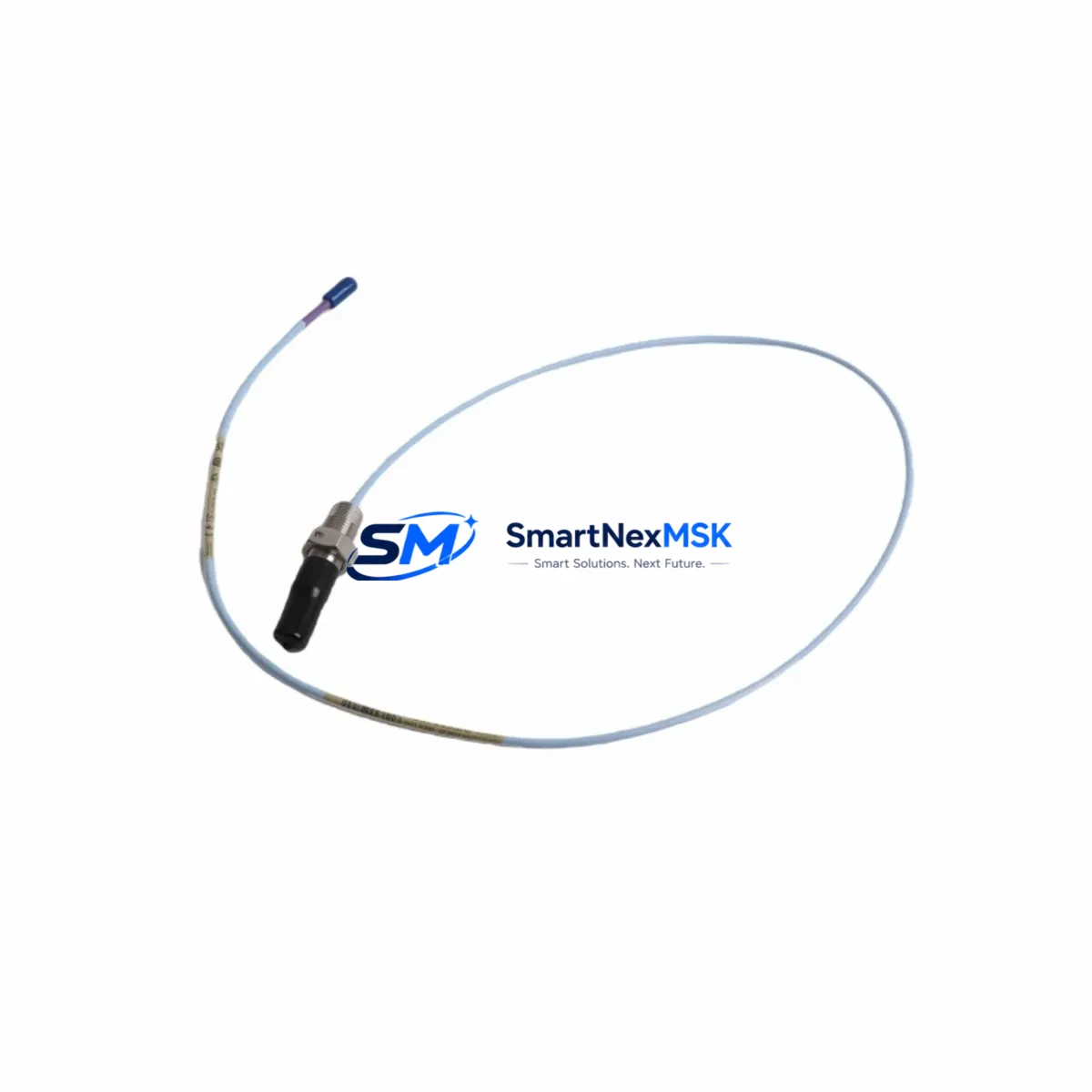

Bently Nevada 330707-00-20-10-12-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330707-00-20-10-12-00 is an 11mm eddy-current proximity transducer engineered for the 3300 XL Series machinery protection and condition monitoring platform. As legacy vibration monitoring infrastructure ages across petrochemical, power generation, and heavy industrial facilities, this transducer serves as the definitive retrofit-ready replacement for discontinued or end-of-life units within the 3300 XL ecosystem. Whether you are executing a planned control system upgrade, recovering from an unplanned transducer failure, or modernizing a legacy monitoring rack, the 330707-00-20-10-12-00 delivers verified drop-in compatibility with minimal engineering intervention.
This unit is fully compatible with the Bently Nevada 3300 XL Monitor series, including the 3300/16 and 3300/20 rack-mounted monitors. It integrates directly with the 3300 XL Extension Cable assemblies and the 3300 XL Proximitor Sensor signal conditioning modules, preserving the original signal chain without requiring recalibration of the monitoring rack. Engineers replacing worn or damaged transducers in rotating machinery applications — including turbines, compressors, pumps, and gearboxes — will find this unit ready for immediate field installation.
Upgrade Compatibility Table
| Parameter | 330707-00-20-10-12-00 Specification | Retrofit Notes |
|---|---|---|
| Transducer Type | Eddy-Current (Non-Contact) Proximity | Direct replacement for 3300 XL 11mm series |
| Tip Diameter | 11mm | Verify mounting bore matches existing installation |
| Cable Length | 2.0m (integral cable) | Match with 3300 XL Extension Cable for total system length |
| Thread Size | M14 x 1.0 | Confirm thread engagement depth in mounting bracket |
| Signal Conditioning | Requires 3300 XL Proximitor Sensor | Compatible with existing Proximitor; no substitution needed |
| Supply Voltage | -24 VDC (from Proximitor) | Verify power supply rail capacity in monitoring rack |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) | Confirm monitor input scaling matches this sensitivity |
| Communication / Protocol | Analog 4–20 mA / Voltage output via Proximitor | Compatible with DCS analog input cards and safety PLC AI modules |
| Installation Interface | 3300 XL Rack / Backplane | No backplane modification required for direct swap |
| Commissioning Requirement | Gap voltage verification (typically -10 VDC at nominal gap) | Adjust gap per OEM specification; re-verify alarm setpoints |
| Warranty | 12-Month Warranty — Covered against manufacturing defects from date of shipment | |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330707-00-20-10-12-00 into an existing machinery protection system requires a structured pre-installation review. Begin by auditing the current monitoring rack configuration. In a typical 3300 XL installation, the rack houses the 3300/16 or 3300/20 Monitor alongside the 3300 XL Proximitor Sensor, a dedicated 3300 XL Power Supply Module, and the 3300 XL I/O Module that interfaces with the plant DCS or safety instrumented system. Confirm that the power supply module is delivering a stable -24 VDC rail before installing the replacement transducer, as voltage sag can cause false gap readings during initial commissioning.
Terminal wiring for the 330707-00-20-10-12-00 follows the standard 3300 XL three-wire configuration: power, common, and signal output. When replacing a failed transducer in a live rack, label all existing terminal connections before disconnection. If the plant uses a 3300 XL Junction Box or field-mounted terminal enclosure to transition from the integral transducer cable to the extension cable run, inspect the junction box terminals for corrosion or loose connections — a common source of intermittent signal faults that are often misdiagnosed as transducer failure.
For facilities migrating from older Bently Nevada 7200 Series or 3300 Series (non-XL) transducers, note that the 330707-00-20-10-12-00 is not backward-compatible with legacy Proximitor models. In these cases, the upgrade path typically involves replacing both the transducer and the Proximitor sensor as a matched system pair. The 3300 XL Proximitor Sensor (330180 series) is the recommended companion module for this transducer. If the existing DCS analog input card is configured for a different sensitivity scale, update the engineering unit conversion in the DCS configuration before going live.
Where the plant safety architecture includes a Safety PLC or Emergency Shutdown System (ESD) receiving vibration trip signals from the 3300 XL monitor, coordinate the transducer swap with the safety system team. Bypass procedures must be in place to prevent spurious trips during the gap-setting procedure. After installation, verify the gap voltage at the Proximitor output terminal, confirm the signal reaches the DCS historian, and validate alarm and trip setpoints against the original machinery protection philosophy document before releasing the bypass.
Downtime Control During System Migration
Minimizing production downtime during a transducer replacement is a primary concern for maintenance teams operating continuous-process facilities. The 330707-00-20-10-12-00 is supplied pre-tested and gap-verified where possible, reducing on-site commissioning time to a gap confirmation and signal check rather than a full calibration cycle. To further compress the maintenance window, prepare the replacement transducer, extension cable, and all required tools before the planned outage begins.
Where the machinery protection system supports channel bypass or inhibit functions — available on the 3300/16 Monitor and 3300/20 Monitor — activate the channel inhibit for the affected measurement point before disconnecting the old transducer. This prevents the monitor from issuing a danger alarm or trip signal during the swap. Document the inhibit activation time in the maintenance log and ensure the inhibit is cleared immediately after the new transducer gap is confirmed within specification.
If the plant DCS is logging the vibration channel, the historian will record a data gap during the inhibit period. Annotate the historian with a maintenance event tag to distinguish the gap from a genuine process anomaly. Once the 330707-00-20-10-12-00 is installed and the gap voltage is confirmed, perform a slow-roll check if the machine can be brought to low speed before returning to full load. This validates the transducer signal quality and confirms that the monitor is receiving a clean, noise-free output before the machine is returned to service. The entire swap procedure — from isolation to signal confirmation — can typically be completed within a two-hour maintenance window by an experienced instrumentation technician.
Retrofit Support FAQ
Q1: Is the 330707-00-20-10-12-00 a direct drop-in replacement for my existing 3300 XL proximity transducer?
Yes, provided your existing transducer is also an 11mm 3300 XL series unit with M14 x 1.0 thread and a 2.0m integral cable. Confirm the tip diameter, cable length, and thread specification against your as-built documentation before ordering. If your installation uses a different cable length variant, contact our sales team to confirm the correct part number.
Q2: Do I need to recalibrate the Proximitor Sensor or the 3300 XL Monitor after installing this replacement transducer?
Full recalibration of the Proximitor or monitor is not required for a like-for-like transducer swap. However, you must verify the gap voltage at the Proximitor output terminal and confirm it falls within the OEM-specified range (typically -10 VDC ± 0.5 VDC at nominal gap). If the gap voltage is outside tolerance, adjust the transducer mounting position accordingly. Alarm and trip setpoints should be reviewed but do not need to be changed unless the machinery protection philosophy has been updated.
Q3: What wiring changes are required when replacing the transducer in a field junction box?
No wiring changes to the extension cable or junction box are required for a direct transducer replacement. Disconnect the integral cable from the junction box terminals, noting the terminal assignments, and reconnect the new transducer cable to the same terminals. Inspect the terminal block for corrosion or loose screws and clean or replace as needed. Ensure the cable shield is terminated correctly at the junction box to maintain signal integrity.
Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the specified environmental ratings. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, a description of the fault, and photographic evidence of the defect. Replacement units are dispatched after fault verification, and return shipping of the defective unit is required.
