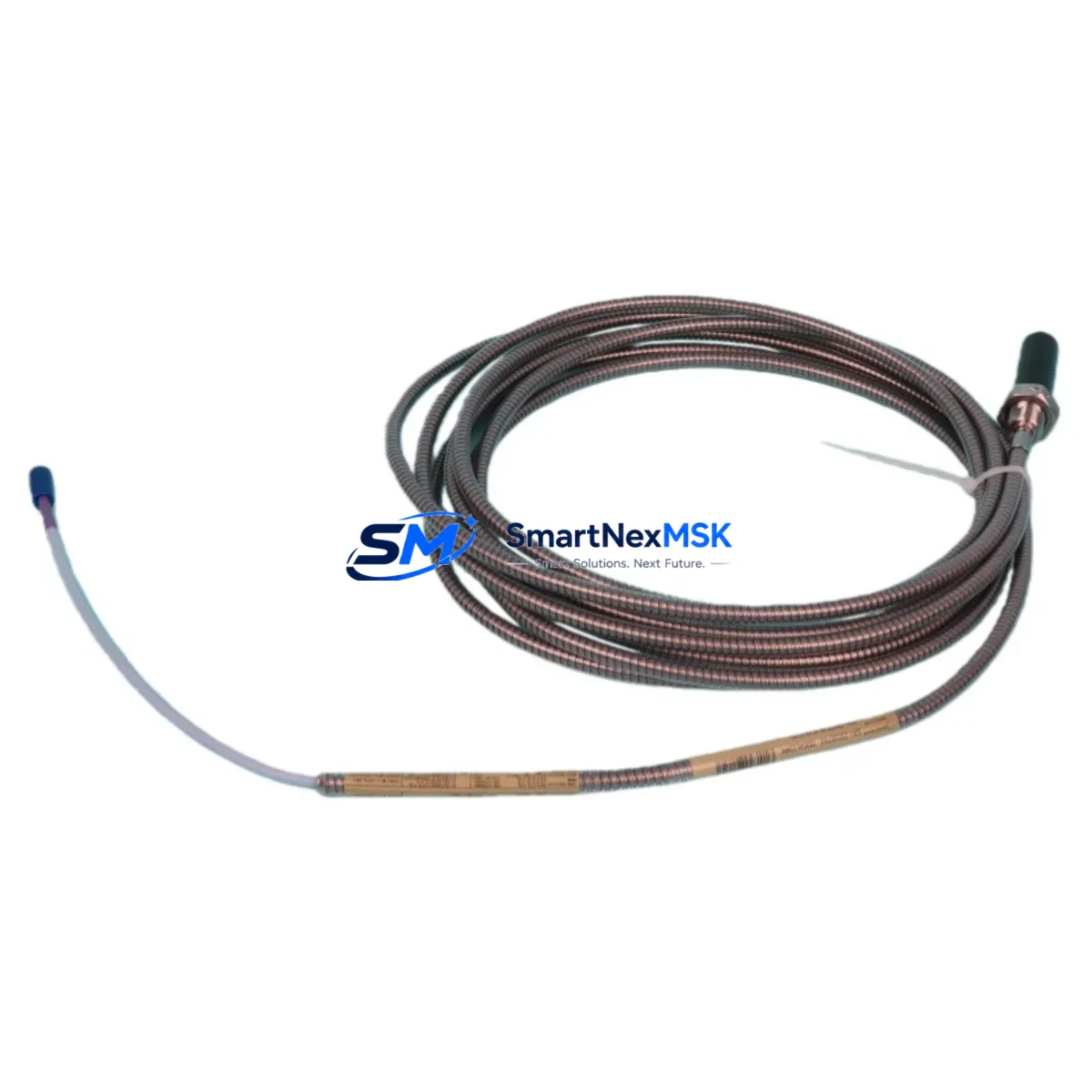

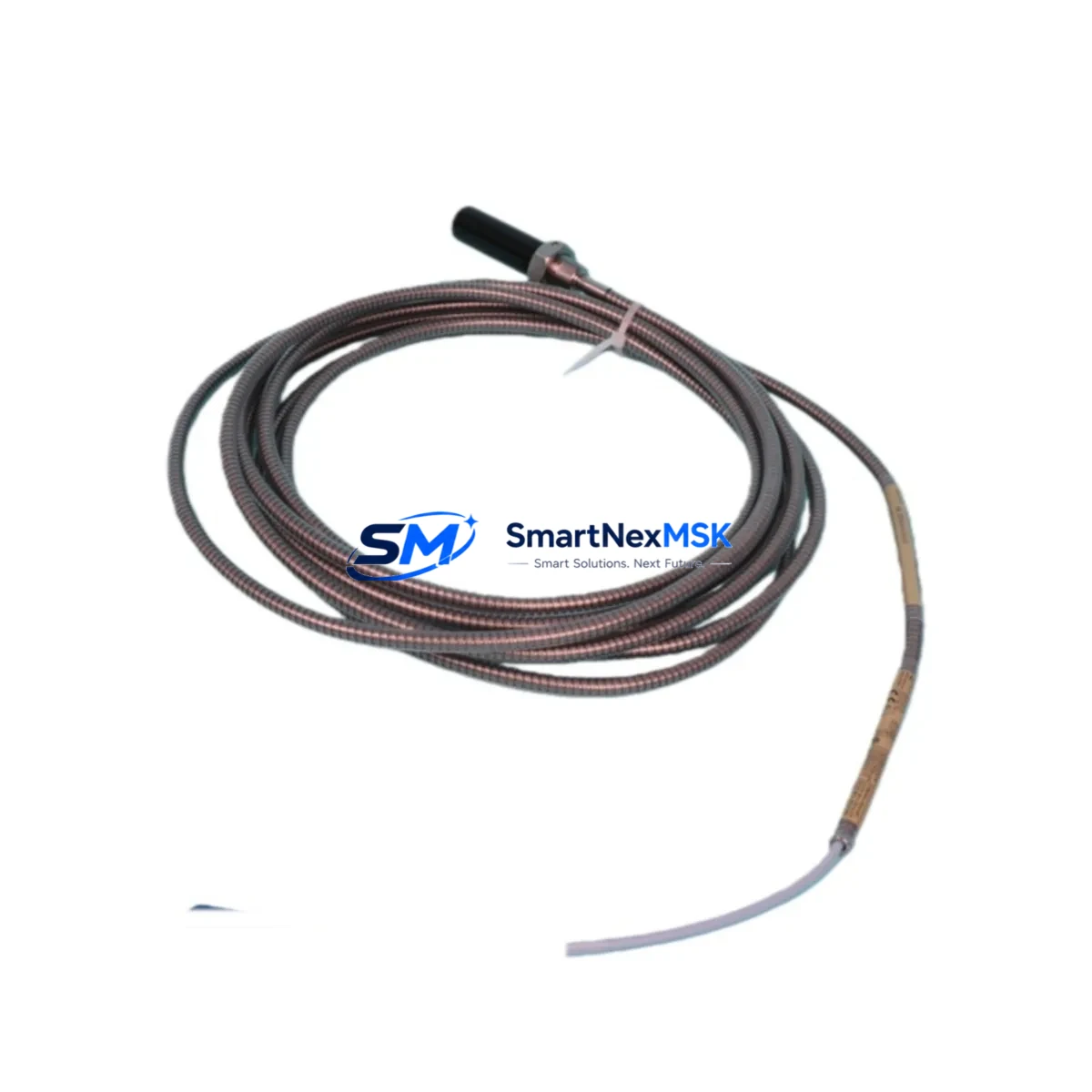

Bently Nevada 330708-00-25-90-02-00 Retrofit-Ready 8mm Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330708-00-25-90-02-00 is an 8mm eddy-current proximity probe engineered for direct retrofit into existing 3300 XL Series vibration monitoring systems. As legacy Bently Nevada installations age and original spare parts become increasingly difficult to source, this probe provides a verified drop-in replacement path that preserves signal integrity, maintains system calibration, and eliminates the need for costly rewiring or software reconfiguration. Whether you are managing a planned outage, responding to an unplanned probe failure, or executing a broader condition monitoring upgrade, the 330708-00-25-90-02-00 is stocked and ready for immediate dispatch with a 12-month warranty.
This probe is designed to interface directly with the 3300 XL proximitor/sensor, including the 3300 XL 8mm Proximitor Sensor (330180-91-00 series), without modification to the existing extension cable or field wiring. The standard -25 gap voltage range and 90-degree connector orientation match the original factory specification, allowing technicians to complete a probe swap during a scheduled maintenance window with minimal downtime exposure.
Upgrade Compatibility Table
| Parameter | 330708-00-25-90-02-00 (This Unit) | Notes |
|---|---|---|
| Probe Diameter | 8mm | Matches 3300 XL 8mm system standard |
| Connector Orientation | 90° | Drop-in fit for existing conduit routing |
| Gap Voltage Range | -25V nominal | Compatible with standard proximitor calibration |
| Extension Cable Interface | Standard 3300 XL coaxial | No re-termination required |
| Proximitor Compatibility | 330180-91-00 series | Verified signal chain compatibility |
| Communication Protocol | Analog (4–20mA / voltage output) | No protocol migration required |
| Installation Requirement | Standard probe holder / armour | Reuse existing mounting hardware |
| Replacement Recommendation | Direct swap; re-gap to -10.36V ±0.5V | Verify gap with oscilloscope or Keyphasor |
| Commissioning Focus | Gap voltage, signal noise floor, OK relay | Check 3300 XL rack OK status after installation |
| Warranty | 12 Months | Covers manufacturing defects and signal failure |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the 330708-00-25-90-02-00 into an operating plant begins well before the maintenance window opens. Engineers should first audit the existing 3300 XL rack configuration, confirming the monitor card type — typically a 3300/16 or 3300/20 radial vibration monitor — and verifying that the proximitor power supply rail is within specification. The 3300 XL system draws probe power through the proximitor, so any degradation in the 24VDC rack supply will affect the replacement probe’s gap voltage stability just as it affected the original.
Extension cable continuity is the next critical checkpoint. The existing Bently Nevada 330130-080-00-00 or equivalent 8-metre extension cable should be tested for shield integrity and centre-conductor resistance before the new probe is connected. A damaged extension cable is a common root cause of premature probe failure and will invalidate warranty claims if not identified prior to installation.
For plants running a full 3300 XL machinery protection system, the retrofit scope often extends beyond the probe itself. Technicians frequently discover that adjacent components — including the 3300/55 temperature monitor, 3300/25 thrust position monitor, or 3300/46 speed monitor — require inspection or recalibration during the same outage. Coordinating these checks in a single planned shutdown significantly reduces total downtime compared to addressing each module separately.
Where the 3300 XL rack interfaces with a DCS or safety system via a 3500/92 communication gateway or a Modbus TCP bridge, the retrofit team should confirm that the OK relay output and alarm setpoints are correctly mapped in the host system before returning the machine to service. HMI screens displaying vibration trend data should be validated against the new probe’s live output to confirm that engineering unit scaling and alarm thresholds remain accurate.
Plants migrating from older Bently Nevada 7200 Series or 3000 Series proximity systems to the 3300 XL platform will find that the 330708-00-25-90-02-00 serves as a standardisation anchor — establishing a common 8mm probe format across the upgraded machinery train. This simplifies spare parts inventory, reduces technician training requirements, and supports a single calibration procedure across multiple measurement points. Companion components commonly required during such migrations include the 330130 series extension cables, 330180 proximitor sensors, and 3300 XL rack power supplies.
Downtime Control During System Migration
Minimising production loss during a probe replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, the replacement 330708-00-25-90-02-00 should be bench-tested against a known-good proximitor to confirm gap voltage response and OK relay behaviour. This pre-commissioning step eliminates the risk of discovering a transit-damaged probe after the machine is already shut down.
During the swap, the original probe’s gap measurement should be recorded as a baseline. The replacement probe should be installed to the same gap depth — typically 2.0mm for an 8mm probe targeting -10.36V — and the gap voltage confirmed with a calibrated voltmeter before the extension cable is reconnected to the proximitor. The 3300 XL rack’s OK status should be verified at the monitor card level before the machine is restarted, ensuring that the protection system is fully armed and that no latched alarms are masking a genuine fault condition.
For critical machinery where continuous monitoring is required, a temporary bypass of the vibration protection channel — using the 3300 XL’s inhibit function — allows the probe swap to be completed without triggering an automatic trip. This approach preserves production continuity while the replacement is installed and commissioned, and the inhibit should be removed and the channel verified before the bypass window closes.
All retrofit activities should be documented in the plant’s maintenance management system, including the as-found gap voltage, as-left gap voltage, extension cable test results, and OK relay confirmation. This documentation supports warranty claims, audit compliance, and future predictive maintenance planning.
Retrofit Support FAQ
Q: Is the 330708-00-25-90-02-00 a direct replacement for the original Bently Nevada part?
A: Yes. This unit replicates the original 330708-00-25-90-02-00 specification including probe diameter, connector orientation, gap voltage range, and extension cable interface. No wiring modifications or software changes are required for a standard 3300 XL installation.
Q: What commissioning steps are required after installation?
A: After mechanical installation, set the probe gap to achieve -10.36V ±0.5V at the proximitor output. Verify the OK relay is energised, confirm alarm and danger setpoints are active in the 3300 XL monitor card, and check that the DCS or HMI is receiving a valid vibration signal before returning the machine to service.
Q: Can this probe be used with extension cables and proximitors from other Bently Nevada series?
A: The 330708-00-25-90-02-00 is optimised for the 3300 XL system. Cross-series use with 7200 Series or 3000 Series proximitors is not recommended without a full system compatibility review, as gap voltage calibration curves and OK relay thresholds differ between platforms.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects, signal output failure, and connector integrity under normal operating conditions. It does not cover damage resulting from incorrect installation gap, reversed polarity, or use with incompatible extension cables. Pre-shipment functional testing is performed on every unit before dispatch.
