Bently Nevada 330709-000-050-10-02-00 Retrofit 3300 XL Probe

Bently Nevada 330709-000-050-10-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

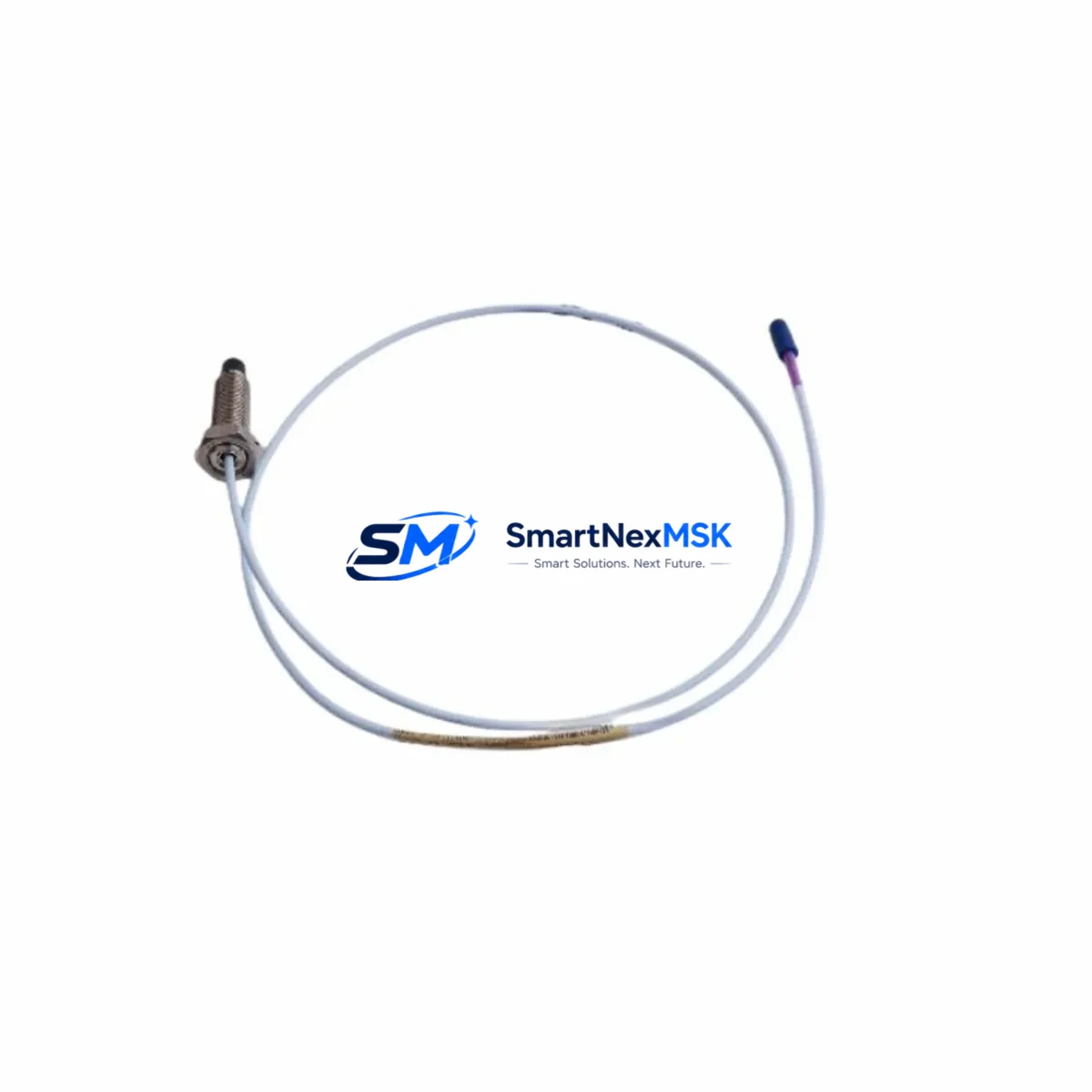

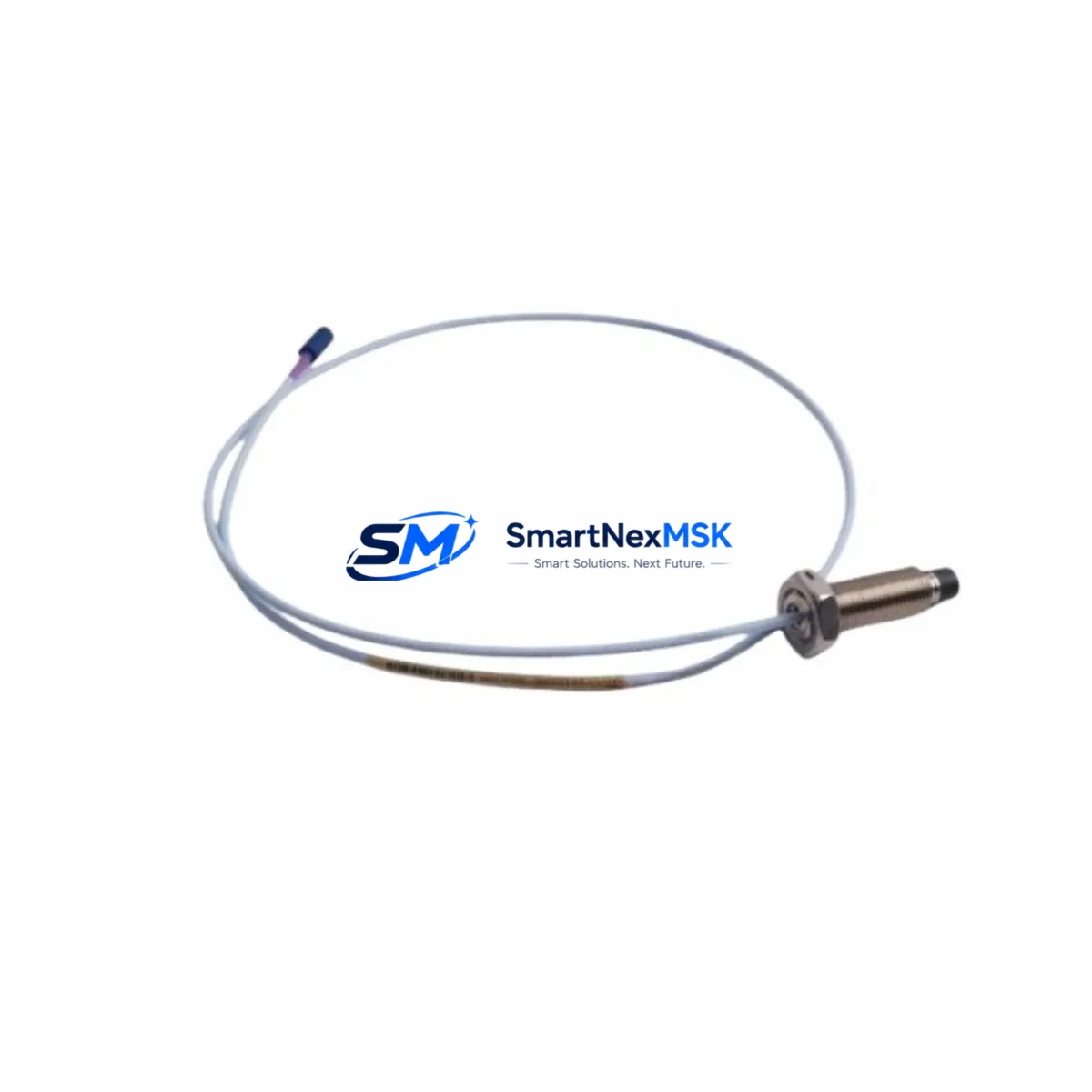

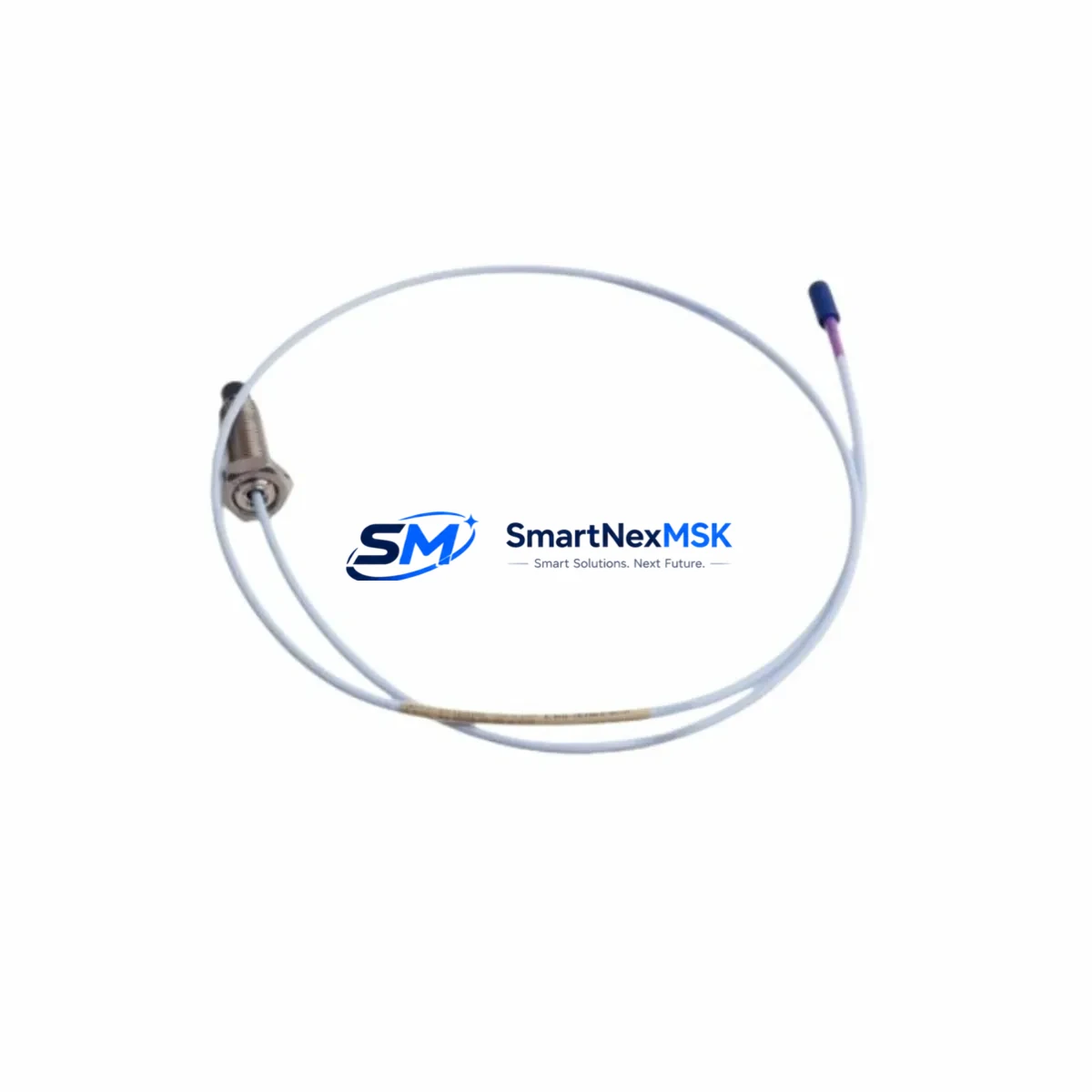

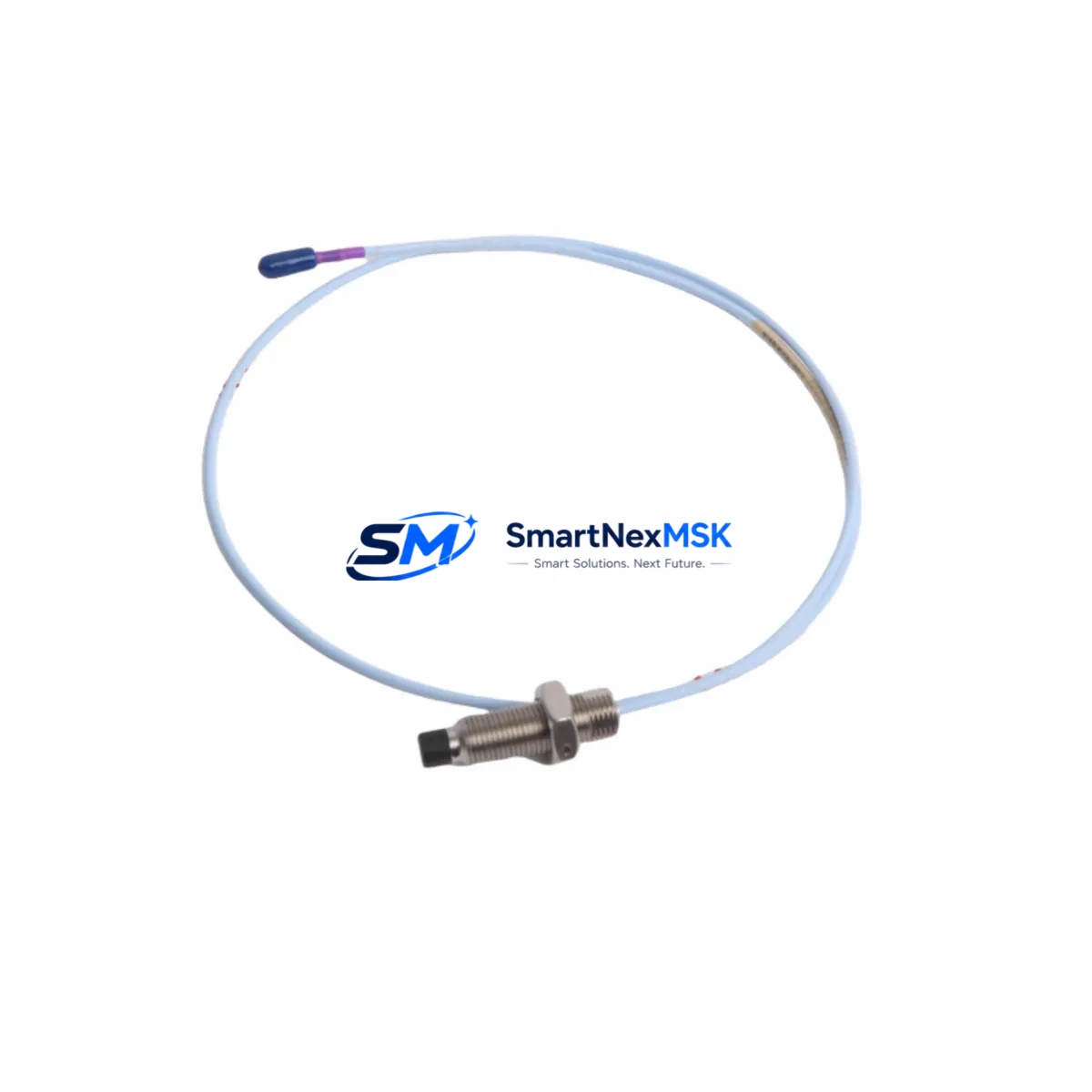

The Bently Nevada 330709-000-050-10-02-00 is an 8mm eddy-current proximity probe engineered for seamless compatibility with the 3300 XL Series machinery protection system. As legacy 3300 XL installations approach end-of-support milestones and original OEM spares become increasingly scarce, this retrofit-ready probe provides a verified drop-in replacement path for vibration monitoring, radial shaft displacement, and thrust position measurement across rotating machinery applications including steam turbines, gas compressors, centrifugal pumps, and large induction motors.

Designed to interface directly with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor (driver electronics), the 330709-000-050-10-02-00 maintains the same 5-metre integral cable configuration, M8 threaded tip geometry, and –24 VDC bias voltage output characteristics as the original factory part. Engineers migrating from discontinued 7200 Series probes or consolidating multi-vendor monitoring architectures onto a unified 3300 XL or 3500 Series platform will find this probe fully interchangeable at the terminal block level, eliminating the need for signal conditioning recalibration in most retrofit scenarios.

When planning a retrofit or spare-parts replenishment for an existing 3300 XL rack, the following parameters must be verified before installation: (1) Power supply capacity — confirm the 3300 XL Power Supply module in the rack can sustain the additional –24 VDC loop current draw without exceeding its rated output; (2) Terminal wiring — the probe’s coaxial cable terminates at the Proximitor input connector using the standard BNC-to-barrier-strip adapter; verify conductor polarity and shield grounding against the original loop drawing; (3) Backplane interface — the 3300 XL monitor card occupies a dedicated slot in the 3300 XL Rack (typically a 19-inch, 4U or 7U chassis); confirm slot assignment and that the 3300 XL Vibration Monitor card firmware revision supports the probe’s sensitivity scale factor (7.87 V/mm); (4) Module address and channel mapping — re-verify the channel address DIP-switch settings on the monitor card after probe swap to prevent cross-channel alarm misrouting in the System 1 Evolution condition monitoring software; (5) Program logic compatibility — if the machinery protection logic is integrated with a Bently Nevada 3500/42M Proximitor I/O module or a third-party safety PLC, confirm that the probe’s output scale factor and gap voltage table match the existing configuration file before re-enabling trip logic; (6) HMI screen validation — update the operator HMI trend displays and alarm setpoint screens to reflect the new probe’s calibration curve, particularly if the previous probe had been field-trimmed; (7) Communication link integrity — verify that the Modbus RTU or 3500 TDI (Transient Data Interface) link between the 3300 XL rack and the plant DCS or historian remains intact after the probe replacement, as a wiring disturbance during installation can introduce ground loops that corrupt the 4–20 mA analog output; (8) Field commissioning procedure — perform a static gap check at the recommended 1.0 mm air gap (–10.0 VDC output), a dynamic runout check at operating speed, and a full alarm/trip functional test before returning the machine to service.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330709-000-050-10-02-00 retrofit begins well before the maintenance window opens. Start by auditing the existing 3300 XL rack configuration: document every occupied slot, the firmware revision of each 3300 XL Vibration Monitor card, and the current gap voltage readings for all installed probes. If the rack also houses a 3300 XL Keyphasor Module for phase-reference triggering, confirm that the Keyphasor probe loop is isolated from the replacement probe’s wiring run to prevent induced noise on the speed signal.

For plants running a mixed-generation monitoring architecture — for example, a 3300 XL rack alongside a newer 3500/22M Transient Data Interface or a System 1 Evolution server — the replacement probe must be re-registered in the System 1 asset database with the correct sensitivity and gap table. Failure to update this record will cause the historian to log incorrect engineering-unit values and may trigger nuisance alarms during the first post-maintenance run-up.

Where the control cabinet also contains a Bently Nevada 3300 XL Power Supply and a 3300 XL I/O Module for relay output to the plant safety PLC, verify that the relay trip setpoints stored in the monitor card’s non-volatile memory are re-confirmed after any firmware update performed as part of the retrofit. If the plant uses a Bently Nevada 3500/15 Power Supply in an adjacent 3500 rack sharing the same cabinet, ensure the two power domains are properly isolated to prevent cross-rail voltage transients during probe loop energisation.

Technicians performing the physical swap should use the OEM-specified torque value for the M8 probe tip (typically 1.5–2.0 N·m) and route the integral cable away from high-voltage conductors and VFD output cables to minimise electromagnetic interference. A 3300 XL Proximitor Sensor mounted externally to the bearing housing should be inspected for corrosion on the BNC connector and replaced if the centre-pin contact resistance exceeds 0.5 Ω. Where the original installation used a 3300 XL 8mm Extension Cable to bridge the distance between the probe and the Proximitor, inspect the extension cable’s armoured jacket for mechanical damage before reuse — a compromised extension cable is a common source of intermittent gap-voltage drift that is frequently misdiagnosed as a probe failure.

Downtime Control During System Migration

Minimising unplanned downtime during a 330709-000-050-10-02-00 probe replacement requires a structured pre-outage preparation protocol. Before the maintenance window, pre-configure a spare 3300 XL Vibration Monitor card with the identical channel settings, alarm setpoints, and scale-factor calibration as the card currently in service. This hot-spare approach allows the monitor card to be swapped simultaneously with the probe if an in-situ card fault is discovered during the outage, avoiding a second unplanned shutdown.

To protect the original program logic, export a full configuration backup from the System 1 Evolution software and store it on an isolated engineering workstation before any hardware is disturbed. If the plant DCS receives vibration data via Modbus RTU from the 3300 XL rack, place the relevant DCS input tags in manual/override mode for the duration of the probe swap to prevent false process trips propagating to the distributed control system. Restore the tags to automatic mode only after the post-installation functional test confirms stable gap voltage and clean vibration waveforms.

For critical machinery where even a brief monitoring gap is unacceptable, consider a temporary portable vibration analyser connected to the machine’s existing accelerometer taps to maintain continuous condition monitoring while the eddy-current probe loop is de-energised. Once the 330709-000-050-10-02-00 is installed and the Proximitor output is verified, reconnect the 3300 XL monitor card, confirm the Modbus or 3500 TDI data link is re-established, and perform a controlled slow-roll run-up to verify runout compensation before returning the machine to full-load operation.

Retrofit Support FAQ

Q1: Is the 330709-000-050-10-02-00 a direct replacement for discontinued 7200 Series probes?
The 330709-000-050-10-02-00 is a 3300 XL Series probe and is not pin-for-pin compatible with 7200 Series probes, which use a different sensitivity scale factor (200 mV/mil vs. the 7200’s 100 mV/mil in some configurations) and a different Proximitor driver. A direct 7200-to-3300 XL migration requires replacing the Proximitor sensor and recalibrating the monitor card alarm setpoints. We can advise on the correct 3300 XL Proximitor Sensor part number for your specific 7200 Series driver housing upon request.

Q2: What pre-shipment testing is performed on each unit?
Every 330709-000-050-10-02-00 unit undergoes a full functional test prior to dispatch: static gap voltage verification at 1.0 mm air gap (–10.0 VDC ±0.5 V), sensitivity linearity check across the 0.25–2.25 mm measurement range, and coaxial cable continuity and insulation resistance test. A test certificate is available upon request. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Q3: Can this probe be used with a 3500 Series rack without modification?
Yes. The 330709-000-050-10-02-00 is compatible with the 3500/42M Proximitor I/O Module when paired with the correct 3300 XL Proximitor Sensor. The 3500 rack’s monitor card must be configured for 8mm probe sensitivity (7.87 V/mm). No hardware modification to the probe or cable is required; only the monitor card configuration file needs to be updated to reflect the 3300 XL probe’s gap table.

Q4: What is the lead time and warranty coverage?
In-stock units typically ship within 1–3 business days. All units carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimise your plant downtime. Contact our technical team for expedited shipping options for critical-path maintenance outages.
