Bently Nevada 330709-000-070-10-02-00 Spare 3300 XL Automation: Precision Spare Parts Replacement for Industrial Downtime Control

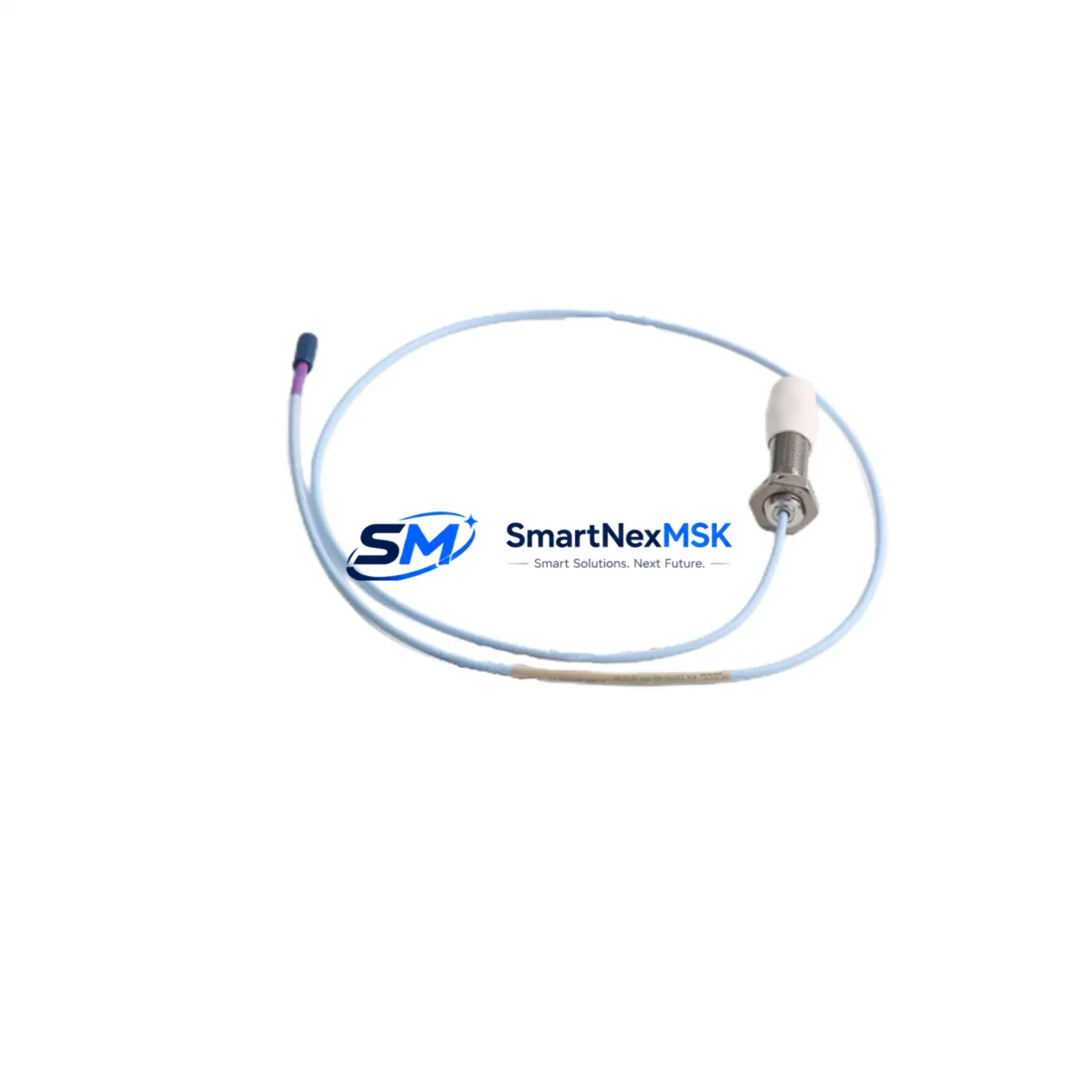

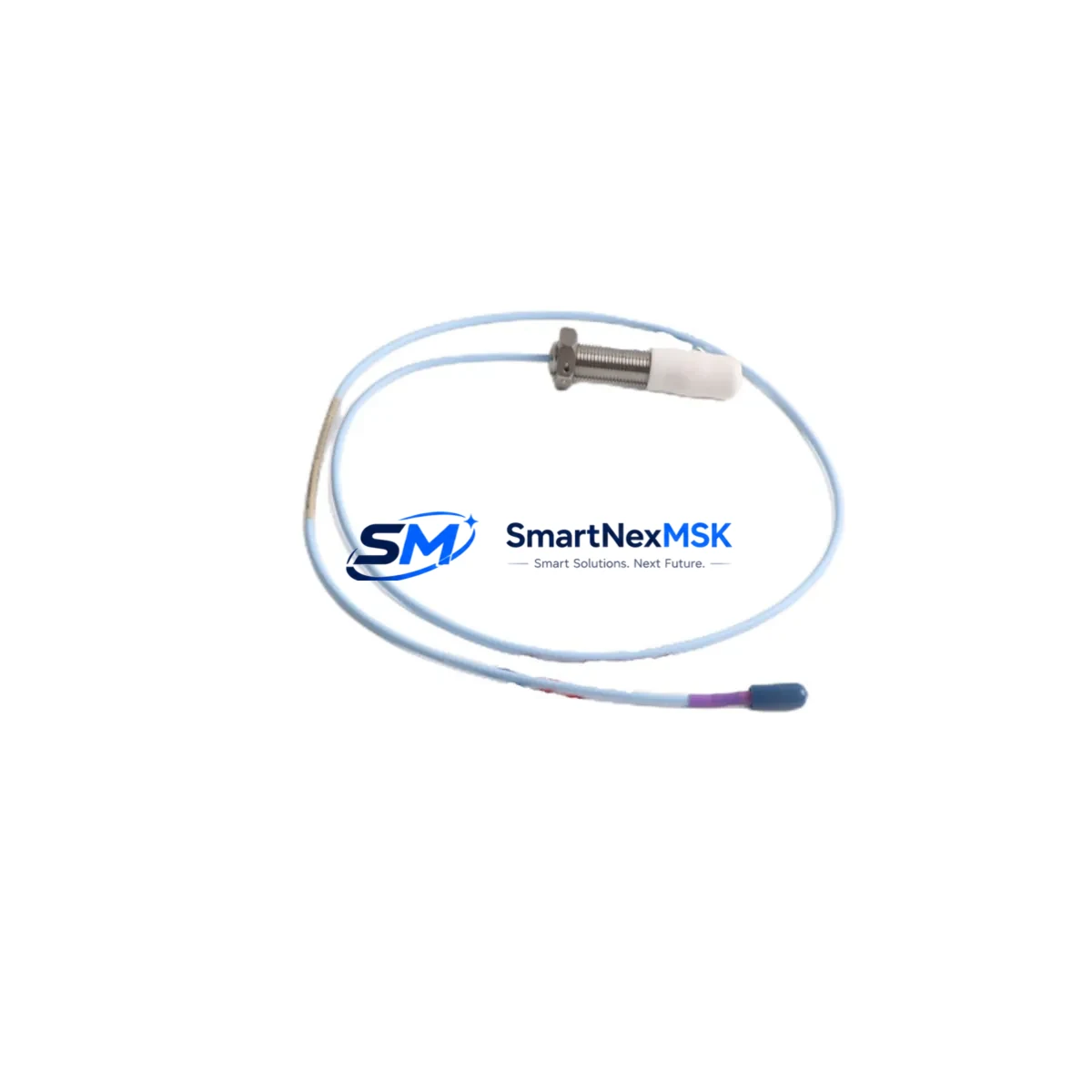

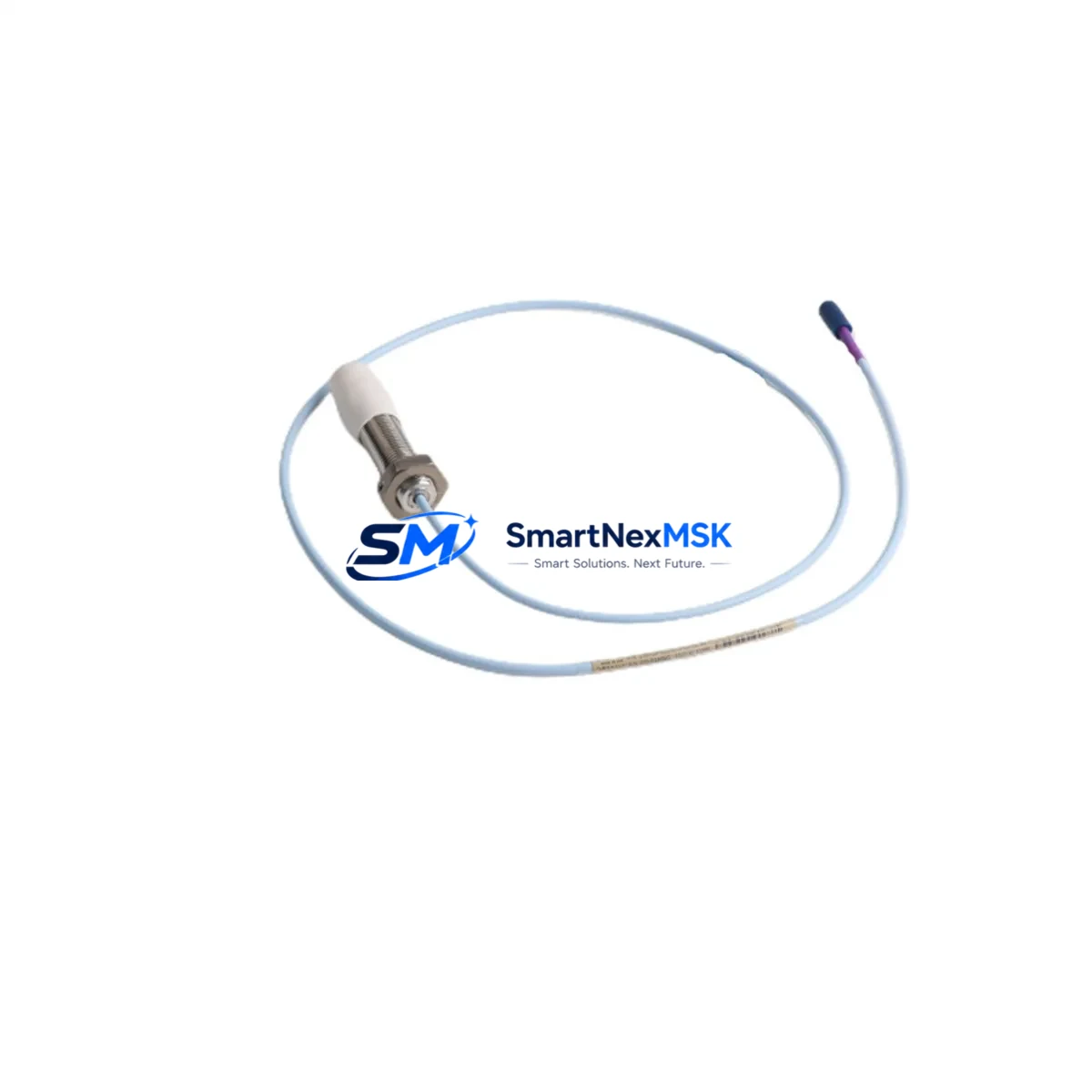

The Bently Nevada 330709-000-070-10-02-00 is an original 11mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed for radial vibration, axial position, and differential expansion measurement on rotating equipment — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — this probe is a critical component in any predictive maintenance and condition monitoring program. Sourced from original manufacturing channels, each unit is tested before shipment and backed by a 12-month warranty, ensuring reliable drop-in replacement with zero configuration drift.

For maintenance engineers managing aging turbomachinery or DCS-integrated monitoring loops, having a verified spare of the 330709-000-070-10-02-00 on the shelf is a fundamental risk-reduction strategy. Unplanned vibration probe failures can trigger emergency shutdowns, cascade into bearing damage diagnostics, and delay restart by days if the correct replacement is not immediately available. This unit ships ready for installation, with full compatibility confirmation against the 3300 XL monitor rack and standard Bently Nevada extension cable assemblies.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330709-000-070-10-02-00 proximity probe during a planned or emergency maintenance window, a thorough inspection of the surrounding measurement loop is essential to prevent repeat failures and ensure signal integrity. Maintenance engineers should treat this replacement as an opportunity to audit the full vibration monitoring chain.

Begin by inspecting the 3300 XL Proximitor/Seismic Monitor (e.g., 3300/16-02-01-00) — the signal conditioning module that powers the probe and converts gap voltage to a 4–20 mA or voltage output. A degraded Proximitor can produce erratic readings even with a new probe installed. Simultaneously, verify the extension cable assembly (typically 330130-series or 330180-series) for continuity, insulation resistance, and connector integrity; damaged extension cables are a leading cause of premature probe failure in high-vibration environments.

Check the -24 VDC power supply module feeding the monitor rack — voltage sag or ripple will directly affect probe linearity and gap calibration. If the rack uses a 3300/05 Power Supply or equivalent, verify output voltage under load. Inspect the terminal block and field wiring for corrosion, loose terminations, or ground loops, particularly in humid or chemically aggressive plant environments.

For systems integrated into a GE Bently Nevada System 1 or third-party DCS via 3500/92 Communication Gateway or Modbus/TCP interface module, confirm that the channel configuration — gap, sensitivity, and alert setpoints — is correctly mapped after probe replacement. A misconfigured channel can mask real vibration events or generate nuisance trips.

If the machine has been in service for more than five years, consider proactively replacing the 3300 XL keyphasor probe (e.g., 330980-series) alongside the radial probe — keyphasor signal degradation is a common co-failure mode in aging turbomachinery. Also inspect the I/O terminal board within the monitor rack for oxidized contacts, and verify that any signal isolator or Zener barrier used in ATEX/IECEx zones is within its rated service life. For facilities maintaining a lean spare parts inventory, the 330709-000-070-10-02-00 should be stocked alongside its companion extension cable, a spare Proximitor module, and at minimum one replacement 3300/05 power supply module — forming a complete vibration channel spare kit that enables full loop restoration within a single maintenance shift.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the monitor rack channel. Document the existing gap voltage reading (typically -10 VDC ±0.5 V at nominal gap) before removal.

Step 2 — Probe Removal: Unscrew the probe from the bracket. Disconnect the extension cable at the field junction. Inspect the probe tip and target surface for wear, scoring, or contamination.

Step 3 — New Probe Installation: Install the 330709-000-070-10-02-00 into the existing bracket. Set the gap to the manufacturer-specified nominal (typically 1.0 mm / 40 mil for 11mm probes). Reconnect the extension cable — ensure the connector is fully seated and the locking ring is tightened to prevent intermittent contact.

Step 4 — Loop Verification: Re-energize the channel. Measure the gap voltage at the Proximitor output. Confirm the reading falls within the linear range (-10 VDC ±1 V). Compare against the pre-removal baseline. If the reading deviates significantly, re-check the gap setting and extension cable continuity before returning the machine to service.

Step 5 — System Confirmation: Verify that the DCS or System 1 software reflects the correct channel status, clears any latched alarms, and that vibration trend data resumes normally. Update the maintenance log with the replacement date, new probe serial number, and gap voltage reading. This workflow supports direct replacement of legacy 330709-series probes and maintains system continuity without firmware changes or monitor reconfiguration, minimizing total downtime to under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 330709-000-070-10-02-00 a direct drop-in replacement for other 330709-series variants?
Yes, within the 330709 family, variants differ primarily in cable length and connector configuration. The -070 suffix denotes a 7.0 m cable. Confirm your existing cable length and connector type before ordering to ensure a direct swap. The probe body, sensitivity, and monitor compatibility are identical across the series.

Q2: How is each unit verified before shipment?
Every 330709-000-070-10-02-00 unit undergoes functional testing including gap voltage linearity verification, insulation resistance check, and connector integrity inspection prior to dispatch. A test report is available upon request. Units are packaged in anti-static, shock-protected packaging suitable for international freight.

Q3: What is the recommended spare inventory strategy for this probe?
For critical rotating equipment such as turbines and compressors, industry best practice recommends maintaining a minimum of two spare probes per monitored shaft, plus one spare extension cable assembly and one spare Proximitor module per monitor rack. This ensures full channel restoration capability without waiting for procurement lead times during an unplanned outage.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure beyond rated limits, or operation outside specified voltage and temperature ranges. Warranty claims are processed with return shipment support and replacement dispatch within 5 business days.
