Bently Nevada 330710-000-060-50-02-00 3300 XL Retrofit: Compatible Modernization for Legacy Vibration Monitoring Systems

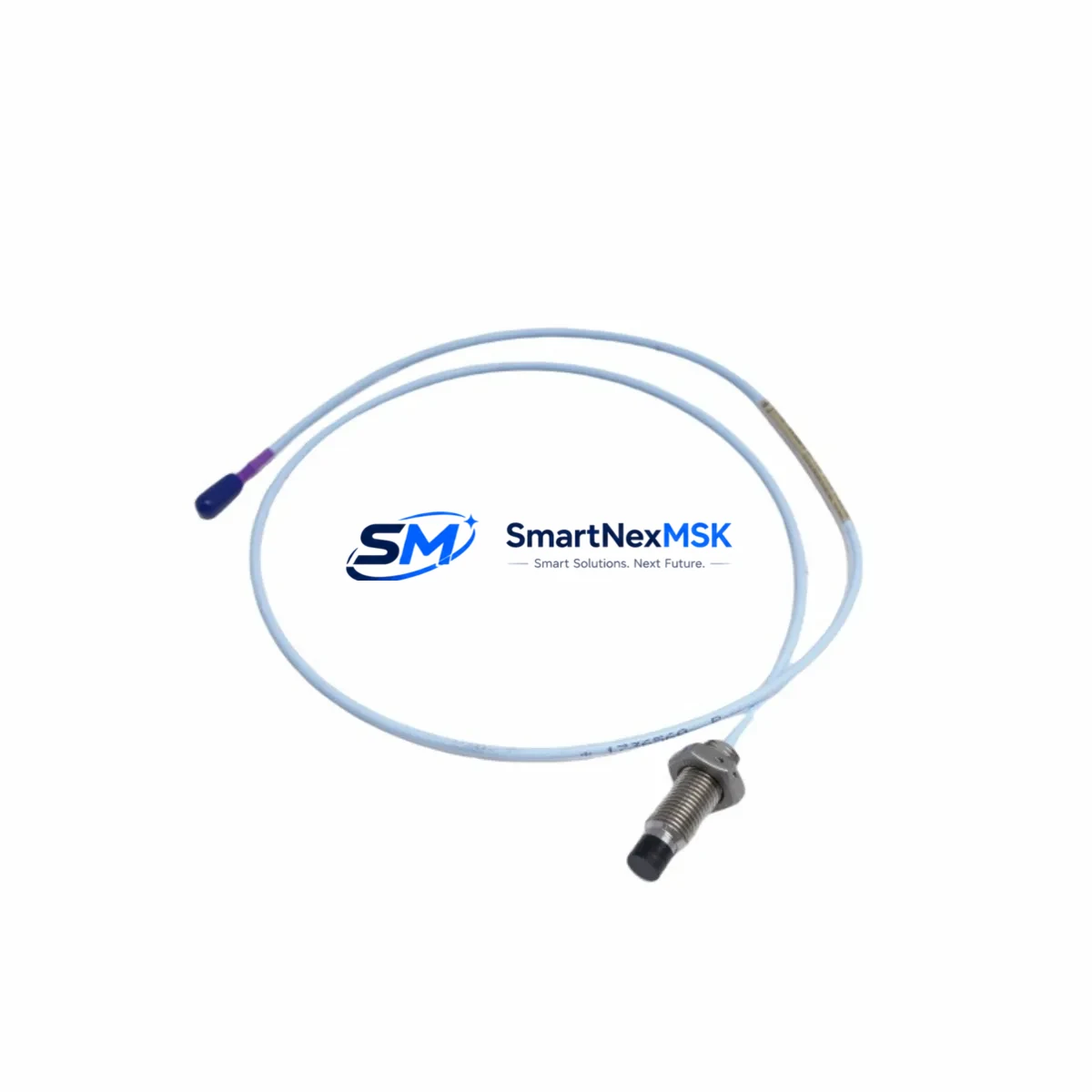

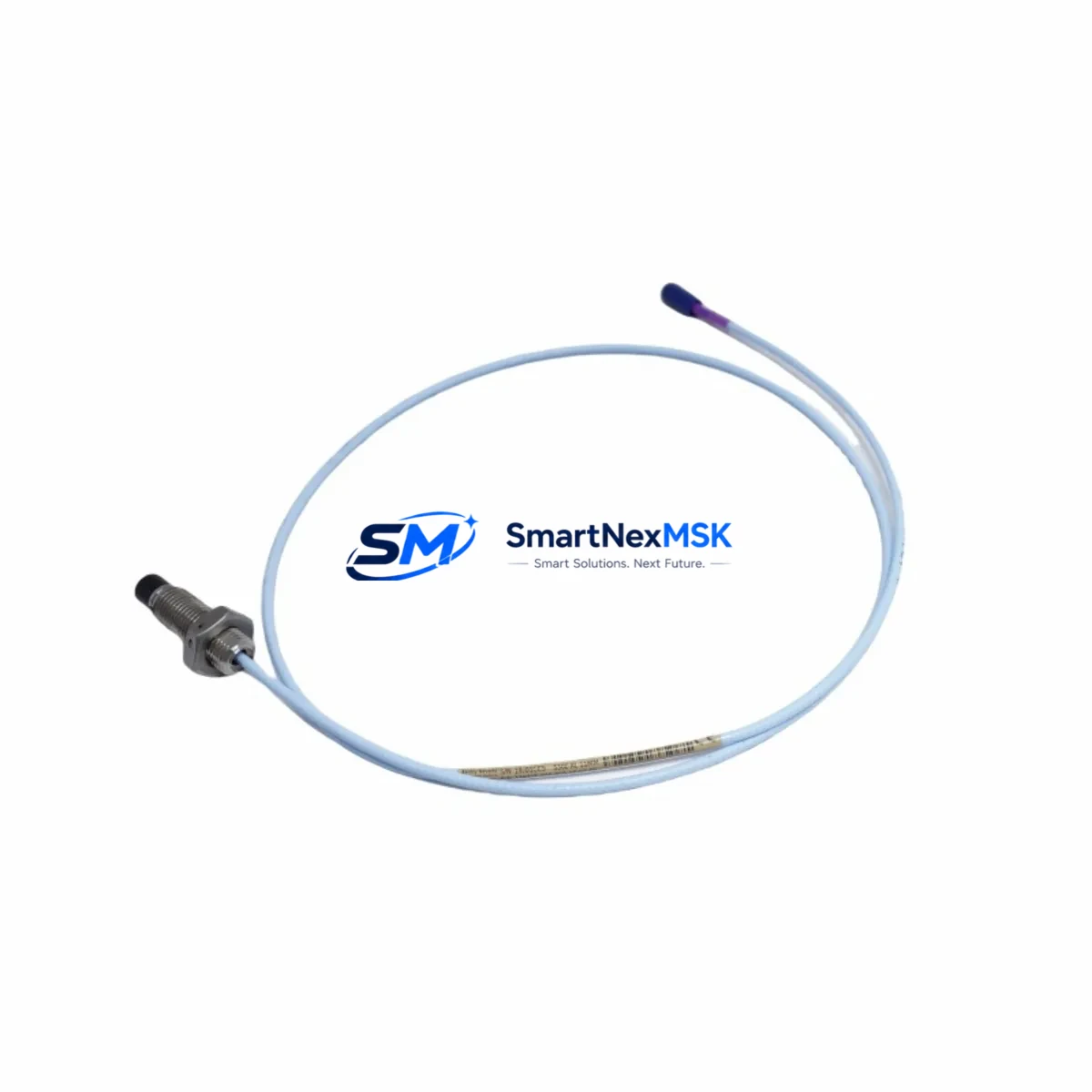

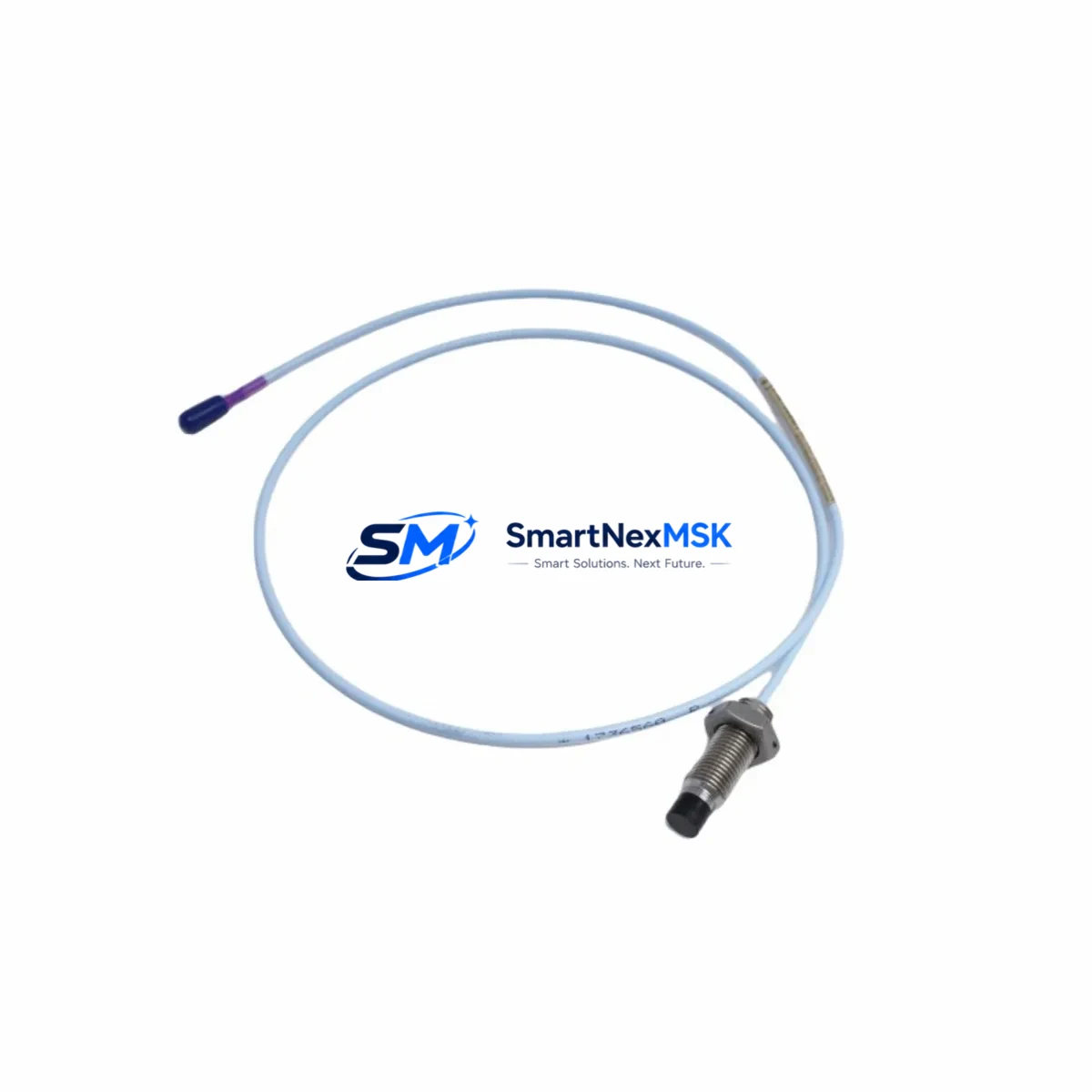

The Bently Nevada 330710-000-060-50-02-00 is an 8mm proximity transducer engineered for the 3300 XL series continuous vibration monitoring platform. As legacy installations age and OEM support windows close, this module serves as a retrofit-ready, drop-in replacement for facilities operating older 3300 series transducer assemblies. Whether you are managing a planned upgrade cycle or responding to an unplanned failure on a critical rotating machine, this unit is stocked, tested, and ready to ship with a 12-month warranty.
Industrial sites running turbines, compressors, pumps, and gearboxes on Bently Nevada 3300 XL monitoring systems frequently encounter the challenge of sourcing compatible proximity transducers when original assemblies reach end-of-life. The 330710-000-060-50-02-00 addresses this directly — it maintains the same 8mm tip diameter, 5-metre cable length, and -18 to +177°C operating range as the original specification, ensuring that existing conduit routing, terminal block wiring, and Proximitor® signal conditioning remain undisturbed during the swap.
Upgrade Compatibility Table
| Parameter | 330710-000-060-50-02-00 | Retrofit Notes |
|---|---|---|
| Tip Diameter | 8 mm | Direct fit; no bracket modification required |
| Cable Length | 5 m (standard) | Verify conduit run before installation |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) | Compatible with 3300 XL Proximitor® modules |
| Signal Conditioner Compatibility | 3300 XL Proximitor® (e.g. 330180-X1-05) | Confirm Proximitor® gap voltage at commissioning |
| Operating Temperature | -18°C to +177°C | Suitable for high-temperature bearing housings |
| Installation Interface | M10 x 1 thread | Match existing bracket thread; use supplied locknut |
| Communication / Protocol | Analogue (passive eddy-current) | No protocol migration required |
| Replacement Path | Direct drop-in for 330710 series | No firmware or rack reconfiguration needed |
| Warranty | 12 months from date of shipment | |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330710-000-060-50-02-00 begins well before the transducer arrives on site. Engineers should pull the existing loop drawing to confirm the Proximitor® model — typically a 330180-X1-05 or 330180-51-05 — and verify that the gap voltage (nominally -10 VDC at 1.0 mm gap) falls within the acceptable window for the replacement unit. If the Proximitor® itself is approaching end-of-life, it is advisable to replace both the transducer and the signal conditioner simultaneously to avoid a second outage.
For sites running the 3300 XL rack system, the monitor cards — such as the 3300/16 dual-channel monitor or the 3300/20 four-channel monitor — do not require reconfiguration when a like-for-like transducer is installed. However, if the retrofit is part of a broader migration from a 3300 series rack to a System 1 Evolution platform or a 3500 series rack, engineers must account for changes in the monitor card slot assignments, I/O terminal block wiring (the 3500/42M proximity I/O module uses a different terminal layout), and the System 1 database tag mapping.
Power supply integrity is a critical checkpoint. The 3300 XL rack draws from a dedicated -24 VDC supply; confirm that the existing power supply module — often a 3300/05 or equivalent — has sufficient headroom to support the transducer loop after any additional I/O expansion. If the cabinet is being upgraded to accommodate additional measurement points, a supplementary power supply module should be budgeted into the project scope.
Wiring adaptation is straightforward for a direct replacement: the three-conductor shielded cable (drive, return, and shield) connects to the same terminal block positions on the Proximitor®. Technicians should inspect the cable jacket and connector body for heat damage or mechanical wear before reusing existing cable runs. Where cable replacement is necessary, use the OEM-specified RG-58 coaxial extension cable to maintain signal integrity over long runs between the transducer and the Proximitor®.
For sites integrating the 3300 XL system with a DCS or safety system via a 3300/65 communication gateway or a Modbus RTU interface card, no protocol reconfiguration is required for a transducer-only swap. The analogue signal chain remains unchanged, and the DCS tag values will resume normal range immediately after gap setting is confirmed. If the project scope includes migrating from Modbus RTU to PROFIBUS DP or OPC-UA, that work should be scoped and tested independently of the transducer replacement to isolate variables during commissioning.
Downtime Control During System Migration
Minimising downtime during a proximity transducer replacement on a live rotating machine requires a structured pre-outage checklist. Before the machine is taken offline, technicians should capture a baseline vibration trend from the existing 3300 XL monitor — including gap voltage, direct vibration amplitude, and 1X/2X vector data — so that post-installation readings can be compared against a known-good baseline. This baseline also protects the original program logic and alarm setpoints stored in the monitor from being inadvertently altered during the swap.
The physical replacement itself typically takes under two hours for a single transducer: remove the locknut, extract the transducer from the bracket, disconnect the cable at the Proximitor® terminal block, install the new 330710-000-060-50-02-00, reconnect the cable, and set the gap to the specified 1.0 mm (confirmed by the -10 VDC output reading on the Proximitor®). Once gap is set and locked, the machine can be restarted and the vibration trend monitored through the first run-up to confirm that amplitude and phase readings are consistent with the pre-outage baseline.
For facilities where continuous operation is mandatory, a spare transducer held in bonded inventory eliminates the lead-time risk entirely. We maintain stock of the 330710-000-060-50-02-00 and can ship same-day for orders confirmed before the daily cut-off, supporting emergency maintenance windows with minimal planning lead time.
Retrofit Support FAQ
Q: Is the 330710-000-060-50-02-00 a direct replacement for all 330710 suffix variants?
A: The -000-060-50-02-00 suffix specifies a 5-metre cable, standard temperature range, and 8mm tip. Other suffix variants (e.g. -000-060-50-02-05 with a 9-metre cable) are dimensionally similar but differ in cable length. Confirm your existing cable run length before ordering to ensure the replacement suffix matches your installation.
Q: Do I need to reconfigure the 3300 XL monitor card after installing the replacement transducer?
A: No. A like-for-like transducer replacement does not require monitor card reconfiguration. The only field adjustment required is gap setting at the Proximitor®, confirmed by measuring the DC output voltage with a multimeter at the Proximitor® terminal block.
Q: What wiring checks should be performed before powering up after installation?
A: Verify continuity of the drive, return, and shield conductors; confirm shield is grounded at the Proximitor® end only (not at the transducer end); and check that the cable connector body is fully seated and the locknut is torqued to specification. Inspect the terminal block screws on the Proximitor® for tightness before applying power.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Units are functionally tested prior to dispatch. Warranty claims are processed with priority turnaround to minimise impact on your maintenance schedule. Contact sales@smartnexmsk.com to initiate a warranty claim.
