Bently Nevada 330780-50-CN Spare for 3300 XL Automation

Bently Nevada 330780-50-CN Spare for 3300 XL Automation: Precision Replacement for Continuous Industrial Operation

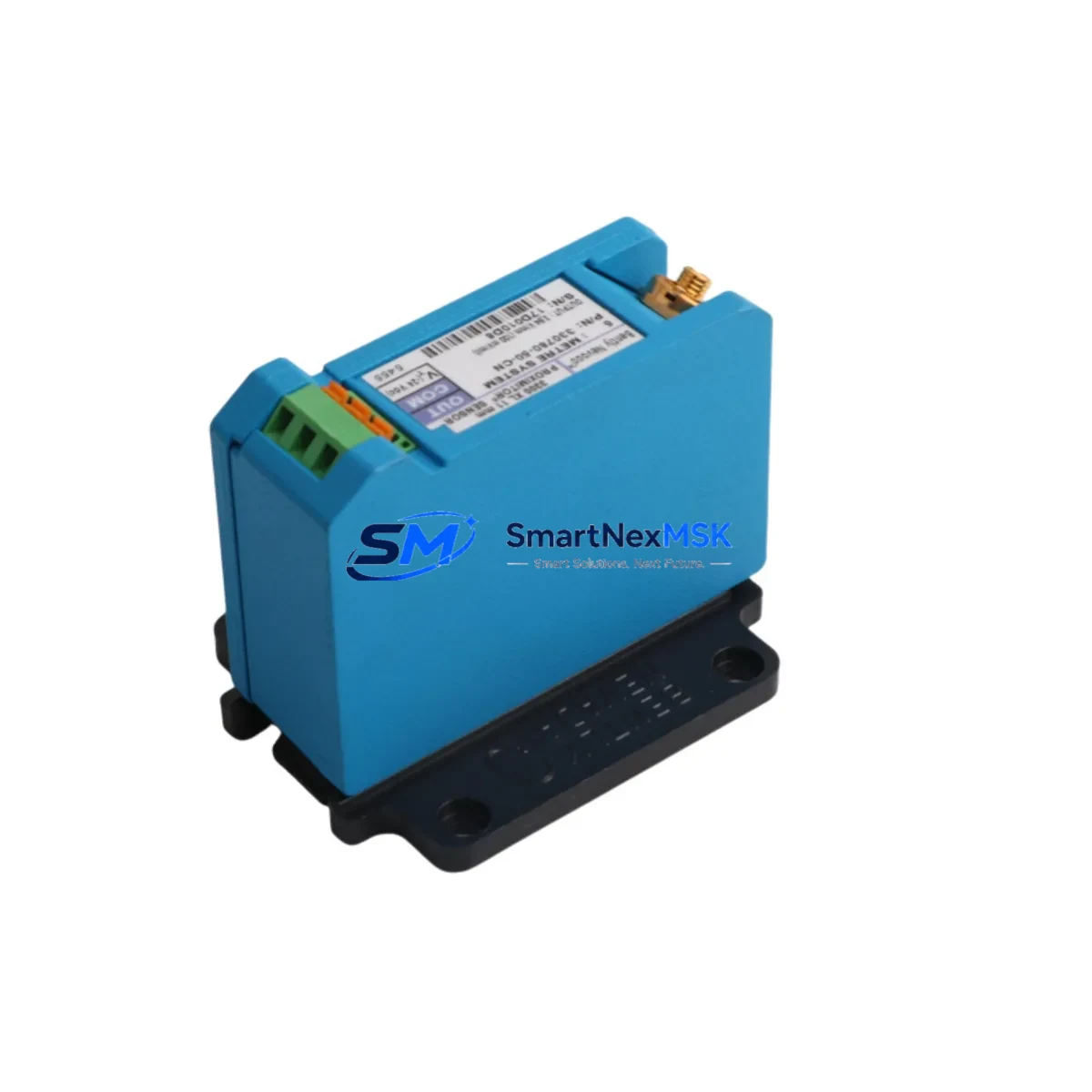

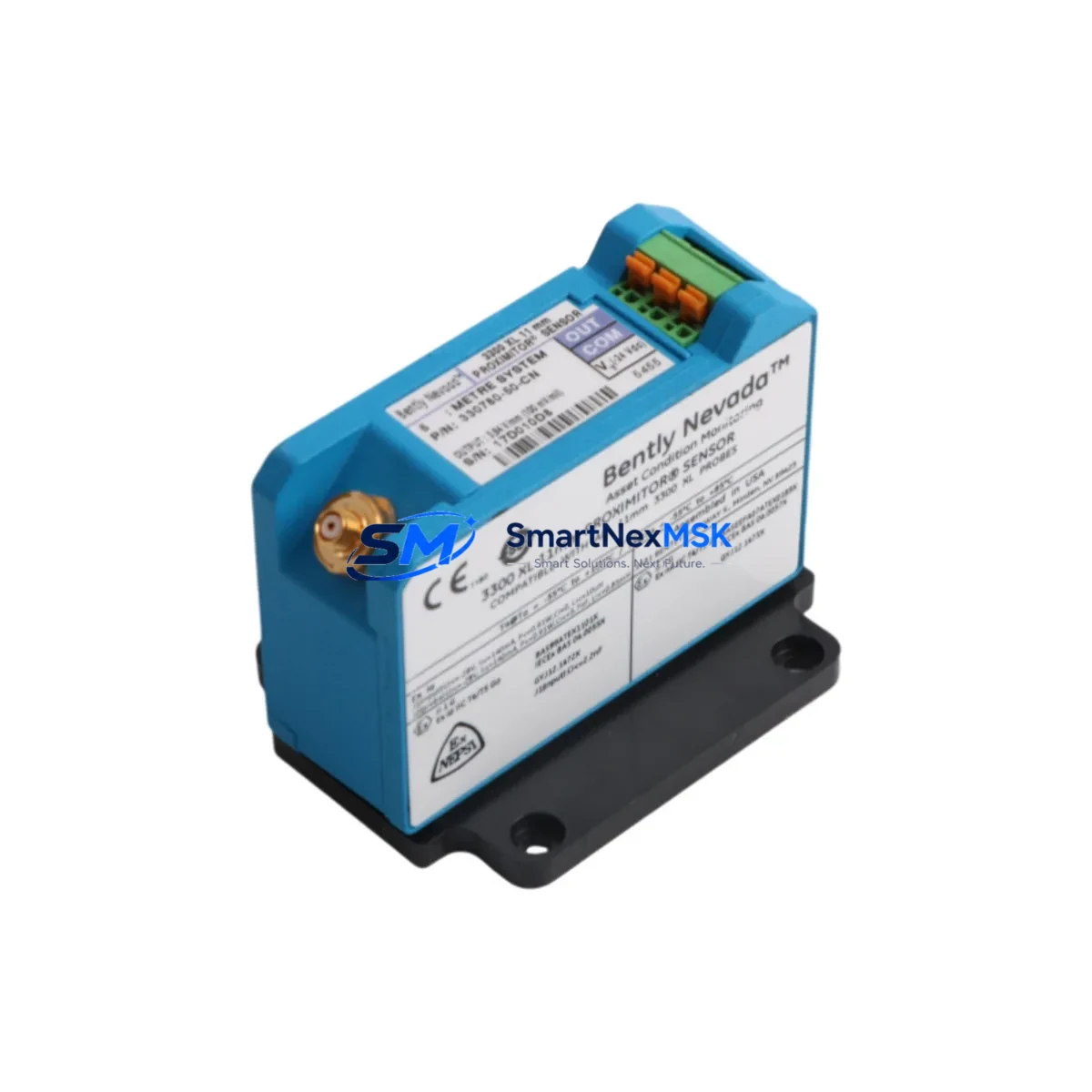

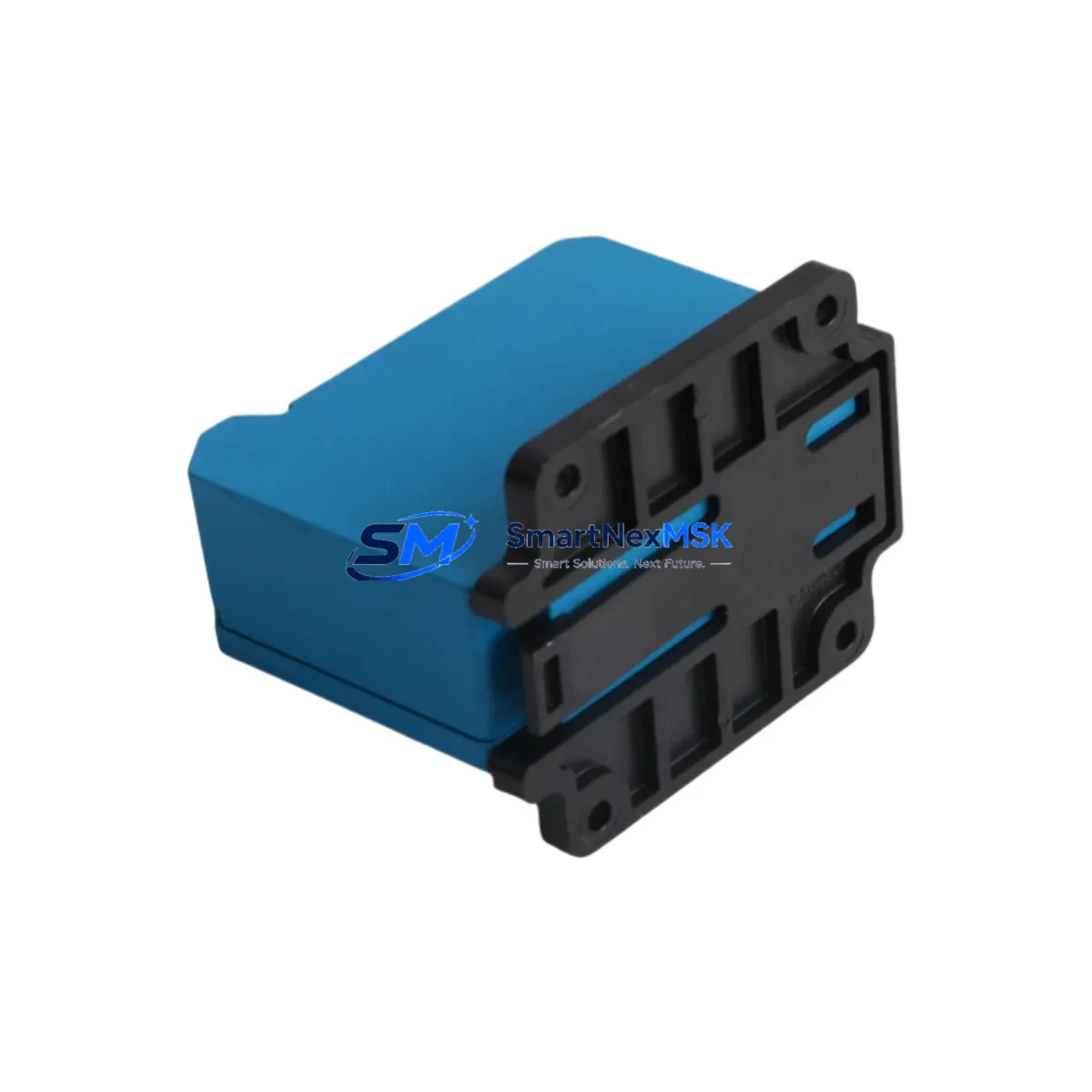

The Bently Nevada 330780-50-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. As a maintenance-ready original spare, this probe is a critical component in vibration and position measurement circuits used across rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and large induction motors. When a proximity probe fails or drifts beyond calibration tolerance, the consequences extend beyond a single sensor: the entire monitoring loop — from the probe tip to the Bently Nevada 3300 XL proximitor/driver and the rack-mounted monitor card — must be evaluated before returning the machine to service.

Maintenance engineers and procurement teams sourcing the 330780-50-CN should treat this replacement as part of a structured loop verification, not a simple swap. The 3300 XL system is a loop-dependent architecture: the probe, the extension cable (typically a 330130 or 330730 series armored cable), and the proximitor/driver (such as the 3300 XL 8mm proximitor, part 330180) must be matched and gap-calibrated together. Replacing only the probe without verifying the extension cable condition and proximitor output voltage is a common cause of repeat failures and nuisance trips.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the 330780-50-CN during a turnaround or predictive maintenance window, experienced maintenance engineers treat the proximity probe as the entry point of a broader loop audit. The following components should be inspected or replaced concurrently to avoid repeat callouts and ensure the monitoring system returns to full API 670 compliance:

Extension Cable (330130 / 330730 Series): Armored extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown — especially in high-vibration or high-temperature zones near bearing housings. A degraded cable introduces impedance mismatch that shifts the proximitor output voltage and invalidates gap calibration. Always perform a cable continuity and insulation resistance check before reusing an existing cable with a new probe.

Proximitor / Driver (Bently Nevada 330180): The 3300 XL 8mm proximitor converts the probe’s oscillator signal into a DC voltage proportional to gap distance. If the proximitor has accumulated operating hours beyond its recommended service interval, or if the output voltage is outside the -10 to -18 VDC window at the calibrated gap, it should be replaced alongside the probe. Proximitor failure is a leading cause of false vibration alarms in turbine protection systems.

Monitor Cards (3300/16 or 3300/20): Rack-mounted monitor cards should be inspected for relay contact wear, OK relay status, and alarm setpoint integrity. During a probe replacement, it is good practice to verify that the monitor’s OK circuit resets cleanly and that the 4–20 mA output (if used for DCS integration) tracks correctly across the full gap range.

Terminal Blocks and Field Wiring: Loose or corroded terminal connections between the junction box and the monitor rack are a frequent source of intermittent faults that are misdiagnosed as probe failures. Inspect and re-torque all signal wiring terminations, and verify shield grounding is intact at one end only to prevent ground loops.

Barrier / Zener Barrier (if installed in hazardous area): In Zone 1 or Zone 2 classified areas, the proximity probe loop passes through a Zener barrier or galvanic isolator. These devices have defined service lives and can introduce loop resistance that affects calibration. Verify barrier resistance and replace if out of specification.

Signal Isolators and Buffered Output Modules: Where the 3300 XL rack feeds vibration signals to a DCS historian or condition monitoring platform via buffered outputs, verify that the signal isolator output levels are within range after the probe replacement and re-gap procedure.

Keeping a matched spare set — probe, extension cable, and proximitor — in the site spare parts cabinet eliminates the most common delay in emergency probe replacements: waiting for a compatible proximitor to arrive while the machine sits idle. For critical assets, a minimum of two matched sets per measurement plane is recommended practice.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and confirm the machine is in a safe state. The 3300 XL monitor will enter an alarm or danger bypass state when the probe is disconnected; notify the control room before proceeding.

Step 2 — Remove the Existing Probe: Disconnect the extension cable at the junction box. Unscrew the probe from the bracket using the appropriate spanner. Note the existing gap setting (typically measured with a feeler gauge or recorded from the proximitor output voltage).

Step 3 — Inspect the Bracket and Target: Check the probe bracket for cracks or looseness. Inspect the shaft target area for scoring, runout, or surface contamination that could affect the new probe’s calibration.

Step 4 — Install the 330780-50-CN: Thread the new probe into the bracket. Set the initial gap per the OEM procedure (typically 1.0 mm / 40 mil for 8mm probes). Connect the extension cable and verify the proximitor output voltage falls within the linear range (-10 to -18 VDC). Fine-adjust the gap until the output matches the site’s calibrated setpoint.

Step 5 — Loop Verification: Confirm the monitor’s OK relay is energized, alarm and danger setpoints are active, and the buffered output signal is tracking correctly. Document the as-left gap voltage and probe serial number in the maintenance management system.

Step 6 — Return to Service: Notify the control room, remove the bypass, and monitor the first 30 minutes of operation for any anomalous readings. Archive the replaced probe for failure analysis if required.

This workflow applies equally to emergency replacements following an unplanned trip. Having the 330780-50-CN pre-staged as a tested spare reduces the time from fault identification to machine restart — often from days to hours.

Spare Parts Support FAQ

Q1: Is the 330780-50-CN a direct drop-in replacement for older 3300 series probes?
The 330780-50-CN is designed for the 3300 XL system architecture. It is not directly interchangeable with earlier 3300/05 or 3300/10 series probes without verifying proximitor compatibility. Always confirm the proximitor model (330180 for 3300 XL 8mm) before installation. If your site runs a legacy 3300 system, contact our technical team to confirm the correct matched set.

Q2: How do you verify the probe is genuine and has been tested before shipment?
Every 330780-50-CN unit we supply undergoes pre-shipment electrical verification: oscillator frequency check, output voltage linearity test across the full gap range, and cable continuity confirmation. Units are shipped in ESD-safe packaging with a test record. The 12-month warranty covers manufacturing defects and performance deviations from OEM specifications.

Q3: What is your lead time and can you support emergency orders?
Standard orders ship within 1–3 business days. For emergency plant shutdowns, contact us directly at sales@smartnexmsk.com or +86 18259474341 to confirm stock availability and expedited dispatch options. We maintain buffer stock of high-demand 3300 XL components to support unplanned outage recovery.

Q4: What is covered under the 12-month warranty, and what is the process for a warranty claim?
The 12-month warranty covers the probe against defects in materials, workmanship, and performance deviation from published OEM specifications under normal operating conditions. It does not cover damage from incorrect installation, gap-setting errors, or operation outside the specified temperature and voltage range. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the observed fault. We will arrange return, inspection, and replacement or credit within 10 business days.
