Bently Nevada 330780-91-00 Retrofit-Ready Proximitor Sensor for 3300 XL Control Systems

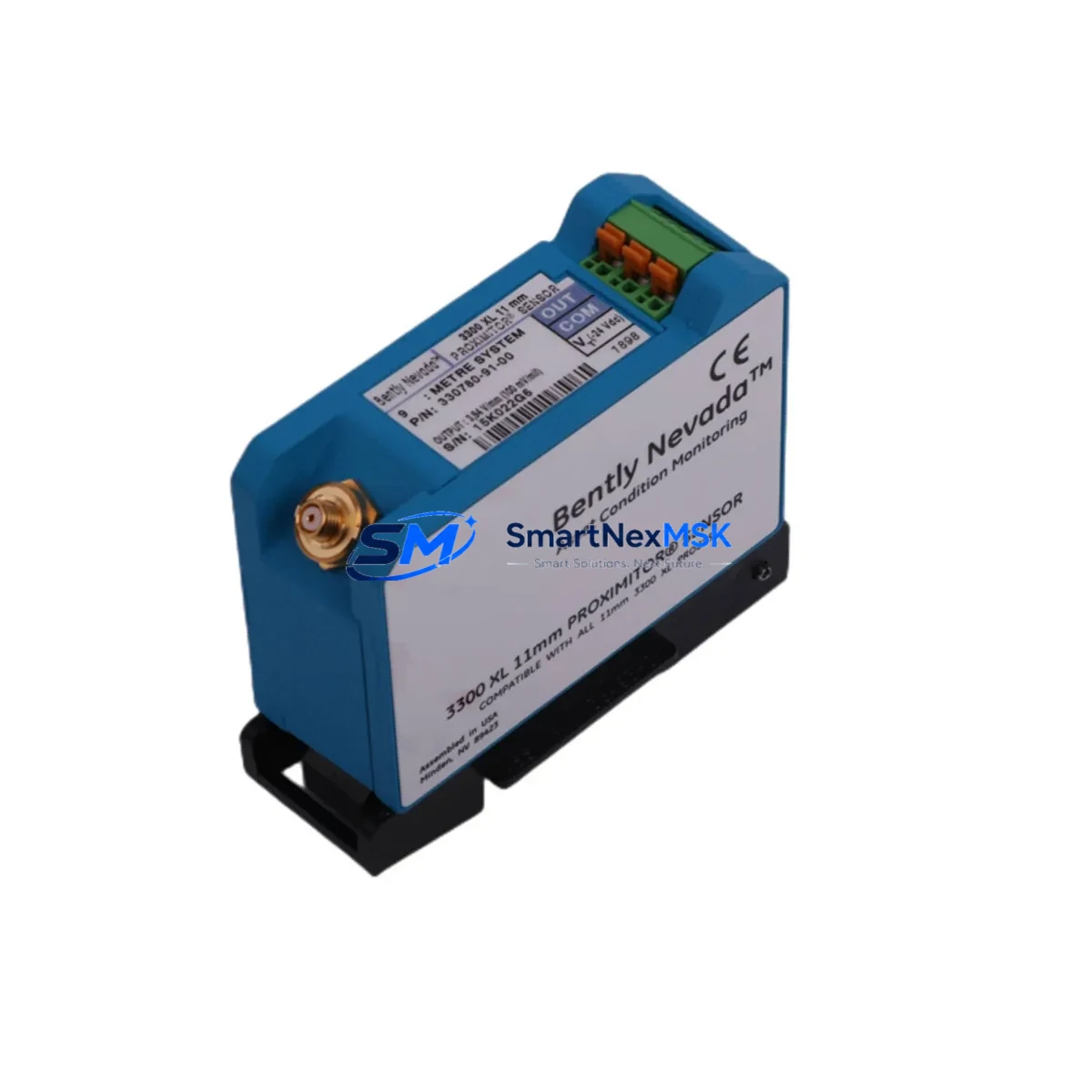

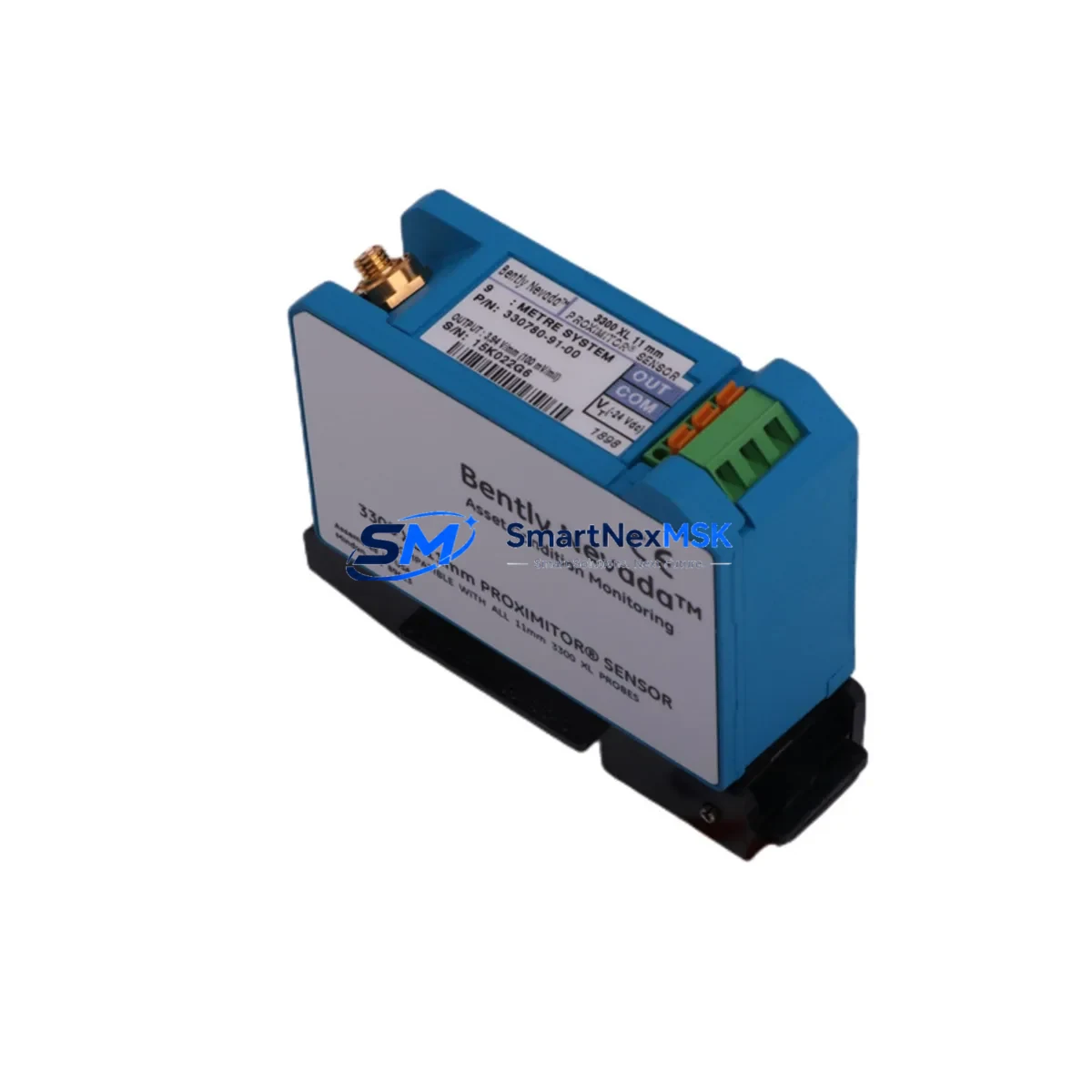

The Bently Nevada 330780-91-00 is a 25mm eddy-current Proximitor Sensor engineered for seamless retrofit integration into existing 3300 XL Series vibration monitoring systems. As legacy Bently Nevada installations age and OEM support windows narrow, plant engineers and reliability teams increasingly rely on verified drop-in replacements to sustain continuous machinery protection without triggering full-system overhauls. The 330780-91-00 addresses this need directly — delivering factory-matched signal conditioning, output scaling, and connector compatibility that allow technicians to swap the unit with minimal downtime and zero reprogramming of the host monitor.

Whether you are replacing a failed sensor on a critical compressor train, upgrading a deteriorating cable assembly on a steam turbine bearing, or consolidating spare-parts inventory across multiple plant sites, the 330780-91-00 provides the electrical and mechanical equivalence required for a confident, auditable retrofit. Each unit ships from verified stock, undergoes pre-shipment functional testing, and is covered by a 12-month warranty against manufacturing defects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330780-91-00 into a running plant begins well before the sensor arrives on site. Retrofit planning for 3300 XL-based machinery protection systems typically involves a coordinated review of the full signal chain — from the probe tip through the extension cable, into the Proximitor housing, and ultimately to the monitor card seated in the 3300 XL rack.

Start by auditing the existing 330130 Series extension cable. Cable length directly affects the gap voltage calibration range, and substituting a sensor without verifying cable length against the original configuration is a common source of commissioning errors. If the extension cable shows insulation degradation or connector corrosion, replace it concurrently with the 330780-91-00 to avoid a second outage window.

Next, inspect the 3300 XL rack backplane and the monitor card slot. The 3300/16 Monitor and 3300/20 Monitor accept the 330780-91-00 without firmware changes, but technicians should confirm that the monitor’s OK setpoint thresholds — typically –10 VDC to –18 VDC — are documented before removal of the old sensor. If the plant is running a mixed rack with both 3300 XL and 3500 Series cards during a phased migration, pay particular attention to the I/O terminal block assignments and ensure the new sensor’s output does not conflict with any shared common-ground wiring used by adjacent 3500/42M Velocity Monitor or 3500/40M Proximitor Monitor cards.

Power supply integrity is equally critical. The 3300 XL system draws regulated –24 VDC from the rack power supply module. Before installing the 330780-91-00, measure the supply rail under load. A sagging supply — common in aging racks where the power supply module has not been replaced — can cause the new sensor to report marginal gap voltages even when the mechanical installation is correct. If the power supply module is original equipment, consider scheduling its replacement alongside the sensor swap.

For plants transitioning from the 3300 XL platform toward the 3500 Series architecture, the 330780-91-00 serves as a stable interim component. It maintains full signal compatibility with the existing 3300 XL monitors while the broader migration — including replacement of the 3500 Rack Interface Module, reconfiguration of the System 1 condition monitoring software, and re-mapping of DCS analog input cards — proceeds in parallel. This phased approach allows engineering teams to retire legacy hardware systematically without forcing a simultaneous cutover of the entire machinery protection loop.

HMI screen updates should also be planned as part of the retrofit scope. If the plant uses a GE/Bently Nevada System 1 workstation or a third-party SCADA with hardcoded tag names tied to the old sensor’s channel address, verify that the new sensor’s monitor channel assignment matches before going live. Mismatched channel addresses are a frequent cause of spurious alarms in the first 24 hours after a sensor retrofit.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 XL sensor retrofit requires a structured pre-outage checklist and a clear bypass strategy for the machinery protection relay. Before breaking the signal chain, coordinate with the control room to place the affected monitor channel in bypass mode — this prevents a spurious trip of the machine train while the sensor is disconnected. Document the existing gap voltage reading and OK relay status before removal; these values serve as the acceptance baseline for the replacement unit.

The physical swap of the 330780-91-00 is typically completed in under 30 minutes for an accessible bearing housing location. The critical time investment lies in post-installation verification: allow the sensor to thermally stabilize for 10–15 minutes after installation before recording the final gap voltage. Compare the stabilized reading against the documented baseline. If the gap voltage falls outside the –10 to –18 VDC window, adjust the sensor tip-to-target gap in 0.25 mm increments until the output is within specification.

Once gap voltage is confirmed, restore the monitor channel from bypass and observe the OK relay status for a minimum of one full machine rotation cycle before returning the unit to automatic trip. Log the as-left gap voltage, cable serial number, and installation date in the plant’s maintenance management system to establish a traceable service record. This documentation supports both internal reliability audits and any future warranty claims under the 330780-91-00’s 12-month coverage period.

For plants with redundant sensor configurations — common on critical compressor and turbine trains — the retrofit can be staged across the redundant channels during normal operation, eliminating the need for a planned outage entirely. Confirm with the OEM documentation that the 3300 XL monitor supports single-channel bypass before proceeding with a live swap on a redundant pair.

Retrofit Support FAQ

Q: Is the 330780-91-00 a direct replacement for the 330780-50-00?
A: Yes. The 330780-91-00 is electrically and mechanically equivalent to the 330780-50-00 for use in 3300 XL Series racks. Both units share the same 25mm probe diameter, –24 VDC supply requirement, and 200 mV/mil output sensitivity. No monitor reconfiguration is required when substituting one for the other, provided the extension cable length remains unchanged.

Q: What pre-shipment testing is performed on each unit?
A: Every 330780-91-00 unit undergoes functional verification prior to shipment, including output sensitivity check, OK relay threshold confirmation, and connector integrity inspection. Test records are available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: Can this sensor be used during a phased migration to the 3500 Series platform?
A: Yes. The 330780-91-00 is compatible with the 3300 XL monitor cards and can remain in service while adjacent rack slots are upgraded to 3500 Series modules. This makes it well-suited for phased migrations where full platform cutover is not operationally feasible in a single outage window.

Q: What wiring changes are required during installation?
A: No wiring changes are required for a like-for-like replacement. The 330780-91-00 uses the same coaxial connector interface as the original 3300 XL Proximitor. If the existing 330130 extension cable is being retained, verify connector seating and cable continuity before closing the junction box. If a new extension cable is being installed simultaneously, confirm the cable length matches the original to maintain calibrated gap voltage output.
