Bently Nevada 330800-16-15-020-02-02 Retrofit-Ready Proximity Transducer for 3300 XL

Bently Nevada 330800-16-15-020-02-02 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

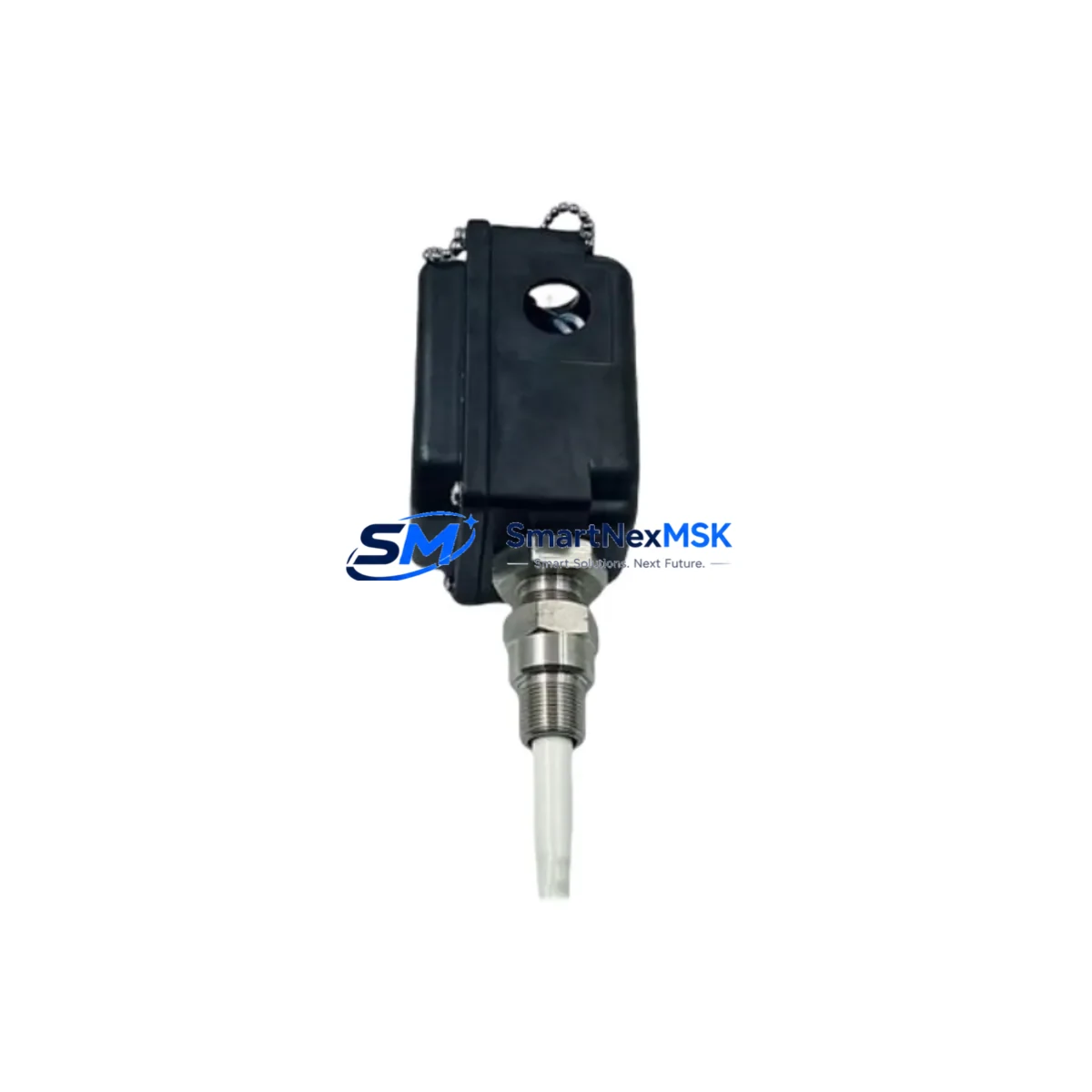

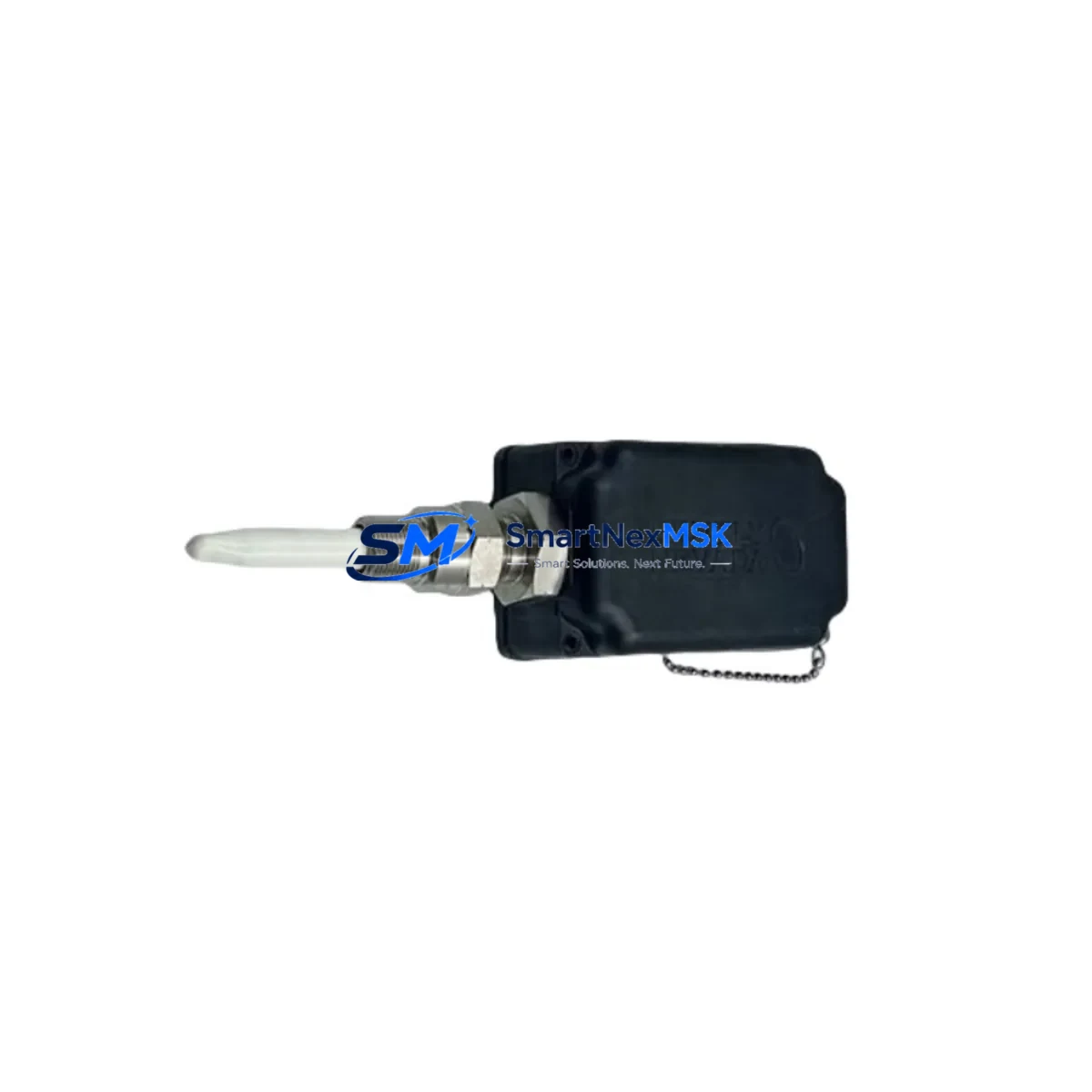

The Bently Nevada 330800-16-15-020-02-02 is a PROXPAC XL proximity transducer assembly engineered for seamless integration into existing 3300 XL Series vibration monitoring and machinery protection systems. As legacy 3300 XL installations approach end-of-support cycles, this module serves as the primary retrofit solution for facilities seeking to extend system life, replace discontinued spare parts, and maintain continuous machinery protection without a full platform migration.

This transducer assembly is designed for eddy-current proximity measurement, delivering high-resolution radial vibration, axial position, and differential expansion signals to the 3300 XL monitor rack. It is fully compatible with the 3300 XL 16-channel monitor framework and integrates directly with existing field wiring, junction boxes, and barrier terminal strips — minimizing retrofit labor and eliminating the need for panel re-engineering.

For facilities running mixed-generation Bently Nevada infrastructure, the 330800-16-15-020-02-02 bridges the gap between legacy 3300 Series hardware and modern condition monitoring requirements. It is commonly deployed alongside the 3300/16 monitor module, the 3300/55 proximitor power supply, and the 3500/42M proximity I/O module in hybrid rack configurations where partial platform upgrades are underway.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity transducer assembly in an operating plant requires careful pre-outage planning to avoid unplanned downtime and signal integrity issues. Before removing the existing 330800-series probe, engineers should document the current gap voltage reading at the proximitor driver — typically the 3300/55 or 3300/65 proximitor — and confirm the target gap voltage for the replacement unit matches the original calibration record.

Field wiring from the junction box to the monitor rack should be inspected for continuity and insulation resistance before the new assembly is installed. In installations where the 3300 XL rack houses multiple channel cards — such as the 3300/16 radial vibration monitor or the 3300/20 thrust position monitor — it is critical to verify that the replacement transducer’s scale factor (mV/mil) matches the monitor card’s configured input sensitivity. Mismatched scale factors will produce incorrect vibration amplitude readings and may trigger spurious alarms or mask real machinery faults.

For facilities migrating from the legacy 3300 Series to the 3300 XL or 3500 platform, the 330800-16-15-020-02-02 is compatible with the 3500/42M proximity transducer I/O module when used with the appropriate proximitor driver. In these hybrid configurations, the 3500 rack’s System 1 software interface must be updated to reflect the new channel mapping, and any existing Operator Interface Terminal (OIT) or HMI screens built on the legacy 3300 tag structure will require tag remapping to maintain alarm display continuity.

During the retrofit, the following components are commonly involved in the same work scope: the 3300/55 proximitor power supply, the 3300 XL barrier terminal strip assembly, the 3500/20 rack power supply module, the 3500/92 communication gateway for Modbus or FOUNDATION Fieldbus integration, and the TK-3 programming cable used for 3500 rack configuration via System 1 software. If the control cabinet also houses a Bently Nevada 1900/65A general-purpose equipment monitor or a 3500/45 position monitor, those modules should be inspected for firmware compatibility with the updated channel configuration before the system is returned to service.

For plants running DCS integration through a Honeywell Experion PKS or Emerson DeltaV system, the proximity channel’s analog output signal (4–20 mA) must be verified at the DCS I/O card after installation. Any changes to the proximitor supply voltage or scale factor will affect the DCS engineering unit conversion, and the historian tag for that channel should be updated accordingly to maintain data integrity in the condition monitoring database.

Downtime Control During System Migration

Minimizing production impact during a proximity transducer replacement requires a structured hot-swap or planned-outage strategy. For non-redundant machinery protection systems, the preferred approach is to coordinate the transducer swap with a scheduled maintenance window, pre-stage the replacement 330800-16-15-020-02-02 assembly with a verified gap voltage check on a bench fixture, and prepare a rollback plan using the original transducer if commissioning cannot be completed within the maintenance window.

Where the 3300 XL system supports channel bypass or inhibit functions, the affected channel should be placed in bypass mode before disconnecting the field wiring. This prevents the monitor from generating a false danger alarm or initiating a machine trip during the swap. The bypass status must be logged in the plant’s permit-to-work system and cleared immediately after the new transducer is commissioned and gap voltage is confirmed within the OK band.

For critical machinery — such as compressors, turbines, or pumps protected by a Bently Nevada 3500 rack with a 3500/32M four-channel relay module — the relay output logic should be reviewed before the swap to confirm that a single-channel bypass will not inadvertently disable a voted trip function. After installation, the full channel functional test should include: gap voltage verification, vibration signal injection using a calibrated signal simulator, OK relay state confirmation, and a live data comparison against the adjacent channel or a reference machine to validate signal plausibility before the bypass is cleared.

All original program logic, setpoint configurations, and HMI alarm limits stored in the 3300 XL or 3500 rack should be backed up before any hardware change. The System 1 software configuration file and the rack’s non-volatile memory should be exported and archived as part of the pre-outage checklist. This ensures that if a configuration error occurs during commissioning, the system can be restored to its last known good state without extended downtime.

Retrofit Support FAQ

Q: Is the 330800-16-15-020-02-02 a direct drop-in replacement for the original 330800-16-15-020-02-02 installed in my 3300 XL rack?
A: Yes. This is an OEM-equivalent replacement for the same part number. No wiring changes are required for a same-series swap. After installation, verify gap voltage and OK relay status before returning the channel to service.

Q: Can this transducer assembly be used in a 3500 rack as part of a platform migration?
A: The 330800-16-15-020-02-02 probe and extension cable are compatible with the 3500/42M proximity I/O module when paired with the appropriate proximitor driver. Confirm the scale factor and gap voltage settings in the 3500 rack configuration match the transducer’s specifications before commissioning.

Q: What commissioning checks are required after installation?
A: The minimum commissioning checklist includes: (1) gap voltage within the OK band (typically –10 to –18 VDC for standard 3300 XL proximitors), (2) scale factor match between the transducer and the monitor card, (3) OK relay energized, (4) vibration signal plausibility check against adjacent channels or reference data, and (5) HMI alarm display confirmation. All results should be documented in the maintenance record.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing including gap voltage linearity verification and connector integrity inspection. Warranty claims are supported by our technical team — contact sales@smartnexmsk.com for RMA procedures.
