Bently Nevada 330876-01-90-00-00 Safety Proximity Transducer

Bently Nevada 330876-01-90-00-00 Safety Proximity Transducer: Reliable Control in Harsh Industrial Sites

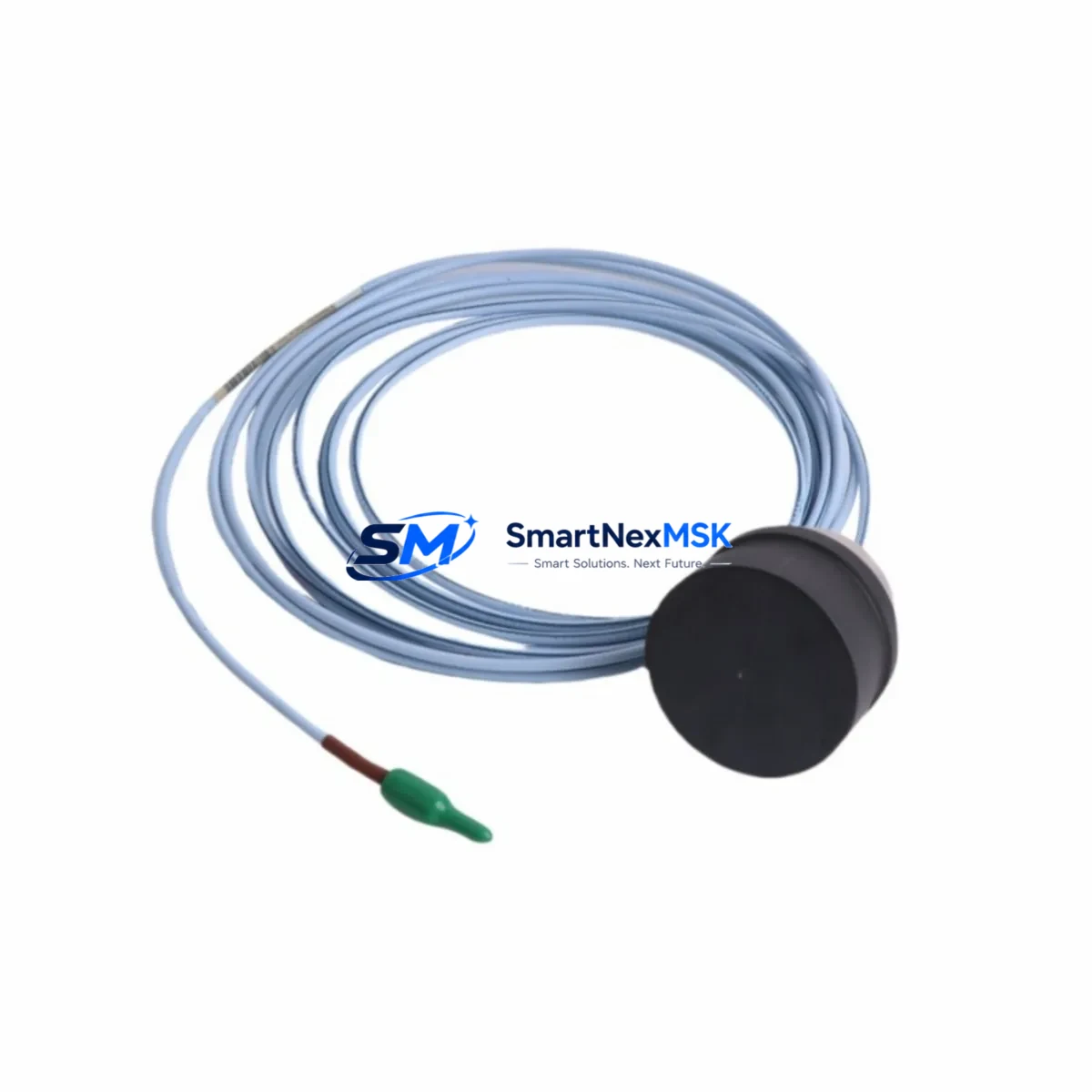

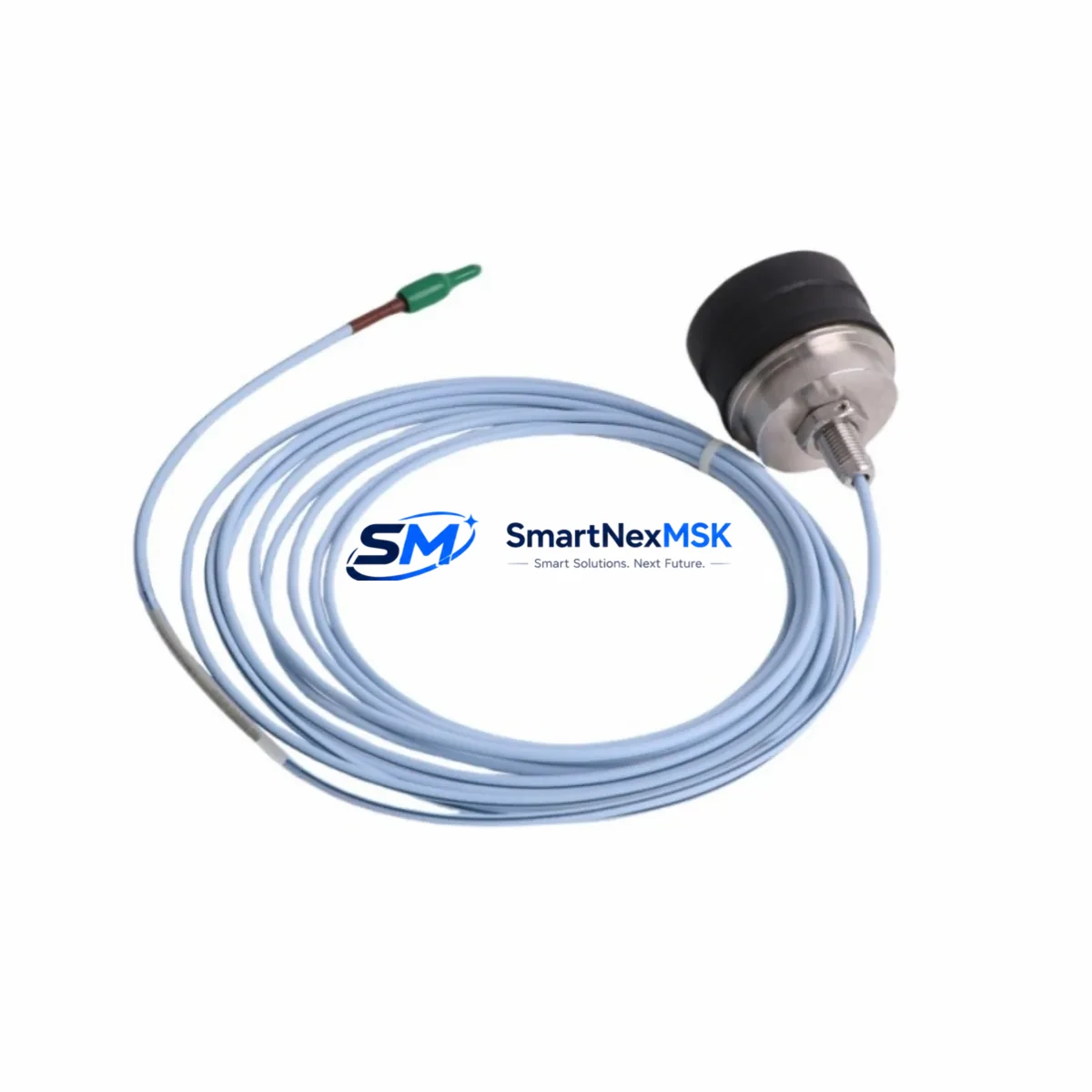

The Bently Nevada 330876-01-90-00-00 is a ruggedized 50 mm proximity transducer from the industry-proven 3300 XL Series, engineered for continuous vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-load, high-interference, and safety-critical control loops, this transducer delivers consistent signal integrity where control interruptions, signal drift, or module misoperation can result in catastrophic equipment failure or unplanned downtime.

In heavy industrial facilities — including petrochemical plants, power generation stations, mining operations, metallurgical smelters, and continuous-process manufacturing lines — rotating machinery protection is a non-negotiable safety requirement. The 330876-01-90-00-00 is purpose-built to serve as the sensing front-end in these protection architectures, providing accurate proximity measurements that feed directly into turbine protection systems, compressor safety interlocks, and critical machinery monitoring panels.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330876-01-90-00-00 proximity transducer does not operate in isolation — it is the sensing element within a layered machinery protection architecture. In a properly configured control cabinet or machinery protection panel, this transducer connects via a Bently Nevada 330130 Extension Cable to a Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05), which conditions the raw eddy-current signal into a calibrated DC voltage output. This conditioned signal is then routed to a Bently Nevada 3500/40M Proximitor Monitor or a 3500/42M Proximitor/Seismic Monitor installed within a 3500 Series Monitoring Rack.

For power supply integrity — a critical factor in preventing false trips or missed alarms — the 3500 rack is typically powered by a Bently Nevada 3500/15 Power Supply Module, often deployed in a redundant configuration. Surge protection at the field terminal level is commonly achieved using Phoenix Contact TRABTECH or equivalent DIN-rail surge arresters to guard against transient overvoltage events from nearby high-power switching equipment or lightning-induced surges on long cable runs.

Communication between the 3500 monitoring system and the plant DCS or safety PLC is handled via Bently Nevada 3500/92 Communication Gateway modules supporting Modbus TCP, Profibus DP, or OPC-DA protocols, ensuring that vibration and position data from the 330876-01-90-00-00 is available in real time to the plant’s safety instrumented system (SIS). In facilities using a Rockwell Automation ControlLogix or Siemens S7-400H safety PLC as the primary safety controller, the 3500 gateway provides the critical data bridge that enables automated shutdown logic when vibration thresholds are exceeded.

For installations in classified hazardous areas (Zone 1 or Zone 2 per IEC 60079), the transducer is used in conjunction with Bently Nevada 3300 XL Intrinsically Safe Barriers or equivalent Zener barriers to limit energy in the field circuit, maintaining compliance with ATEX and IECEx requirements. This complete protection chain — from the 330876-01-90-00-00 probe tip to the safety relay output — ensures that rotating machinery faults are detected, alarmed, and acted upon before they escalate into safety incidents or production losses.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude distillation units, catalytic crackers, and compressor trains, continuous shaft vibration monitoring is mandated by API 670. The 330876-01-90-00-00 serves as the primary radial vibration sensor on centrifugal compressors, steam turbines, and boiler feed pumps, providing the real-time data required to trigger emergency shutdown before bearing failure or rotor rub causes secondary damage or process release.

Power Generation: Gas turbines, steam turbines, and large synchronous generators in power plants rely on proximity transducers for shaft eccentricity, differential expansion, and thrust position monitoring. The 3300 XL series transducer is a recognized standard in turbine protection systems worldwide, and the 330876-01-90-00-00 is a direct-fit replacement for aging installations requiring like-for-like spare parts without recalibration of the Proximitor sensor.

Mining & Mineral Processing: Ball mills, SAG mills, slurry pumps, and conveyor drive motors in mining operations are subject to extreme vibration, dust ingress, and electrical interference from variable-frequency drives. The ruggedized construction and high EMI resistance of the 330876-01-90-00-00 make it well-suited for these environments, where signal integrity directly affects the reliability of the mill protection interlock.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities require continuous condition monitoring to prevent unplanned outages that could affect public water supply. The 330876-01-90-00-00 provides the vibration sensing input for pump protection systems, enabling predictive maintenance scheduling and reducing emergency repair costs.

Metallurgy & Steel Production: Rolling mills, continuous casting machines, and large induction furnace drives operate under extreme thermal and mechanical stress. Proximity transducers in these applications must maintain calibration accuracy across wide temperature ranges — a requirement the 3300 XL series meets through its thermally compensated design.

Port & Heavy Lifting Equipment: Ship-to-shore cranes, bulk material handlers, and large winch drives increasingly incorporate machinery protection systems based on Bently Nevada monitoring platforms. The 330876-01-90-00-00 provides the position and vibration sensing capability required for safe load handling and drivetrain protection in these high-cycle, high-consequence applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, calibration failures, and functional non-conformance under normal operating conditions. If the unit fails to meet Bently Nevada 3300 XL performance specifications within the warranty period, we will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned item.

Q2: What pre-shipment testing is performed on the 330876-01-90-00-00?
Every unit undergoes functional verification prior to shipment, including output sensitivity check (7.87 V/mm ± 5%), insulation resistance test, and visual inspection for connector integrity and cable condition. Units are shipped with individual test records available upon request. This ensures that the transducer performs to specification from the moment it is installed in your machinery protection system.

Q3: Is the 330876-01-90-00-00 compatible with existing 3300 XL Proximitor Sensors and 3500 Series racks?
Yes. The 330876-01-90-00-00 is a standard 3300 XL series probe and is fully compatible with all Bently Nevada 3300 XL Proximitor Sensors and 3500 Series monitoring racks without requiring recalibration, provided the target material is AISI 4140 steel or an equivalent calibrated alloy. For non-standard target materials, a field calibration of the Proximitor sensor gap voltage is recommended.

Q4: Can you guarantee long-term supply and replacement support for this part?
Yes. We maintain dedicated stock of the 330876-01-90-00-00 and related 3300 XL series components to support both planned maintenance programs and emergency replacement requirements. Orders are typically dispatched within 1–3 business days. For customers with critical spare parts programs, we offer reserved stock arrangements and priority fulfillment agreements. Contact our technical sales team to discuss your long-term supply requirements.
