Bently Nevada 330881-28-04-045-03-02 Spare 3300/3500

Bently Nevada 330881-28-04-045-03-02 Maintenance-Ready Spare for 3300/3500 Series Automation

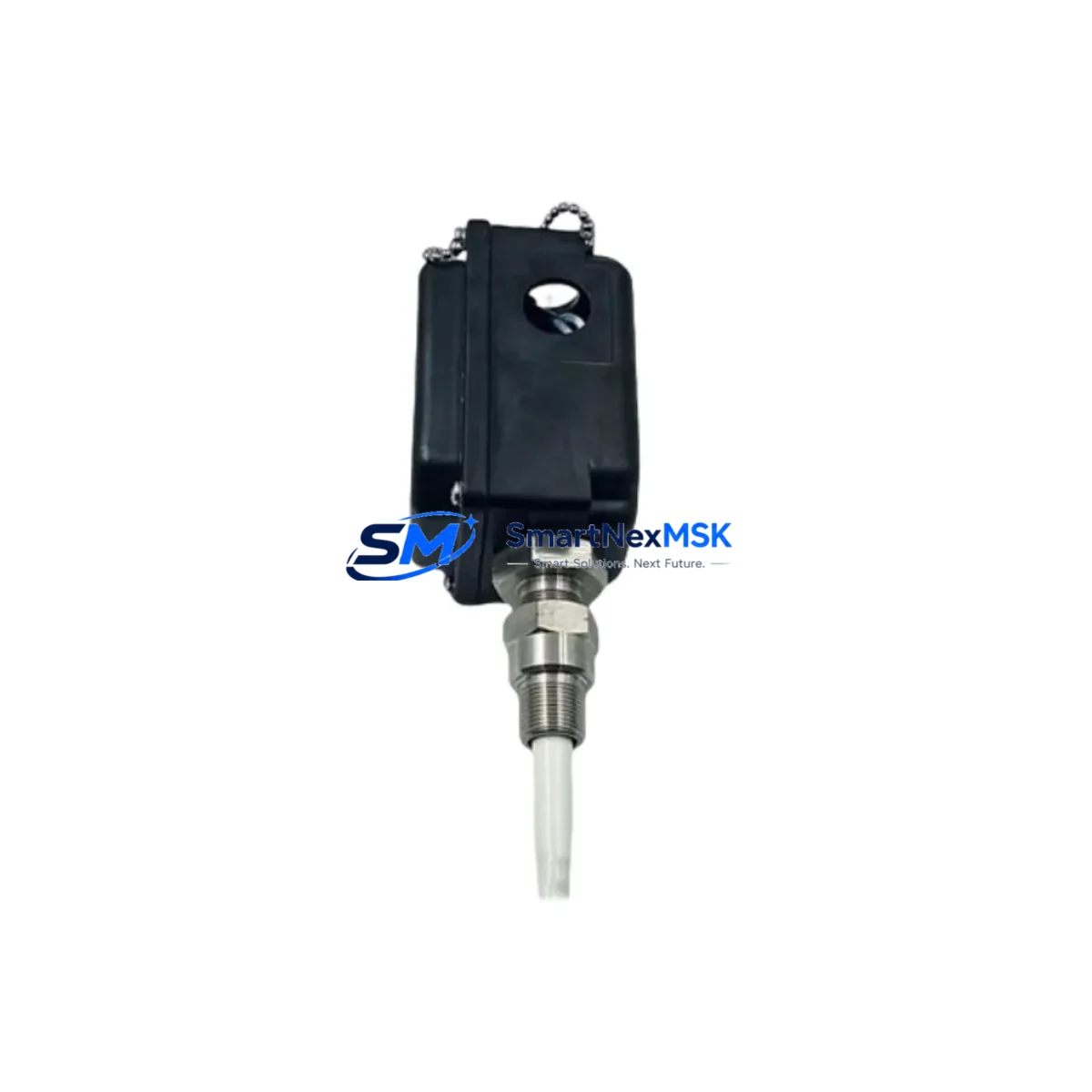

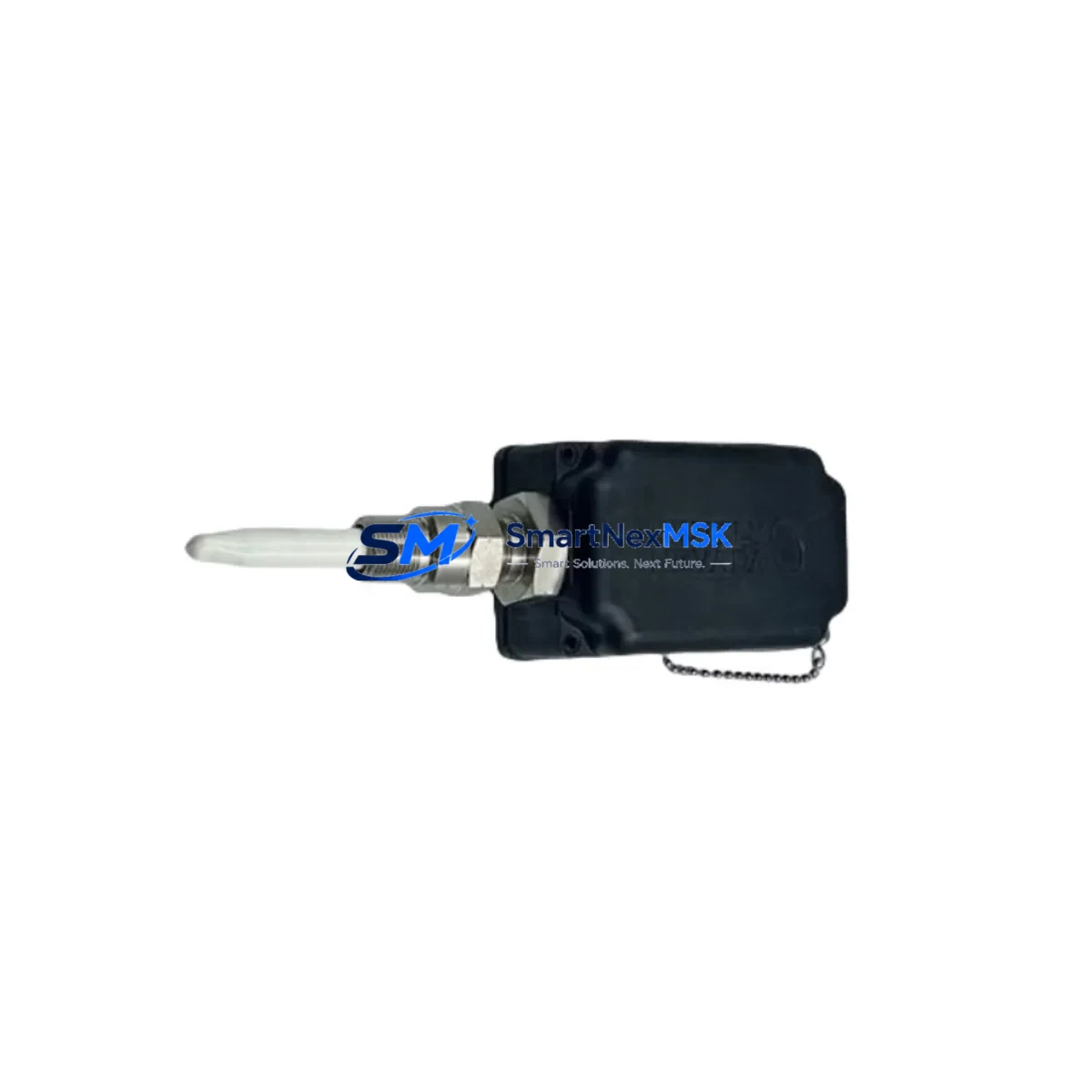

The Bently Nevada 330881-28-04-045-03-02 is an original PROXPAC XL proximity transducer assembly engineered for continuous vibration and position monitoring in rotating machinery protection systems. Designed to integrate seamlessly with the Bently Nevada 3300 and 3500 Series monitoring platforms, this spare part is a critical component in turbine, compressor, pump, and motor protection circuits across oil and gas, power generation, petrochemical, and heavy industrial facilities.

For maintenance engineers managing aging machinery protection systems, sourcing a verified, tested replacement for the 330881-28-04-045-03-02 is essential to avoiding unplanned downtime. This PROXPAC XL assembly combines the proximity probe, extension cable, and Proximitor sensor into a single pre-matched unit, eliminating field calibration errors and reducing replacement time significantly. Each unit shipped by SMARTNEXMSK undergoes functional verification and output signal testing prior to dispatch, ensuring it meets Bently Nevada’s original performance specifications upon arrival.

Procurement engineers and reliability teams maintaining 3300/3500 Series racks should treat this transducer assembly as a priority line item in their critical spare inventory. A single failed proximity transducer can trigger a machine trip, halt production, and cascade into broader system diagnostics — particularly in facilities where the 3500/22M transient data interface or 3500/42M proximitor I/O module is actively monitoring shaft displacement and eccentricity. Keeping at least one verified 330881-28-04-045-03-02 on the shelf is a standard practice in any reliability-centered maintenance (RCM) program.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330881-28-04-045-03-02 in a live 3300 or 3500 Series rack, a thorough maintenance inspection of the surrounding circuit is strongly recommended. Maintenance engineers should not limit their scope to the transducer assembly alone — the reliability of the entire vibration monitoring loop depends on the condition of interconnected components.

Begin by inspecting the 3500/20 rack power supply module and verifying that the -24 VDC bias supply to the Proximitor is within tolerance. A degraded power supply can cause erratic gap voltage readings that mimic a failing transducer. Next, check the 3500/42M proximitor I/O module for any alarm or OK relay status changes that may have preceded the transducer fault — this module processes the raw gap voltage and converts it to engineering units for the monitoring system.

Inspect the extension cable (330130 series) for jacket damage, connector corrosion, or continuity faults, particularly in high-vibration or high-temperature zones near the machine casing. A damaged extension cable is a common root cause of intermittent proximity faults that are incorrectly attributed to the probe or Proximitor. Similarly, verify the Proximitor sensor housing for moisture ingress or terminal oxidation.

For facilities running the 3500/22M transient data interface, confirm that the channel configuration and full-scale range settings in the rack configuration software (System 1 or Rack Configuration Software) still match the replacement transducer’s sensitivity. Mismatched sensitivity settings will produce incorrect vibration amplitude readings even with a fully functional new transducer.

Procurement teams should also review the status of associated 3500/15 power supply units, 3500/32 4-channel relay module outputs tied to the vibration trip logic, and any 3500/50 tachometer input module if the machine’s speed signal is used for vector filtering. In older installations, the 3300/16 dual-channel monitor may still be in service — ensure that replacement transducers are matched to the correct monitor type and gap voltage range.

For facilities managing long-term asset life extension on legacy 3300 or 3500 Series systems, maintaining a documented spare parts list that includes the 330881-28-04-045-03-02 alongside matched extension cables, Proximitor sensors, and rack I/O modules is essential for minimizing mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the affected monitoring channel in the 3500 rack using the rack configuration software to suppress spurious trips during replacement. Do not power down the entire rack unless required — most 3500 Series racks support hot-swap channel isolation.

Step 2 — Remove the Existing Assembly: Disconnect the extension cable from the Proximitor junction box. Unthread the probe from the mounting bracket. Record the installed gap distance (typically measured with a digital multimeter reading the gap voltage: -24 VDC supply minus gap voltage output, divided by sensitivity factor).

Step 3 — Install the 330881-28-04-045-03-02 Replacement: Thread the new probe into the mounting bracket. Reconnect the extension cable. Set the air gap to the original recorded value or per the OEM specification for the target shaft diameter and material. Verify gap voltage at the Proximitor output terminals.

Step 4 — Functional Verification: Re-enable the monitoring channel in the rack software. Confirm OK relay status, verify that vibration amplitude readings are within expected baseline range, and check that no alarms are active. Document the replacement in the site maintenance management system (CMMS).

Step 5 — System Compatibility Confirmation: Confirm that the replacement 330881-28-04-045-03-02 suffix codes (probe length, cable length, temperature rating) match the original installed configuration. Mismatched suffix codes are a common source of post-replacement calibration errors in 3300/3500 Series systems.

SMARTNEXMSK supplies the 330881-28-04-045-03-02 with full traceability documentation, pre-shipment test records, and a 12-month warranty covering manufacturing defects and functional performance. Expedited shipping is available for emergency maintenance situations.

Spare Parts Support FAQ

Q1: Is the 330881-28-04-045-03-02 compatible with both the 3300 and 3500 Series monitoring systems?
Yes. The PROXPAC XL assembly is designed for use with Bently Nevada 3300 and 3500 Series monitoring racks. Always verify the suffix codes against your installed Proximitor model and rack channel configuration to ensure full compatibility before installation.

Q2: What is included in the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. Each unit is pre-tested for output signal integrity and gap calibration prior to shipment. Warranty claims are supported with replacement or repair at no additional cost within the warranty period.

Q3: How do I verify the replacement transducer before installation?
Connect the Proximitor to a -24 VDC supply and use a steel target at the specified gap distance. Measure the output voltage and confirm it falls within the expected range per the sensitivity specification (200 mV/mil nominal). SMARTNEXMSK provides pre-shipment test records with each unit to support incoming inspection.

Q4: Can SMARTNEXMSK support long-term or recurring supply of the 330881-28-04-045-03-02?
Yes. SMARTNEXMSK maintains stock of Bently Nevada 3300/3500 Series spare parts and can support scheduled procurement programs, blanket orders, and emergency supply for facilities managing legacy machinery protection systems. Contact our team to discuss inventory reservation and lead time commitments.
