Bently Nevada 330881-28-05-060-00-02 Retrofit-Ready Proximity Transducer for 3500 Series

Bently Nevada 330881-28-05-060-00-02 Retrofit-Ready PROXPAC XL: Seamless Compatibility for Legacy System Upgrades

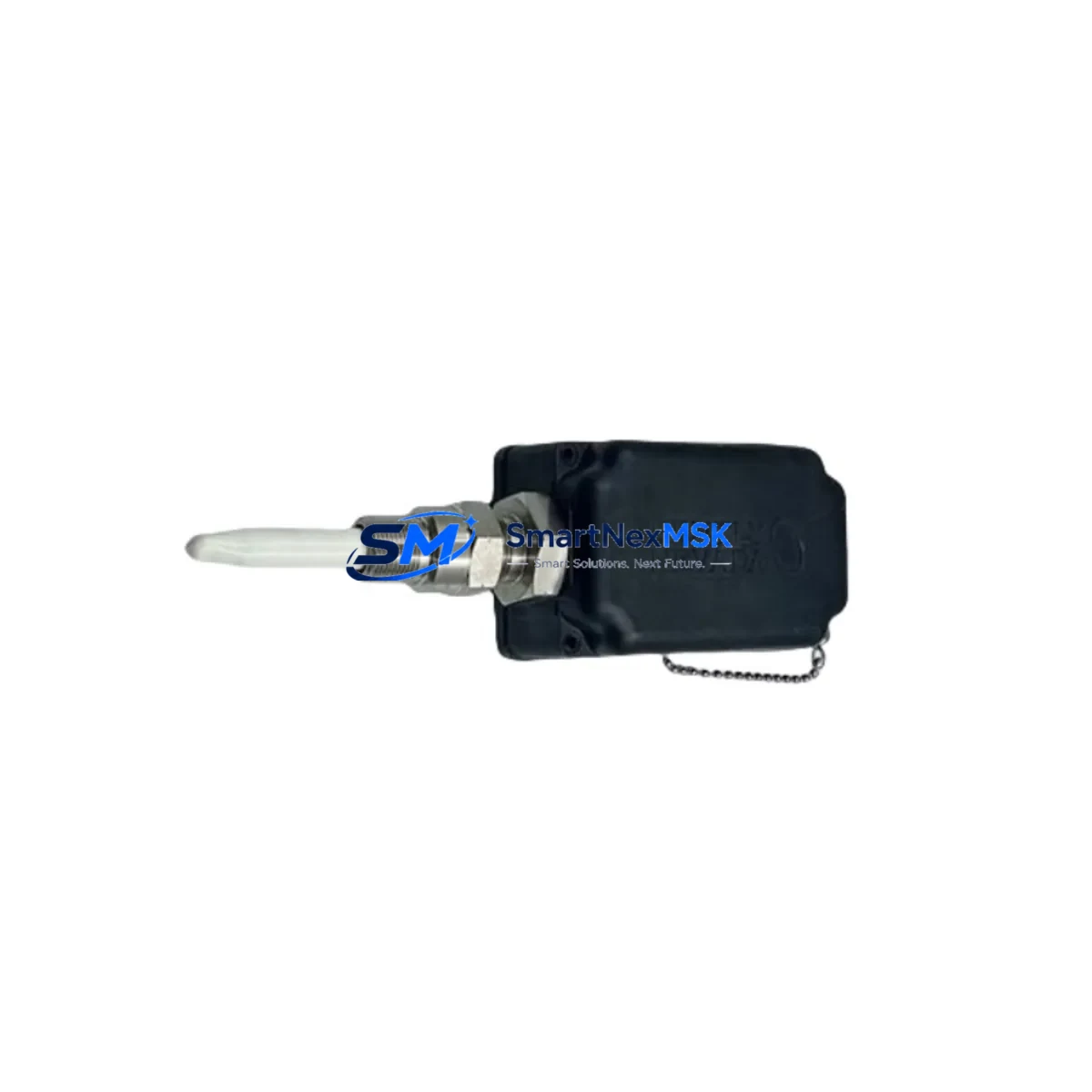

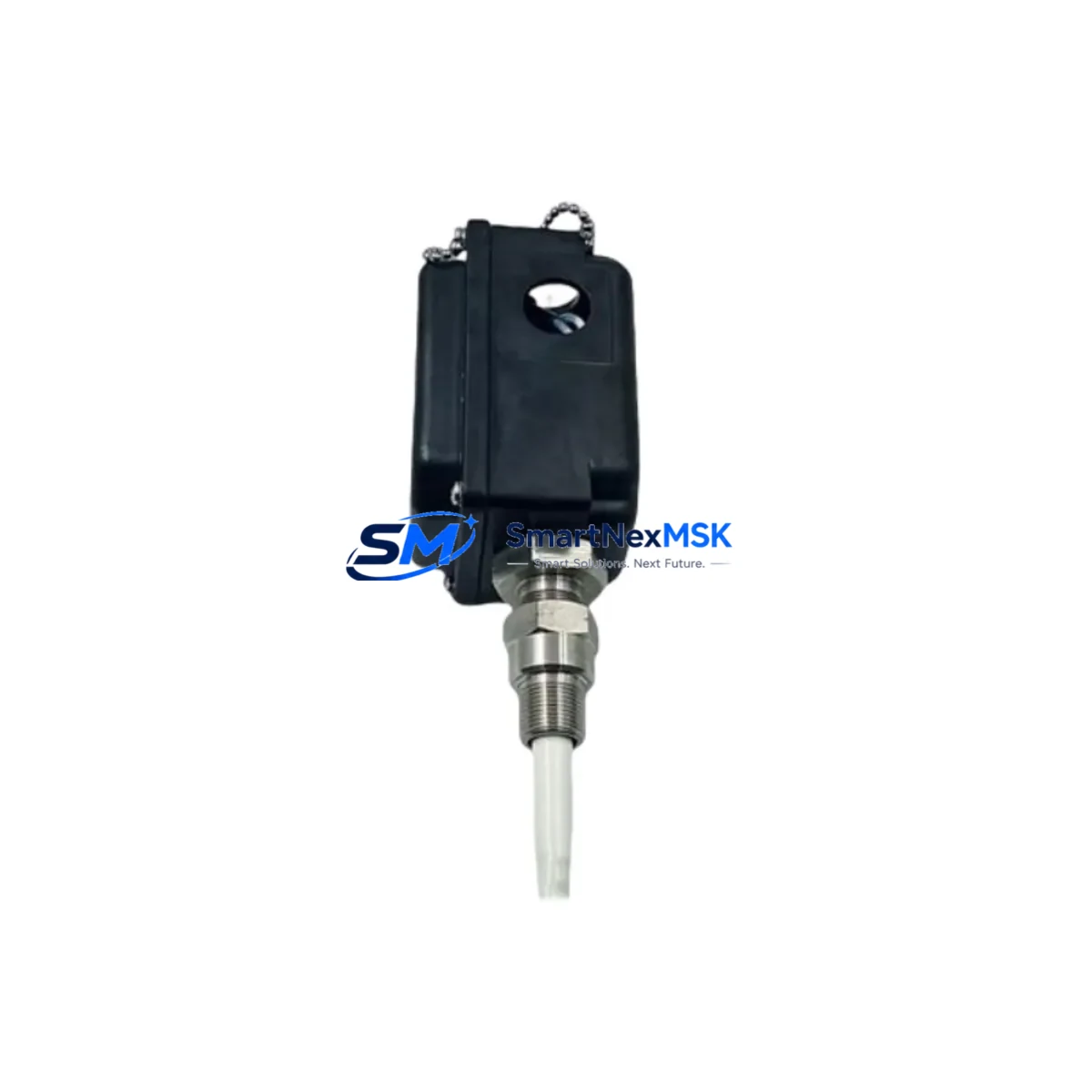

The Bently Nevada 330881-28-05-060-00-02 PROXPAC XL Proximity Transducer System is a precision-engineered, retrofit-ready replacement designed to restore and modernize vibration monitoring capability in aging machinery protection systems. Whether you are replacing a failed unit on a critical rotating machine, upgrading a legacy 3300 Series rack to current 3500 Series standards, or recovering a system after an unplanned shutdown, this PROXPAC XL assembly delivers verified drop-in compatibility with minimal engineering intervention.

The 330881-28-05-060-00-02 is a complete proximity transducer system comprising a probe, extension cable, and Proximitor sensor, pre-matched and factory-calibrated as a set. The 28 mm probe length, 5-metre extension cable, and 60 mil gap range make it directly interchangeable with the original Bently Nevada specification, eliminating the need for field recalibration of the gap voltage when replacing a like-for-like unit. This is a critical advantage during emergency maintenance windows where downtime must be kept to an absolute minimum.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330881-28-05-060-00-02 into an existing machinery protection system requires a structured pre-installation review. Before removing the failed transducer, engineers should document the current gap voltage reading, the alarm and danger setpoints configured in the associated 3500/42M Vibration Monitor or 3500/40M Proximitor I/O Module, and the channel assignment within the 3500 rack. The 3500 rack backplane uses a standardised slot-based addressing scheme, and the replacement PROXPAC XL must be connected to the same Proximitor input channel to avoid remapping monitor logic.

In systems where the original installation used a 3300/16 or 3300/20 monitor, migration to the 3500 Series platform may be underway as part of a broader control cabinet upgrade. In this scenario, the 330881-28-05-060-00-02 remains compatible with both generations, providing a stable transducer foundation while the monitoring electronics are upgraded. The 3500/20 Rack Interface Module and 3500/22M Transient Data Interface are commonly installed alongside new monitor cards during such migrations, and the PROXPAC XL signal chain requires no modification to interface with these modules.

For plants running Bently Nevada System 1 software for condition monitoring, the replacement transducer’s channel data will automatically populate in the existing System 1 database once the gap is correctly set and the monitor card confirms an OK status. No manual re-entry of transducer parameters is required if the replacement SKU matches the original specification exactly. Engineers should confirm that the 3500/01 Power Supply Module in the rack is delivering stable -24 VDC before energising the new PROXPAC XL, as voltage fluctuations during commissioning can trigger false Not OK conditions and unnecessary process trips.

Where the retrofit involves extending or rerouting the signal cable path — for example, during a control cabinet relocation or a machine skid redesign — the 5-metre extension cable supplied with the 330881-28-05-060-00-02 may need to be supplemented with a compatible Bently Nevada junction box or armoured extension. In such cases, the total cable length from probe tip to Proximitor input must remain within the specified range to maintain calibration accuracy. The 3500/92 Communication Gateway Module, if present in the rack, will continue to forward vibration data to the plant DCS or historian without reconfiguration, provided the monitor channel mapping is preserved.

Plants operating GE Mark VIe or Emerson Ovation DCS platforms alongside Bently Nevada machinery protection systems should verify that the 4–20 mA or Modbus output from the 3500 monitor card is correctly mapped in the DCS I/O configuration after the transducer replacement. The 3500/60 EPROM Module retains monitor configuration through power cycling, so existing alarm logic and output relay assignments are preserved during the swap. For facilities using a Bently Nevada 3500/94 Ethernet Communications Module for remote monitoring, no network reconfiguration is required after a like-for-like transducer replacement.

Downtime Control During System Migration

Minimising production downtime during a proximity transducer replacement is achievable with disciplined pre-staging and a clear commissioning sequence. The recommended approach is to prepare the replacement 330881-28-05-060-00-02 PROXPAC XL off-line before the maintenance window opens: inspect the probe tip for damage, verify the Proximitor output voltage at the factory-set gap using a bench power supply and a steel target, and confirm the coaxial connector integrity on both the extension cable and the Proximitor housing.

During the maintenance window, the sequence should follow: isolate the monitor channel in bypass mode using the 3500 rack’s channel inhibit function to prevent spurious trips during the swap; remove the failed transducer assembly; install the replacement and set the mechanical gap to the target voltage; restore the channel from bypass; and verify the OK LED on the monitor card before releasing the machine to operations. This sequence typically requires 30 to 90 minutes for a single channel replacement on an accessible machine, and preserves all existing alarm logic, relay outputs, and historian data continuity without any changes to the 3500 rack configuration or the plant control system.

For sites where the 3500 rack is integrated with a Safety Instrumented System via a 3500/33 16-Channel Relay Module, the SIS bypass procedure must be coordinated with the safety team before the maintenance window begins. The original program logic in the SIS controller — whether a Triconex Tricon, Rockwell GuardLogix, or Siemens S7-300F — does not require modification for a like-for-like transducer replacement, as the signal interface remains at the 3500 monitor card level. Maintaining this separation of concerns is the key to achieving fast, low-risk transducer replacements in safety-critical rotating machinery applications.

Retrofit Support FAQ

Q1: Is the 330881-28-05-060-00-02 a direct replacement for the original Bently Nevada part of the same number?
Yes. This unit is supplied as a matched PROXPAC XL set — probe, extension cable, and Proximitor — with the same mechanical dimensions, electrical output, and connector specification as the original. It is suitable for direct installation in any 3300 or 3500 Series monitor slot that previously accepted the 330881-28-05-060-00-02 without modification to the rack wiring or monitor configuration.

Q2: What commissioning checks are required after installation?
After mechanical installation, set the probe-to-target gap to achieve a Proximitor output of -10 VDC ±0.5 V using a non-conductive gap-setting tool. Confirm the OK LED on the associated 3500 monitor card is illuminated. Verify that the vibration reading displayed in System 1 or the plant DCS is within the expected baseline range for the machine at rest. Check that the alarm and danger relay outputs are functioning correctly by reviewing the monitor card’s front-panel indicators before releasing the machine to service.

Q3: Does this unit ship with a test certificate, and what does the 12-month warranty cover?
Yes. Each 330881-28-05-060-00-02 PROXPAC XL is shipped with an outgoing test record confirming electrical performance at the specified gap. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified voltage and temperature range. Warranty claims are supported by our technical team at sales@smartnexmsk.com.

Q4: Can this transducer be used with non-Bently Nevada monitors or third-party vibration systems?
The 330881-28-05-060-00-02 outputs a standard -24 VDC-powered analogue DC voltage signal at 200 mV/mil sensitivity, which is compatible with any vibration monitor that accepts a standard eddy-current proximity transducer input at this sensitivity scale. However, full plug-and-play compatibility is verified only for Bently Nevada 3300 and 3500 Series monitors. Use with third-party monitors requires independent verification of input impedance, power supply voltage, and signal conditioning requirements before installation.
