Bently Nevada 330881-28-05-080-00-02 Spare 3300 XL

Bently Nevada 330881-28-05-080-00-02 Maintenance-Ready Spare for 3300 XL Automation

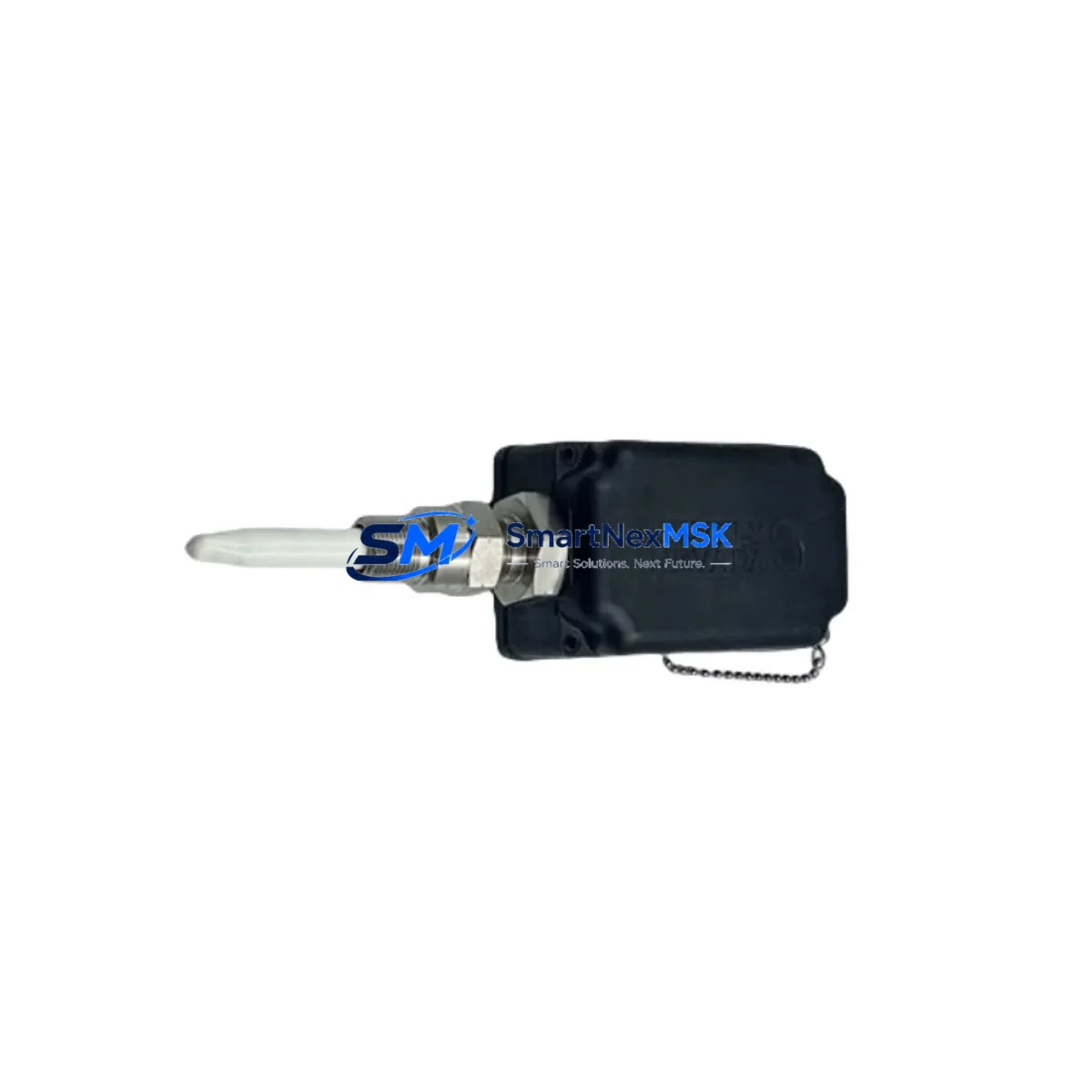

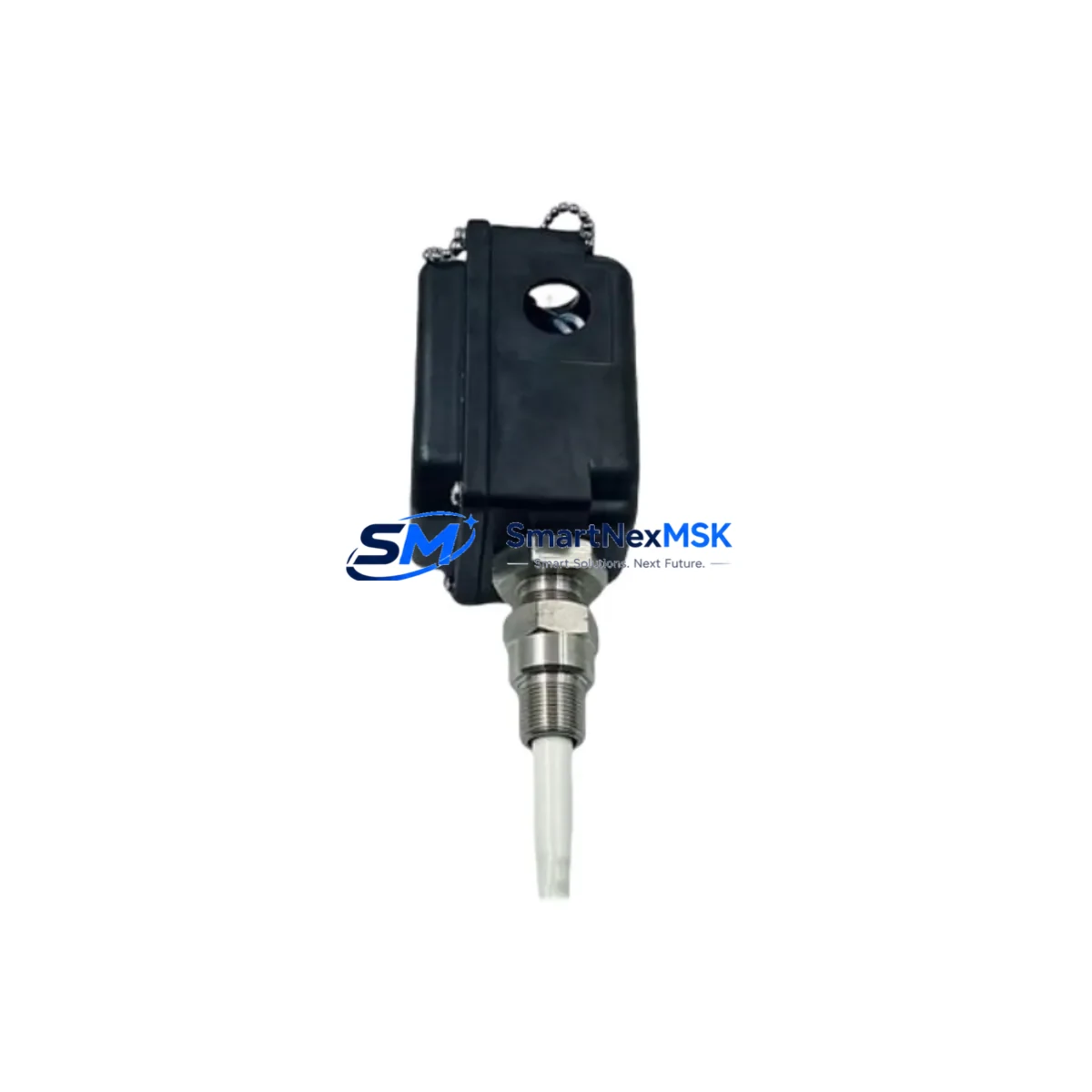

The Bently Nevada 330881-28-05-080-00-02 is a PROXPAC XL 28mm proximity transducer engineered for continuous vibration and position monitoring in rotating machinery protection systems. As a critical spare within the Bently Nevada 3300 XL and 3500 Series monitoring platforms, this transducer delivers the measurement accuracy and signal integrity that maintenance engineers depend on during both planned shutdowns and emergency replacement scenarios.

For facilities running turbines, compressors, pumps, or gearboxes under continuous monitoring, an unplanned transducer failure can trigger a full machine trip and unscheduled downtime. Stocking the 330881-28-05-080-00-02 as a certified maintenance spare eliminates procurement lead time from the critical path and allows site teams to restore protection coverage within hours rather than days. Each unit is tested prior to shipment and backed by a 12-month warranty, giving procurement engineers confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330881-28-05-080-00-02 in the field, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure the protection system returns to full specification. Maintenance engineers should treat this replacement as an opportunity to audit the complete signal chain.

Begin by verifying the condition of the 330130-080-00-05 extension cable — the coaxial cable connecting the probe to the driver. Cable jacket damage, connector corrosion, or impedance mismatch are common causes of erratic gap voltage readings that are often misdiagnosed as probe failure. Inspect the 330180-X1-05 proximitor/driver module mounted in the monitor rack; a degraded driver will produce incorrect output even with a new probe installed.

Within the 3500 Series rack, check the 3500/42M Proximitor/Seismic Monitor card for alarm setpoint integrity and channel configuration. If the machine has been running with a faulty transducer, the monitor may have logged nuisance trips that require setpoint review. The 3500/20 Rack Interface Module (RIM) and 3500/22M Transient Data Interface should also be inspected for firmware currency and communication health, particularly in systems integrated with a DCS or safety instrumented system (SIS).

For the power supply side, confirm that the 3500/15 Power Supply Module is delivering stable -24 VDC to the proximitor circuit. Voltage sag or ripple at the driver input directly degrades transducer linearity. If the cabinet houses multiple monitoring channels, inspect adjacent 3300 XL 8mm proximity transducer assemblies for wear, as machines with high vibration amplitudes tend to degrade probes across multiple measurement planes simultaneously.

In facilities using Bently Nevada System 1 Evolution software for online machinery diagnostics, recalibrate the channel after probe replacement and verify that gap voltage falls within the linear range (typically -10 VDC ± 2 VDC for a 28mm probe at nominal gap). Document the as-found and as-left gap readings in the maintenance management system to support future trend analysis and predictive maintenance scheduling.

For older installations where the 330881 series is approaching end-of-life, consider stocking a matched spare set — probe, extension cable, and driver — to support rapid swap-out during planned turnarounds. Long-term supply of original Bently Nevada components ensures backward compatibility with legacy 3300 and 3500 racks without requiring monitor reconfiguration.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 330881-28-05-080-00-02 matches the installed probe diameter (28mm), cable length (5.0m extension), and overall system length (8.0m). Cross-reference the part number on the existing probe body and extension cable connector before removing any components.

Step 2 — Safe isolation: Coordinate with the control room to bypass the affected monitoring channel in the 3500 rack before disconnecting the probe. This prevents a spurious machine trip during the swap. Follow site lock-out/tag-out (LOTO) procedures for the measurement point.

Step 3 — Physical replacement: Remove the existing probe from the mounting bracket, disconnect the extension cable at both ends, and install the new 330881-28-05-080-00-02 assembly. Torque the probe tip to the manufacturer’s specification and secure the cable routing to avoid mechanical stress on the connector.

Step 4 — Gap setting and verification: Using a calibrated DC voltmeter, measure the driver output voltage with the probe at the target gap distance. Adjust the probe position until the output falls within the specified linear range. Record the as-left gap voltage.

Step 5 — System restoration: Remove the channel bypass in the 3500 monitor, confirm alarm and danger setpoints are active, and verify that System 1 or the DCS historian is receiving a valid signal. Log the replacement in the CMMS with part number, date, and gap voltage readings.

This workflow minimizes machine exposure time and ensures the protection system is fully restored before the bypass is lifted — a critical discipline for facilities operating under API 670 machinery protection standards.

Spare Parts Support FAQ

Q: Is the 330881-28-05-080-00-02 a direct replacement for older 330880 series probes?
A: The 330881 PROXPAC XL series is the successor to the 330880 standard proximity probe line. In most 3300 XL and 3500 installations, the 330881-28-05-080-00-02 is a compatible replacement, but engineers should verify the overall system length and driver compatibility before installation, as cable length configurations differ between assemblies.

Q: How do you verify compatibility before installation on a live system?
A: Confirm the probe diameter (28mm), extension cable length (5.0m), and total system length (8.0m) match the existing installation. Check the proximitor/driver model number to ensure it is rated for the 330881 probe series. Review the 3500 monitor channel configuration for any probe-specific calibration parameters that may need updating.

Q: What pre-shipment testing is performed on each unit?
A: Each 330881-28-05-080-00-02 unit undergoes electrical continuity testing, gap voltage linearity verification, and connector integrity inspection before dispatch. Test records are available upon request. All units are shipped with protective packaging to prevent cable damage in transit.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified temperature and voltage range. Warranty claims are supported with replacement or refund based on fault assessment.
