Bently Nevada 330881-28-10-140-00-02 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

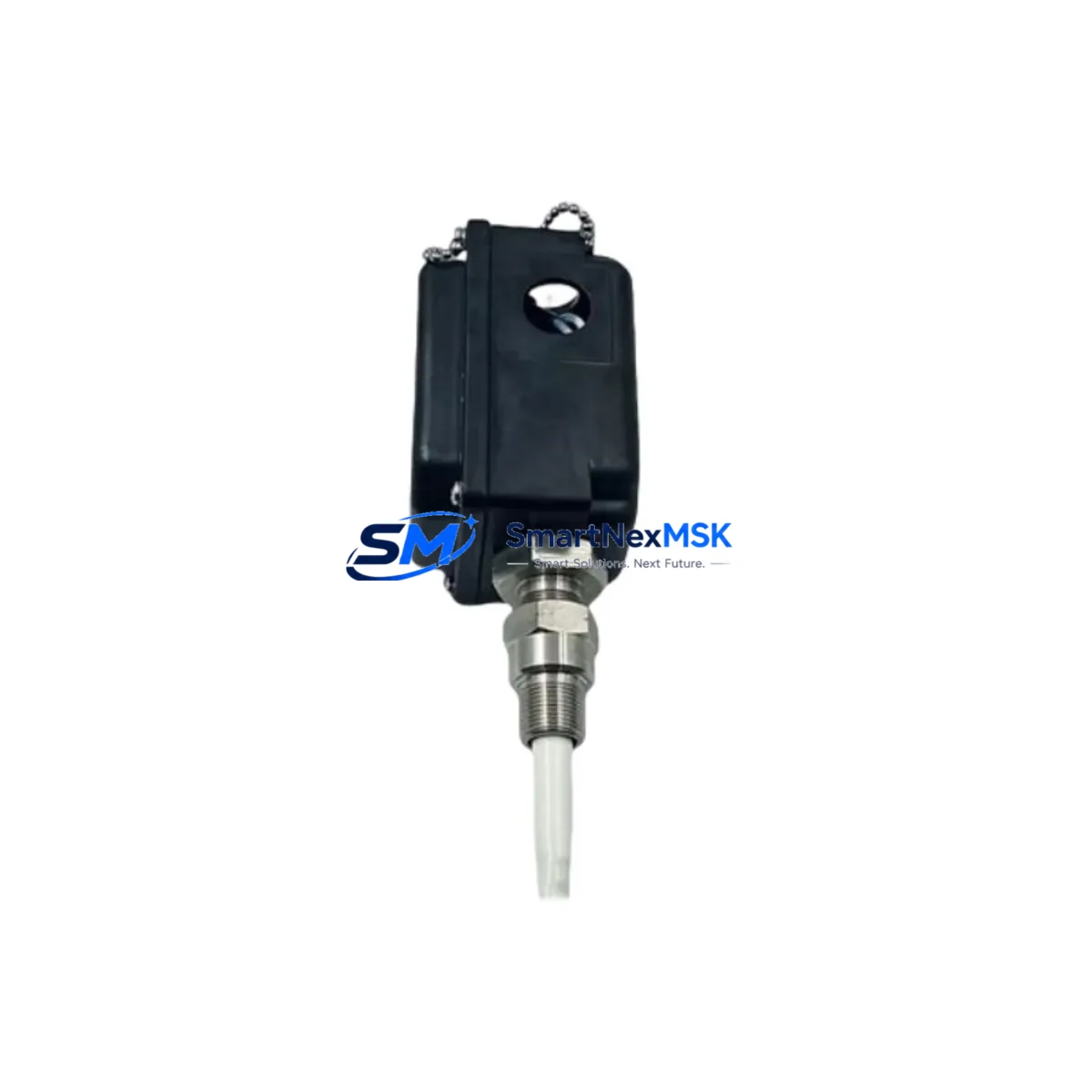

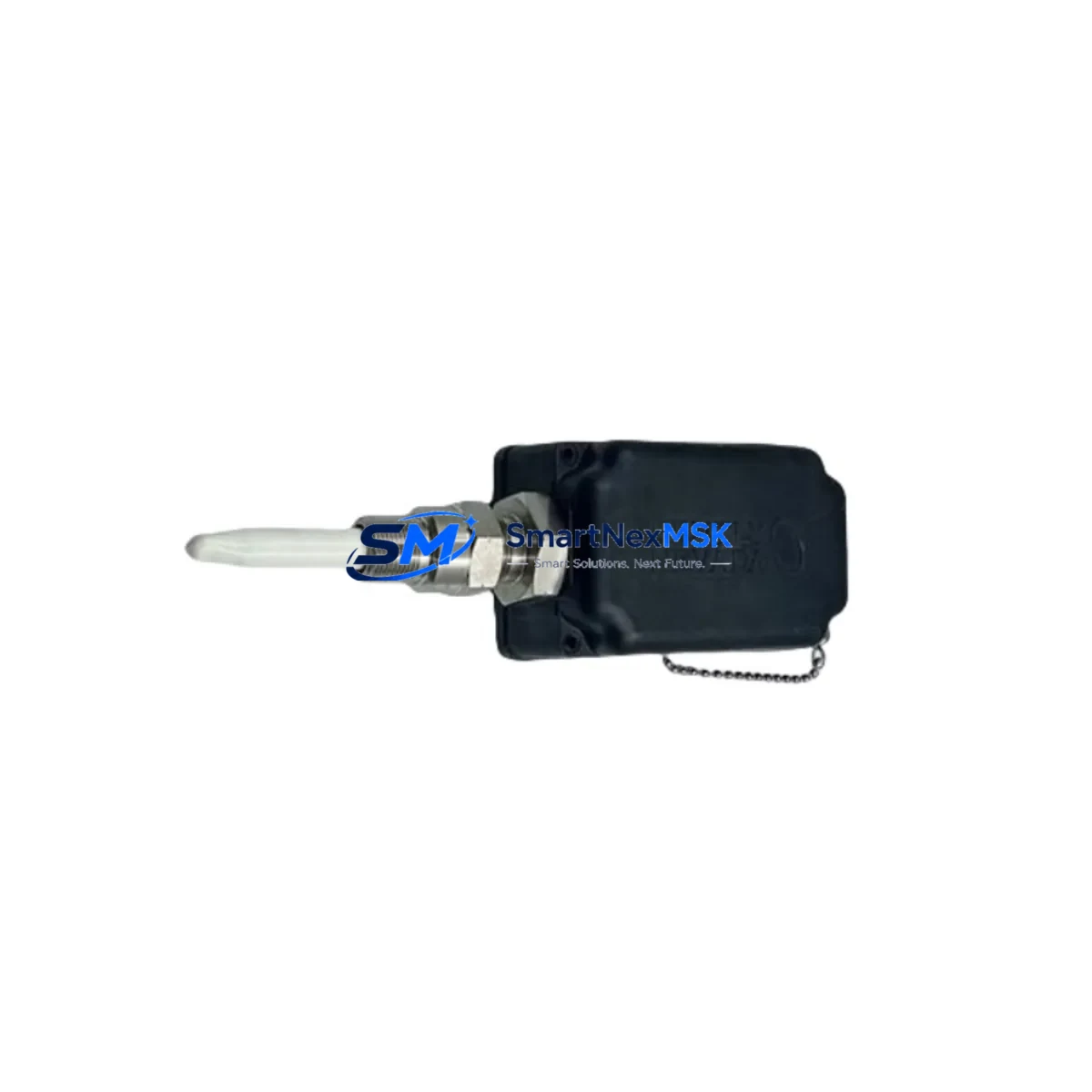

The Bently Nevada 330881-28-10-140-00-02 is a PROXPAC XL proximity transducer assembly engineered for direct retrofit into legacy 3300 XL and 3500 Series vibration monitoring systems. As original Bently Nevada hardware reaches end-of-life or becomes increasingly difficult to source, this assembly provides a verified drop-in replacement path that preserves existing wiring, terminal assignments, and monitor calibration — minimizing engineering rework and unplanned downtime during system modernization.
This transducer assembly is designed for radial and axial shaft vibration measurement in rotating machinery protection applications, including turbines, compressors, pumps, and gearboxes. It integrates directly with the 3300 XL monitor rack and is fully compatible with the Bently Nevada 3500 Series machinery protection system when used with the appropriate signal conditioning modules. Engineers undertaking a control cabinet upgrade or partial system migration will find this assembly particularly valuable for maintaining measurement continuity without replacing the entire monitoring chain.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | 330881-28-10-140-00-02 |
| Brand | Bently Nevada |
| Series Compatibility | 3300 XL, 3500 Series Machinery Protection System |
| Assembly Type | PROXPAC XL Proximity Transducer Assembly |
| Probe Extension Cable Length | 10 ft (3.05 m) — verify against existing cable routing |
| Target Gap Range | Nominal 50 mil (1.27 mm) — confirm with monitor calibration sheet |
| Output Signal | –24 VDC, –200 mV/mil sensitivity (standard Bently Nevada Proximitor output) |
| Terminal / Connector Interface | Compatible with existing 3300 XL I/O terminal blocks — no rewiring required |
| Mounting Thread | 8 mm — confirm bracket and lock nut compatibility on-site |
| Communication / Signal Protocol | Analog voltage output — compatible with 3500/40M, 3500/42M, 3500/45 monitor modules |
| Retrofit Recommendation | Direct drop-in replacement; re-gap and re-calibrate after installation |
| Commissioning Focus | Gap voltage verification, OK relay check, Keyphasor® reference alignment |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330881-28-10-140-00-02 into an existing machinery protection architecture requires a structured pre-installation review. Before removing the legacy transducer assembly, engineers should document the current gap voltage reading at the Proximitor output terminal — typically measured at the 3300 XL monitor’s I/O terminal block or at the junction box in the field. This baseline reading is essential for post-installation calibration verification.
In systems where the 3300 XL rack houses multiple monitor modules — such as the 3300/16 dual-channel vibration monitor or the 3300/55 temperature monitor — the replacement of a single transducer assembly should not affect adjacent channel operation, provided the rack power supply (commonly the 3300/20 power supply module) is within its rated load capacity. Verify available power headroom before proceeding, particularly in fully populated racks.
For sites migrating from a 3300 XL rack to a 3500 Series system, the 330881-28-10-140-00-02 transducer assembly remains compatible with 3500 Series monitor modules including the 3500/40M proximitor monitor and the 3500/42M four-channel proximitor monitor. The Proximitor® sensor output signal is electrically identical across both platforms, which means the transducer assembly can be retained during a phased rack migration — replacing the monitor modules and I/O modules (such as the 3500/20 rack interface module) while keeping the field-installed transducer and extension cable in place.
Where the existing installation uses a Bently Nevada 3300 XL communication gateway or a Modbus/TCP interface card for DCS integration, confirm that the replacement transducer does not alter the channel address mapping within the monitor configuration. In Bently Nevada System 1 software environments, channel tags and alarm setpoints are stored at the monitor level, not the transducer level, so no software reconfiguration is typically required for a like-for-like transducer swap.
Sites operating Keyphasor® reference probes alongside radial vibration transducers should also verify that the Keyphasor® module — such as the 3500/25 Keyphasor module — remains correctly phased after the transducer replacement. Any change in probe mounting position or target material can affect the once-per-revolution reference signal used for phase angle and 1X/2X vector calculations in the vibration analysis workflow.
For control cabinets that include a Bently Nevada 3500/92 communication gateway or an OPC-DA/OPC-UA server interface, no protocol migration is required when replacing the transducer assembly. The analog signal chain from the PROXPAC XL assembly to the monitor module to the communication gateway remains unchanged. This is a significant advantage for sites where DCS historians — such as those connected via a 3500 Series rack to an Emerson DeltaV or Honeywell Experion system — are actively logging vibration trend data.
Downtime Control During System Migration
Minimizing production downtime during a transducer replacement requires careful coordination between the maintenance team, the control room operator, and — where applicable — the OEM service representative. The recommended approach is to schedule the replacement during a planned maintenance window, with the machinery in a safe shutdown state and the 3300 XL or 3500 Series monitor placed in bypass mode to suppress spurious alarms during the gap-setting procedure.
The replacement sequence for the 330881-28-10-140-00-02 assembly is as follows: remove the existing transducer and extension cable as a complete PROXPAC assembly, install the replacement assembly using the existing mounting bracket and conduit entry, set the probe gap to the nominal value specified on the monitor calibration sheet (typically 50 mil / 1.27 mm for standard 8 mm probes), verify the Proximitor output voltage at the terminal block, and confirm the OK relay status on the monitor front panel before releasing the bypass. The entire procedure can typically be completed within two to four hours by a qualified instrumentation technician, provided all replacement components are on-site and pre-tested.
Pre-shipment testing of the 330881-28-10-140-00-02 assembly includes functional verification of the Proximitor output voltage, linearity check across the measurement range, and continuity testing of the extension cable. A test certificate is available upon request. Stocking a spare PROXPAC XL assembly in the site’s critical spare parts inventory is strongly recommended for facilities where continuous machinery protection monitoring is a safety or regulatory requirement.
Retrofit Support FAQ
Q: Is the 330881-28-10-140-00-02 a direct replacement for my existing Bently Nevada PROXPAC assembly?
A: Yes, provided your existing installation uses an 8 mm probe with a 10 ft extension cable and a standard –24 VDC Proximitor. Verify the probe tip diameter, extension cable length, and Proximitor supply voltage against your current calibration sheet before ordering. The assembly is compatible with both 3300 XL and 3500 Series monitor platforms without modification.
Q: Do I need to reconfigure my 3500 Series monitor or System 1 software after replacing the transducer?
A: For a like-for-like replacement, no software reconfiguration is required. Channel tags, alarm setpoints, and OK relay thresholds are stored at the monitor module level. After installation, perform a gap voltage verification and confirm the OK status — no database changes are needed in System 1 or the 3500/92 communication gateway.
Q: What wiring changes are required when installing this assembly?
A: None for a standard replacement. The PROXPAC XL assembly uses the same three-wire connection (power, common, output) as the original Bently Nevada proximity transducer assemblies. Terminal assignments at the 3300 XL or 3500 Series I/O terminal block are unchanged. If the existing conduit or junction box uses a different connector type, a field-wired adapter may be required — contact our technical team for guidance.
Q: What warranty and post-shipment support is provided?
A: All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing documentation is available upon request. For commissioning support, gap-setting guidance, or compatibility verification, contact our technical team directly.
