Bently Nevada 330901-00-08-10-02-05: Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

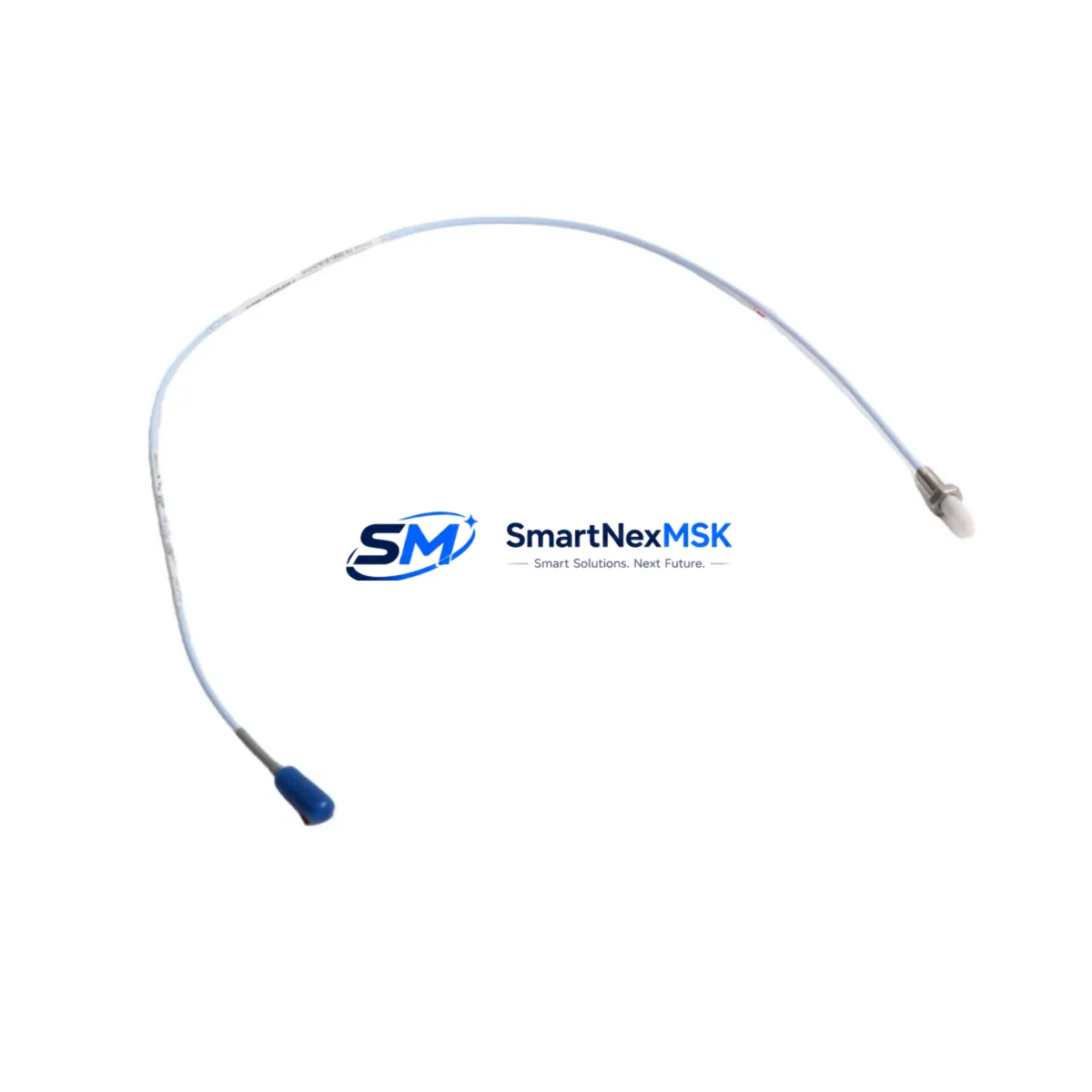

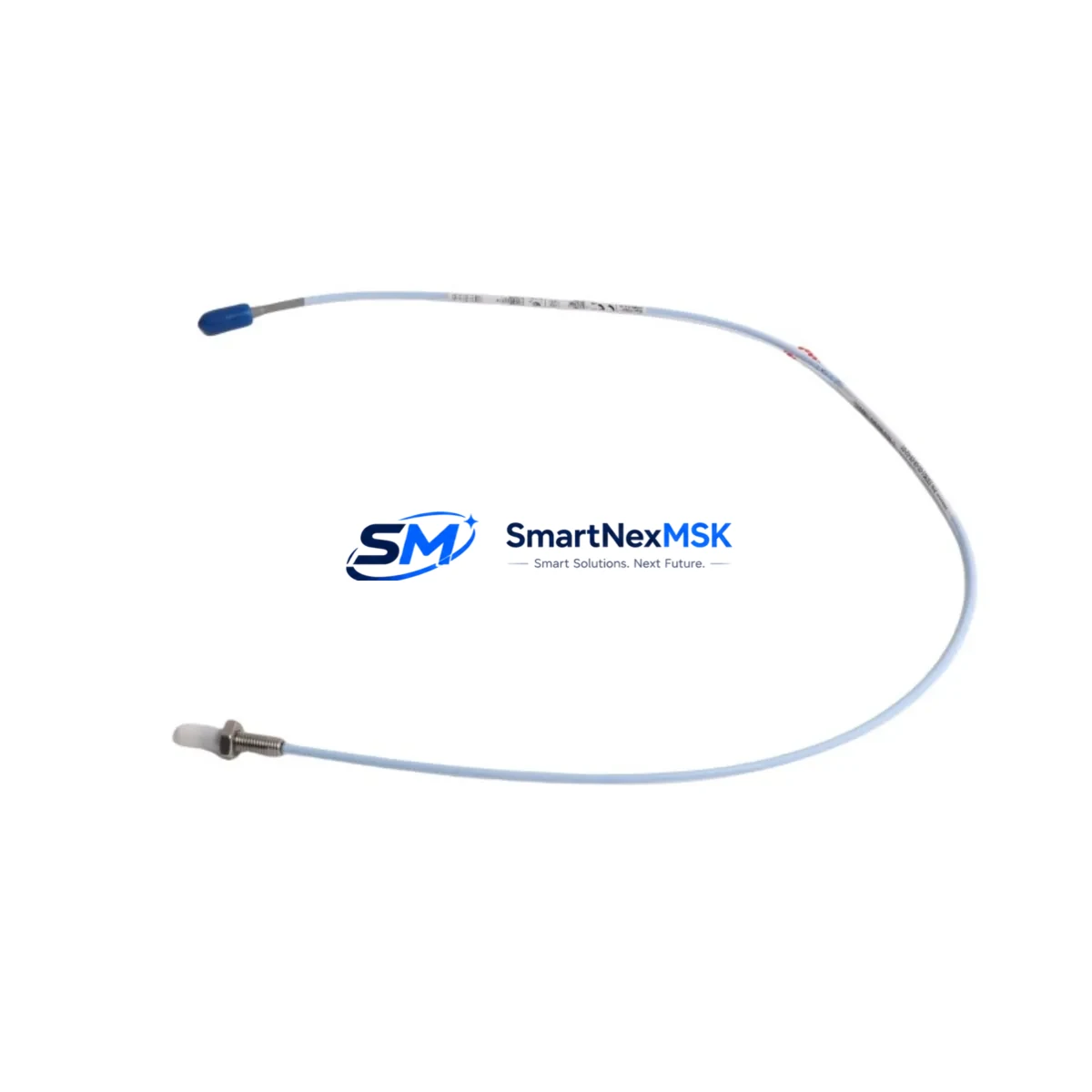

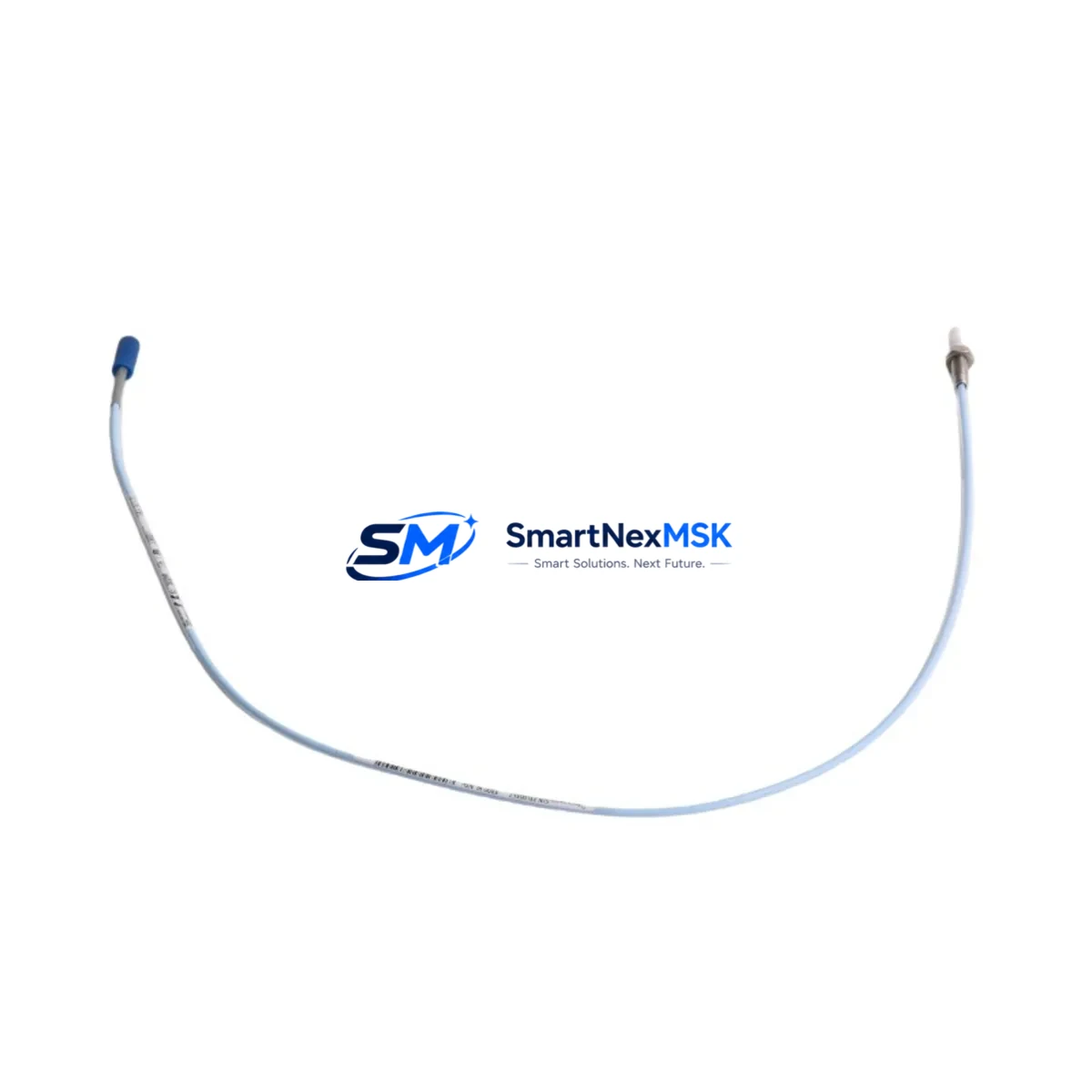

The Bently Nevada 330901-00-08-10-02-05 is an 8mm proximity probe engineered for the 3300 NSv series vibration monitoring platform. Designed to deliver continuous, non-contact displacement and vibration measurement, this probe is a direct retrofit replacement for aging or discontinued units in rotating machinery protection systems. Whether you are upgrading a legacy turbine monitoring rack, restoring a compressor protection loop, or migrating from an older 3300 XL configuration, the 330901-00-08-10-02-05 provides the dimensional accuracy, signal integrity, and connector compatibility required for a smooth, low-downtime transition.
Industrial facilities operating gas turbines, steam turbines, centrifugal compressors, and large pumps rely on the 3300 NSv system for continuous shaft vibration and position monitoring. When original probes reach end-of-life or become unavailable through OEM channels, sourcing a verified retrofit replacement with confirmed wiring compatibility and calibrated output is critical to maintaining API 670 compliance and avoiding unplanned shutdowns. The 330901-00-08-10-02-05 meets these requirements and ships with a 12-month warranty covering manufacturing defects and calibration integrity.
Upgrade Compatibility Table
| Parameter | 330901-00-08-10-02-05 (This Unit) | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8 mm | Matches standard 3300 NSv 8mm probe mounting threads |
| Cable Length | 1.0 m integral cable | Verify extension cable length to reach proximitor; use 330130-080-00-00 extension if required |
| Connector Type | Standard 3300 NSv coaxial | Direct mating with 3300 NSv proximitor input; no adapter required |
| Target Material Compatibility | Steel / Alloy Steel | Confirm shaft material; stainless or non-ferrous shafts require scale factor correction in 3500/40M or 3500/42M monitor |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) | Matches 3300 NSv system calibration; verify monitor channel scaling if replacing from a different sensitivity probe |
| Operating Temperature | -35°C to +121°C | Suitable for most turbine bearing housings; confirm ambient temperature at installation point |
| Communication / Signal Protocol | Analog eddy-current (passive) | Compatible with 3300 NSv proximitor/driver; no protocol migration required |
| Rack / Backplane Interface | Via 3300 NSv proximitor to monitor card | Confirm proximitor model (3300/16 or 3300/55) is present and functional before probe swap |
| Replacement Recommendation | Direct drop-in for 330901-00-08-10-02-05 | Also replaces worn or damaged units in 3300 XL to 3300 NSv upgrade paths |
| Commissioning Focus | Gap voltage, sensitivity verification, alarm setpoint confirmation | Use 3300 NSv proximitor test points; document gap voltage (typically -10 VDC ±0.5 V at nominal gap) |
| Warranty | 12 Months | Covers manufacturing defects and calibration; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
Replacing a proximity probe in an operating plant requires careful pre-work to avoid introducing new faults during the swap. Before removing the existing 330901-00-08-10-02-05 or its predecessor, technicians should document the current gap voltage reading at the proximitor output terminal. The 3300 NSv proximitor — typically a 3300/16 or 3300/55 driver module — converts the probe’s eddy-current signal into a calibrated voltage output that feeds the vibration monitor card. If the proximitor itself shows signs of drift or output instability, it is advisable to replace it alongside the probe rather than troubleshoot intermittent faults after installation.
For facilities running a full 3300 NSv rack, the monitoring architecture typically includes a 3300/20 power supply module providing regulated DC power to the proximitor and monitor cards. Verifying that the power supply output is within specification before probe replacement prevents misdiagnosis of a new probe as faulty. Similarly, the 3500/22M transient data interface or the 3500/42M vibration monitor — if the system has been partially upgraded to the 3500 series — must have its channel configuration reviewed to confirm that the input scaling matches the 7.87 V/mm sensitivity of the 330901-00-08-10-02-05.
Terminal wiring at the junction box or marshalling cabinet should be inspected for corrosion, loose ferrules, and correct shielding continuity. The coaxial cable shield must be grounded at one end only — typically at the proximitor — to prevent ground loops that introduce noise into the vibration signal. If the existing extension cable (such as a 330130-080-00-00 or 330130-045-00-00 depending on run length) shows insulation degradation, replacing it during the same maintenance window eliminates a common source of post-retrofit signal anomalies.
For plants that have begun migrating from the 3300 NSv platform toward the 3500 series, the 330901-00-08-10-02-05 probe remains fully compatible with 3500 series proximitor inputs, making it a practical interim solution that protects capital investment while the broader system upgrade is phased in. I/O expansion during this transition often involves adding 3500/20 rack power supplies and 3500/32 4-channel relay modules to handle new alarm and trip outputs without disrupting existing wiring. HMI screens connected via Modbus or OPC-DA to the 3500 rack should be reviewed to confirm that tag addresses and engineering unit scaling remain consistent after any monitor card substitution.
Where the control system includes a DCS interface — such as a Honeywell Experion or Emerson DeltaV node receiving vibration data from the 3500 rack — the system integrator should verify that the analog input card scaling on the DCS side matches the updated monitor output range. Programming cables such as the 3500/93 communication gateway or a standard RS-232 to USB adapter for older 3300 NSv configuration software should be on hand during commissioning to allow real-time parameter verification without interrupting the live monitoring loop.
Downtime Control During System Migration
Minimizing production downtime during a proximity probe replacement on a critical rotating machine requires a structured bypass and handover procedure. Where the protection system permits, the affected monitor channel should be placed in bypass mode — using the 3300 NSv or 3500 series front-panel bypass function — before the probe is disconnected. This prevents a spurious trip signal from reaching the emergency shutdown system (ESD) or distributed control system during the physical swap.
The original program logic in the safety PLC or turbine control system should not be modified during the probe replacement. All trip setpoints, time delays, and voting logic configured in the 3500/42M or equivalent monitor card must be documented before work begins and verified against the as-found configuration after the new 330901-00-08-10-02-05 is installed and gapped. If the facility uses a Bently Nevada System 1 condition monitoring software platform, the historian trend for the replaced channel should be reviewed immediately after commissioning to confirm that the new probe’s output is tracking within expected baseline parameters.
For machines that cannot be taken offline, a hot-swap approach using a pre-gapped probe assembly — where the new probe is pre-set to the correct gap distance using a gap setting fixture before installation — reduces the time the channel spends in bypass. Pre-shipment functional testing of the 330901-00-08-10-02-05 is performed before dispatch, and a test report confirming sensitivity and gap voltage linearity is available upon request. This documentation supports the site acceptance test (SAT) and allows the maintenance team to close out the work order with full traceability.
Retrofit Support FAQ
Q: Is the 330901-00-08-10-02-05 a direct replacement for older 3300 XL proximity probes?
A: The 330901-00-08-10-02-05 is designed for the 3300 NSv platform. While it shares the 8mm probe diameter and coaxial connector format with many 3300 XL probes, the sensitivity specification and cable assembly should be verified against the original part number before installation. In most 3300 XL to 3300 NSv upgrade paths, the probe is interchangeable, but the proximitor model must also be confirmed as NSv-compatible.
Q: What gap voltage should I set during commissioning?
A: The nominal installation gap for the 330901-00-08-10-02-05 on a steel target is typically 1.0 mm to 1.5 mm, producing a proximitor output of approximately -10 VDC ±0.5 V. The exact gap should be set per the machine OEM’s specification and verified using the proximitor test point with a calibrated digital voltmeter before the bypass is removed.
Q: Can this probe be used with a 3500 series monitor card without a proximitor change?
A: Yes. The 330901-00-08-10-02-05 is compatible with 3500 series proximitor inputs. If the existing proximitor is a 3300/16 or 3300/55, it can remain in service. If the 3500 rack uses an integrated proximitor input card, verify the input impedance and supply voltage specifications match the probe’s operating requirements before connecting.
Q: What does the 12-month warranty cover, and is a test report included?
A: The 12-month warranty covers manufacturing defects and calibration integrity from the date of shipment. Each unit undergoes a pre-shipment functional test verifying sensitivity, gap voltage linearity, and connector integrity. A test report is available upon request and can be provided with the shipment for SAT documentation purposes. Warranty claims are processed through sales@smartnexmsk.com.
