Bently Nevada 330901-00-08-10-02-CN Spare 3300 XL Automation

Bently Nevada 330901-00-08-10-02-CN Spare 3300 XL Automation: Spare Replacement & Downtime Risk Control

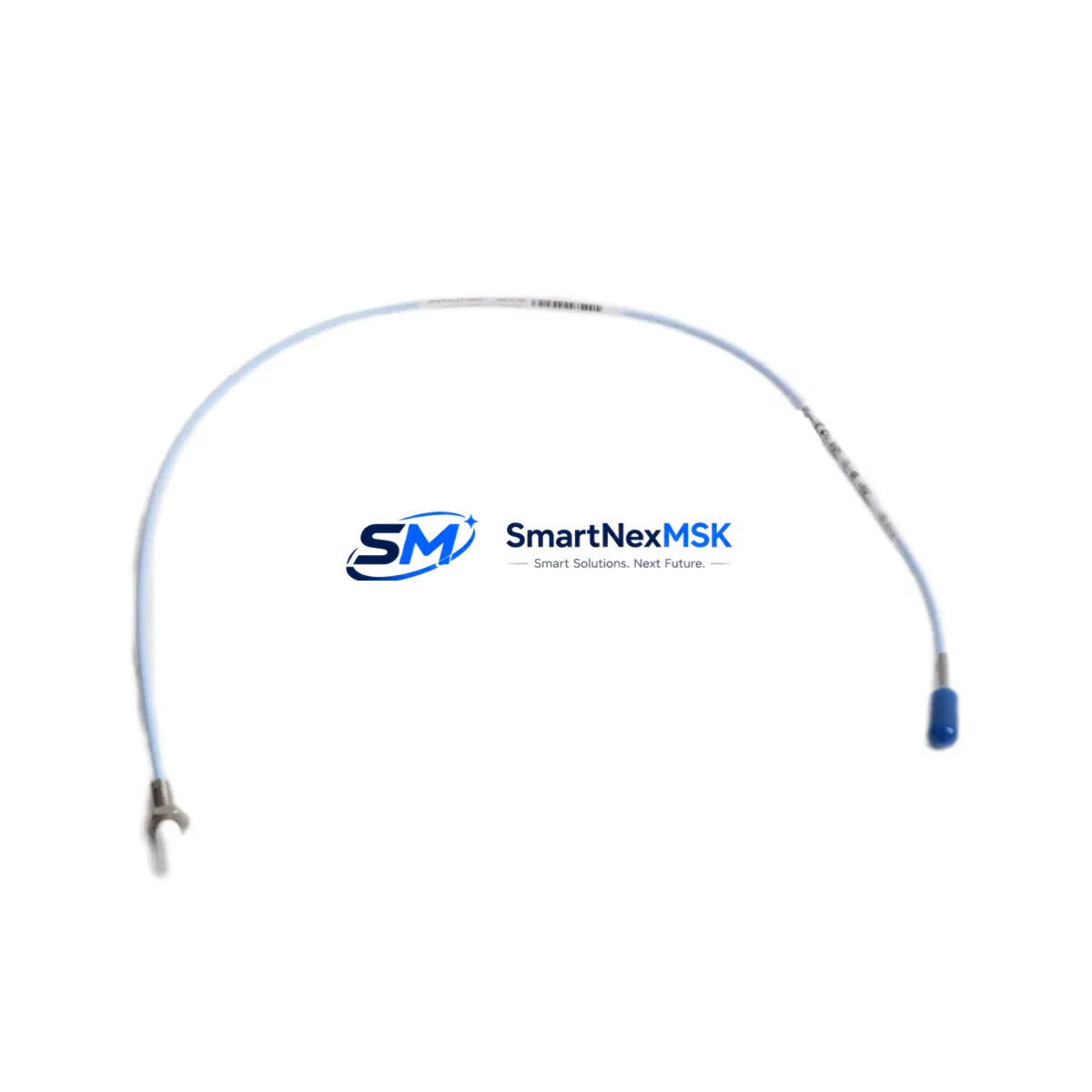

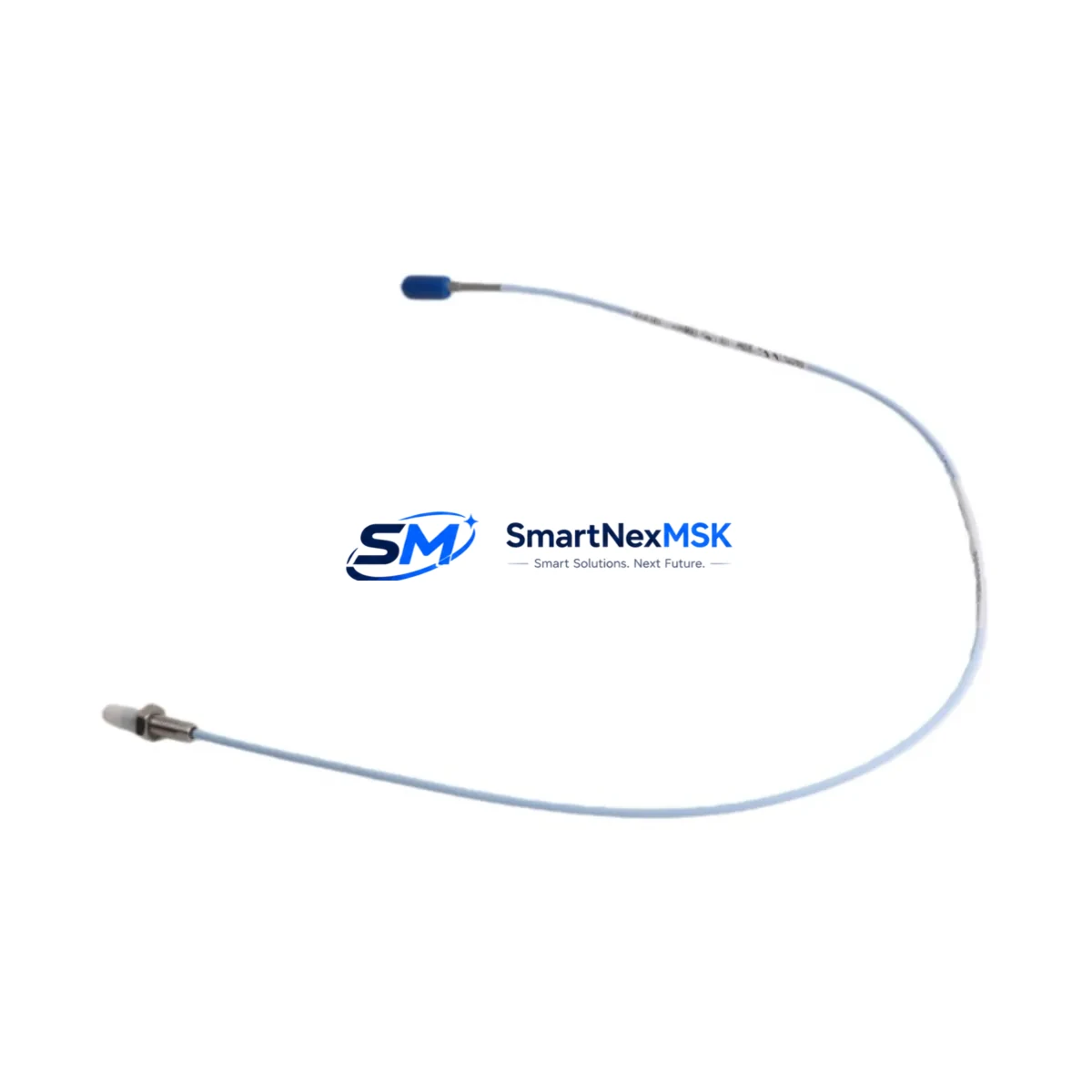

The Bently Nevada 330901-00-08-10-02-CN is an original eddy current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed for critical rotating equipment applications — including turbines, compressors, pumps, and gearboxes — this probe delivers precise radial and axial vibration measurement in demanding industrial environments. For maintenance engineers managing aging control infrastructure, stocking a verified replacement of the 330901-00-08-10-02-CN is a fundamental step in any proactive spare parts strategy.

When a proximity probe fails in a 3300 XL monitoring loop, the consequences extend well beyond a single sensor. The entire vibration channel goes blind, triggering potential false shutdowns or — more dangerously — masking real machinery faults. Rapid replacement with a tested, original-specification spare is the only reliable path to restoring full system integrity without extended downtime.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330901-00-08-10-02-CN probe in isolation is rarely sufficient for a complete maintenance restoration. Experienced maintenance engineers know that the 3300 XL measurement chain is a matched system: the probe, the extension cable, and the Proximitor sensor must be treated as a coordinated assembly. When scheduling a probe replacement, the following components should be inspected or replaced concurrently to prevent repeat failures and ensure measurement accuracy.

The 3300 XL Extension Cable (typically 330130-series) connects the probe to the Proximitor and is subject to mechanical fatigue, connector corrosion, and insulation degradation — especially in high-vibration or high-temperature zones. A worn extension cable will introduce signal noise even with a new probe installed. Similarly, the 3300 XL Proximitor Sensor (330180-series) should be bench-tested for output linearity and bias voltage stability before being returned to service.

At the panel level, inspect the 3300/16-Channel Monitor or 3500/40M Proximitor Monitor input card for any sign of channel fault LEDs, blown fuses, or relay output anomalies. The 3500 Rack Power Supply should be verified for stable ±24 VDC output, as voltage sag directly affects probe gap voltage and measurement linearity. If the installation uses a 3500/22M Transient Data Interface, confirm that the channel configuration still matches the new probe’s sensitivity constant.

For installations in hazardous areas, verify that the associated Zener Barrier or Galvanic Isolator (signal isolation module) is within calibration and has not been compromised by a prior fault event. Check all terminal blocks and DIN rail connectors in the marshalling cabinet for tightness and corrosion — loose terminations are a leading cause of intermittent vibration channel faults that are often misdiagnosed as probe failures.

If the machine is part of a turbine control system, coordinate with the control engineer to confirm that the Overspeed Detection Module and any associated relay output cards are functioning correctly before returning the machine to service. For older installations, this is also an appropriate time to audit the System 1 Condition Monitoring Software configuration to ensure the new probe’s calibration data is correctly entered.

Site Replacement Workflow

Replacing the 330901-00-08-10-02-CN on-site follows a structured sequence to minimize downtime and avoid secondary faults. Begin by documenting the existing gap voltage reading at the Proximitor output before de-energizing the channel — this baseline confirms whether the original probe was still within its linear range or had already drifted. After mechanical installation of the new probe, set the air gap to the manufacturer-specified nominal (typically 1.0 mm / 40 mil) using a non-ferrous feeler gauge, then verify the bias voltage output falls within the -9 VDC to -11 VDC window at the Proximitor.

For systems migrating from legacy 3300 Series probes to the 3300 XL platform, the 330901-00-08-10-02-CN is a direct functional replacement that maintains backward compatibility with existing Proximitor wiring and monitor channel configurations, eliminating the need for panel rewiring or software reconfiguration. This makes it the preferred choice for life-extension programs on older turbomachinery where full system upgrades are not yet budgeted.

All units supplied by SMARTNEXMSK are function-tested prior to shipment, with gap voltage and sensitivity verified against OEM specifications. Each probe ships with a test report and is covered by a 12-month warranty against manufacturing defects. Long-term supply agreements are available for maintenance teams managing multi-unit fleets or annual shutdown schedules.

Spare Parts Support FAQ

Q1: Is the 330901-00-08-10-02-CN compatible with both the 3300 and 3300 XL Proximitor sensors?
The 330901-00-08-10-02-CN is specifically calibrated for the 3300 XL Proximitor sensor family. While it shares the same physical thread and connector as earlier 3300 Series probes, the sensitivity constant (200 mV/mil) is optimized for the XL-series Proximitor. Using it with a legacy 3300 Proximitor may result in measurement offset. Always confirm Proximitor model compatibility before installation.

Q2: How should this probe be stored as a long-term spare?
Store in original packaging or an ESD-safe bag in a dry environment between -40°C and +85°C. Avoid coiling the integral cable tightly, as this can stress the coaxial conductors. Inspect the connector tip and thread for corrosion annually. Properly stored, the probe maintains full specification for a minimum of 5 years.

Q3: What pre-shipment testing is performed on each unit?
Each 330901-00-08-10-02-CN supplied by SMARTNEXMSK undergoes gap voltage verification, sensitivity constant measurement, and insulation resistance testing before dispatch. A test report is included with every shipment. Units that do not meet OEM specification thresholds are quarantined and not shipped.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, out-of-specification sensitivity, and connector failure under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact, or use outside the rated temperature range. Warranty claims are processed within 5 business days of receipt of the returned unit.
