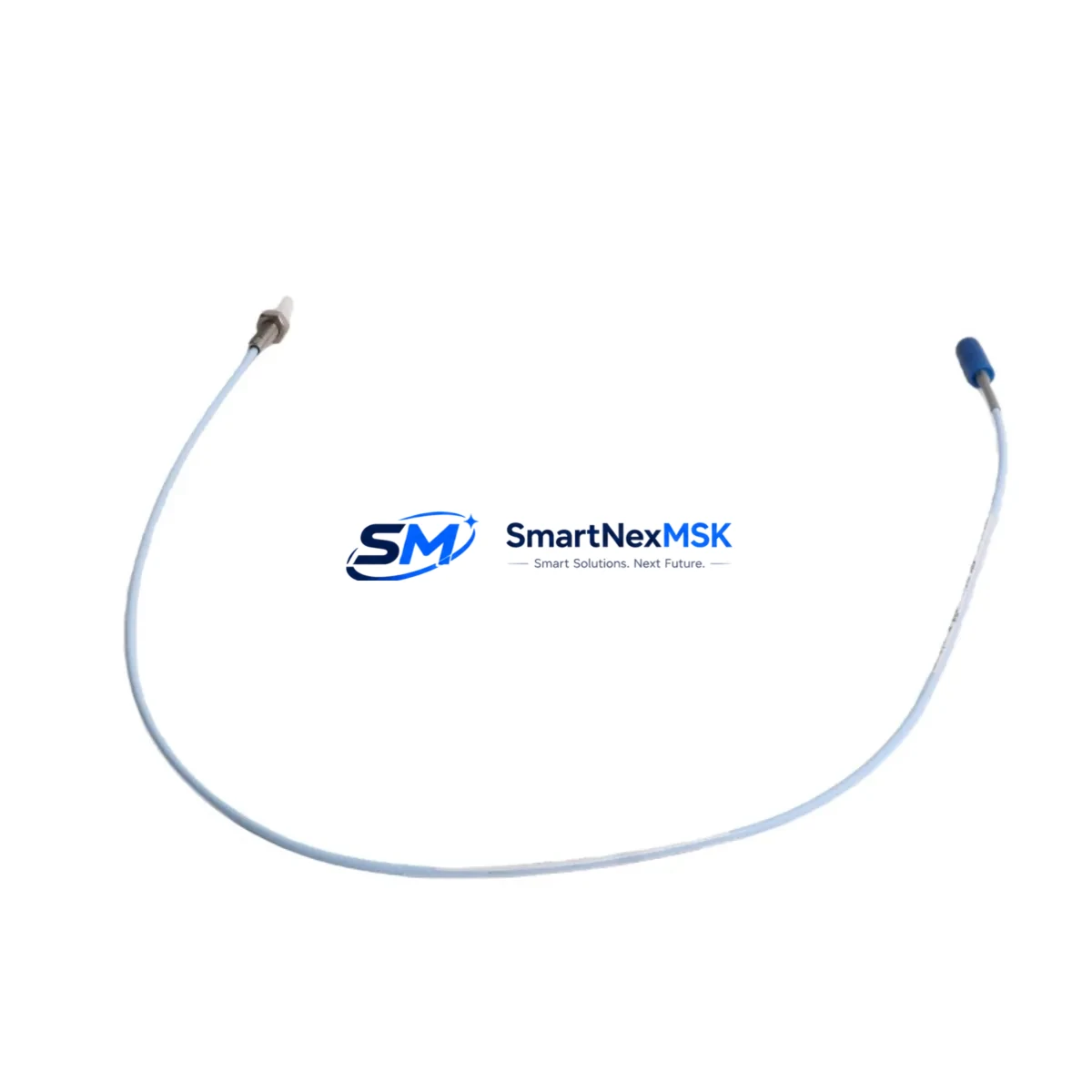

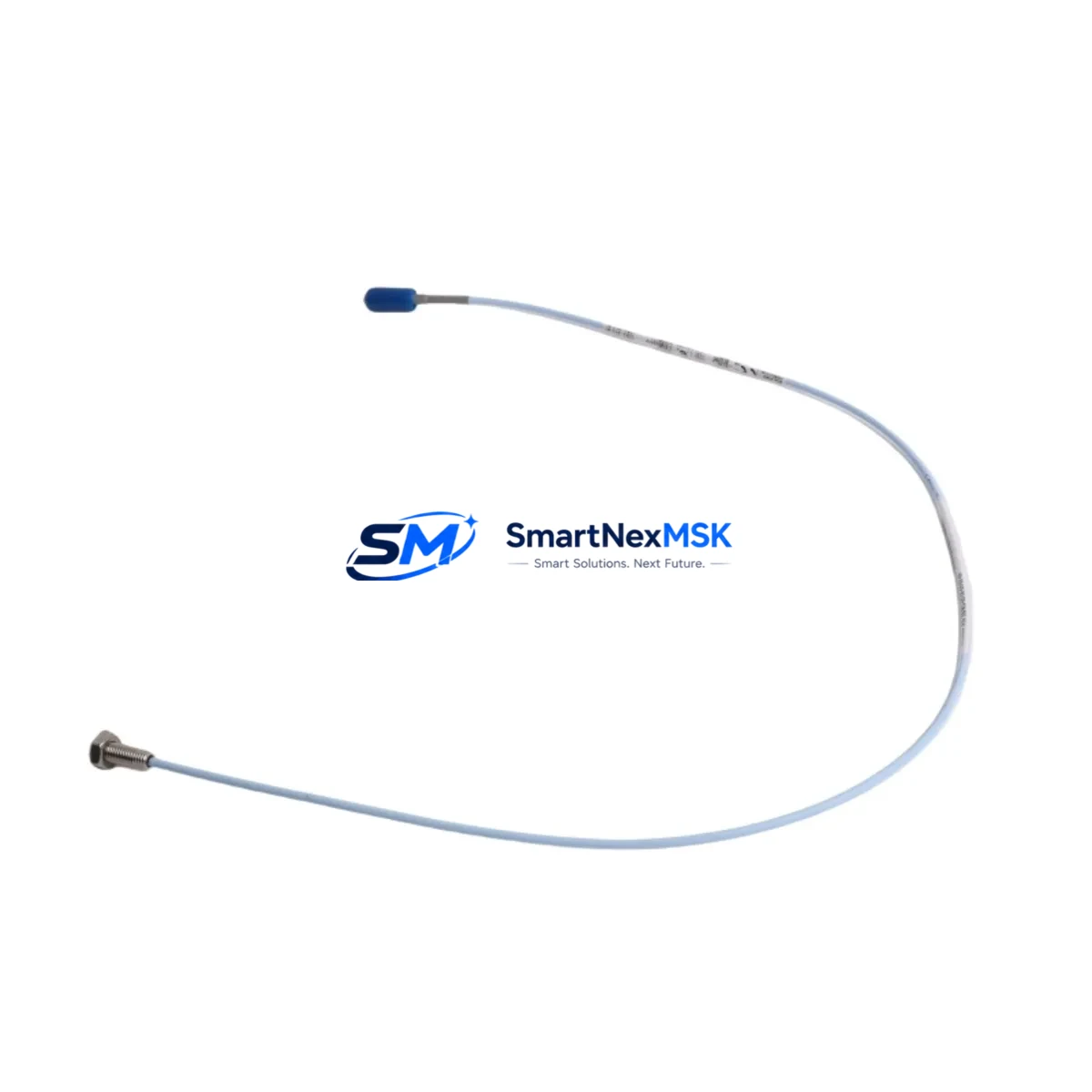

Bently Nevada 330901-00-10-10-02-00 Retrofit Proximity Probe: Compatible Modernization for 3300 XL Control Systems
The Bently Nevada 330901-00-10-10-02-00 is an 8mm eddy current proximity probe engineered for the 3300 XL Series machinery protection system. As legacy installations age and OEM supply chains tighten, this retrofit-ready replacement delivers a verified drop-in solution for plants operating rotating machinery protection systems built on the 3300 XL platform. Whether you are replacing a failed probe on a critical compressor train, upgrading a brownfield turbine monitoring cabinet, or restoring a dormant production line, this unit is pre-tested to meet the original electrical and mechanical specification.
Upgrade Compatibility Table
| Parameter | Original 330901-00-10-10-02-00 | This Retrofit Unit |
|---|---|---|
| Probe Diameter | 8 mm | 8 mm — identical |
| Cable Length | 1.0 m (extension via 330130 series) | 1.0 m — compatible with 330130-045-00-00 extension cable |
| Connector Type | 3-pin MIL-spec | 3-pin MIL-spec — direct mate |
| Driver Compatibility | 3300 XL 8mm Driver (330180 series) | Verified compatible with 330180-X1-05 driver modules |
| Gap Voltage Range | −10 VDC to −18 VDC | −10 VDC to −18 VDC — no recalibration required |
| Sensitivity | 200 mV/mil (7.87 V/mm) | 200 mV/mil — matches original scale factor |
| Installation Thread | M10 × 1.0 | M10 × 1.0 — fits existing probe holder |
| Communication / Signal | Analog DC voltage (Keyphasor / radial / axial) | Analog DC voltage — no protocol migration needed |
| Retrofit Commissioning | Gap setting, static calibration check | Same procedure — no firmware or address change |
| Warranty | OEM standard | 12-Month Warranty from SMARTNEXMSK |
Retrofit Planning for Existing Automation Systems
Replacing the 330901-00-10-10-02-00 in a live 3300 XL machinery protection rack requires a structured approach. The 3300 XL monitor rack typically houses a combination of the 3300/20 Rack Interface Module, 3300/15 Power Supply, and one or more 3300/25 Dual Voting Logic modules alongside the transducer I/O cards. Before pulling the failed probe, engineers should verify that the 3300/16 Power Supply or its equivalent is delivering a stable −24 VDC bias supply to the driver circuit, since a degraded supply rail is a common root cause of apparent probe failures.
The probe interfaces with the system through a 330130-045-00-00 or 330130-080-00-00 extension cable, depending on the distance from the probe tip to the junction box. Confirm the extension cable continuity and shield integrity before condemning the probe itself. At the terminal block inside the control cabinet, the three conductors — center conductor, shield, and armor — must be landed according to the original wiring diagram. Mislanding the shield at both ends will introduce a ground loop that corrupts the gap voltage reading and triggers nuisance trips on the 3300/55 Dual Voting Logic card.
For plants that have already migrated part of their monitoring infrastructure to the System 1 Evolution software platform, the replacement probe will continue to report correctly through the existing 3300 XL I/O modules without any tag remapping in the System 1 database. If the rack also contains a 3300/46M Keyphasor Module, verify that the Keyphasor probe — typically a separate 330900 series unit — is gapped correctly after any mechanical work near the shaft, as a disturbed Keyphasor signal will affect all phase-referenced measurements across the rack.
Plants running a hybrid architecture that combines 3300 XL racks with newer 3500 Series monitors should note that the 330901-00-10-10-02-00 is not directly interchangeable with 3500/42M or 3500/44M transducer inputs without a signal conditioning adapter. In those mixed-rack environments, the 3300 XL probe and driver pair should be maintained as a matched set. The 330180-X1-05 driver module must remain paired with this probe; substituting a 3500-series driver will shift the scale factor and invalidate the calibration.
Before returning the machine to service, perform a static gap check with a calibrated DC voltmeter at the monitor front panel. The gap voltage should read between −10 VDC and −18 VDC with the probe tip positioned at the nominal air gap specified on the original installation drawing. Document the as-found and as-left gap voltages in the maintenance record. If the plant uses a 3300/95 Relay Output Module for trip logic, confirm that the relay setpoints have not drifted during the outage by reviewing the System 1 configuration or the local DIP switch settings on the relay card.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement on a critical rotating machine begins with pre-staging. Order the 330901-00-10-10-02-00 replacement unit and the associated 330130 extension cable before the machine is taken offline. Confirm that the spare 330180-X1-05 driver is on the shelf, because a probe swap that reveals a failed driver will extend the outage if the driver is not immediately available.
During the outage window, follow a parallel-verification workflow: install the new probe and extension cable, perform the static gap check, and then power the monitor rack before reconnecting the machine to the process. This sequence allows the 3300 XL monitor to confirm a valid transducer signal — and for the System 1 operator station to show a healthy channel status — before the machine is restarted. If the plant uses a 3300/25 Dual Voting Logic module for overspeed or high-vibration trip, temporarily bypass the trip output through the monitor’s inhibit function during the gap-setting procedure to prevent a spurious trip from the adjacent channels while the probe is being positioned.
Preserve the original program logic in the System 1 database by exporting a configuration backup before any hardware changes. If the rack contains a 3300/20 Rack Interface Module connected to a DCS via Modbus or a 4–20 mA analog output card, verify that the analog output scaling has not been altered after the replacement. A mismatch between the probe sensitivity and the DCS input range will cause the process historian to record erroneous vibration trends, which can mask developing faults after the machine returns to service.
Retrofit Support FAQ
Q1: Is this unit a direct drop-in replacement for the original Bently Nevada 330901-00-10-10-02-00?
Yes. The replacement matches the original 8 mm probe diameter, M10 × 1.0 thread, 3-pin MIL-spec connector, 200 mV/mil sensitivity, and −10 VDC to −18 VDC gap voltage range. No mechanical modification or recalibration of the 3300 XL monitor is required.
Q2: What commissioning steps are required after installation?
Set the air gap to the value specified on the original installation drawing (typically 1.0 mm to 2.0 mm for radial vibration applications). Verify the gap voltage at the monitor front panel or at the 330180 driver output terminals. Confirm that System 1 Evolution or the local 3300 XL display shows a valid, in-range signal before releasing the machine to operations.
Q3: How do I verify wiring compatibility before installation?
Check the existing 330130 extension cable for continuity and correct shield termination. The center conductor carries the gap voltage signal; the shield must be grounded at the driver end only. Confirm that the terminal block labeling in the control cabinet matches the original wiring diagram. If the cabinet has been modified, use a calibrated ohmmeter to trace each conductor before connecting the new probe.
Q4: What does the 12-month warranty cover?
SMARTNEXMSK provides a 12-month warranty covering manufacturing defects in materials and workmanship under normal operating conditions. Each unit undergoes pre-shipment functional testing including gap voltage linearity verification. Warranty claims are processed with documented evidence of correct installation and operating conditions within the specified environmental and electrical limits.
