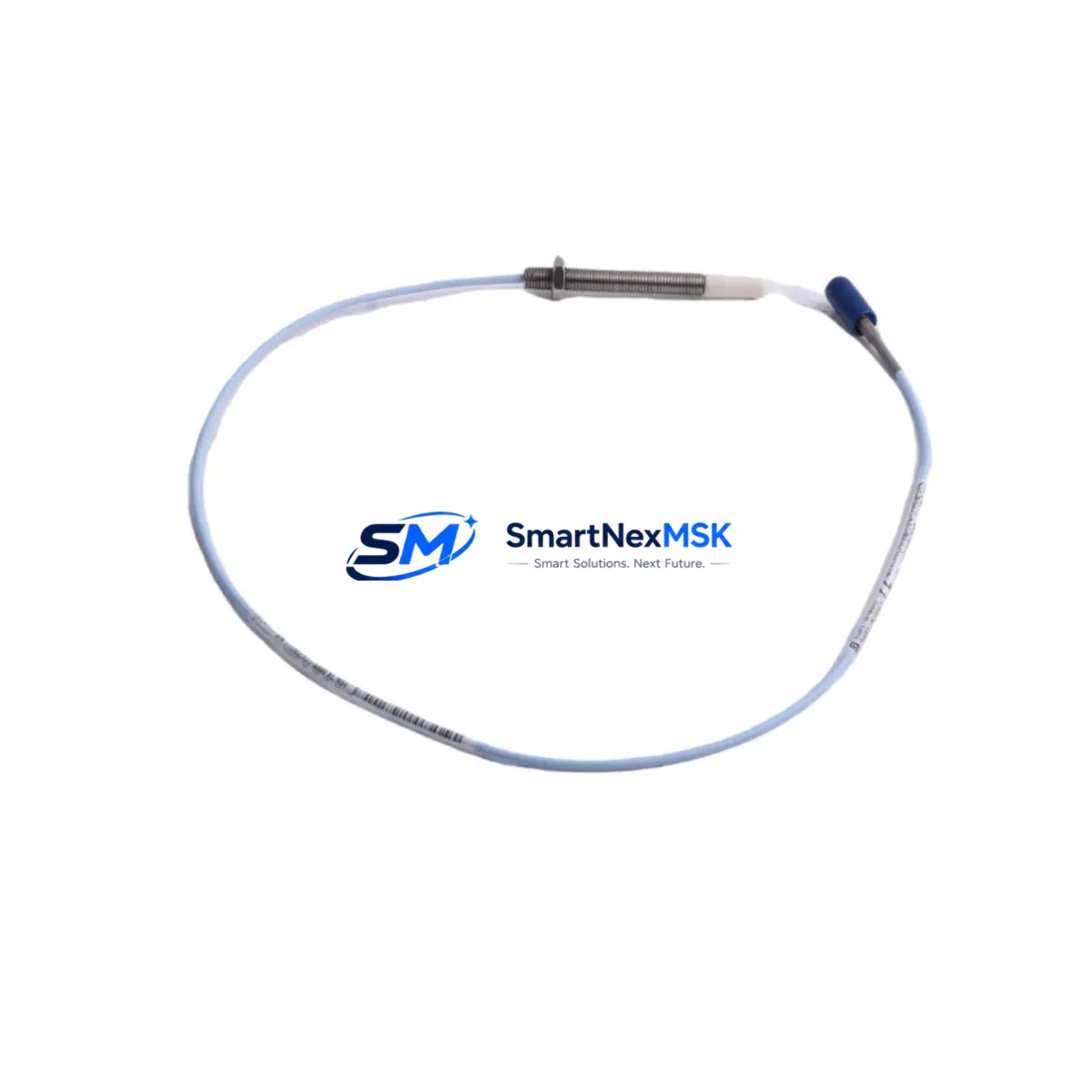

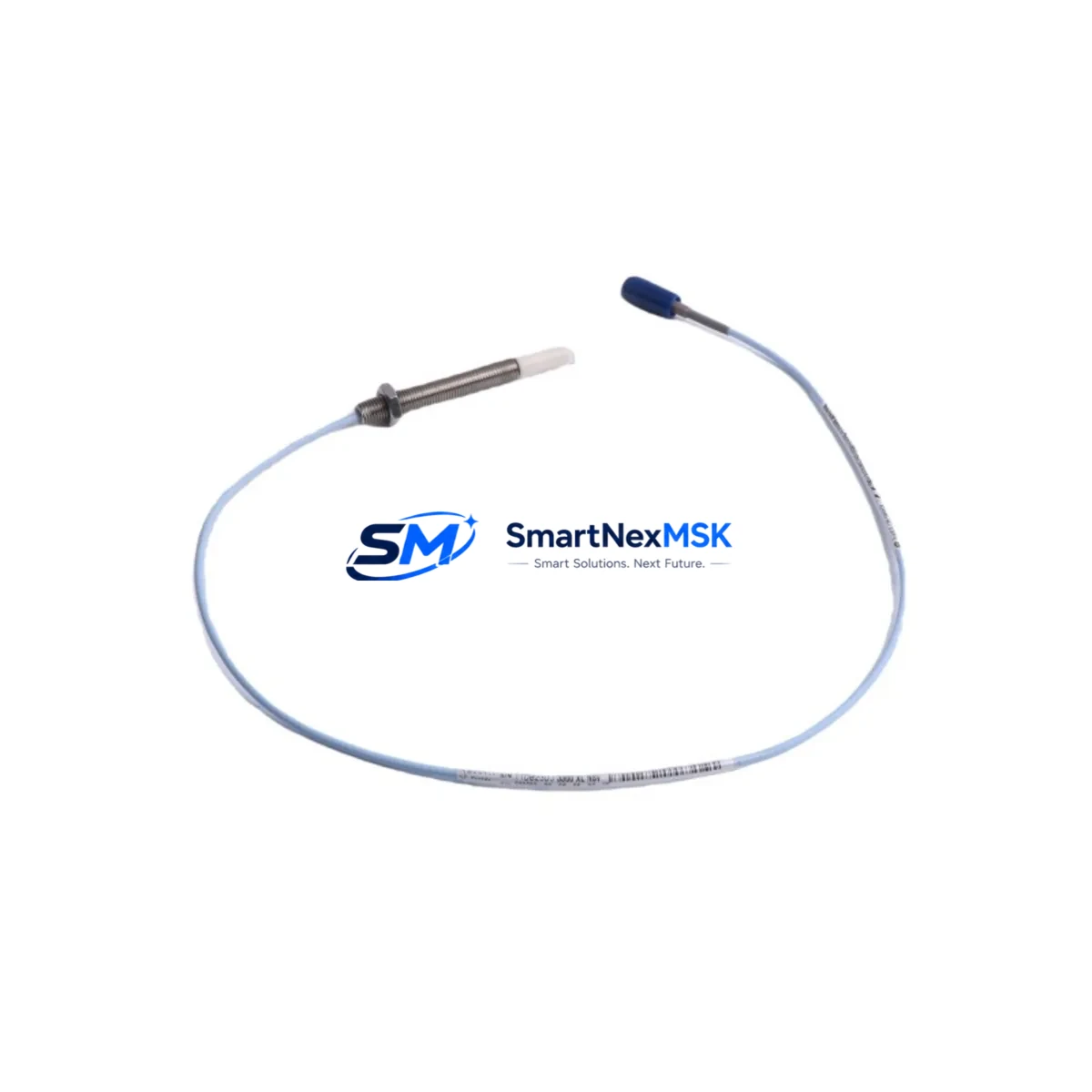

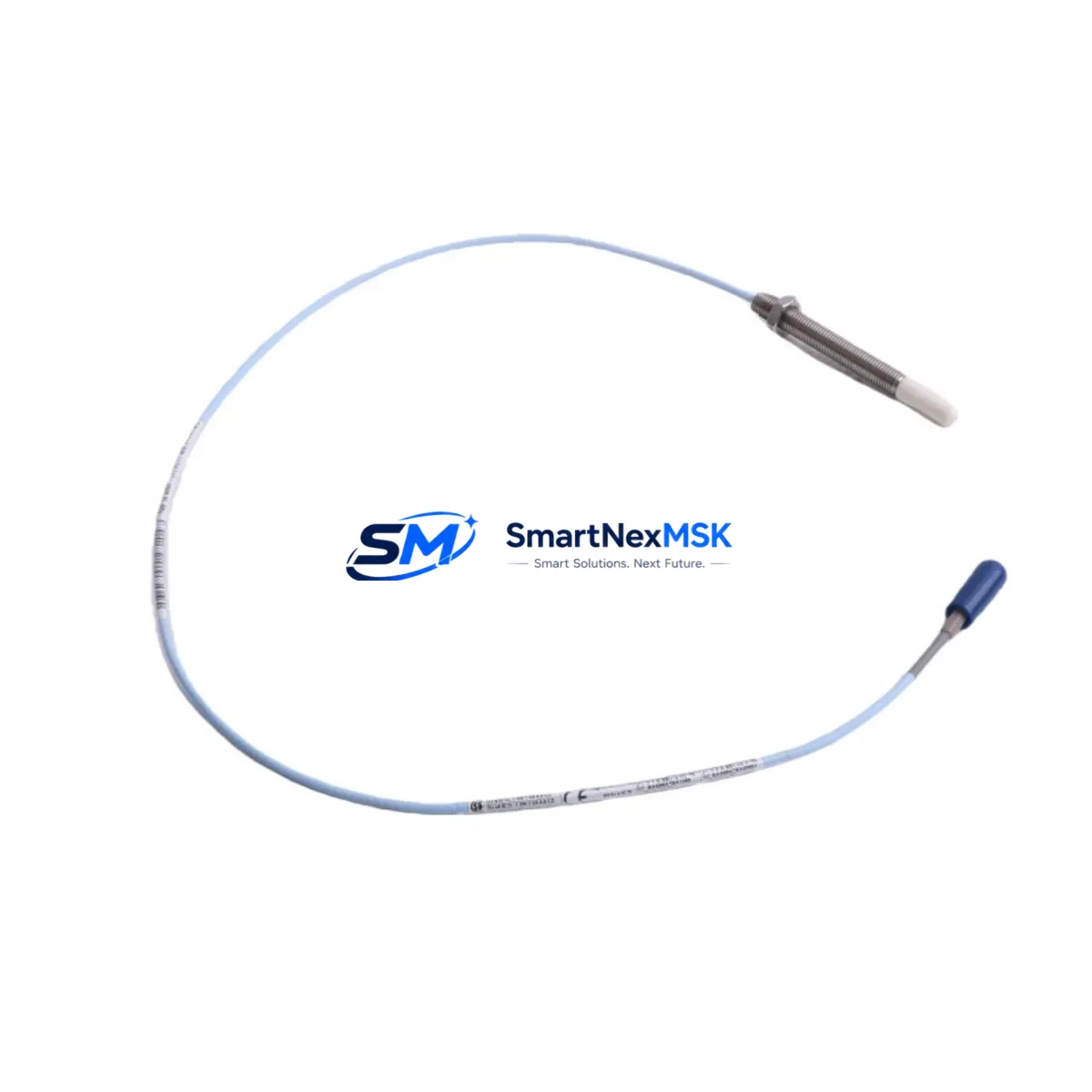

Bently Nevada 330901-00-20-05-02-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330901-00-20-05-02-00 is an eddy-current proximity transducer engineered for the 3300 XL NSv (Non-contact Shaft Vibration) monitoring platform. As legacy machinery protection systems age and OEM support windows close, this transducer serves as a verified drop-in replacement for discontinued 3300 series sensors, enabling plant engineers to extend the operational life of existing vibration monitoring infrastructure without a full system overhaul. Whether you are managing a planned turnaround, responding to an unplanned trip, or executing a phased modernization of your rotating equipment protection system, the 330901-00-20-05-02-00 is stocked, tested, and ready to ship.
This transducer operates on the standard Bently Nevada eddy-current sensing principle, generating a DC voltage output proportional to the gap between the probe tip and the observed shaft surface. It is designed for use with the 3300 XL 8-mm extension cable and the 3300 XL proximitor sensor driver, forming a complete measurement chain that integrates directly into the 3300 XL rack-mounted monitor cards. The 20-mm probe length and 5-mm nominal gap specification make it suitable for most horizontal and vertical shaft configurations found in steam turbines, gas compressors, centrifugal pumps, and gearboxes across oil and gas, power generation, and petrochemical facilities.
When sourcing a replacement for the 330901-00-20-05-02-00, engineers must verify the complete measurement chain. The proximitor driver — typically a 3300 XL 8-mm proximitor — must be matched to the same cable length and probe series. Mismatched extension cables or proximitor models from the earlier 3300 series (non-XL) will introduce calibration offsets that invalidate the gap voltage curve and may trigger false alerts or mask real shaft movement. Confirm that the existing 3300 XL monitor card, such as the 3300/16 or 3300/20 dual-channel monitor, is configured for the correct transducer sensitivity (7.87 V/mm) before installation.
For sites running the System 1 condition monitoring software or the older Data Manager 2000 platform, no software reconfiguration is typically required when replacing a like-for-like 330901-series transducer, provided the monitor card configuration file remains unchanged. However, if the replacement is part of a broader migration from a 3300 non-XL rack to a 3300 XL rack, the System 1 database tag assignments and the 3500 rack gateway communication settings will need to be reviewed. Sites transitioning to the newer 3500 series machinery protection system should note that the 3500/42M position monitor uses a different transducer interface and is not directly compatible with 3300 XL probes without an adapter or recalibration.
Retrofit planning should also account for the condition of the existing armored extension cable. The 330901-00-20-05-02-00 ships with a 2-metre integral cable, and the total measurement chain length — probe cable plus extension cable — must match the proximitor driver’s calibrated range. If the existing extension cable shows signs of jacket cracking, connector corrosion, or impedance drift, it should be replaced simultaneously to avoid introducing a new failure point. Spare extension cables for the 3300 XL 8-mm series are available and should be included in the retrofit kit.
Terminal wiring at the junction box and the monitor card I/O terminal block follows the standard Bently Nevada three-wire configuration: shield, center conductor, and outer conductor. Verify polarity and shield grounding practice against the site’s existing loop drawings before energizing the new transducer. Incorrect shield grounding — particularly double-grounding in high-noise environments — is a common source of elevated noise floors that can mask real vibration signals or cause nuisance trips on the 3300 XL monitor card.
All units supplied by SMARTNEXMSK undergo pre-shipment functional verification including gap voltage linearity check across the full measurement range, insulation resistance test, and connector continuity verification. Each unit ships with a test report and is covered by a 12-month warranty against manufacturing defects. Inventory is maintained in Xiamen for rapid dispatch to customers across Asia, the Middle East, and Eastern Europe.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | 330901-00-20-05-02-00 |
| Brand / OEM | Bently Nevada |
| Series | 3300 XL NSv (Non-contact Shaft Vibration) |
| Probe Diameter | 8 mm |
| Probe Length | 20 mm |
| Nominal Gap | 5 mm (1.27 mm – 2.54 mm linear range) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Supply Voltage | –24 VDC (–18 VDC to –26 VDC) |
| Output Range | –1 VDC to –17 VDC |
| Compatible Proximitor | 3300 XL 8-mm Proximitor Sensor |
| Compatible Monitor Cards | 3300/16, 3300/20, 3300/25, 3300/46M |
| Replaces / Supersedes | 330901-00-20-05-00-00, 330101-00-20-05-00-00 (3300 non-XL) |
| Installation Interface | M8 threaded probe, standard Bently Nevada armored cable connector |
| Communication Compatibility | Analog 4–20 mA via monitor card; System 1, Data Manager 2000 |
| Retrofit Recommendation | Replace probe + extension cable as a matched set; verify proximitor calibration |
| Commissioning Note | Confirm gap voltage at nominal 5 mm gap; check monitor card OK relay before restart |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330901-00-20-05-02-00 into an operating plant begins well before the maintenance window opens. The first step is a full audit of the existing measurement chain: probe, integral cable, junction box, extension cable, proximitor driver, and monitor card. In many facilities, the 3300 XL rack will contain a mix of monitor card types — the 3300/16 dual-channel vibration monitor alongside a 3300/20 thrust position monitor and a 3300/46M temperature monitor — all sharing a common 3300 XL rack power supply. Confirm that the rack power supply output current budget can support the replacement transducer without exceeding the card’s supply current limit.
The junction box wiring should be photographed and documented before disconnection. The three-wire Bently Nevada cable configuration — shield, center, outer — must be preserved exactly. If the junction box terminals show oxidation or loose ferrules, replace the terminal block inserts during the same outage. This is also the appropriate time to inspect the conduit seals and cable armor for physical damage that could allow moisture ingress, which is a leading cause of premature transducer failure in outdoor or wash-down environments.
For sites where the 3300 XL rack communicates with a DCS or safety system via a 3500 gateway or a Modbus RTU serial link, the communication link should be verified in bypass or test mode before the transducer is removed. This prevents the DCS from logging a spurious process alarm or triggering an interlock during the gap between transducer removal and reinstallation. If the site uses a Bently Nevada 3500/92 communication gateway, confirm that the gateway’s channel mapping still reflects the correct slot and channel address for the replaced transducer after the monitor card is re-energized.
When the new 330901-00-20-05-02-00 is installed, set the probe gap to the nominal 5 mm using a feeler gauge or a calibrated gap-setting tool before tightening the locknut. Power up the proximitor and read the output voltage at the monitor card terminal block. A reading of approximately –10.4 VDC at 5 mm gap confirms correct installation. If the reading deviates by more than ±0.5 VDC, recheck the cable length, connector seating, and proximitor model compatibility. Do not accept the installation until the monitor card OK relay is energized and the System 1 or HMI display shows a valid, noise-free vibration reading within the expected baseline range for that machine.
Related components commonly required during a 3300 XL transducer retrofit include the 3300 XL 8-mm extension cable (various lengths), the 3300 XL proximitor sensor driver, the 3300/16 dual-channel vibration monitor card, the 3300 XL rack power supply module, the 3300/20 thrust position monitor, junction box terminal blocks, and armored conduit fittings. For sites also upgrading their operator interface, the Bently Nevada 3500 rack system with a 3500/92 Ethernet gateway provides a migration path that preserves the existing transducer field wiring while modernizing the monitor and communication layer.
Downtime Control During System Migration
Minimizing unplanned downtime during a transducer replacement requires a structured pre-outage preparation protocol. Before the maintenance window, obtain a printed copy of the monitor card configuration — channel sensitivity, alert and danger setpoints, time delay settings, and OK relay logic — from the System 1 database or the monitor card front-panel display. This configuration must be re-verified after the replacement transducer is installed, because some 3300 XL monitor card firmware versions reset channel parameters when the card is de-energized.
Where process conditions allow, perform the transducer replacement with the machine at rest but the control system energized. This allows the monitor card OK relay status and the System 1 channel health indicators to be observed in real time during installation, reducing the risk of an undetected wiring error causing a trip on restart. If the machine cannot be stopped and the transducer must be replaced on a running machine (a practice that requires strict adherence to site safety procedures), use the monitor card’s bypass function to inhibit the danger output for the affected channel only, and restore the bypass immediately after the new transducer is confirmed healthy.
After installation, run the machine at minimum load for a minimum of 30 minutes before returning to full production. During this period, log the vibration amplitude and DC gap voltage trends in System 1 and compare them against the pre-outage baseline. Any step change in the 1X or 2X vibration component that was not present before the replacement should be investigated before the machine is returned to full load. Document the as-left gap voltage, the OK relay status, and the System 1 channel health status in the maintenance record to support future troubleshooting and warranty claims.
Retrofit Support FAQ
Q1: Is the 330901-00-20-05-02-00 a direct replacement for the earlier 330901-00-20-05-00-00?
Yes. The 330901-00-20-05-02-00 is the current revision of the 330901-00-20-05-00-00 and is dimensionally and electrically compatible. No changes to the monitor card configuration, proximitor driver, or extension cable are required when replacing the earlier revision with this unit, provided the rest of the measurement chain is 3300 XL series.
Q2: Can this transducer be used with a 3300 non-XL proximitor driver?
No. The 3300 XL NSv transducer series is calibrated for use with the 3300 XL proximitor sensor driver. Using a non-XL proximitor will produce an incorrect gap voltage curve and invalidate the vibration measurement. If your site is running a 3300 non-XL rack, contact SMARTNEXMSK to identify the correct 330101-series transducer for your application.
Q3: What commissioning checks are required after installation?
After installation, verify the DC gap voltage at the monitor card terminal block (approximately –10.4 VDC at 5 mm nominal gap), confirm the monitor card OK relay is energized, and check that the System 1 or HMI display shows a valid vibration reading. Record the as-left gap voltage and compare it against the machine’s historical baseline before returning to full production.
Q4: What does the 12-month warranty cover?
All units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment against manufacturing defects, including probe tip damage, cable connector failure, and sensitivity drift outside the published specification. The warranty does not cover damage resulting from incorrect installation, mismatched measurement chain components, or mechanical impact. A pre-shipment test report is included with every unit.
