Bently Nevada 330901-00-90-10-02-CN Retrofit-Ready Proximity Probe

Bently Nevada 330901-00-90-10-02-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

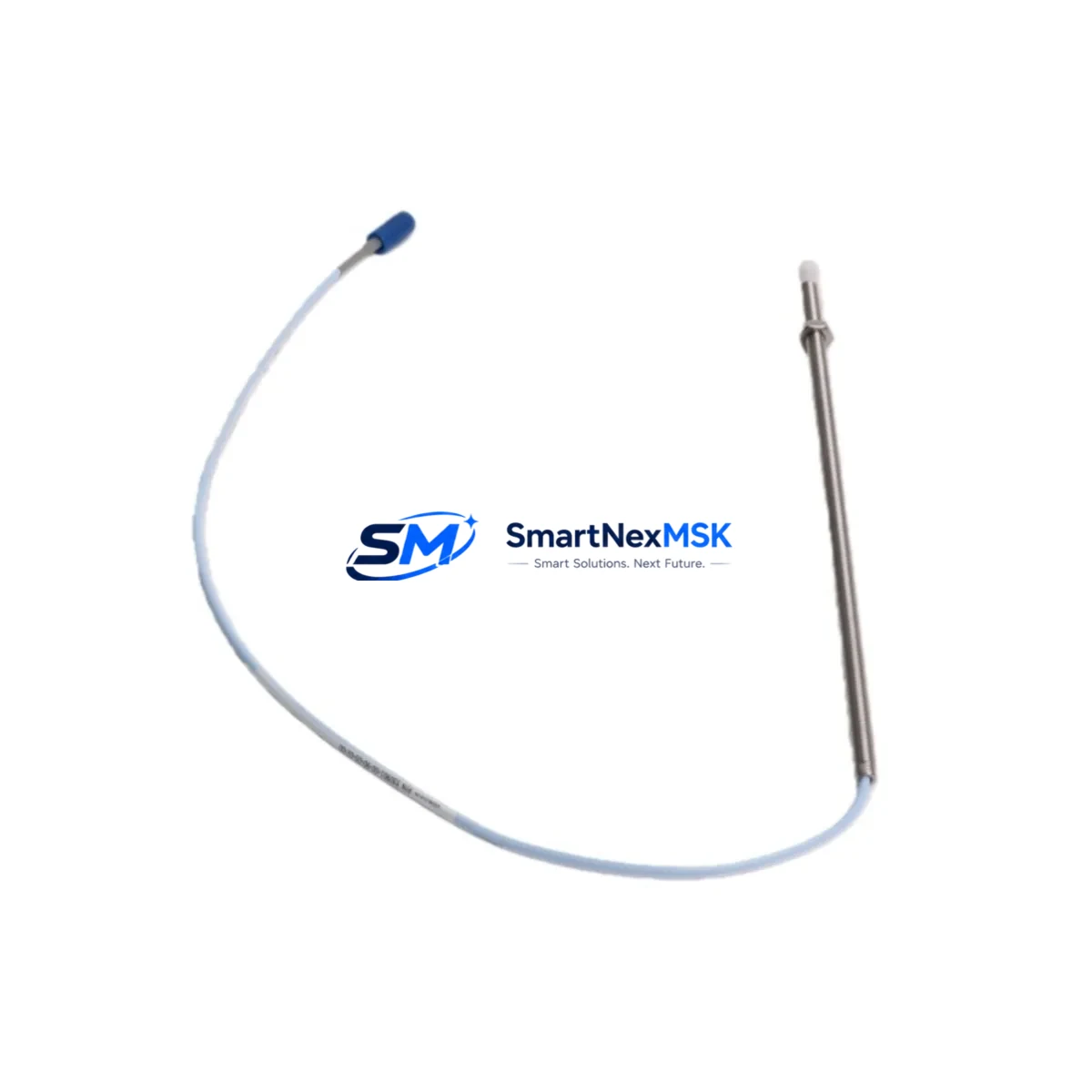

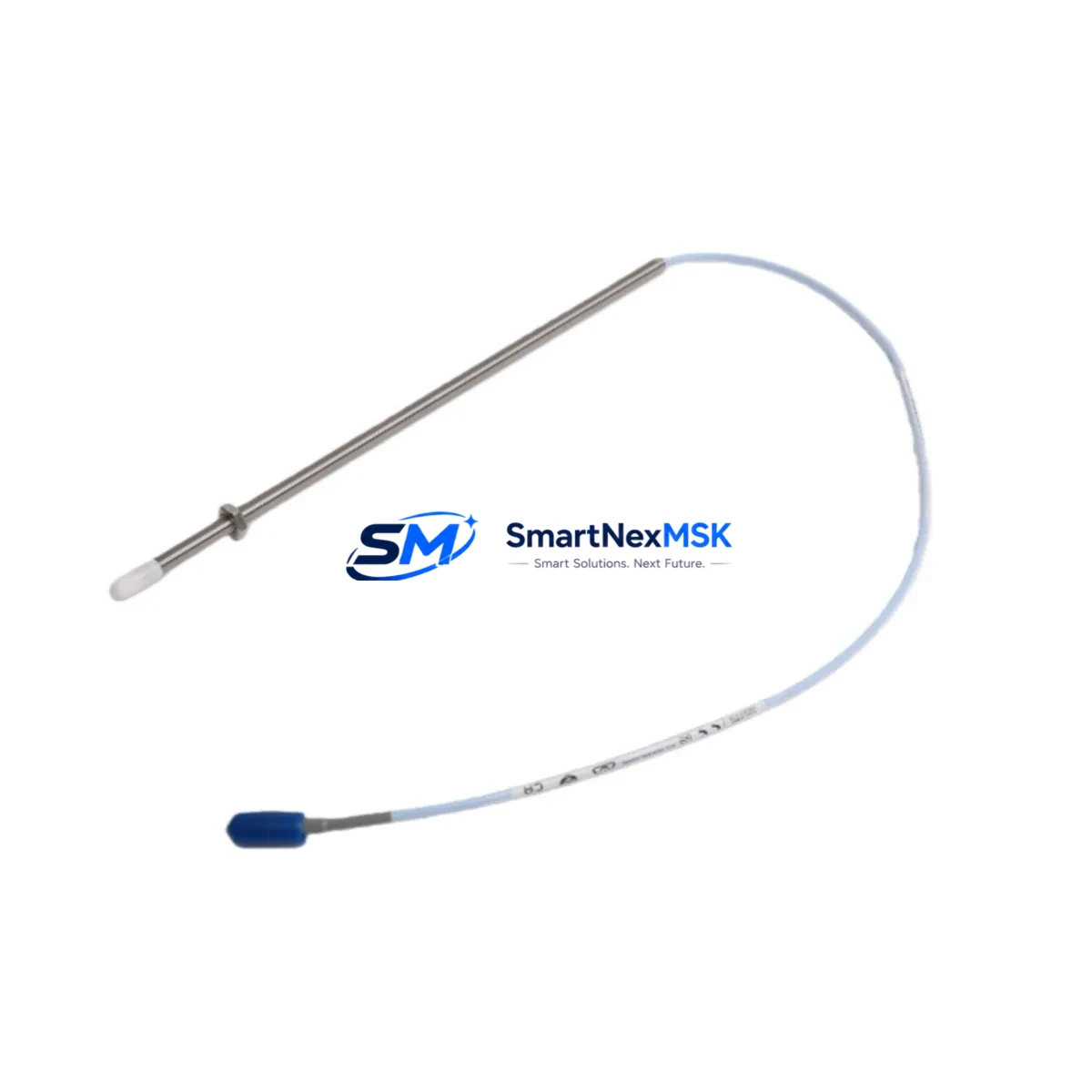

The Bently Nevada 330901-00-90-10-02-CN is a high-precision eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy 3300 XL NSv monitoring systems approach end-of-life or require panel upgrades, this probe serves as a verified drop-in replacement that preserves existing wiring, conduit routing, and Proximitor® signal conditioning without requiring software re-engineering or HMI screen redesign. Whether you are managing a planned outage, responding to an unplanned trip, or executing a phased control-cabinet modernization, the 330901-00-90-10-02-CN delivers the dimensional accuracy, gap voltage linearity, and EMI shielding required for API 670-compliant installations.

This probe is rated for a 5 mm nominal sensing range and is calibrated to work directly with the 3300 XL 8mm Proximitor® sensor, including the 330180-51-05 and 330180-91-05 extension cable assemblies. The armored cable jacket and stainless-steel housing make it suitable for high-temperature, high-humidity, and chemically aggressive environments typical of turbine halls, compressor trains, and pump skids. Replacement units are pre-tested against Bently Nevada factory gap-voltage curves and shipped with calibration certificates, reducing on-site commissioning time and supporting your downtime-control objectives.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When replacing the 330901-00-90-10-02-CN in an operating plant, engineers should first audit the existing Proximitor® sensor — typically a 330180-51-05 or 330180-91-05 — to confirm that the extension cable length and connector type match the replacement probe’s integral cable. If the Proximitor® itself is beyond its service interval, a concurrent replacement with a 3300 XL 8mm Proximitor® module is strongly recommended to avoid a second outage.

For systems migrating from older 3300 series racks to the 3500 Series Machinery Protection System, the probe signal wiring can often be reused, but the Proximitor® driver card must be swapped for a 3500/42M or 3500/44M Proximitor®/Velomitor® I/O module. This migration also requires updating the rack configuration in System 1 Evolution software and verifying that the new I/O module address does not conflict with existing channel assignments. HMI screens built on GE iFIX, Wonderware InTouch, or Emerson DeltaV that display shaft gap and vibration trends will need tag remapping if the channel address changes.

Terminal wiring should be documented before disconnection. The probe’s coaxial signal conductor connects to the Proximitor® input terminal, while the shield drain wire must be grounded at one end only — typically at the Proximitor® housing — to prevent ground loops that corrupt vibration readings. If the control cabinet houses a 3300 XL power supply module alongside relay output modules and barrier strips, confirm that the supply voltage (−24 VDC nominal) is within tolerance before energizing the new probe. Barrier isolators used in Zone 1 or Zone 2 hazardous-area installations must be re-certified if the probe model changes.

For plants running Modbus RTU or PROFIBUS DP communication between the machinery protection rack and the DCS, verify that the rack’s communication gateway — such as a 3500/92 Communication Gateway — is configured to map the correct channel data to the correct PLC register addresses. A mismatch here will cause the DCS historian to log incorrect vibration amplitude values without triggering any alarm, making it a silent failure mode that is difficult to detect during post-commissioning review.

Finally, if the retrofit scope includes I/O expansion — for example, adding a new radial vibration channel alongside the existing axial position channel — a 3300 XL I/O expansion module or an additional 3500 rack slot must be allocated before the outage begins. Rack space, backplane power budget, and cable tray capacity should all be confirmed during the pre-outage engineering review to avoid last-minute field changes that extend downtime.

Downtime Control During System Migration

Minimizing production loss during a proximity probe replacement requires a structured hot-swap protocol. Where process conditions permit, the machinery protection system should be placed in bypass mode — using the 3300 XL or 3500 rack’s built-in channel inhibit function — before the probe is disconnected. This prevents nuisance trips caused by the open-circuit OK relay condition that occurs when the probe is removed. The bypass state must be logged in the permit-to-work system and communicated to the control room operator before any field work begins.

The replacement probe should be pre-gapped on the bench using a gap-setting fixture before installation. Setting the air gap to the target value (typically 1.0 mm for a −7 VDC output) before the probe enters the bearing housing eliminates the need for iterative adjustment under live conditions, reducing the time the machine is offline. Once installed, the gap voltage should be verified at the Proximitor® output terminals using a calibrated digital multimeter before the channel inhibit is released.

Original PLC ladder logic and function block programs stored in the 3300 XL or 3500 rack configuration do not need to be modified for a like-for-like probe replacement. However, if the replacement is part of a broader migration — for example, moving from a 3300 XL rack to a 3500 rack — the rack configuration file must be re-downloaded using System 1 Evolution or the 3500 Rack Configuration software. A full configuration backup should be taken before any download to protect the existing alarm setpoints, transducer scale factors, and OK relay thresholds that represent years of tuned plant knowledge.

Field continuity testing of the extension cable and probe assembly using a dedicated Proximitor® test kit confirms system integrity before the machine is returned to service. All test results should be recorded in the maintenance management system to support future reliability analysis and warranty claims.

Retrofit Support FAQ

Q1: Is the 330901-00-90-10-02-CN a direct replacement for earlier -CN suffix probes without any wiring changes?
Yes. The -CN suffix designates the cable jacket and connector specification for the Chinese market variant. The probe body dimensions, sensing range, and Proximitor® compatibility are identical to the standard 330901-00-90-10-02 probe. No bracket, conduit, or terminal wiring changes are required for a like-for-like swap in an existing 3300 XL installation.

Q2: What commissioning checks are mandatory after installation?
At minimum: (1) gap voltage verification at the Proximitor® output terminals (target −7 VDC ± 0.5 V at 1.0 mm air gap); (2) OK relay status confirmation (relay should be energized when gap is within the linear range); (3) vibration channel noise floor check with the machine at rest; and (4) alarm setpoint confirmation against the original engineering specification. For hazardous-area installations, barrier isolator certification documents must also be reviewed.

Q3: Can this probe be used with a 3500 Series rack if we are migrating away from the 3300 XL?
Yes, with the correct Proximitor® driver. The probe itself is compatible with any 8 mm eddy-current Proximitor® driver, including the 3500/42M and 3500/44M I/O modules used in the 3500 Series rack. The rack configuration must be updated in System 1 Evolution software to reflect the new channel mapping, and HMI tag addresses must be updated to match the new I/O module register assignments.

Q4: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects, calibration drift beyond factory specification, and connector or cable integrity failures under normal operating conditions. It does not cover damage caused by incorrect installation gap, electrical overstress, or mechanical impact. To initiate a claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the observed failure. A replacement unit will be dispatched from stock within 3 business days of claim approval.
