Bently Nevada 330901-04-35-50-01-00 3300 XL NSv Spare

Bently Nevada 330901-04-35-50-01-00 3300 XL NSv Maintenance-Ready Spare

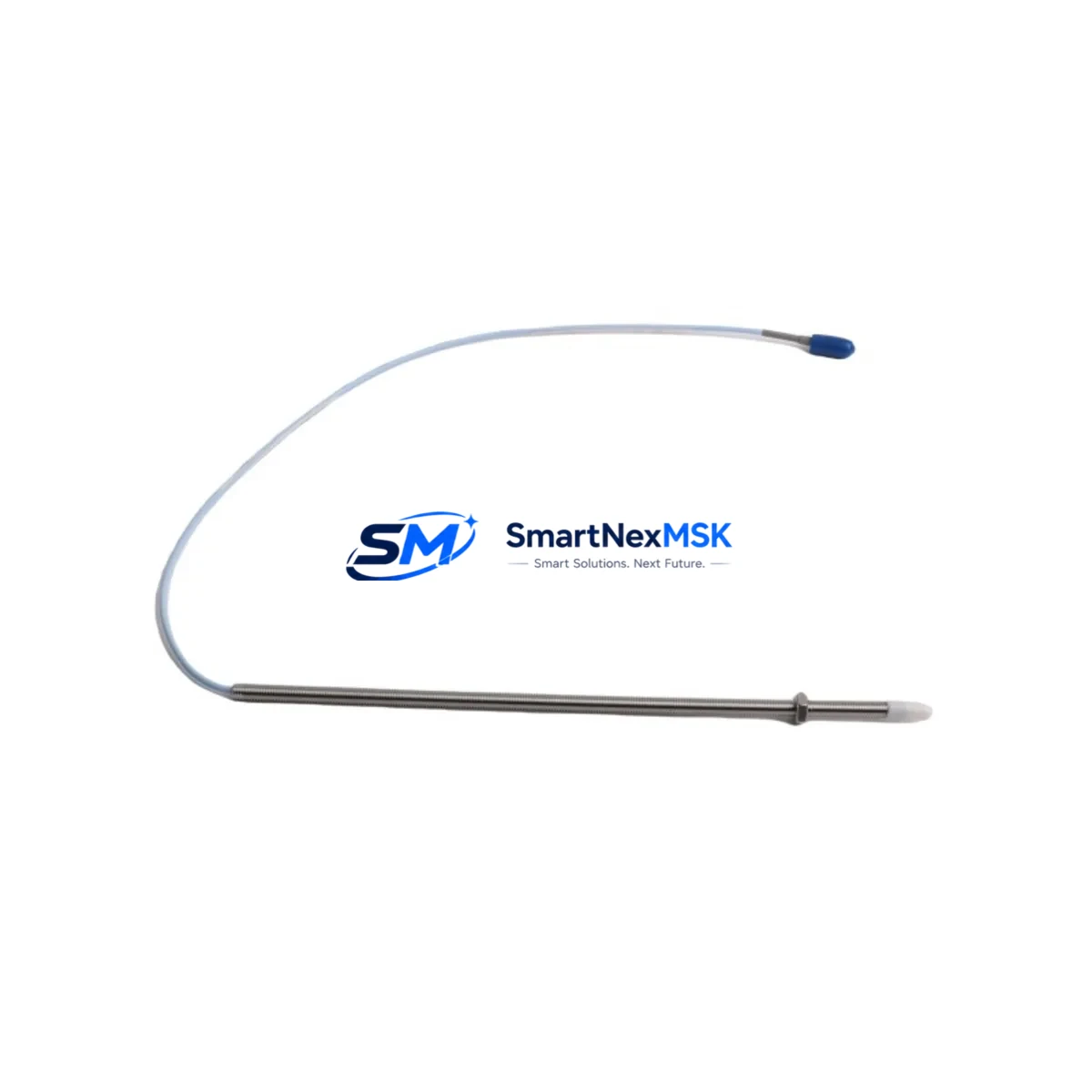

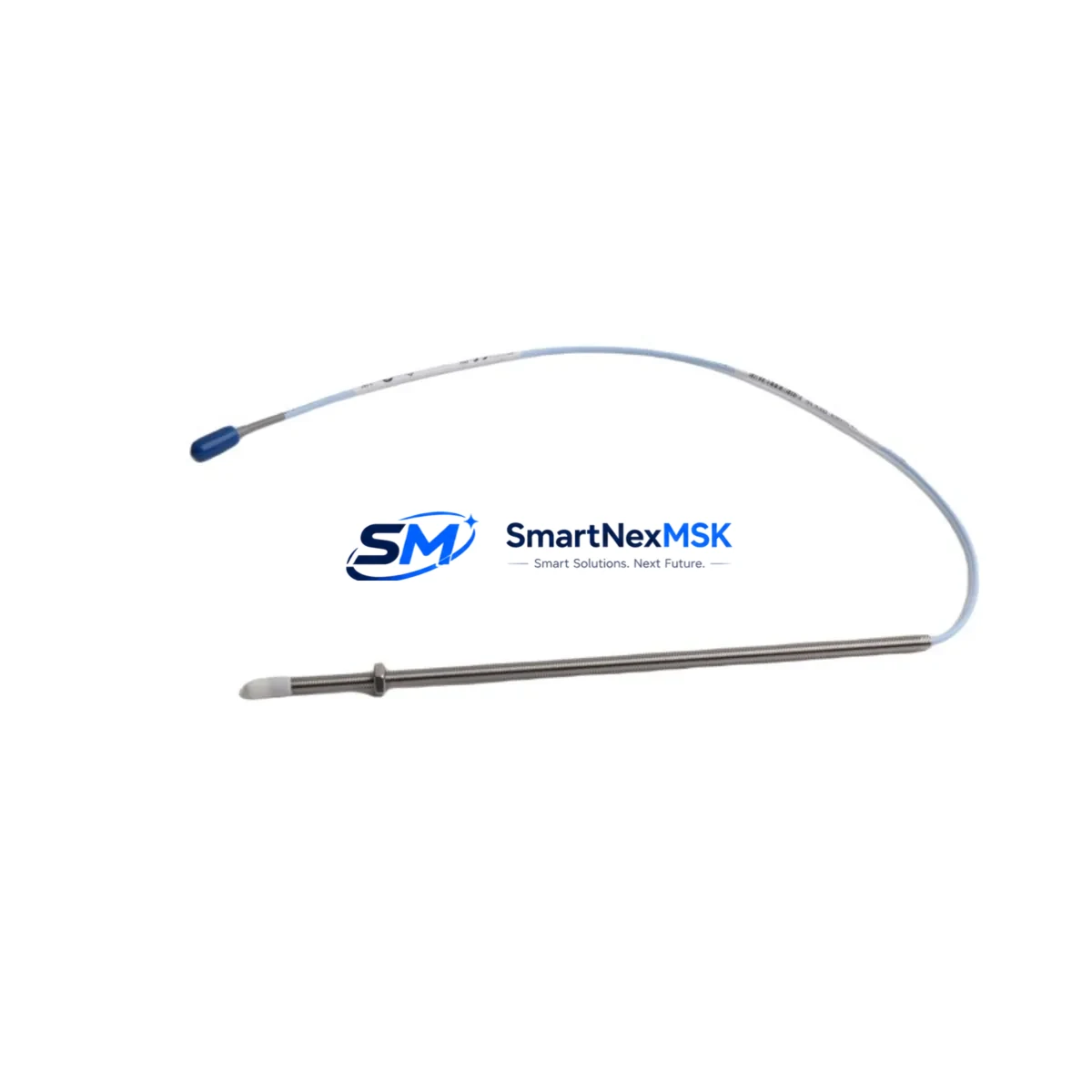

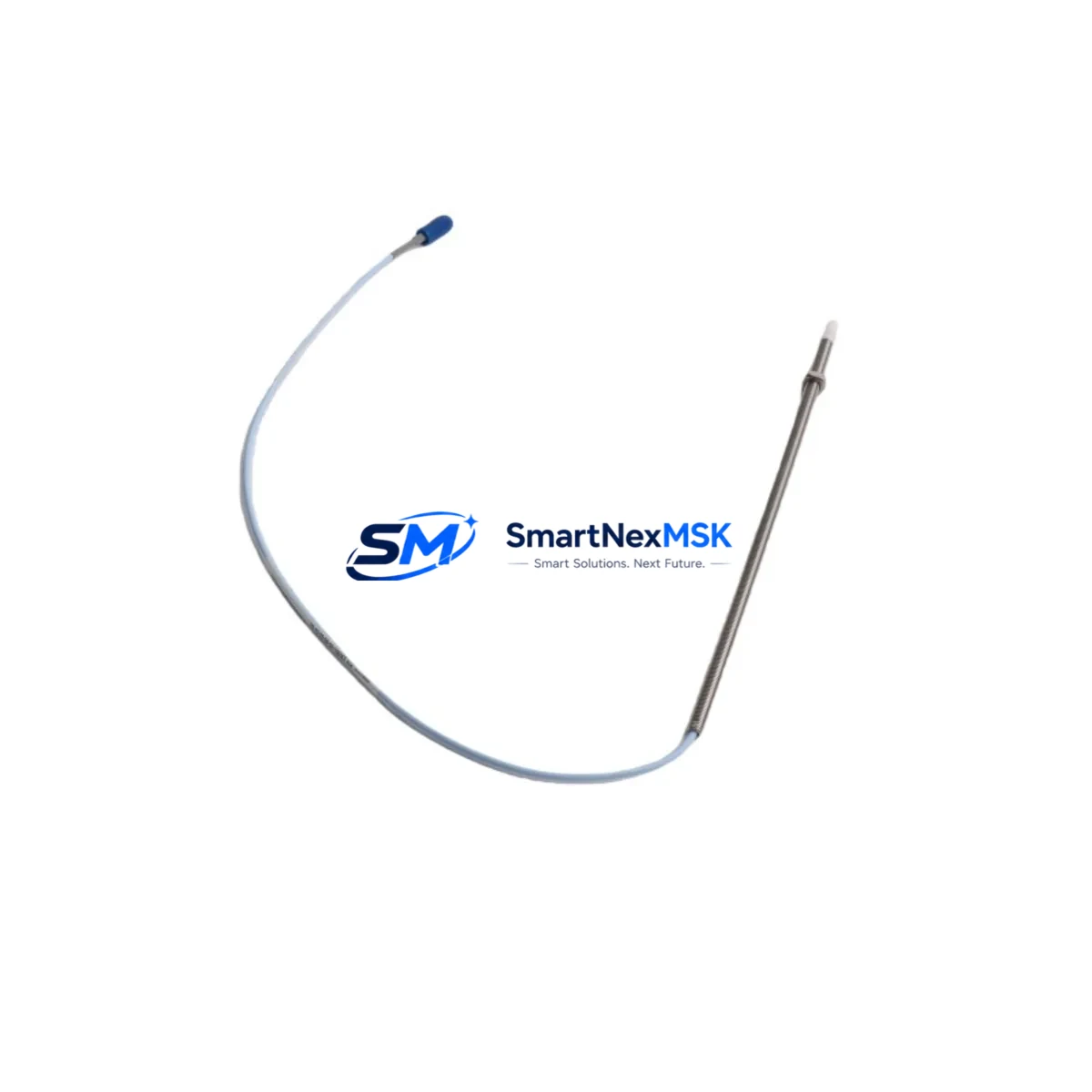

The Bently Nevada 330901-04-35-50-01-00 is an original proximity transducer engineered for the 3300 XL NSv vibration monitoring series. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this transducer serves as the primary sensing element for shaft radial vibration, axial position, and eccentricity measurement. Unplanned downtime caused by a failed or degraded proximity transducer can cascade into full machinery trip events, making a verified, maintenance-ready spare an essential component of any reliability-centered maintenance (RCM) program.

This unit ships as an original Bently Nevada component, individually tested prior to dispatch, and is backed by a 12-month warranty covering manufacturing defects and functional performance. It is suitable for direct replacement in existing 3300 XL NSv installations without requiring system reconfiguration, provided cable length and gap voltage specifications are matched during commissioning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330901-04-35-50-01-00 proximity transducer is flagged for replacement during a planned outage or emergency shutdown, maintenance engineers should treat the event as an opportunity to audit the entire vibration monitoring loop. The Proximitor® sensor — typically a 3300 XL NSv Proximitor® module mounted in the field junction box — should be inspected for output drift, connector corrosion, and supply voltage stability. A degraded Proximitor® will produce erratic gap voltage readings even with a new probe installed, masking the true source of the fault.

The extension cable connecting the probe to the Proximitor® is a frequent failure point in high-vibration or high-temperature environments. Inspect the 3300 XL NSv extension cable for jacket cracking, connector pin damage, and continuity. Replace as a matched set with the probe where cable integrity is in doubt, as mismatched cable lengths alter system sensitivity.

At the control cabinet level, verify the −24 VDC power supply rail feeding the Proximitor® system. Voltage sag or ripple on this rail will directly affect transducer output linearity. A dedicated DC/DC converter or regulated power supply module should be confirmed within specification. Simultaneously, check the terminal block connections on the I/O card receiving the transducer signal — loose or oxidized terminals are a common source of intermittent vibration alarms.

For plants running Bently Nevada 3500 series rack-based monitoring systems, the 3500/42M Proximitor®/Seismic Monitor card should be verified for channel calibration and alarm setpoint integrity after any probe replacement. If the installation includes a 3500/22M Transient Data Interface, confirm that the new probe’s sensitivity constant is correctly entered in System 1 or the rack configuration software to avoid false trip conditions.

In control cabinets where multiple measurement points are monitored, also inspect nearby components: the 3300 XL 8mm Proximitor® sensors on adjacent channels, any signal conditioners or isolators in the loop, and the barrier or Zener barrier modules used in hazardous-area installations. Fuse holders and terminal fuses protecting the −24 VDC supply should be checked for continuity and correct rating. Where the vibration signal feeds a DCS or safety instrumented system (SIS), verify that the 4–20 mA converter or signal isolator downstream is functioning correctly and that the SIS input card is receiving a valid signal after the replacement.

For older machinery where the 3300 XL NSv system is approaching end-of-support, stocking a minimum of two 330901-04-35-50-01-00 transducers per critical machine train is a recognized best practice in ISO 55000-aligned asset management programs. Pairing this with a spare Proximitor® sensor and a pre-terminated extension cable ensures that the mean time to repair (MTTR) for a vibration monitoring failure can be reduced to under two hours.

Site Replacement Workflow

Step 1 – Isolation and lockout: Follow site LOTO procedures. Confirm the machinery is at rest and the monitoring system is in bypass mode to prevent spurious trips during probe removal.

Step 2 – Remove the existing probe: Unscrew the 330901-04-35-50-01-00 from the mounting bracket. Disconnect the integral cable from the extension cable at the field connector. Note the existing gap distance using a feeler gauge or the Proximitor® DC output voltage reading recorded before shutdown.

Step 3 – Install the replacement unit: Thread the new probe into the bracket. Set the gap to the manufacturer-specified nominal (typically 1.0 mm / 40 mil for 8 mm probes) or to the site-specific setpoint documented in the machinery datasheet. Reconnect the extension cable, ensuring the connector is fully seated and the locking ring is tightened.

Step 4 – Verify gap voltage: With the Proximitor® powered, measure the DC output voltage. For a 1.0 mm gap, the expected output is approximately −10.2 VDC (±0.5 V). Adjust the probe position as needed until the gap voltage is within the linear range.

Step 5 – Functional check: Remove the monitoring system from bypass. Confirm that the vibration channel reads a stable, low-noise signal consistent with the machine at rest. Check that no alarms or trips are active. Document the as-left gap voltage and signal level in the maintenance management system (CMMS).

Step 6 – Return to service: Re-engage LOTO release procedures. Bring the machine online and monitor the vibration trend for the first 30 minutes of operation to confirm stable readings.

This workflow is compatible with direct replacement of legacy 330901-series probes in existing 3300 XL NSv installations and does not require rack reconfiguration or software changes, provided the replacement unit carries the same sensitivity and cable length specifications.

Spare Parts Support FAQ

Q: Is the 330901-04-35-50-01-00 compatible with both the 3300 XL NSv and the 3300 XL 8mm Proximitor® systems?
A: Yes. The 330901-04-35-50-01-00 is designed for use with the 3300 XL NSv Proximitor® sensor and is also compatible with the 3300 XL 8mm system, provided the extension cable length and gap voltage setpoints are matched to the specific Proximitor® model in use. Always verify the system configuration document before installation.

Q: What pre-shipment testing is performed on this unit?
A: Each 330901-04-35-50-01-00 unit is functionally tested prior to shipment. Testing includes DC output voltage verification at a known gap distance, sensitivity confirmation at 7.87 V/mm, and cable continuity check. A test report is available upon request.

Q: How should this spare be stored to maintain its service life?
A: Store in the original packaging or an ESD-safe bag in a dry environment between −20°C and +70°C, away from strong magnetic fields and mechanical shock. Inspect the probe tip and connector annually. Recommended maximum shelf life before in-service inspection is 5 years.

Q: What is covered under the 12-month warranty?
A: The 12-month warranty covers manufacturing defects, functional performance deviations from published specifications, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the specified environmental range. Warranty claims are processed within 5 business days of receipt of the returned unit.

—
