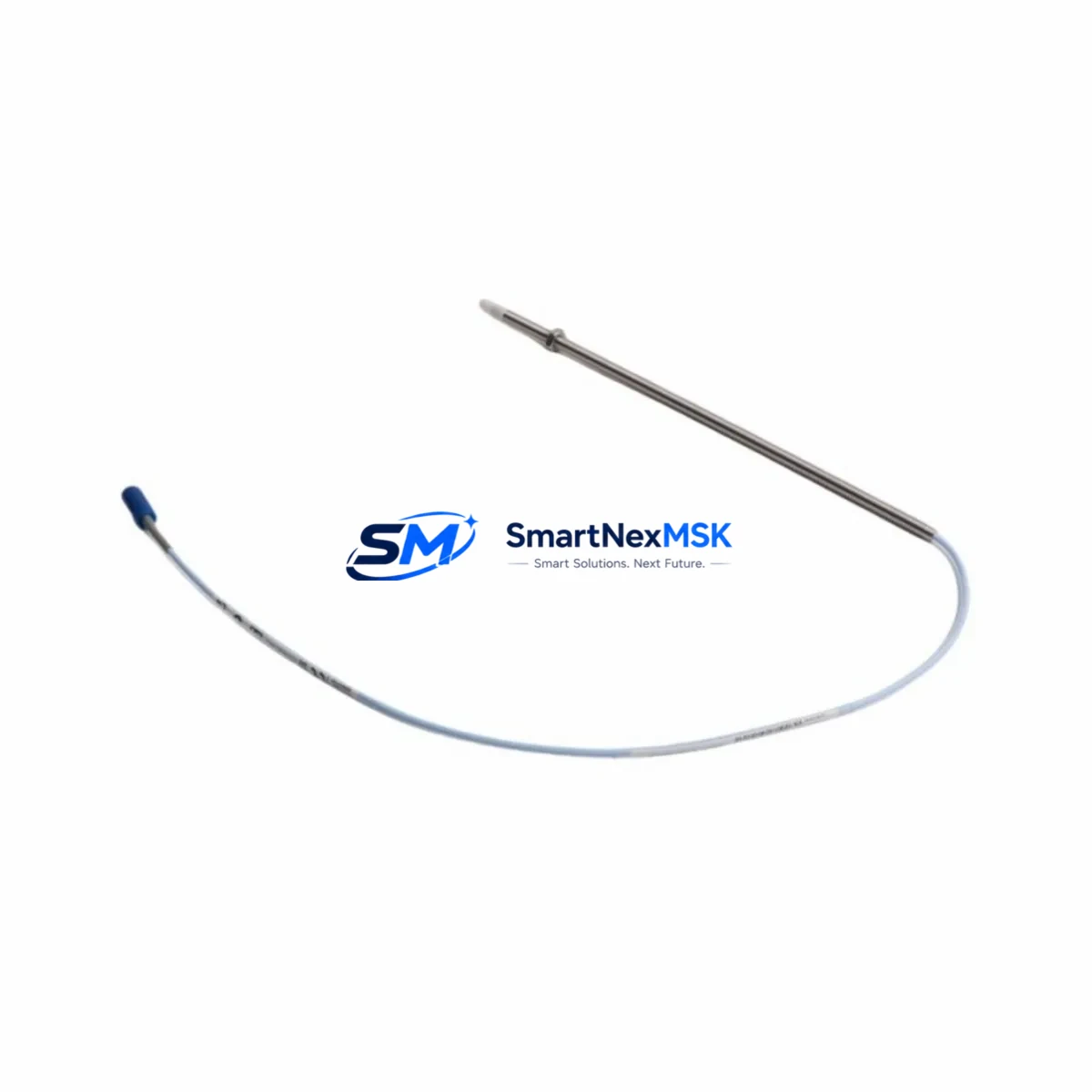

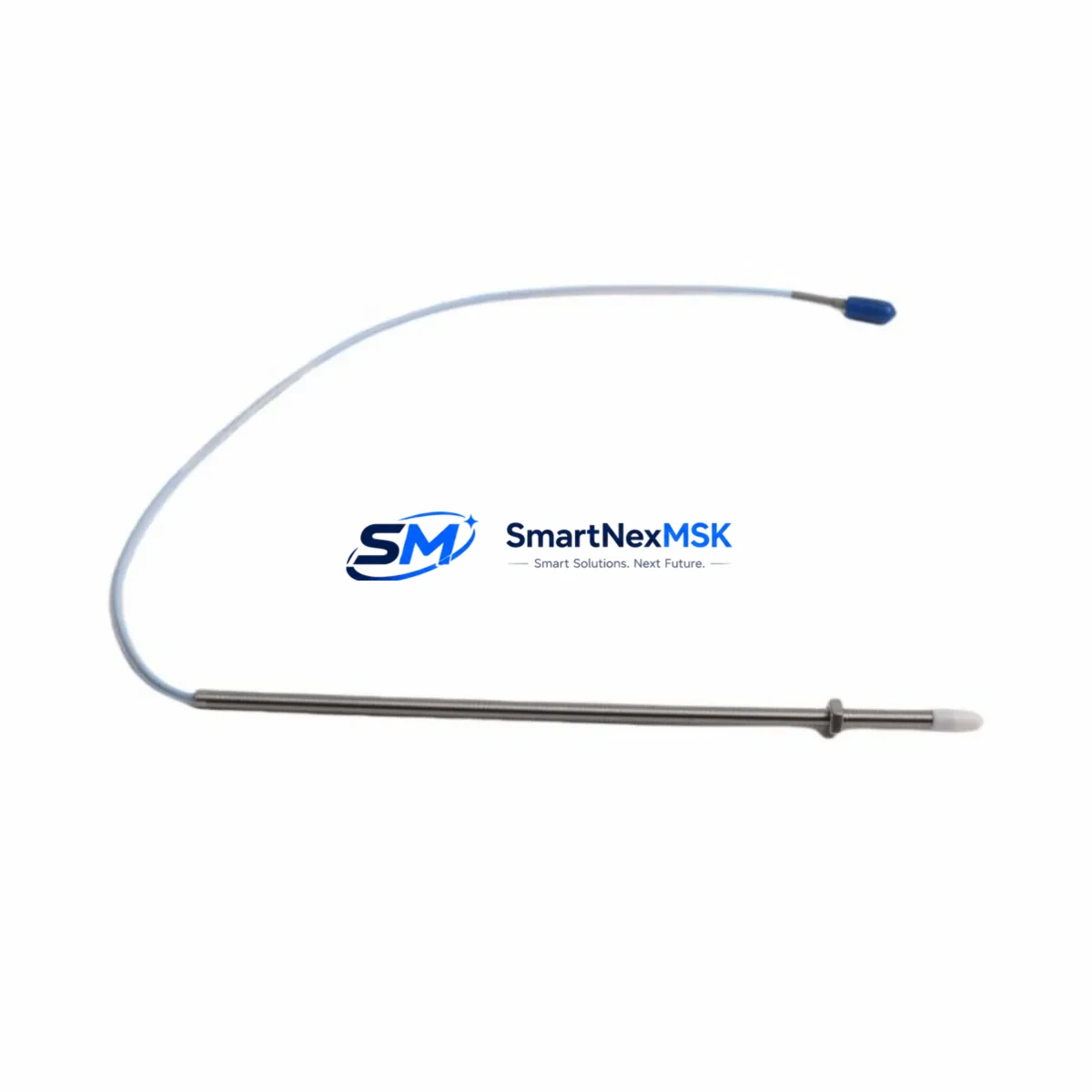

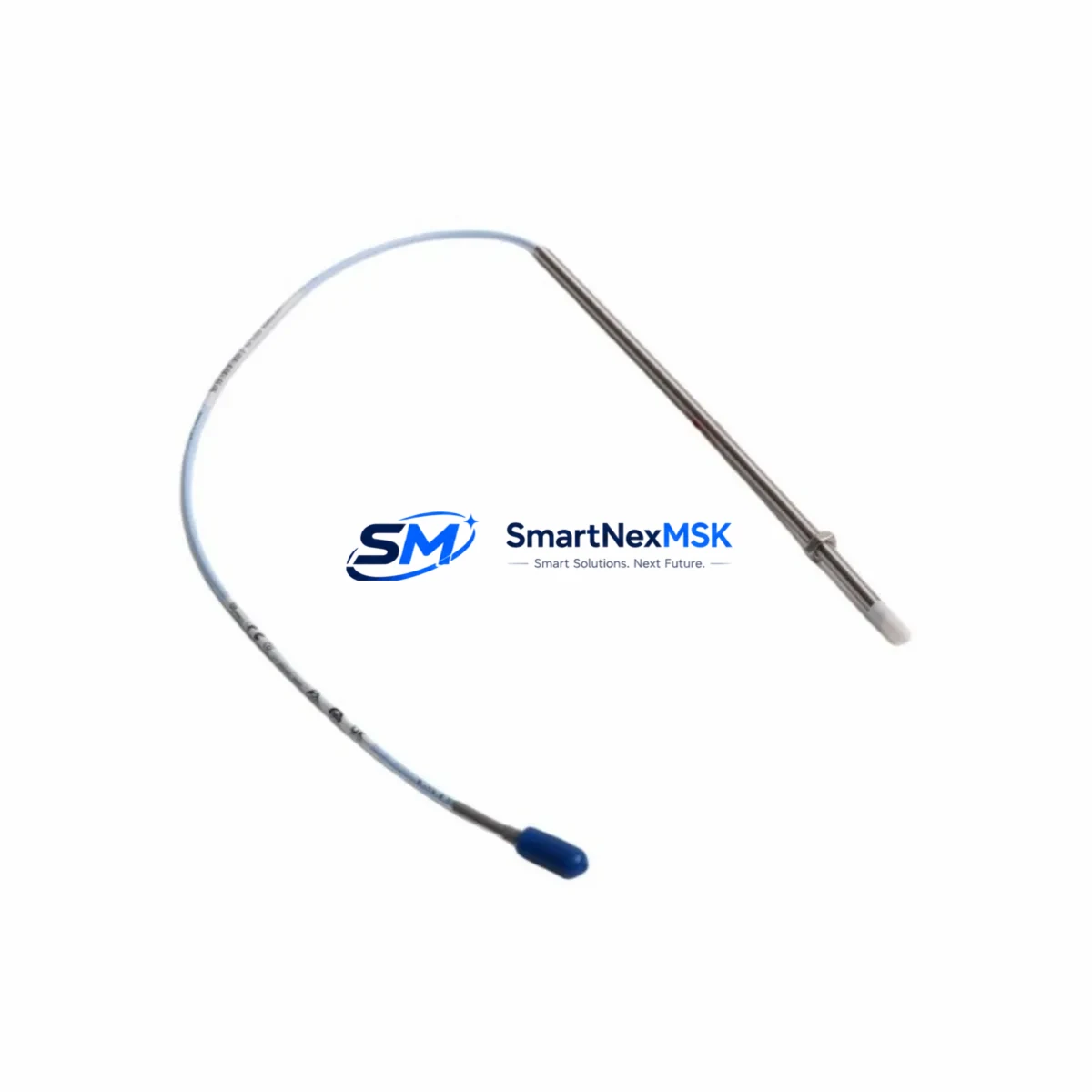

Bently Nevada 330901-20-32-10-02-05 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330901-20-32-10-02-05 is an 8mm proximity transducer engineered for seamless integration into existing 3300 XL and 3300 XL NSv vibration monitoring systems. As legacy machinery monitoring infrastructure ages and OEM support for older transducer assemblies is phased out, this module provides a verified drop-in replacement path that preserves signal integrity, system calibration, and continuous plant protection without requiring full panel redesign or PLC reprogramming.
Industrial facilities operating rotating machinery — including turbines, compressors, pumps, and gearboxes — rely on the 3300 XL platform for real-time shaft displacement and vibration measurement. When the original 330901-20-32-10-02-05 transducer reaches end-of-life or sustains field damage, unplanned downtime becomes a critical risk. This replacement module is stocked and tested to restore monitoring continuity with minimal intervention, supporting both scheduled maintenance windows and emergency swap-out scenarios.
Each unit ships pre-tested against Bently Nevada factory specifications, with verified output sensitivity of 200 mV/mil (7.87 V/mm), a measurement range of 0–90 mil (0–2.29 mm), and a frequency response suitable for the full 3300 XL signal conditioning chain. The 5-meter armored cable assembly with integral connector is compatible with standard 3300 XL extension cable sets, including the 330130 series, eliminating the need for field cable modification during installation.
Upgrade Compatibility Table
| Parameter | 330901-20-32-10-02-05 (This Unit) | Notes / Retrofit Guidance |
|---|---|---|
| Transducer Diameter | 8 mm | Direct fit for standard 3300 XL probe holders; no bracket modification required |
| Cable Length | 5 m (integral) | Pair with 330130-080-00-00 or equivalent extension cable for longer runs |
| Output Sensitivity | 200 mV/mil | Matches 3300 XL signal conditioner input calibration; no rescaling needed |
| Supply Voltage | −24 VDC (nominal) | Verify barrier or driver supply output before installation |
| Communication Compatibility | Analog (4–20 mA / voltage) | Compatible with 3300 XL monitor cards; no protocol migration required |
| Mounting Thread | M10 × 1 | Standard 3300 XL probe holder thread; confirm with existing bracket |
| Replacement Recommendation | Direct OEM equivalent | Replaces worn, damaged, or discontinued 330901-20-32-10-02-05 assemblies |
| Commissioning Requirement | Gap voltage verification | Set gap to −10.0 VDC ±0.5 V using driver/extension cable at target surface |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the 330901-20-32-10-02-05 begins well before the maintenance window opens. Engineers should first audit the existing 3300 XL monitor rack to confirm which monitor cards — such as the 3300/16 or 3300/20 — are installed, as these determine the acceptable input impedance and gap voltage range for the replacement transducer. The 3300 XL proximitor/driver, typically a 330180 or 330185 series driver, must also be inspected: a worn driver can produce erratic gap voltages even with a new transducer installed, so replacement of both components simultaneously is often the most cost-effective approach during a planned outage.
Terminal wiring at the junction box should be documented before disconnection. The 330901-20-32-10-02-05 uses a standard three-conductor shielded cable (shield, center conductor, outer conductor), and polarity must be preserved when reconnecting to the 3300 XL barrier terminal strip. If the existing installation uses a 330130 series extension cable, inspect the connector body and locking ring for corrosion or mechanical damage — a degraded extension cable is a common source of intermittent signal faults that are misdiagnosed as transducer failure.
For facilities also upgrading their overall condition monitoring architecture, the 330901-20-32-10-02-05 is fully compatible with the System 1 Evolution software platform, which can aggregate vibration data from multiple 3300 XL racks alongside newer 3500 series monitors. This allows a phased migration strategy: retain existing 3300 XL hardware on critical machines while introducing 3500/42M or 3500/45 monitor cards on newly commissioned equipment, with both feeding into a unified System 1 historian. The 3500 series backplane and rack architecture differs significantly from the 3300 XL, so no direct card swap is possible — but signal data can be normalized at the software layer without disrupting existing alarm setpoints or trend baselines.
I/O mapping should be reviewed in the DCS or safety system receiving the 3300 XL analog outputs. If the plant uses a Rockwell Automation ControlLogix or CompactLogix controller as the primary PLC, confirm that the analog input module — such as a 1756-IF16 or 1769-IF4 — is configured for the correct input range (typically −10 V to 0 V for gap, or 4–20 mA for processed vibration output). No program logic changes are required for a like-for-like transducer replacement, but the I/O tag documentation should be updated to reflect the new serial number for traceability. If the HMI — whether a FactoryTalk View SE display or a third-party SCADA panel — shows transducer identification data, update the asset tag in the HMI configuration to match the replacement unit.
Facilities using Modbus RTU or PROFIBUS DP communication between the 3300 XL interface module and the plant DCS should verify that the communication link remains stable after transducer replacement. A new transducer will not affect the communication protocol, but a gap voltage outside the expected range can trigger a monitor card fault that places the communication module in a degraded state. Always confirm gap voltage at the driver output before re-enabling the communication link and clearing any latched alarms in the 3300 XL rack.
Downtime Control During System Migration
Minimizing downtime during a 330901-20-32-10-02-05 replacement requires a structured pre-outage checklist. Before the machine is taken offline, capture a full set of baseline vibration trend data from the 3300 XL monitor — including direct (1X), sub-synchronous, and overall vibration levels — so that post-installation readings can be compared against a known-good baseline. Export the System 1 or DCS historian data for the affected measurement point and store it in the maintenance management system for future reference.
During the swap, keep the 3300 XL rack powered if plant safety procedures permit. This allows the monitor card to detect the open-circuit condition on the affected channel and log the event timestamp, which is useful for maintenance records. Once the new 330901-20-32-10-02-05 is installed and the gap voltage is set, the monitor card will automatically resume normal operation without requiring a rack restart — preserving all other channel measurements and alarm states throughout the procedure.
If the replacement is being performed as part of a broader control cabinet upgrade — for example, migrating from a legacy relay-based protection panel to a modern 3500 series rack — plan the transducer replacement as a separate, earlier step. This decouples the mechanical installation risk from the electrical and software migration risk, and allows the machine to return to service on the existing 3300 XL platform while the new rack is commissioned offline. The 330901-20-32-10-02-05 can then be reused on the 3300 XL rack during the transition period, with the 3500 series installation completed during the next scheduled outage.
All replacement units supplied by SMARTNEXMSK are shipped with a pre-shipment functional test report confirming gap voltage linearity, sensitivity, and cable continuity. This documentation supports your site acceptance test procedure and can be submitted directly to your reliability or quality assurance team without additional field testing, reducing commissioning time to gap-setting and signal verification only.
Retrofit Support FAQ
Q: Is the 330901-20-32-10-02-05 a direct replacement for the original Bently Nevada part?
A: Yes. This unit is manufactured to the same dimensional, electrical, and performance specifications as the original 330901-20-32-10-02-05. It is a drop-in replacement for the 3300 XL NSv system with no modification to the probe holder, extension cable, or monitor card configuration required.
Q: What gap voltage should I set after installation?
A: The standard gap voltage for the 330901-20-32-10-02-05 on a steel target surface is −10.0 VDC ±0.5 V, measured at the driver output with the probe at the nominal gap distance specified in the 3300 XL installation drawing. Always refer to the machine-specific installation record for the exact gap distance, as this varies by shaft diameter and bearing clearance.
Q: Can I use this transducer with a 3500 series monitor card?
A: The 330901-20-32-10-02-05 is designed for the 3300 XL signal conditioning chain. While the physical transducer output is electrically compatible with some 3500 series input configurations, Bently Nevada does not certify cross-platform use without a full system validation. For 3500 series installations, the recommended transducer family is the 330900 or 330980 series. Contact our technical team for migration guidance specific to your rack configuration.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers all manufacturing defects in materials and workmanship, including cable assembly integrity, connector body, and transducer sensitivity. Each unit is functionally tested before shipment and ships with a test report. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement or full refund at the customer’s option.
