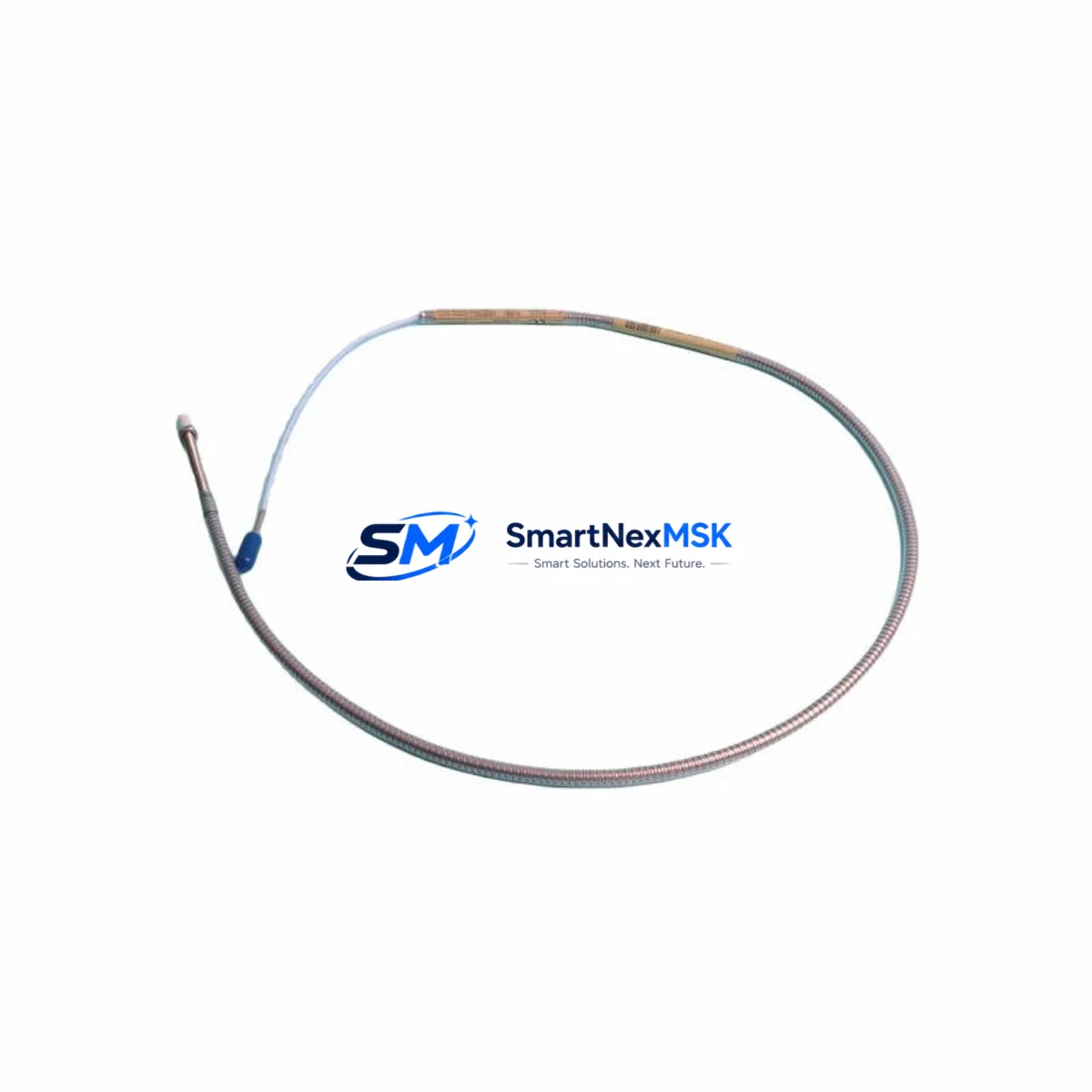

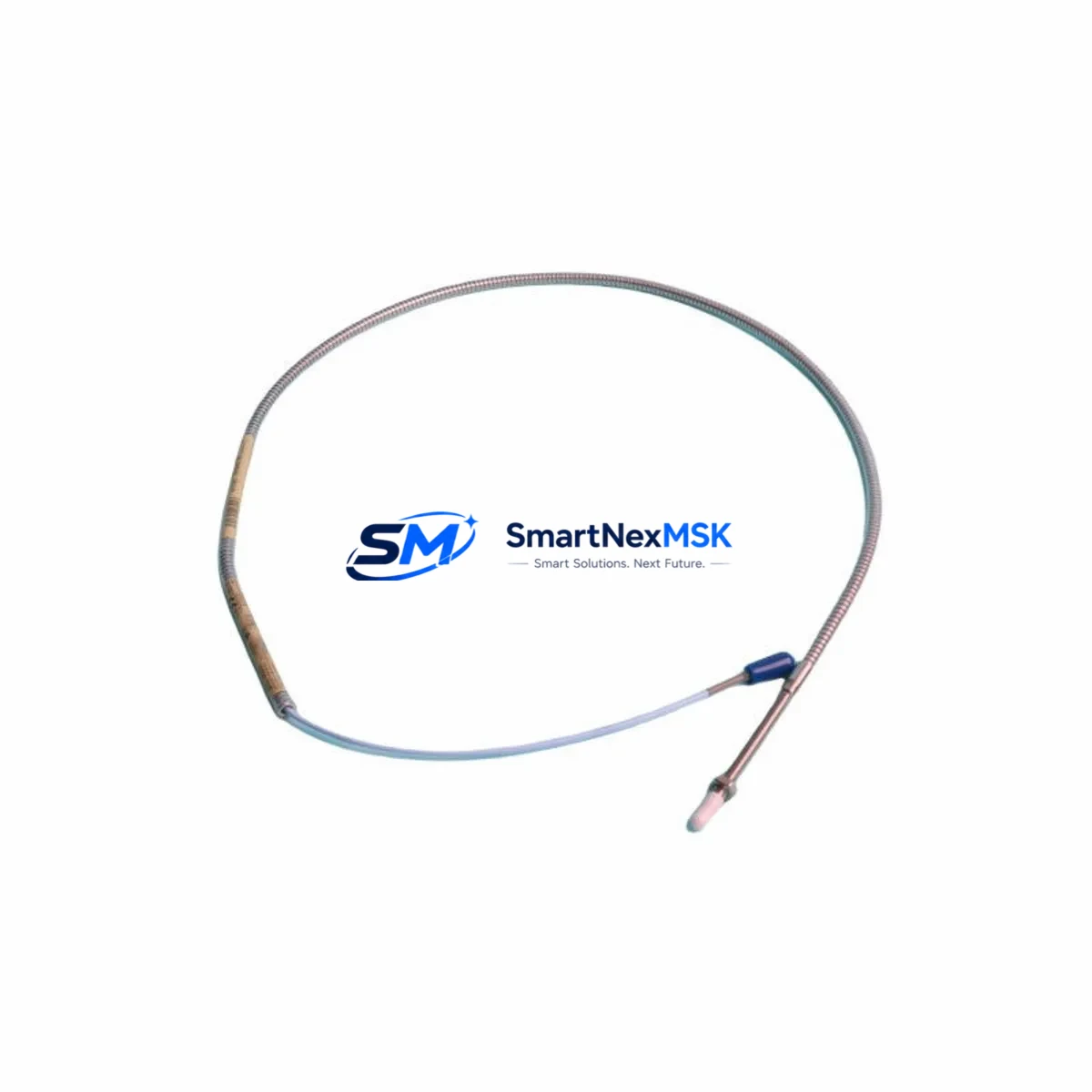

Bently Nevada 330902-00-10-10-01-00 3300 XL NSv Proximity Transducer

Bently Nevada 330902-00-10-10-01-00: Retrofit-Ready 3300 XL NSv Proximity Transducer for Legacy System Upgrades

The Bently Nevada 330902-00-10-10-01-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL NSv monitoring platform. Designed to measure radial shaft vibration, axial position, and differential expansion on rotating machinery, this transducer is a direct retrofit solution for facilities operating aging 3300 Series machinery protection systems. Whether you are replacing a failed unit, upgrading a discontinued component, or modernizing a legacy control cabinet, the 330902-00-10-10-01-00 delivers the measurement accuracy and signal integrity required for continuous, uninterrupted plant operation.

In industrial environments where machinery protection systems must remain online around the clock, sourcing a verified drop-in replacement for a discontinued or end-of-life transducer is critical. The 330902-00-10-10-01-00 is fully compatible with the 3300 XL NSv signal conditioning system, maintaining the standard 5-metre cable configuration and the -24 VDC bias voltage output expected by the 3300 XL 16-channel monitor rack. Engineers performing a like-for-like swap can retain existing terminal wiring, preserve the original Keyphasor reference signal routing, and avoid reprogramming the 3500 Series rack or reconfiguring the System 1 condition monitoring software — significantly reducing planned outage duration.

When integrating this transducer into a retrofit project, technicians should verify the following before installation: confirm the driver module — typically the 330180-X1-05 or 330180-X1-10 proximitor — is compatible with the cable length and gap voltage range; inspect the existing armoured extension cable for continuity and shield integrity; validate the OK relay setpoint and danger/alert thresholds in the monitor channel configuration; and confirm that the target material (shaft material and surface finish) matches the factory calibration standard. For systems using a 3300 XL 8mm transducer assembly, the 330902 series maintains backward-compatible gap voltage characteristics, allowing reuse of existing calibration records in most cases.

Facilities upgrading from older 7200 Series or 3300/16 monitor racks to the current 3500 Series rack architecture will find the 330902-00-10-10-01-00 a reliable bridge component. During such migrations, the transducer can continue to operate on the legacy rack while the new 3500/42M six-channel monitor module is commissioned in parallel, enabling a phased cutover that avoids a full system shutdown. The 3500 rack’s I/O module accepts the same proximitor output signal, and the System 1 software can map the new channel address without requiring changes to the HMI display configuration or the DCS integration tag list.

For plants running DCS platforms such as Emerson DeltaV, Honeywell Experion PKS, or ABB 800xA, the vibration data from the 330902-00-10-10-01-00 is typically transmitted via the 3500 rack’s Modbus TCP or OPC DA gateway, preserving the existing communication link to the control room historian. No protocol migration is required when the transducer is replaced in kind, and the existing HART or 4–20 mA loop wiring to the DCS I/O card remains unchanged.

Stock availability is maintained for immediate dispatch. Each unit undergoes pre-shipment functional testing, including gap voltage verification at the standard 1.0 mm, 1.5 mm, and 2.0 mm calibration points, output linearity check across the full measurement range, and cable continuity and insulation resistance test. All units are supplied with a 12-month warranty covering manufacturing defects and signal performance. Packaging is ESD-protected and shock-rated for international air freight.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. For a 3300 XL NSv system, the bill of materials for a complete transducer assembly replacement typically includes the 330902-00-10-10-01-00 proximity transducer, the 330180-X1-05 proximitor/driver, a 330130-045-00-00 armoured extension cable (5-metre), and the appropriate 3300 XL mounting hardware. If the existing proximitor shows signs of drift or the OK LED is intermittent, replacing the 330180 driver simultaneously eliminates a second unplanned outage.

For facilities also upgrading the monitor rack from the 3300/16 to the 3500 Series, the project scope expands to include the 3500/20 rack power supply module, the 3500/42M six-channel monitor I/O module, and the 3500/22M transient data interface if waveform capture is required. The 3500 rack’s backplane accepts the same proximitor signal without signal conditioning changes, and the existing terminal block wiring from the junction box can be re-landed directly on the 3500 I/O module’s terminal strip — reducing rewiring time significantly.

Where the control cabinet also houses a Rockwell Automation ControlLogix or CompactLogix PLC communicating with the machinery protection system via DeviceNet or EtherNet/IP, the retrofit plan should include a review of the PLC’s Add-On Instruction (AOI) for vibration alarm handling. The 3500 rack’s output relay contacts connect to the PLC’s digital input card, and the alarm tag addresses in the Studio 5000 project must be verified against the new rack’s channel numbering before the system goes live. Similarly, if the plant HMI runs on FactoryTalk View SE or Wonderware InTouch, the vibration trend displays should be tested in simulation mode before the cutover to confirm that the new channel data populates correctly.

For DCS-integrated plants, the Modbus TCP register map exported from the 3500 rack configuration tool should be compared against the existing DCS I/O list to confirm that no tag remapping is required. If the plant uses an Emerson DeltaV SIS for safety instrumented functions, the vibration trip signal from the 3500 relay output must be re-validated against the SIL verification record before the system is returned to service.

Downtime Control During System Migration

Minimising planned outage duration during a proximity transducer replacement requires a structured pre-outage preparation protocol. Before the maintenance window, the replacement 330902-00-10-10-01-00 should be bench-tested against the existing proximitor to confirm gap voltage output at the target installation gap. The System 1 software should be used to export the current channel configuration — including alert and danger setpoints, time delays, and OK relay logic — so that the configuration can be restored immediately after the new transducer is installed and the rack is powered up.

During the outage, the sequence should follow: isolate the monitor channel and place the rack in bypass mode to prevent spurious trips; remove the existing transducer and extension cable assembly; install the 330902-00-10-10-01-00 and reconnect the extension cable at the junction box terminal strip; power up the proximitor and verify the gap voltage reading on the 3500 rack front panel display; restore the channel from bypass; and confirm the OK status LED is illuminated before releasing the machine for restart.

For critical machinery where even a brief unmonitored period is unacceptable, a temporary portable vibration analyser — such as a CSI 2140 or equivalent — can be connected to the proximitor output during the swap to maintain continuous vibration monitoring. This approach preserves the original program logic in the PLC and DCS without modification and keeps the control room operator informed throughout the procedure. Once the permanent system is restored and verified, the portable analyser is disconnected and the historian data gap is documented in the maintenance record.

Retrofit Support FAQ

Q: Is the 330902-00-10-10-01-00 a direct replacement for the original Bently Nevada part?
A: Yes. The 330902-00-10-10-01-00 is a like-for-like replacement maintaining the same 8mm eddy-current sensing element, 5-metre cable, M8 thread mount, and -24 VDC bias voltage output. No mechanical or electrical modifications are required for a standard swap on a 3300 XL NSv system.

Q: What wiring checks are required before installation?
A: Verify the extension cable shield continuity and insulation resistance (minimum 100 MΩ at 500 VDC). Confirm the terminal block connections at the junction box match the original wiring diagram — particularly the centre conductor, shield, and armour connections. Check that the proximitor supply voltage is within the -18 VDC to -26 VDC operating range before connecting the new transducer.

Q: How is compatibility with the 3500 Series rack verified?
A: The 330902-00-10-10-01-00 is compatible with the 3500/42M and 3500/42E monitor modules. Compatibility is confirmed by verifying that the proximitor output voltage at the installation gap falls within the monitor channel’s configured measurement range (typically -2 VDC to -18 VDC). The 3500 rack configuration tool displays the live gap voltage reading, allowing real-time verification during installation.

Q: What does the 12-month warranty cover, and what is included with shipment?
A: The 12-month warranty covers manufacturing defects and signal performance degradation under normal operating conditions. Each unit ships with a pre-shipment test report documenting gap voltage linearity, cable continuity, and insulation resistance results. ESD-protective and shock-rated packaging is standard. Expedited shipping is available for urgent maintenance requirements.
