Bently Nevada 330902-00-25-10-02-05 3300 XL Spare

Bently Nevada 330902-00-25-10-02-05 Maintenance-Ready Spare for 3300 XL Automation

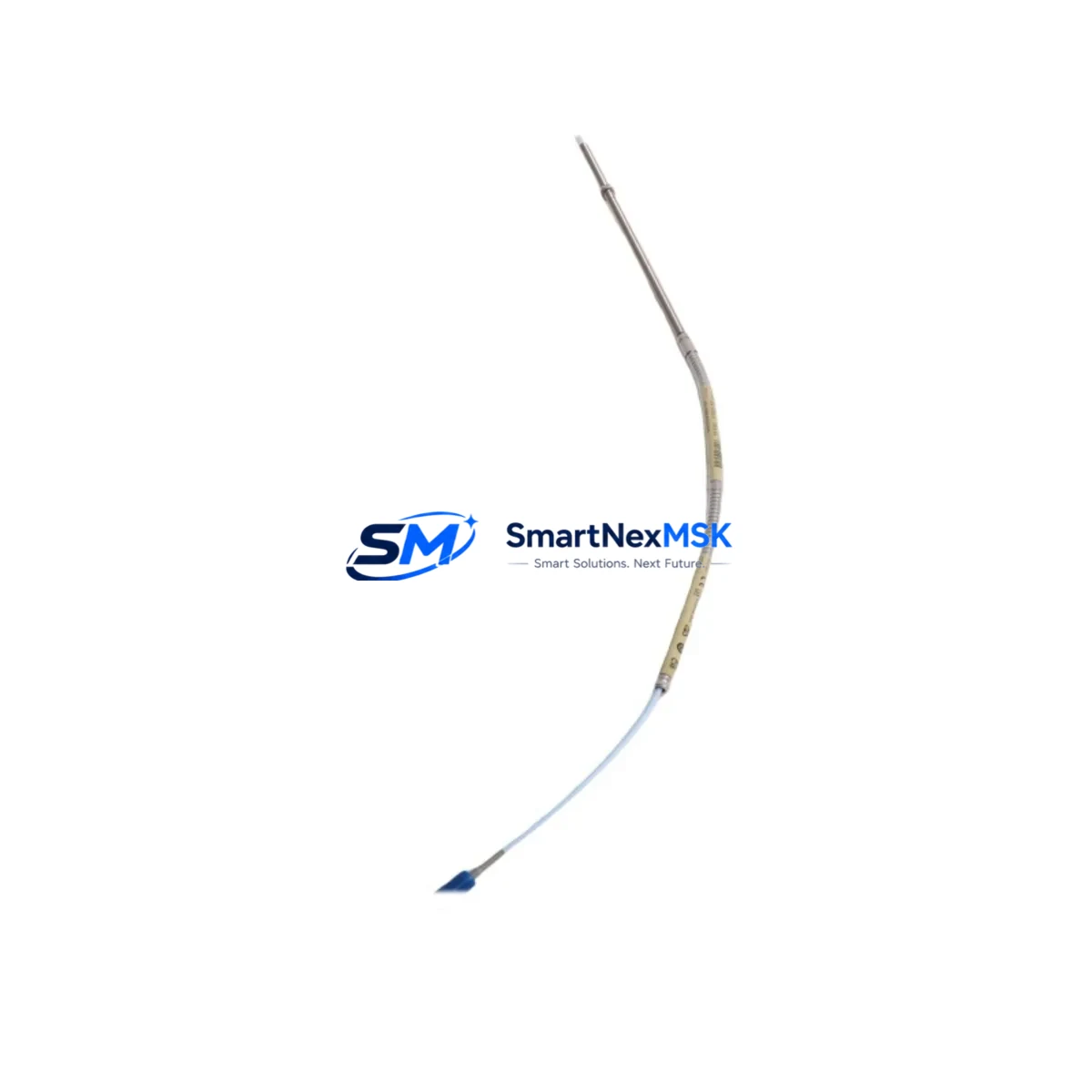

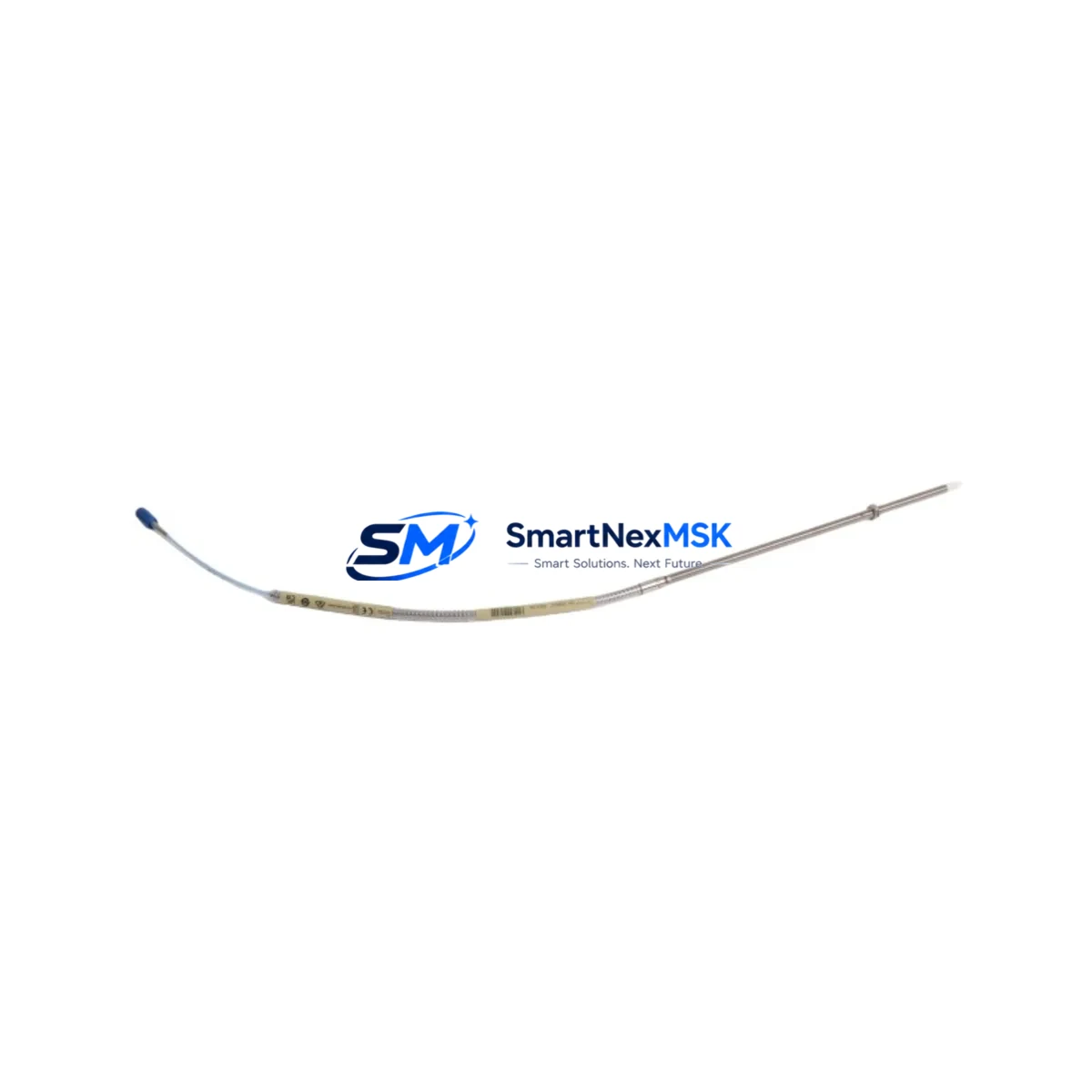

The Bently Nevada 330902-00-25-10-02-05 is an original proximity probe engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical asset, this probe delivers the dimensional accuracy, signal integrity, and system compatibility required to restore full monitoring capability with minimal downtime.

Maintenance engineers working on gas turbines, steam turbines, compressors, pumps, and gearboxes rely on the 3300 XL proximity probe system to provide continuous radial vibration, axial position, and differential expansion measurements. When a probe fails or degrades — whether due to cable damage, tip contamination, or connector corrosion — the entire measurement channel goes offline, triggering a monitoring gap that most safety and reliability programs cannot tolerate. Having a tested, original-specification replacement on the shelf is the single most effective way to close that gap within a single shift.

This unit ships fully tested against Bently Nevada factory specifications, with documentation confirming output sensitivity, gap voltage linearity, and frequency response. It is packaged to prevent transit damage and is ready for immediate installation upon receipt.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated event. When the 330902-00-25-10-02-05 is removed from service, a thorough maintenance engineer will use the opportunity to inspect and verify the condition of every component in the same measurement loop and control cabinet. The 3300 XL Proximitor module (typically a 330180-X1-05 or equivalent) should be checked for output voltage stability and connector integrity — a degraded Proximitor can cause false readings even with a new probe installed. The extension cable connecting the probe to the Proximitor is a frequent failure point due to flexing, abrasion, and connector oxidation; replacing the extension cable (such as a 330130 series) at the same time as the probe eliminates a common callback.

At the rack level, the 3300/16 or 3500/42 monitor card that processes the proximity signal should be inspected for alarm setpoint configuration and channel health. If the machine has been running with a degraded probe for an extended period, the monitor’s OK relay output and buffered output terminals should be verified against the system baseline. The rack power supply — often a 3300/05 or equivalent dual-redundant supply — should be load-tested if the cabinet has not been serviced recently, as power supply degradation is a leading cause of spurious OK-to-not-OK transitions that are misdiagnosed as probe failures.

For machines with both radial and axial monitoring, the thrust probe (commonly a 330905 or 330930 series) and its associated Proximitor should be inspected in the same work order. Axial position probes share the same cable routing and connector infrastructure as radial probes, and a cabinet entry that is already open for one probe replacement is the most cost-effective time to verify the other channels. Similarly, the keyphasor probe (such as a 330980 series) — which provides the once-per-revolution reference signal for phase and speed measurements — should be gap-checked and its output voltage confirmed within specification.

If the machine is part of a DCS-integrated protection scheme, verify that the 4–20 mA output from the monitor card is being received correctly at the DCS I/O module. Signal isolators or barriers in the loop (such as those from the MTL or P+F range) should be checked for drift. Terminal blocks and field wiring in the junction box between the probe and the control room should be inspected for corrosion, loose terminations, and correct shielding continuity. A poorly grounded shield on a proximity probe cable is one of the most common sources of electrical noise that degrades measurement quality without triggering a hard fault.

Site Replacement Workflow

Replacing the 330902-00-25-10-02-05 on a live or recently shutdown machine follows a structured sequence that minimizes the risk of incorrect gap setting, signal inversion, or monitor configuration mismatch. Begin by recording the existing gap voltage at the Proximitor output before disconnecting the old probe — this baseline confirms the target material and gap distance that the new probe must replicate. Disconnect the probe at the Proximitor connector, not at the probe tip, to avoid disturbing the mounting hardware.

Install the new probe into the existing mounting bracket, threading carefully to avoid cross-threading the probe body. Set the gap to the manufacturer-specified nominal value (typically 50 mil / 1.27 mm for most 3300 XL radial applications) using a non-ferrous feeler gauge or by monitoring the Proximitor output voltage in real time. Confirm the output voltage falls within the linear range specified on the Proximitor calibration label. Reconnect the extension cable and verify the OK LED on the monitor card illuminates within the expected timeframe.

Before returning the machine to service, perform a static calibration check by moving the probe tip through its full gap range and confirming the output voltage tracks linearly. Document the as-left gap voltage, probe serial number, and installation date in the equipment maintenance record. This documentation supports both the 12-month warranty claim process and the site’s reliability database for future turnaround planning.

For older systems where the original 3300 XL monitor cards are approaching end-of-life, this replacement event is also an appropriate time to evaluate migration to the 3500 Series rack, which offers backward-compatible probe inputs while adding enhanced communication and self-diagnostics. The 330902-00-25-10-02-05 probe is electrically compatible with 3500 Series Proximitor inputs, making it a viable bridge component during a phased system upgrade.

Spare Parts Support FAQ

Q: Is the 330902-00-25-10-02-05 compatible with both 3300 and 3500 Series monitor racks?
A: Yes. The 330902-00-25-10-02-05 operates within the standard 3300 XL eddy-current transducer system specification and is electrically compatible with 3500 Series Proximitor inputs. Always verify the Proximitor model number and confirm the cable connector type matches your existing installation before ordering.

Q: What is included in the 12-month warranty and how is it claimed?
A: Every unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the failure mode. Units are inspected and replaced or credited within the warranty period.

Q: How do you verify the unit before shipment?
A: Each 330902-00-25-10-02-05 is bench-tested prior to shipment. Testing includes output sensitivity verification at the nominal 50 mil gap, gap voltage linearity across the full operating range, and connector continuity. A test report is available upon request for quality-critical applications.

Q: What is the recommended spare parts strategy for a site running multiple 3300 XL systems?
A: For sites with three or more monitored machines, we recommend maintaining a minimum of two probe assemblies per probe type on the shelf, along with at least one spare Proximitor module and one spare extension cable per critical machine. This inventory level supports same-shift replacement for the most common failure modes without requiring emergency freight. Contact sales@smartnexmsk.com for volume pricing on multi-unit spare kits.
