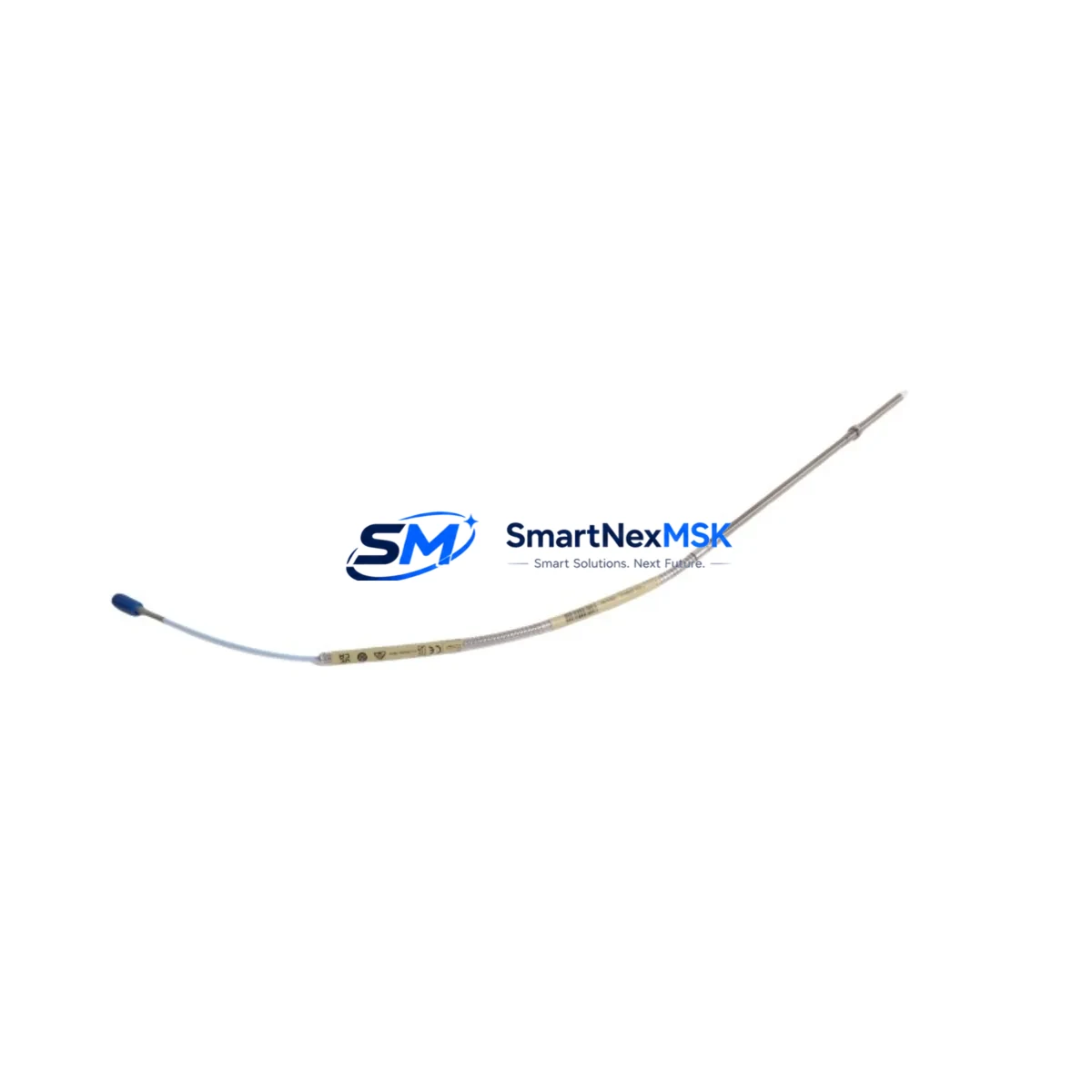

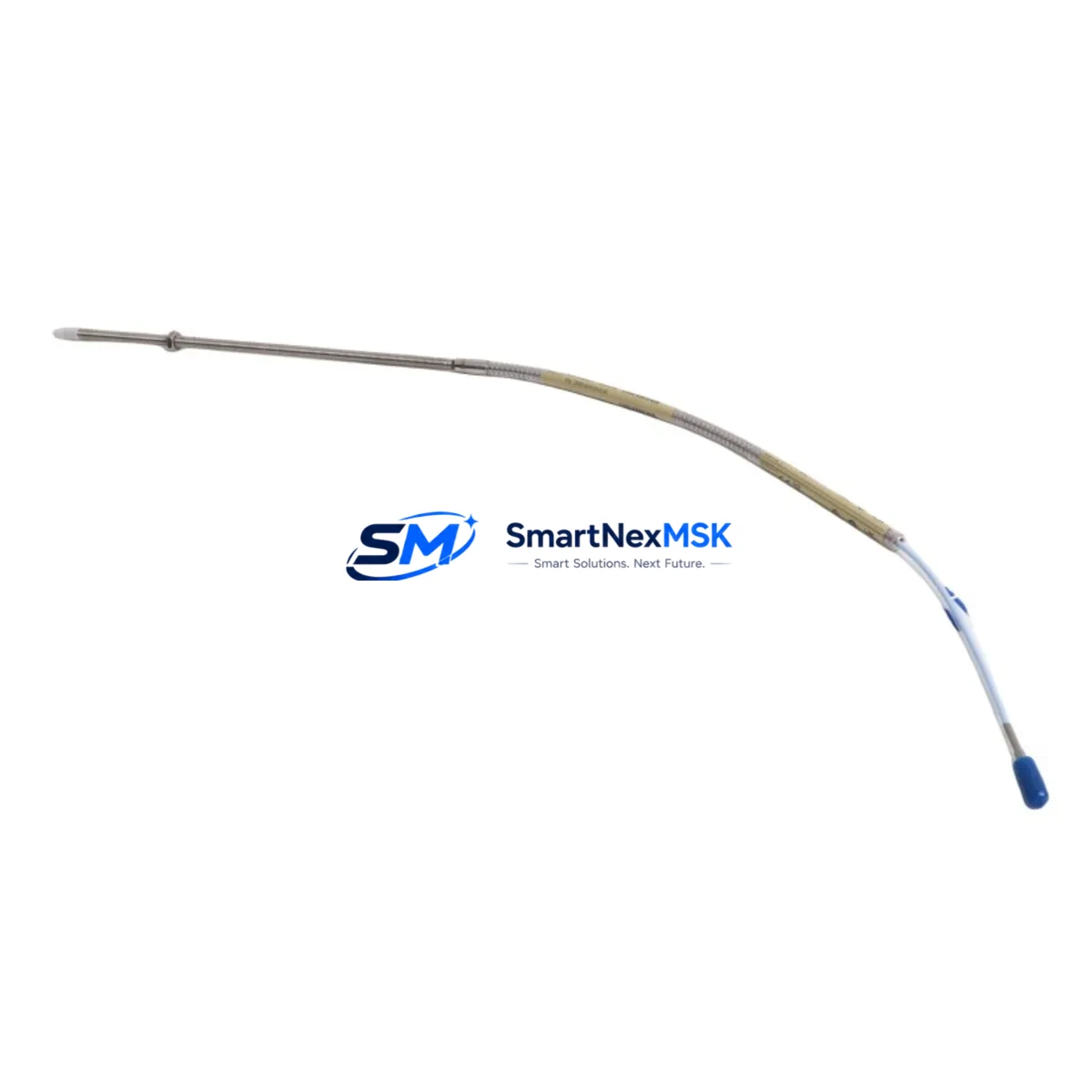

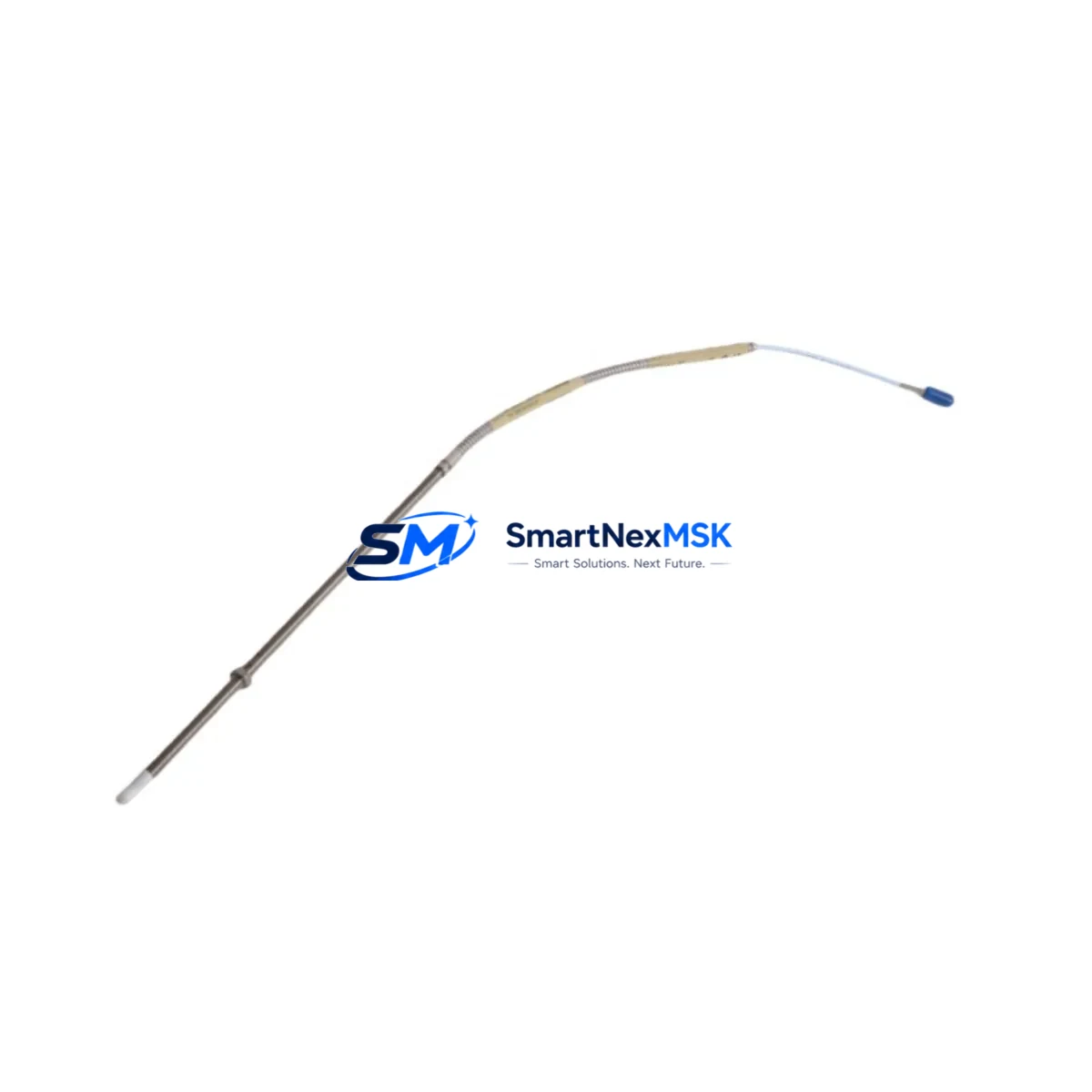

Bently Nevada 330902-00-40-10-01-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330902-00-40-10-01-05 is an NSv 8mm proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As legacy 3300 Series systems approach end-of-life and spare parts become increasingly scarce, this probe serves as a verified drop-in replacement that preserves existing wiring, connector pinouts, and signal conditioning compatibility with the Bently Nevada 3300 XL monitor series. Whether you are executing a planned outage upgrade, responding to an unplanned probe failure, or modernizing a control cabinet that has been in service for over a decade, this unit ships tested, calibrated, and ready for immediate installation.
The 330902-00-40-10-01-05 operates on the eddy-current sensing principle, generating a linear voltage output proportional to the gap between the probe tip and the target shaft surface. It is designed to interface directly with the Bently Nevada 3300 XL 8mm Proximitor® sensor (typically the 330180 series) without requiring recalibration of the signal conditioning chain. The probe cable length of 5 meters (extension cable not included) suits most standard turbine, compressor, and pump bearing housings where the monitor rack is located within the same control room or local panel.
Upgrade Compatibility Table
| Parameter | 330902-00-40-10-01-05 (This Unit) | Retrofit Notes |
|---|---|---|
| Probe Tip Diameter | 8 mm (NSv) | Direct replacement for all 8mm NSv probe positions in 3300 XL racks |
| Cable Length | 1.0 m (probe) + 4.0 m (integral extension) | Verify total run length; add 330130 extension cable if required |
| Connector Type | Standard BNC / coaxial | Compatible with existing Proximitor® input connectors; no adapter needed |
| Target Material | Steel / Stainless Steel (AISI 4140 reference) | Confirm shaft material; non-ferrous targets require scale factor adjustment |
| Operating Gap Range | 0.25 mm – 2.54 mm (linear range) | Re-verify gap setting during installation; document baseline OK voltage |
| Power Supply | –24 VDC (from Proximitor® sensor) | Supplied by 3300 XL Proximitor®; no separate power wiring required |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) | Matches 3300 XL monitor input scaling; no monitor reconfiguration needed |
| Compatible Monitor | Bently Nevada 3300 XL series | Also compatible with 3500/40M and 3500/42M with appropriate Proximitor® |
| Installation Standard | API 670 (5th Edition) | Meets OEM specification for machinery protection systems |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330902-00-40-10-01-05 begins well before the maintenance window opens. Engineers should first audit the existing probe installation to confirm the Proximitor® sensor model in use — typically a Bently Nevada 330180-51-00 or 330180-91-00 — and verify that the –24 VDC power rail feeding the Proximitor® is within specification. The Proximitor® output OK voltage should be documented at the current probe gap before removal, providing a baseline for post-installation verification.
In systems where the 3300 XL monitor rack also houses a Bently Nevada 3300/16-channel I/O module or a 3300/20 rack-mounted barrier, the probe replacement can proceed without disturbing the monitor configuration, provided the new probe’s sensitivity matches the original. Where the control system has been partially migrated to a Bently Nevada 3500 Series rack — for example, incorporating a 3500/22M transient data interface or a 3500/42M proximity monitor — the same NSv 8mm probe family is compatible, though the Proximitor® model may differ and should be cross-referenced against the 3500 system TDI configuration.
For plants running a hybrid architecture that combines legacy 3300 XL monitors with a newer DCS platform such as an Emerson DeltaV SIS or a Honeywell Safety Manager, the probe signal is typically hardwired to the monitor rack first, with the monitor’s relay outputs and 4–20 mA retransmission signals feeding the DCS I/O cards. In this topology, replacing the probe does not require any DCS configuration change, but the maintenance team should confirm that the monitor’s alert and danger setpoints are still valid after the gap is re-established.
Wiring continuity should be verified from the probe connector through the junction box to the Proximitor® input. In older installations, the coaxial cable shielding may have degraded, introducing noise into the vibration signal. This is an opportune moment to replace the 330130 extension cable if the existing cable shows signs of jacket cracking or connector corrosion. The Bently Nevada 330130-080-00-00 (8-meter extension) is the most common extension used in conjunction with this probe in turbine and compressor applications.
Where the plant’s HMI is a GE Cimplicity, Wonderware InTouch, or Ignition SCADA screen displaying vibration trend data, no HMI configuration change is required — the probe replacement is transparent to the SCADA layer as long as the monitor’s analog output scaling remains unchanged. However, it is good practice to acknowledge any active alarms in the historian before the swap and to verify that the vibration trend resumes normal baseline values within the first 30 minutes of operation after restart.
For facilities that maintain a Bently Nevada System 1 condition monitoring software installation, the probe channel should be placed in bypass mode prior to removal and re-enabled after the gap is set and the OK LED on the Proximitor® is confirmed green. This prevents nuisance trip records from being logged in the machinery health database during the swap.
Downtime Control During System Migration
Minimizing unplanned downtime during a probe replacement requires a structured pre-outage checklist. Before breaking any connections, the technician should capture a screenshot or historian export of the current vibration waveform, gap voltage, and 1X/2X amplitude values. This data serves as the acceptance criterion for post-installation sign-off.
The physical swap of the 330902-00-40-10-01-05 typically takes 20–45 minutes on an accessible bearing housing. The most time-consuming step is re-establishing the correct probe gap — nominally 1.0 mm to 1.5 mm for most steel shafts — and confirming the OK voltage falls within the Proximitor®’s specified window (typically –10 VDC to –18 VDC for an 8mm NSv system). A calibrated gap tool or feeler gauge set should be on hand.
Where the machine cannot be taken offline, some facilities elect to perform a hot-swap using a spare Proximitor® channel if the monitor rack has an unused slot. In a 3300 XL 16-channel rack, an unused channel can be temporarily configured to accept the new probe while the old probe remains in service, allowing a parallel comparison before the final cutover. This approach requires coordination with the control room operator to manage alarm inhibits and is only recommended where the rack architecture permits it.
After installation, the technician should verify the following before returning the machine to service: gap voltage within OK range, vibration amplitude consistent with pre-outage baseline (within ±10%), no active danger or alert relays energized, and the Proximitor® OK LED illuminated. A signed field test record should be retained for the maintenance management system, referencing the probe serial number, installation date, and gap voltage as-found and as-left values. All units supplied by SMARTNEXMSK include a pre-shipment functional test report to support this documentation requirement.
Retrofit Support FAQ
Q1: Is the 330902-00-40-10-01-05 a direct replacement for the older 330902-00-40-10-00-05?
Yes. The suffix change from -00-05 to -01-05 reflects a connector and cable revision that is backward-compatible with all 3300 XL Proximitor® sensors. No wiring or monitor configuration changes are required. The sensitivity, gap range, and output scaling are identical.
Q2: Can this probe be used with a Bently Nevada 3500 Series monitor?
Yes, with the appropriate Proximitor® sensor. The 3500/42M proximity monitor supports NSv 8mm probes when paired with a 330180-series Proximitor®. Confirm the Proximitor® model against the 3500 system TDI configuration sheet before ordering.
Q3: What is included in the pre-shipment test, and how is it documented?
Each unit undergoes a functional gap-versus-voltage linearity check against a reference steel target. The test confirms sensitivity (7.87 V/mm ±3%), OK voltage window, and cable continuity. A test report with the probe serial number and measured values is included in the shipment. This supports ISO 9001 incoming inspection requirements and API 670 documentation obligations.
Q4: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment, covering manufacturing defects in materials and workmanship. The warranty does not cover damage resulting from incorrect installation gap, mechanical impact, or exposure to fluids beyond the probe’s IP rating. Warranty claims are processed within 5 business days of receipt of the returned unit, with a replacement shipped from stock where available.
