Bently Nevada 330902-00-90-05-02-00 3300 XL Spare: Precision Spare Parts Replacement for Industrial Downtime Control

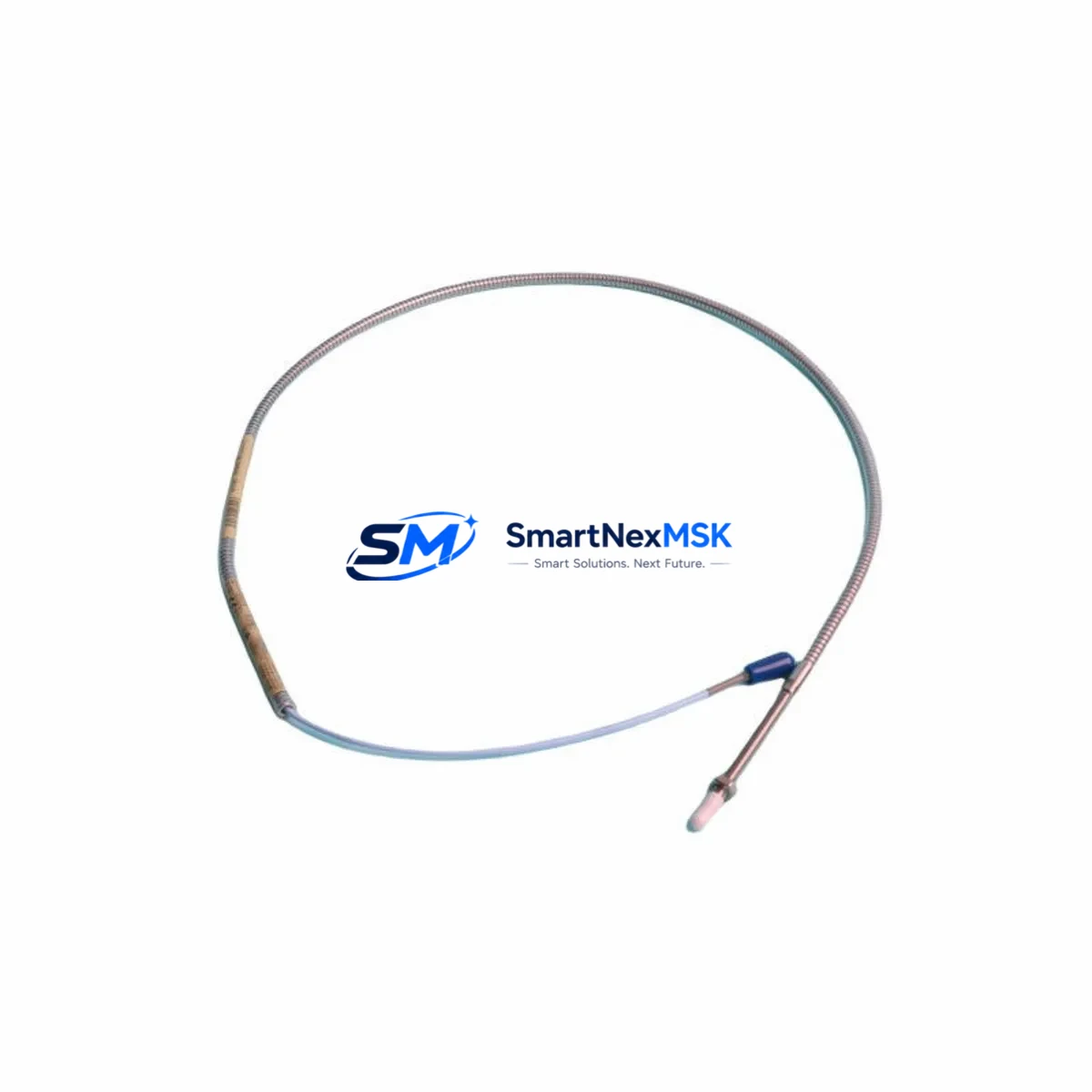

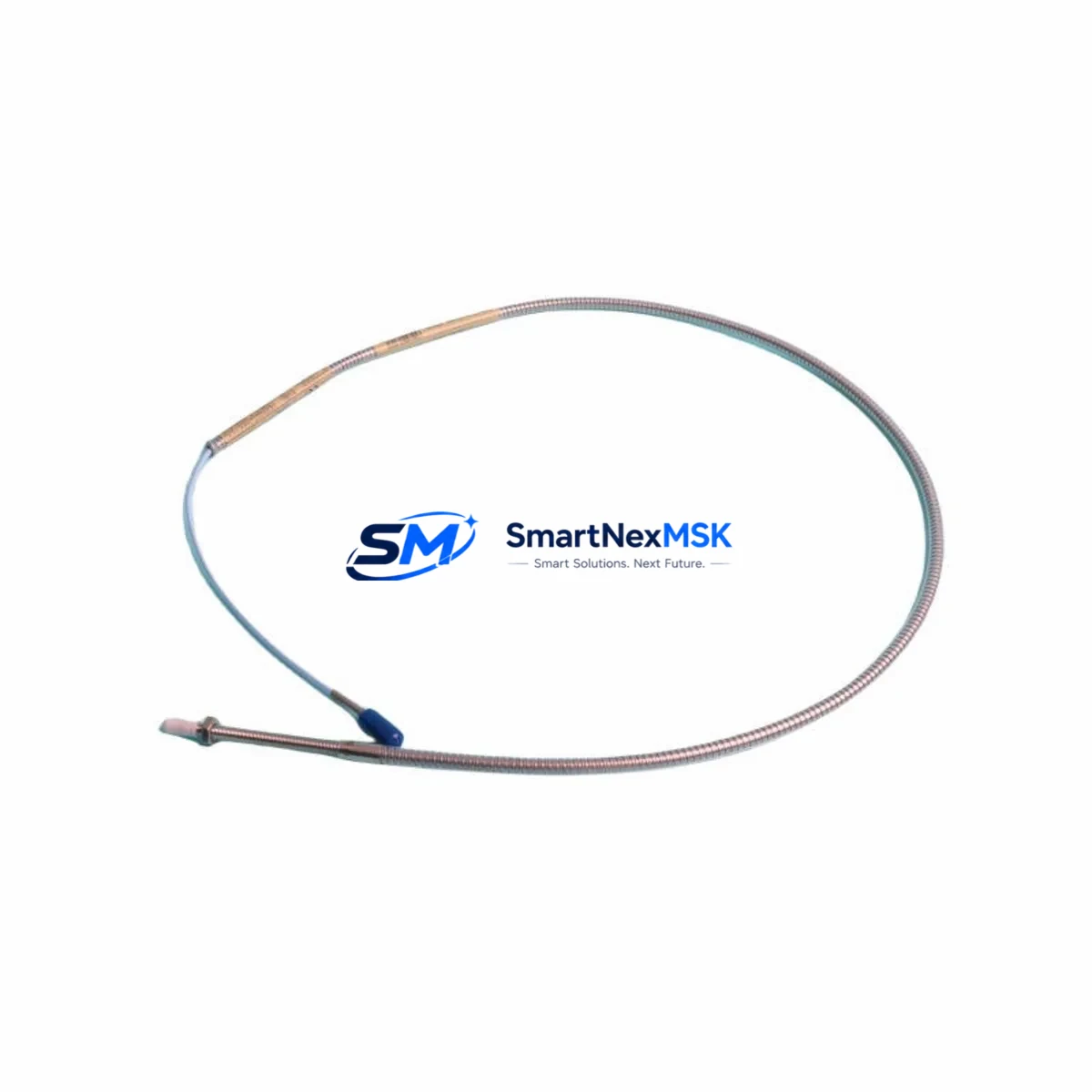

The Bently Nevada 330902-00-90-05-02-00 is a 5mm Eddy Current Proximity Probe engineered for the 3300 XL Monitoring System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. As a maintenance-ready spare, this probe is stocked and tested to support rapid field replacement, minimizing unplanned downtime in turbines, compressors, pumps, and other critical rotating assets.

Maintenance engineers and procurement teams managing aging 3300 XL systems rely on verified OEM-compatible spares to sustain continuous operation. The 330902-00-90-05-02-00 integrates directly into existing probe-driver-monitor chains without recalibration of the full loop, provided the extension cable and driver module are matched to the same system configuration. This makes it an essential line item in any rotating machinery spare parts inventory.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330902-00-90-05-02-00 in the field, a thorough inspection of the surrounding measurement chain is essential to avoid repeat failures and ensure signal integrity. Maintenance engineers should simultaneously verify the condition of the matched 3300 XL 5mm Extension Cable (typically 330130-series), as cable damage or connector corrosion is a leading cause of probe signal degradation that is often misdiagnosed as probe failure.

The paired 3300 XL Proximitor Sensor / Driver Module (such as the 330180 or 330104 series) should be bench-tested for output voltage linearity before reinstalling the new probe. A faulty driver will immediately compromise the replacement probe’s calibration and may trigger false vibration trips. Inspect the 3300 XL Monitor Module (e.g., 3300/16 or 3300/20 series) for firmware version compatibility and verify that the channel configuration matches the new probe’s sensitivity curve.

During cabinet inspection, check the 3300 XL Power Supply Module for stable -24 VDC output — voltage ripple or sag will directly affect probe gap voltage and measurement accuracy. Review the terminal block and field wiring for insulation breakdown, especially in high-temperature or high-vibration environments. If the system includes a 3300 XL Keyphasor Module, verify its probe and cable are also within specification, as Keyphasor signal loss can mask true vibration readings.

For systems with integrated condition monitoring, inspect the System 1 Evolution communication interface or equivalent data acquisition module to confirm the replacement probe’s channel is correctly mapped. In older installations, signal isolators or barriers in the probe loop should be tested for impedance drift. Finally, review the junction box and conduit seals for moisture ingress, which is a common root cause of intermittent probe faults in outdoor or wash-down environments.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the 3300 XL monitor channel before disconnecting the probe. Record the existing gap voltage (typically -10 VDC at mid-range) as a baseline for post-installation verification.

Step 2 — Probe Removal: Loosen the locknut and unthread the probe body from the bracket. Inspect the mounting bracket for wear, thread damage, or misalignment. Replace the bracket if probe tip runout cannot be corrected to within ±0.025 mm.

Step 3 — Cable & Connector Inspection: Disconnect the extension cable at the junction box. Inspect the connector pins for corrosion, bent contacts, or moisture. Replace the extension cable if continuity or insulation resistance is out of specification.

Step 4 — New Probe Installation: Thread the 330902-00-90-05-02-00 into the bracket and set the initial gap to the manufacturer’s recommended starting point (typically 1.0 mm / 40 mil). Torque the locknut to specification. Reconnect the extension cable and verify connector seating.

Step 5 — Energize & Verify: Re-energize the monitor channel. Measure the output voltage at the driver module. Adjust the probe gap until the output matches the system’s configured OK voltage window. Confirm the monitor channel clears any latched alerts.

Step 6 — Functional Test: Perform a slow-roll check or static gap verification per site procedures. Log the new gap setting and output voltage in the maintenance record. Update the spare parts inventory to reflect consumption of this unit.

Spare Parts Support FAQ

Q1: Is the 330902-00-90-05-02-00 a direct drop-in replacement for older 3300 XL proximity probes?
Yes, provided the replacement probe shares the same tip diameter (5 mm), cable length, and connector configuration as the original. Always verify the driver module part number to confirm system compatibility before installation. If the existing driver is a legacy 3300/05 series, consult the system documentation to confirm sensitivity matching.

Q2: What is included in the 12-month warranty?
Every unit shipped is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Each probe undergoes pre-shipment functional testing including gap voltage linearity verification. Warranty claims are supported with replacement or refund, subject to inspection of the returned unit.

Q3: How should this spare be stored in a maintenance inventory?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C–35°C). Avoid storing near strong magnetic fields or solvents. Inspect the connector and cable jacket annually. Recommended maximum shelf life before installation verification is 3 years from the date of manufacture.

Q4: Can this probe be used with non-Bently Nevada monitors or third-party DCS systems?
The 330902-00-90-05-02-00 outputs a standard -24 VDC-powered eddy current signal compatible with most industrial vibration monitoring inputs. Integration with third-party monitors (e.g., Emerson, Metso, or custom DCS I/O cards) is possible if the input channel accepts the probe’s sensitivity (200 mV/mil) and voltage range. Signal conditioning or isolation may be required. Consult your system integrator for loop compatibility verification.
