Bently Nevada 330903-00-02-10-01-00 Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

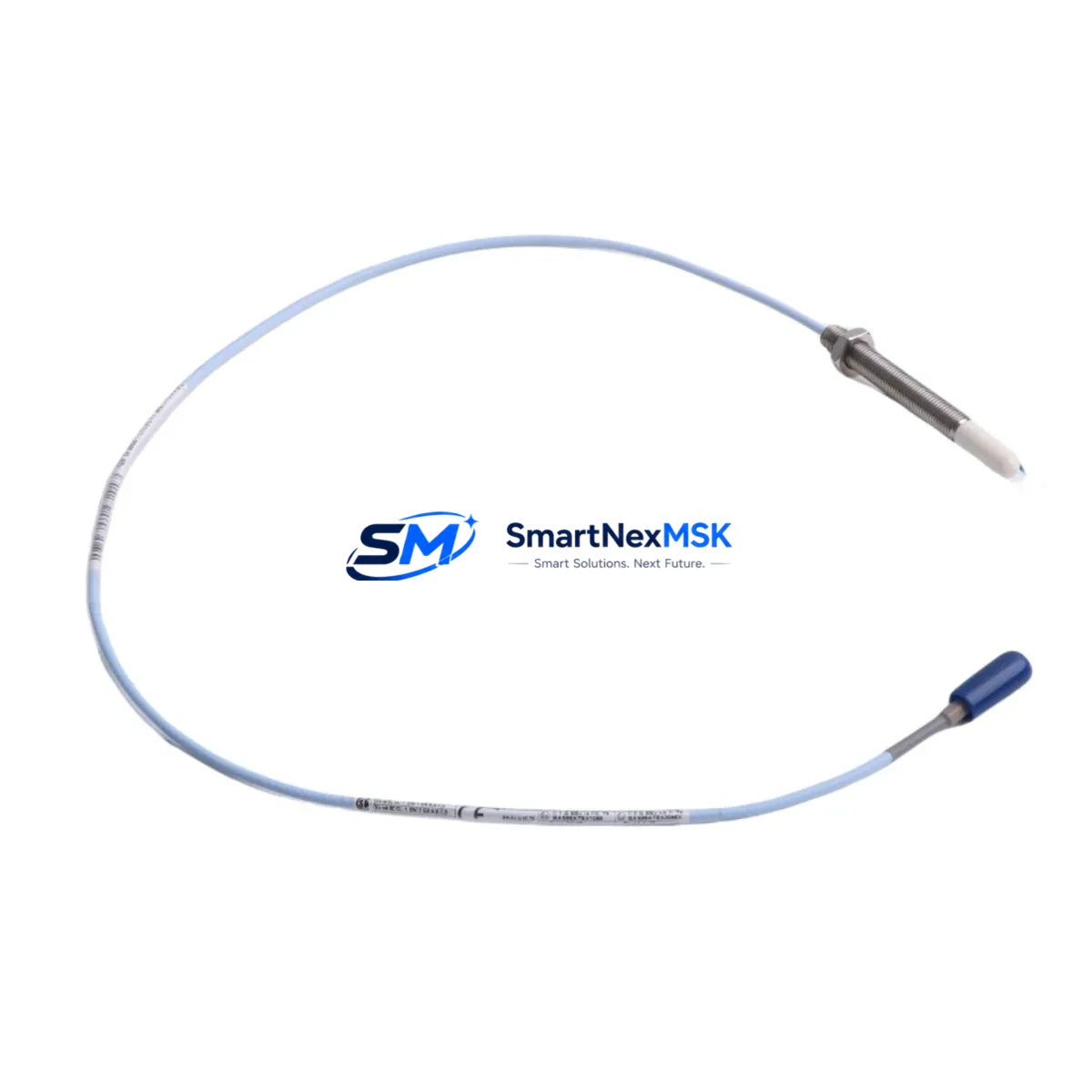

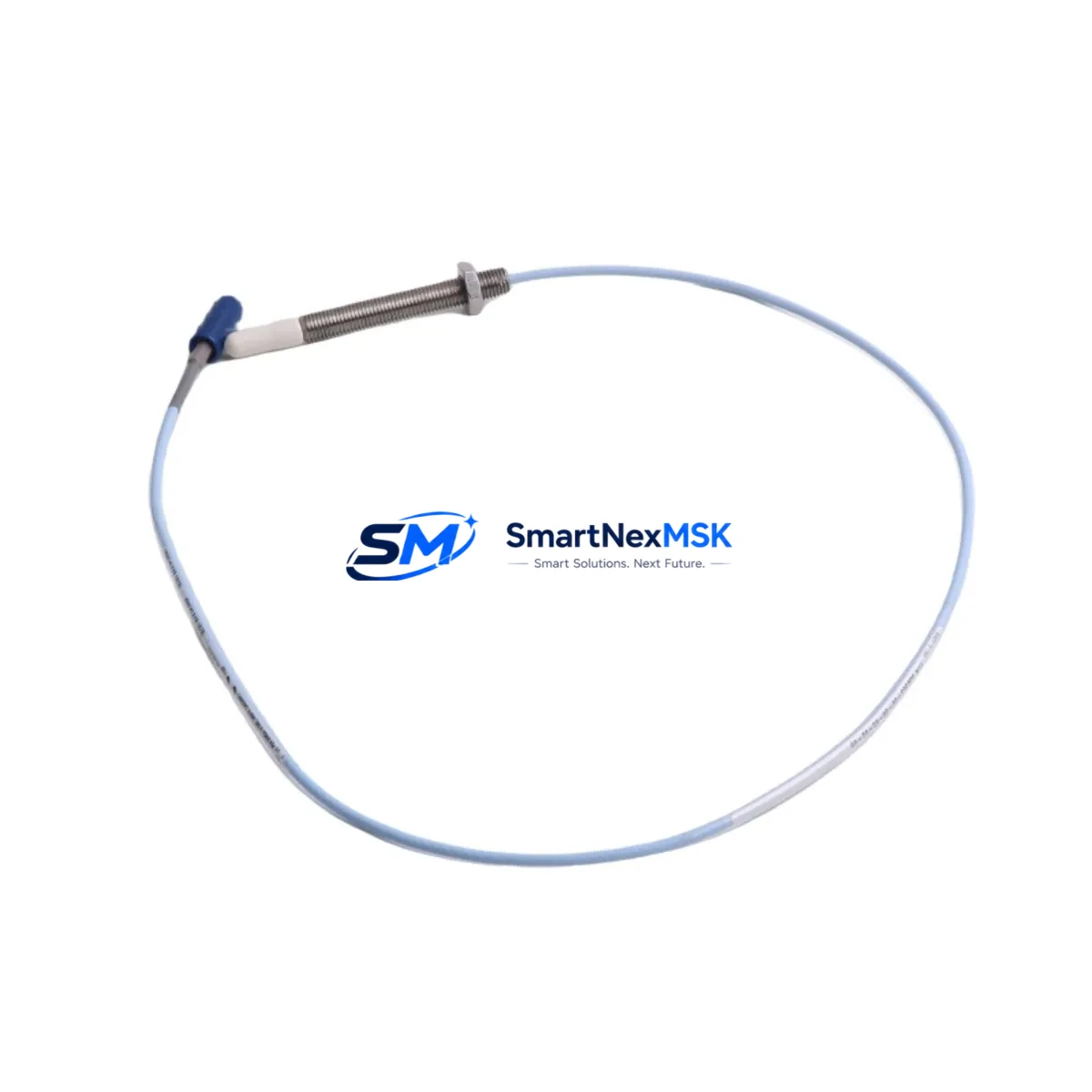

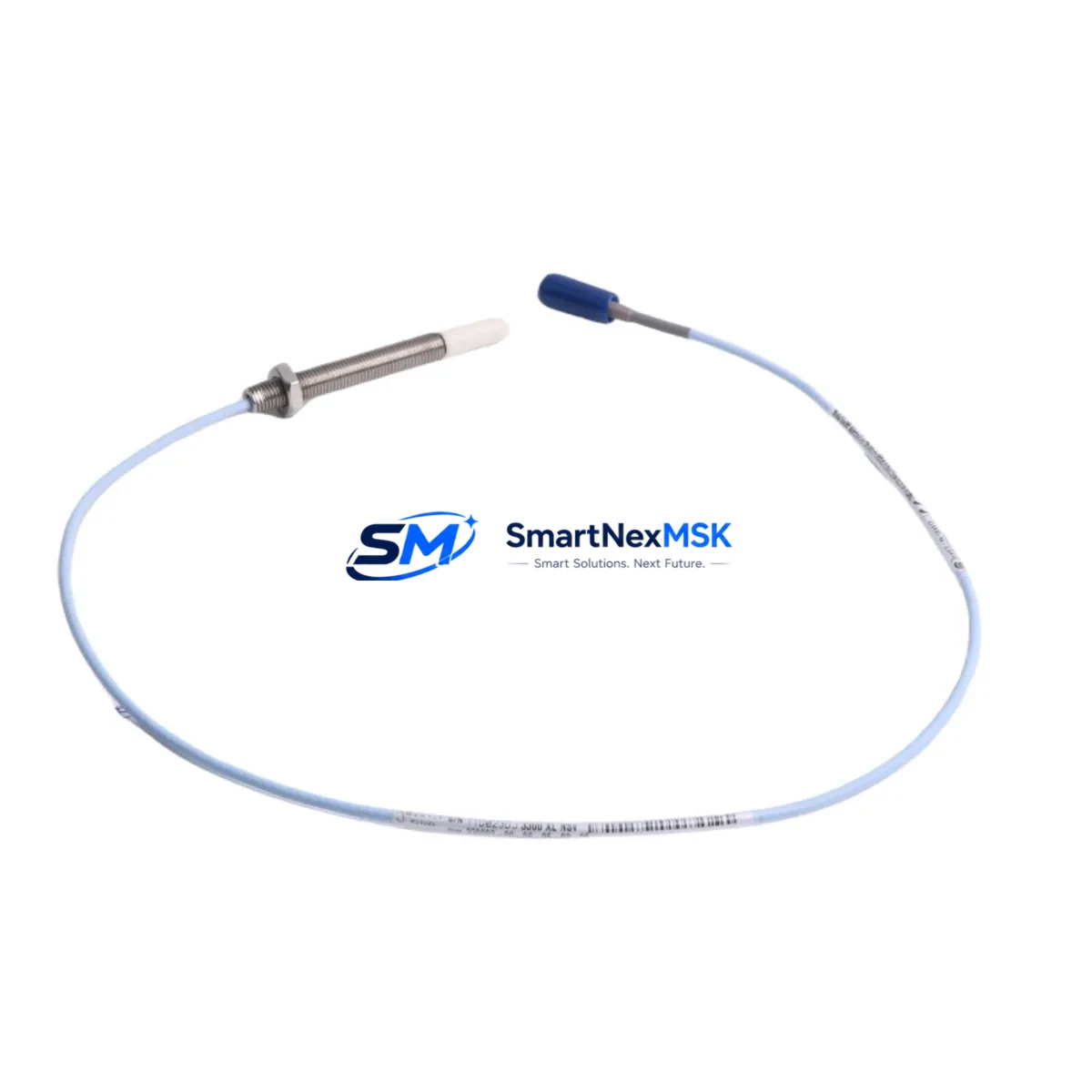

The Bently Nevada 330903-00-02-10-01-00 is a high-precision eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery. Designed as a retrofit-ready, drop-in replacement for legacy 3300 NSv Series installations, this probe enables plant engineers and reliability teams to restore full monitoring capability without redesigning existing cable runs, conduit layouts, or monitor rack configurations. Whether you are replacing a failed unit on a critical compressor train, upgrading an aging turbine protection system, or consolidating spare parts inventory across multiple plant sites, the 330903-00-02-10-01-00 delivers the dimensional accuracy, gap voltage linearity, and signal integrity required by the 3300 NSv platform.
This probe is fully compatible with the Bently Nevada 3300 NSv proximitor/seismic transducer system and integrates directly with the 3300/16 and 3300/20 monitor modules without firmware changes or signal conditioning modifications. The standard 5-metre armored extension cable and TNC connector interface match the original factory specification, ensuring that existing field wiring, junction boxes, and proximitor housings can be reused without modification. The probe tip diameter, thread size, and mounting bracket footprint are identical to the original, allowing direct mechanical substitution on standard probe holders and bracket assemblies.
Upgrade Compatibility Table
| Parameter | 330903-00-02-10-01-00 (This Unit) | Notes / Retrofit Guidance |
|---|---|---|
| Series Compatibility | Bently Nevada 3300 NSv | Direct replacement; no monitor reconfiguration required |
| Probe Tip Diameter | 8 mm | Matches standard 3300 NSv bracket and holder dimensions |
| Cable Length | 5 m (standard) | Reuse existing conduit and junction box routing |
| Connector Type | TNC (armored) | Compatible with 3300 NSv proximitor input connector |
| Gap Voltage Range | −10 VDC nominal at 1.0 mm gap | Verify gap setting during commissioning; target −10 V ±0.5 V |
| Frequency Response | DC to 10 kHz | Suitable for high-speed turbine and compressor shaft monitoring |
| Monitor Module Compatibility | 3300/16, 3300/20 | No firmware update required |
| Installation Type | Drop-in mechanical replacement | Reuse existing probe holder, bracket, and lock nut |
| Communication Protocol | Analog (4–20 mA / voltage output via proximitor) | Compatible with existing DCS and safety system inputs |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330903-00-02-10-01-00 into an operating plant begins with a structured retrofit assessment. Before removing the failed probe, document the existing gap voltage reading from the 3300/16 or 3300/20 monitor channel display. This baseline value confirms the target air gap for the replacement unit and provides a reference for post-installation verification. If the plant uses a System 1 condition monitoring platform or a legacy Data Manager workstation, export the current channel configuration and alarm setpoints before any hardware change to protect against accidental parameter loss during the swap.
For installations where the 3300 NSv proximitor housing is mounted inside a control cabinet alongside a 3500 rack or a 3300 rack assembly, confirm that the proximitor power supply rail — typically −24 VDC — is within specification before energizing the new probe. A degraded power supply module in the rack can cause erratic gap voltage readings that mimic a faulty probe, leading to unnecessary repeat replacements. If the plant is also upgrading from an older 7200 Series proximity system to the 3300 NSv platform, note that the 7200 Series uses a different proximitor pinout and a different scale factor; the 330903-00-02-10-01-00 is not a direct electrical substitute for 7200 Series probes without a corresponding proximitor change.
During the physical installation, use a calibrated gap-setting tool or a digital multimeter referenced to the proximitor output to set the probe tip-to-shaft gap to the value specified in the original machine train documentation — typically between 1.0 mm and 2.0 mm depending on the shaft material and surface finish. After mechanical installation and before returning the machine to service, perform a static calibration check by slowly rotating the shaft by hand and observing the monitor channel output for any anomalous spikes that could indicate probe misalignment, shaft runout, or electrical noise from adjacent VFD-driven equipment. If the plant uses a Modbus RTU or PROFIBUS DP gateway to relay vibration data to a DCS or SCADA system, verify that the channel address mapping in the gateway configuration still corresponds to the correct physical monitor slot after any rack or module rearrangement.
For plants managing a broader control cabinet upgrade — for example, replacing an aging Allen-Bradley SLC 500 or a Siemens S5 PLC with a modern ControlLogix or S7-300 controller — the 330903-00-02-10-01-00 can be retained as part of the machinery protection layer while the process control layer is modernized independently. The analog output from the 3300 NSv proximitor feeds directly into any standard analog input module, including the 1756-IF16 or SM 331 series, without signal conditioning changes, provided the input range is configured for the correct voltage span.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement requires pre-staging the replacement unit, verifying the gap voltage specification, and preparing all hand tools and calibration references before the machine is taken offline. For critical rotating equipment such as steam turbines, gas compressors, or boiler feed pumps, coordinate the probe swap with the operations team to align with a scheduled maintenance window or a planned process hold. Where possible, use the monitor’s bypass or inhibit function — available on the 3300/16 and 3300/20 modules — to suppress the vibration alarm channel during the physical swap, preventing a spurious trip signal from propagating to the safety instrumented system or the emergency shutdown system.
After installing the 330903-00-02-10-01-00 and setting the air gap, re-enable the monitor channel and confirm that the gap voltage, direct vibration reading, and 1X/2X vector values displayed on the System 1 or Rack Configuration Software screen match the pre-outage baseline within acceptable tolerance. If the plant uses a historian such as OSIsoft PI or Wonderware to log vibration trends, verify that the data tag associated with the replaced channel resumes logging without a gap or offset error. Document the as-found and as-left gap voltage values, the probe serial number, and the installation date in the plant’s maintenance management system to support future reliability analysis and spare parts planning. All units shipped by SMARTNEXMSK are functionally tested prior to dispatch and covered by a 12-month warranty against manufacturing defects, supporting your maintenance team’s confidence in the replacement part quality.
Retrofit Support FAQ
Q1: Is the 330903-00-02-10-01-00 a direct drop-in replacement for the original Bently Nevada unit?
Yes. The 330903-00-02-10-01-00 is dimensionally and electrically equivalent to the original factory part. The probe tip diameter, thread pitch, cable length, TNC connector, and scale factor are identical, allowing direct mechanical and electrical substitution in any 3300 NSv installation without monitor reconfiguration or wiring changes.
Q2: What gap voltage should I target during installation?
The standard target gap voltage for the 3300 NSv system with an 8 mm probe on a steel shaft is −10 VDC ±0.5 VDC at a physical gap of approximately 1.0 mm. Always cross-reference the original machine train documentation and the proximitor calibration curve for the specific shaft material, as non-ferrous or stainless steel shafts may require a different gap setting to achieve the correct output voltage.
Q3: Can this probe be used with a 3500 Series monitor rack?
The 330903-00-02-10-01-00 is specified for the 3300 NSv platform. While the physical probe connector and cable are mechanically compatible with 3500 Series proximitor inputs, the scale factor and calibration data must be verified against the 3500 Series monitor configuration before use. Consult the 3500 Series rack configuration software to confirm that the selected probe type and scale factor match the 330903-00-02-10-01-00 specification.
Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every 330903-00-02-10-01-00 unit supplied by SMARTNEXMSK undergoes a functional pre-shipment test covering gap voltage linearity, cable continuity, and connector integrity. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, improper gap setting, mechanical impact, or operation outside the specified environmental limits. Warranty claims are processed directly through our sales team.
