Bently Nevada 330903-00-03-10-01-00 Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

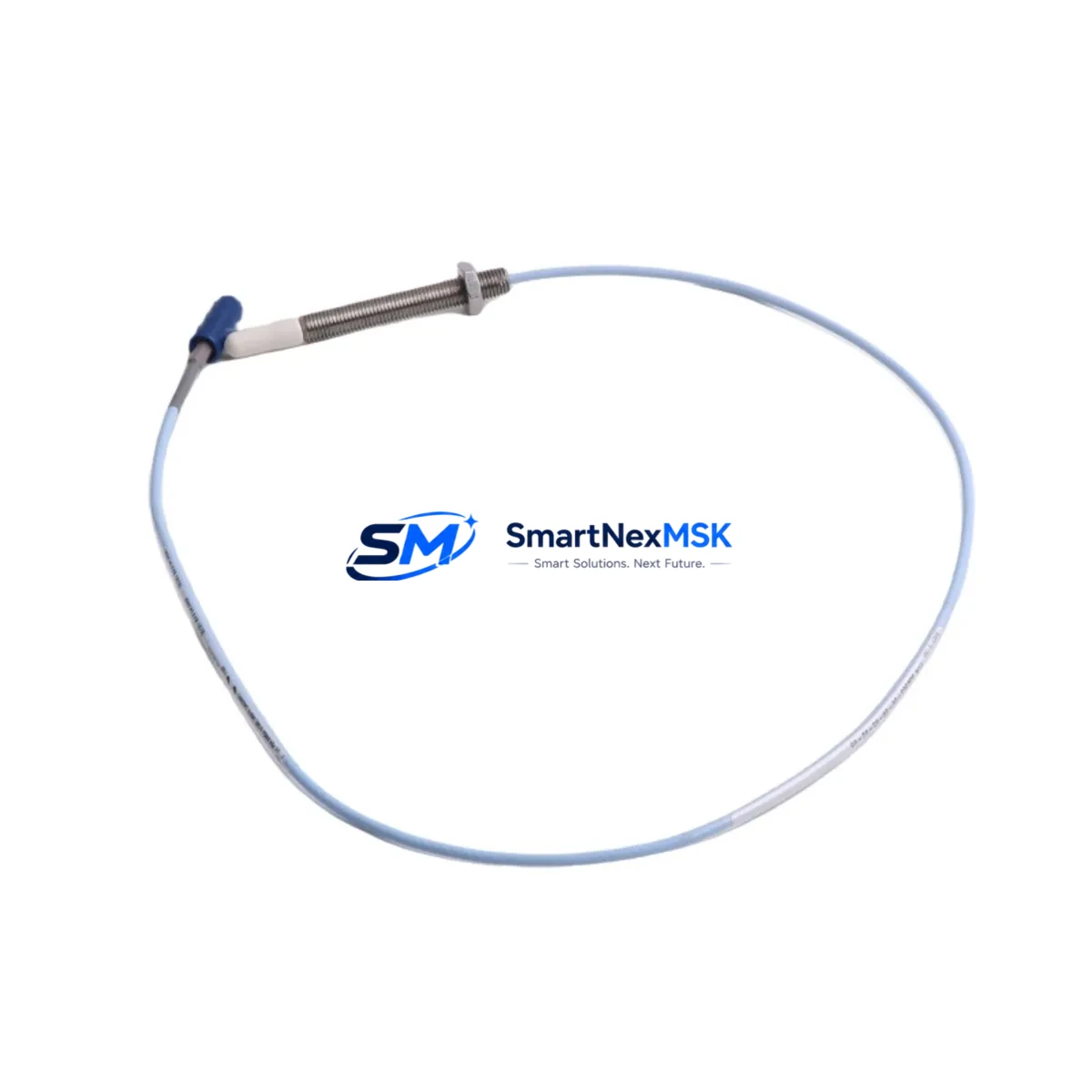

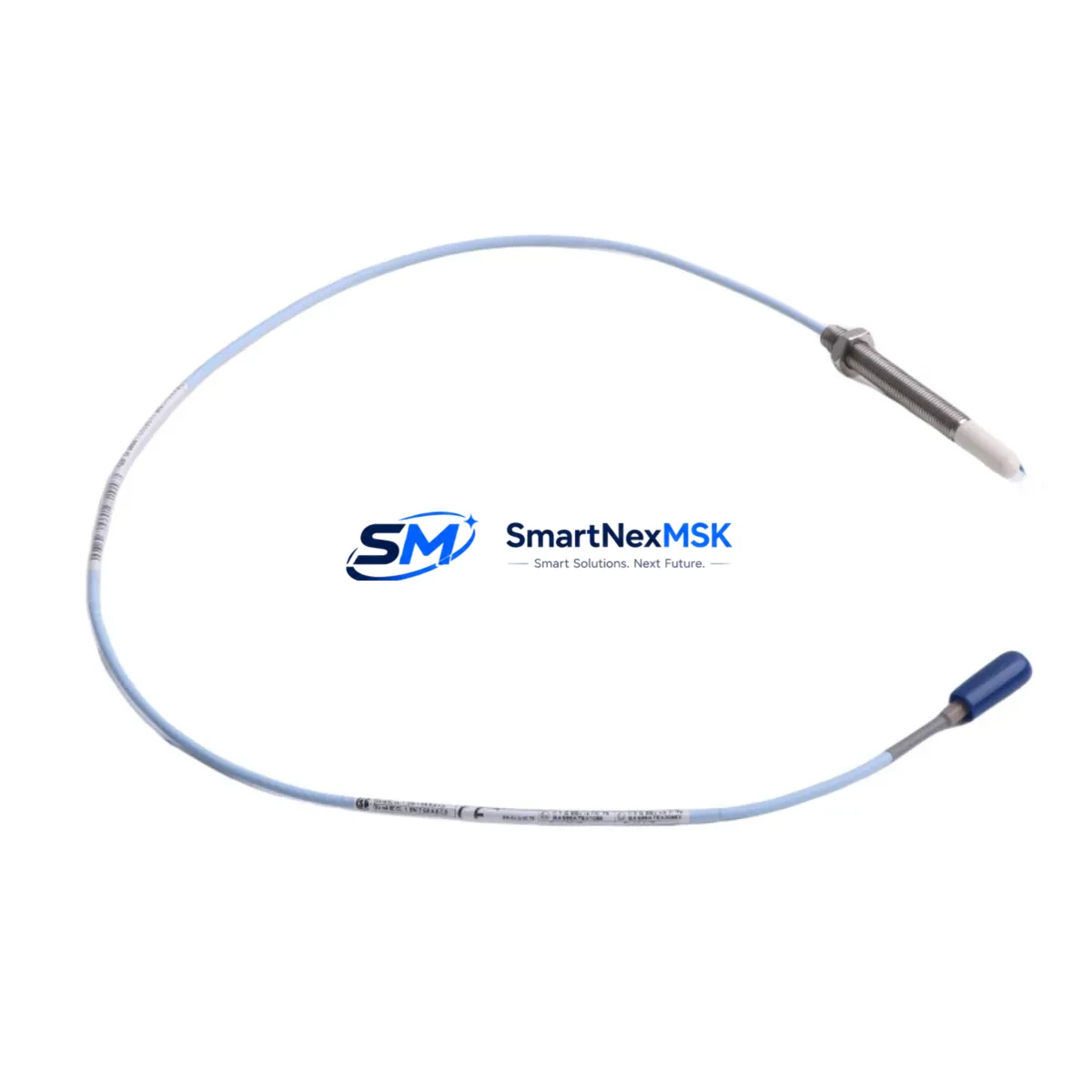

The Bently Nevada 330903-00-03-10-01-00 is an 8mm eddy-current proximity probe engineered for the 3300 NSv monitoring system platform. As legacy rotating machinery protection systems reach end-of-service milestones, this probe serves as a direct retrofit-ready replacement for aging or discontinued field sensors across turbines, compressors, pumps, and gearboxes. Whether you are executing a planned upgrade, recovering from an unplanned failure, or modernizing a control cabinet, the 330903-00-03-10-01-00 delivers verified compatibility with the 3300 NSv signal conditioning chain without requiring reprogramming of the host monitor or reconfiguration of the vibration protection logic.
This probe is designed to interface directly with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor, maintaining the standard 5-meter or 9-meter cable assembly configurations used in most field installations. The output sensitivity of 200 mV/mil (7.87 V/mm) is consistent with the 3300 NSv system’s input specification, ensuring that existing gap voltage settings, alert setpoints, and danger thresholds remain valid after replacement — a critical factor in minimizing commissioning time and avoiding setpoint drift during hot-swap retrofits.
Upgrade Compatibility Table
| Parameter | 330903-00-03-10-01-00 (This Unit) | Notes |
|---|---|---|
| Probe Diameter | 8mm | Standard NSv field size |
| Cable Length | 3m (probe + extension configurable) | Match existing cable assembly |
| Output Sensitivity | 200 mV/mil / 7.87 V/mm | No setpoint recalibration needed |
| Compatible Monitor | 3300 NSv, 3300 XL Series | Verify rack slot and I/O card type |
| Proximitor Compatibility | 3300 XL Proximitor Sensor | Check driver card firmware version |
| Installation Type | Drop-in replacement | Confirm thread size and bracket fit |
| Communication Protocol | Analog (4–20 mA / voltage output) | No protocol migration required |
| Replacement Recommendation | Direct swap for discontinued field units | Verify gap voltage after installation |
| Commissioning Focus | Gap voltage, sensitivity check, OK relay | Use Bently Nevada commissioning guide |
| Warranty | 12 Months | Covers manufacturing defects |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the 330903-00-03-10-01-00 begins with a thorough audit of the existing monitoring rack. In most 3300 NSv installations, the rack houses a combination of the 3300/16-Channel Monitor, the 3300/20 Rack Interface Module, and one or more 3300 XL Proximitor Sensors mounted in the field junction box. Before pulling the old probe, engineers should document the current gap voltage reading — typically between -10 VDC and -18 VDC for an 8mm probe at nominal gap — and photograph the terminal wiring at the field junction box to preserve the original connection map.
The extension cable assembly connecting the probe to the Proximitor must be inspected for continuity and insulation integrity. In older installations, the 3300 XL 5m or 9m Extension Cable may show signs of jacket degradation, particularly in high-temperature or chemically aggressive environments. Replacing the probe without addressing a compromised extension cable will result in erratic OK relay behavior and false danger trips. If the Proximitor itself is beyond its calibration interval, this is an appropriate time to replace it with a current-production 3300 XL Proximitor Sensor to restore full system accuracy.
For facilities running the System 1 Condition Monitoring Software or the Rack Configuration Software (RCS), the probe replacement does not require a database change provided the sensitivity and range settings remain identical. However, if the installation is being upgraded from an older 7200 Series probe to the 3300 NSv platform, a full I/O mapping review is necessary, including verification of the 3500/42M Proximitor I/O Module channel assignments and any associated Modbus or OPC-DA data tags feeding the DCS historian. In such cross-platform migrations, the 3500 Rack Interface Module and the 3500/22M Transient Data Interface may also require firmware updates to maintain data continuity with the plant’s control network.
Where the retrofit involves a control cabinet upgrade, engineers should confirm that the 24 VDC power supply feeding the Proximitor rail has sufficient current headroom for the new probe complement. The 3300 NSv Proximitor draws approximately 25 mA per channel; adding probes to an existing rail without verifying the power budget risks nuisance trips on the power supply’s overcurrent protection. The 3300/05-01-02-00 Power Supply Module or equivalent should be load-tested before the cutover window.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe retrofit requires a structured pre-outage preparation protocol. All replacement components — including the 330903-00-03-10-01-00 probe, the matched extension cable, and any spare Proximitor units — should be bench-tested and gap-verified before the maintenance window opens. Using a calibrated gap simulator or a reference target block, technicians can confirm the probe’s output curve and OK relay threshold before the unit enters the field, eliminating the most common source of commissioning delays.
During the outage, the original program logic in the 3300 NSv monitor should be exported and archived before any hardware is disturbed. This protects the alert and danger setpoints, the time-delay settings, and the latching configuration from accidental overwrite. If the plant’s safety instrumented system (SIS) is interlocked with the vibration monitor’s danger output, the SIS bypass procedure must be activated and documented in the permit-to-work system before the probe is disconnected.
After installation, the commissioning sequence should follow the standard Bently Nevada gap voltage verification procedure: power the Proximitor, measure the DC output at the monitor terminal, adjust the probe gap to achieve the target voltage (typically -12 VDC ±0.5 VDC for an 8mm probe at 1.0 mm gap), and confirm the OK relay energizes. The full channel functional test — including alert and danger trip simulation — should be completed before the bypass is lifted and the machine is returned to service. Proper execution of this sequence typically allows a single-channel probe replacement to be completed within a two-hour maintenance window.
Retrofit Support FAQ
Q1: Is the 330903-00-03-10-01-00 a direct drop-in replacement for my existing 3300 NSv field probe?
Yes. This unit maintains identical sensitivity (200 mV/mil), thread dimensions, and connector type as the original Bently Nevada 330903-00-03-10-01-00. No setpoint changes or monitor reconfiguration are required for a like-for-like swap, provided the extension cable and Proximitor are in serviceable condition.
Q2: What wiring checks should I perform before installing the replacement probe?
Verify continuity and insulation resistance on the existing extension cable. Confirm the field junction box terminal assignments match the original wiring diagram. Check the Proximitor supply voltage (18–30 VDC) and measure the OK relay output state before connecting the new probe. Document gap voltage before and after installation.
Q3: Has this unit been tested before shipment?
Yes. Each 330903-00-03-10-01-00 unit undergoes output sensitivity verification and OK relay functional testing prior to packaging. A test report is available upon request. Units are shipped in anti-static packaging with protective tip covers to prevent damage in transit.
Q4: What warranty coverage applies to this replacement probe?
A 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Warranty claims are supported by our technical team at sales@smartnexmsk.com. Replacement or repair is arranged within 5 business days of confirmed defect verification.
