Bently Nevada 330903-00-06-05-02-CN 3300 NSv Spare

Bently Nevada 330903-00-06-05-02-CN 3300 NSv Spare: Spare Replacement & Industrial Downtime Risk Control

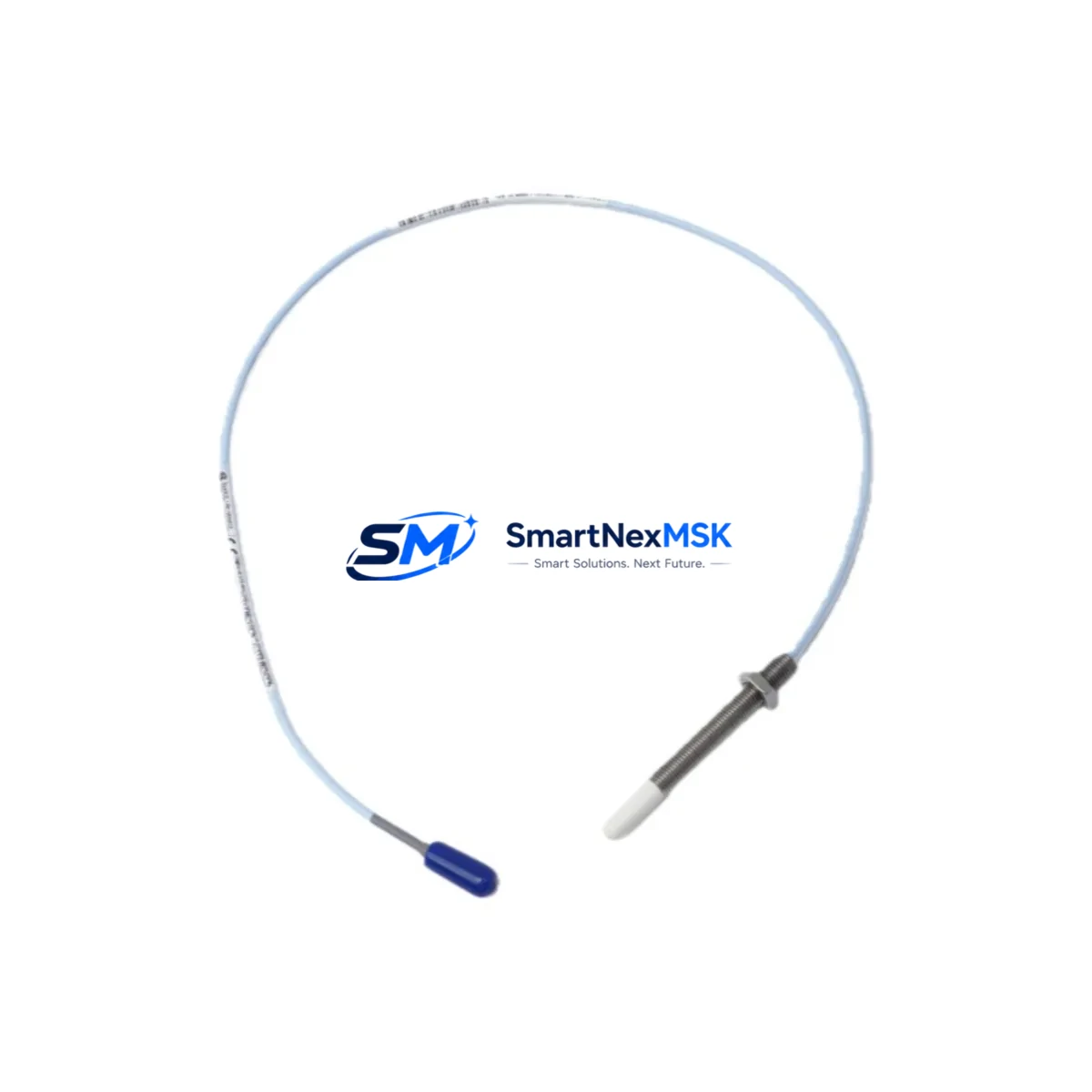

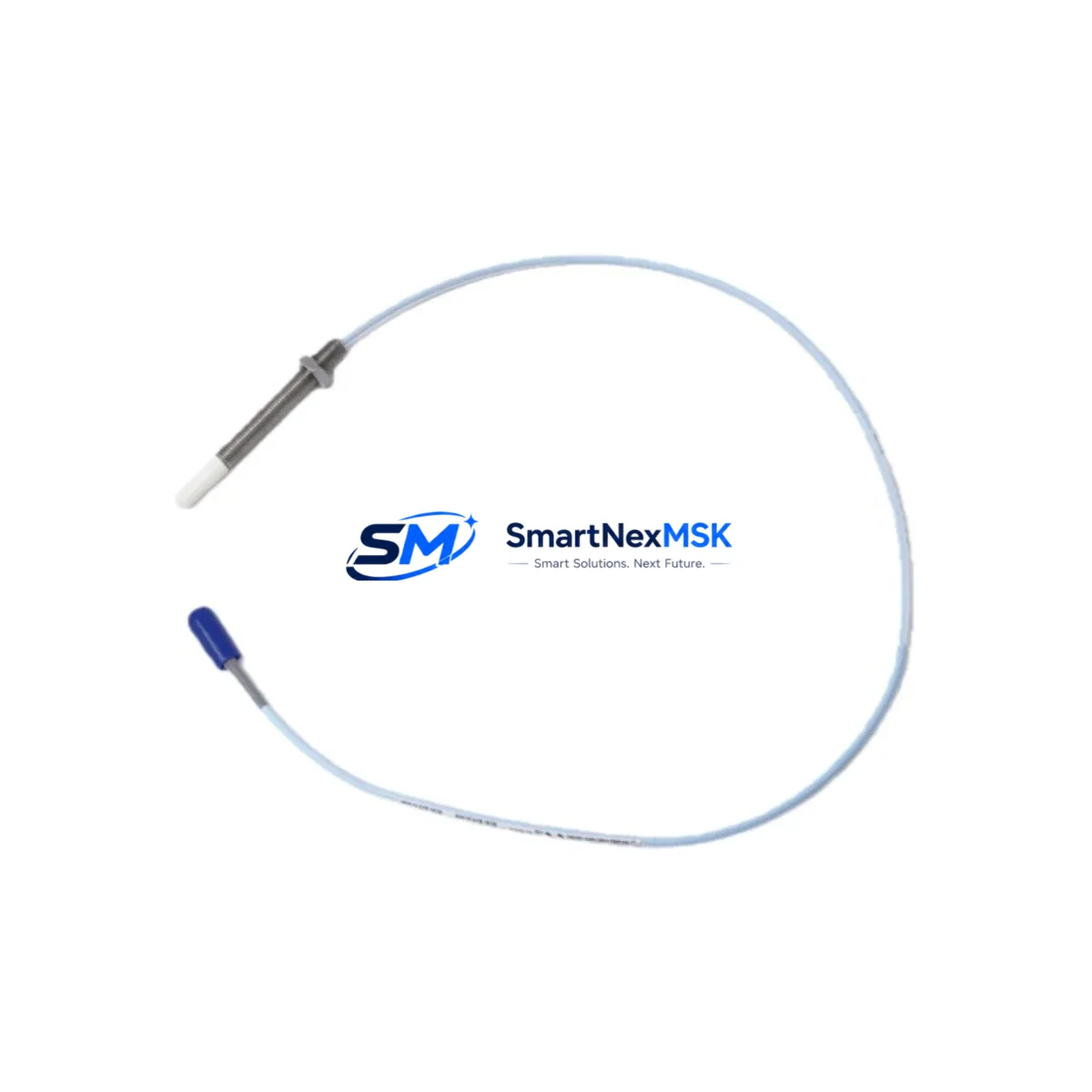

The Bently Nevada 330903-00-06-05-02-CN is a 6-foot (approximately 2-meter) coaxial extension cable engineered for the 3300 NSv Proximity Transducer System — one of the most widely deployed non-contacting vibration monitoring platforms in rotating machinery protection. In turbine halls, compressor trains, pump skids, and generator sets, this cable forms the critical signal path between the proximity probe and the Proximitor® sensor. A degraded or failed extension cable directly compromises vibration and position signal integrity, triggering nuisance trips or — more dangerously — masking real machinery faults. Stocking a verified replacement unit of the 330903-00-06-05-02-CN is a foundational element of any responsible predictive maintenance and spare parts strategy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the 330903-00-06-05-02-CN extension cable, the surrounding signal chain and cabinet components should be evaluated simultaneously to avoid repeat call-outs and to maximize the value of each planned outage window.

Begin at the probe end: the 3300 NSv Proximity Probe (such as the 330730-080-00-00 or 330780 series) should be inspected for tip wear, thread condition, and gap voltage. If the probe has accumulated significant runtime hours, co-replacement with the extension cable is cost-effective. Moving along the signal path, the 330180 Proximitor® Sensor — the signal conditioning module that converts the eddy-current probe output into a usable 4–20 mA or voltage signal — should be checked for output stability and housing integrity; a faulty Proximitor can mimic cable faults and vice versa.

Inside the control cabinet, verify the 3300/16-channel Rack Monitor or equivalent 3500 Series Rack I/O module that receives the proximity signal. Loose terminal connections on the rack’s field wiring terminals are a common source of intermittent alarms that are incorrectly attributed to cable failure. While the cabinet is open, inspect the 3300 Power Supply module — typically a 24 VDC unit — for output ripple and connector seating, as power instability directly affects Proximitor bias voltage and therefore gap measurement accuracy.

For sites running integrated machinery protection, the 3500/42M Proximitor/Seismic Monitor or 3500/40M Proximitor Monitor cards should be functionally tested after any cable swap. If the plant uses a System 1® Evolution or Orbit 60 condition monitoring platform, confirm that the channel configuration and full-scale range settings remain consistent with the replacement cable’s electrical characteristics.

Do not overlook the junction box or field terminal enclosure where the extension cable terminates in the field: inspect for moisture ingress, corrosion on the MIL-spec connectors, and mechanical strain on the cable jacket. A replacement armored conduit fitting or cable gland may be required if the existing hardware shows wear. Finally, if the machinery protection system feeds a DCS I/O card or a safety PLC analog input module, verify that the 4–20 mA loop integrity and the over-range/under-range alarm setpoints are correctly configured after the cable replacement is complete.

Site Replacement Workflow

Step 1 — Pre-outage preparation: Confirm the replacement 330903-00-06-05-02-CN is on-hand and has passed pre-shipment continuity and insulation resistance testing. Review the as-built wiring diagram for the affected channel. Note the existing probe gap voltage (typically –10 to –18 VDC for 3300 NSv systems) as a post-installation reference baseline.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. Inhibit the affected channel in the rack monitor to prevent spurious trips during the swap. Do not de-energize the Proximitor unless required — maintaining bias voltage allows gap verification immediately after reconnection.

Step 3 — Cable removal and inspection: Disconnect the extension cable at both the probe and Proximitor ends. Inspect the probe tip gap and clean the target area. Check the Proximitor connector pins for corrosion or deformation.

Step 4 — Installation of 330903-00-06-05-02-CN: Route the new cable following the original cable path. Avoid sharp bends below the minimum bend radius. Torque connectors to the manufacturer’s specification. Secure the cable jacket with appropriate clamps to prevent vibration-induced fatigue.

Step 5 — Commissioning and verification: Re-energize the Proximitor and measure the gap voltage at the rack terminal. Compare against the pre-outage baseline. Confirm the vibration and position readings on the rack display or DCS are within expected operating range. Remove the channel inhibit and restore normal monitoring.

Step 6 — Documentation: Record the replacement date, cable serial number, post-installation gap voltage, and technician sign-off in the plant maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of a replacement unit.

Spare Parts Support FAQ

Q1: Is the 330903-00-06-05-02-CN compatible with both the 3300 NSv and the older 3300 XL proximity systems?
The 330903-00-06-05-02-CN is specifically designed and rated for the 3300 NSv Proximity Transducer System. While some mechanical connector dimensions overlap with earlier 3300 XL hardware, electrical compatibility must be verified against the specific Proximitor sensor model in use. We recommend confirming the Proximitor part number before ordering if cross-series compatibility is required.

Q2: What pre-shipment testing is performed on each unit?
Every 330903-00-06-05-02-CN unit is tested for conductor continuity, shield continuity, insulation resistance between center conductor and shield, and mechanical connector integrity prior to dispatch. A test record is available upon request. This ensures the cable is installation-ready upon arrival and eliminates the risk of receiving a defective spare during a critical outage.

Q3: What is the recommended spare parts stocking strategy for this cable?
For plants with 4 or more 3300 NSv channels monitoring critical rotating machinery, we recommend maintaining a minimum of 2 units of the 330903-00-06-05-02-CN in the on-site spare parts store. For facilities with extended lead-time constraints or remote locations, a buffer of 3–5 units is advisable. Cables should be stored in their original packaging in a dry, temperature-controlled environment and inspected annually for connector condition.

Q4: What is the warranty coverage and what does it include?
All units supplied carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, connector failure under normal operating conditions, and cable jacket integrity. It does not cover damage resulting from improper installation, mechanical abuse, or operation outside the specified temperature range. Warranty claims are processed with a replacement unit dispatched upon receipt and inspection of the returned item.
