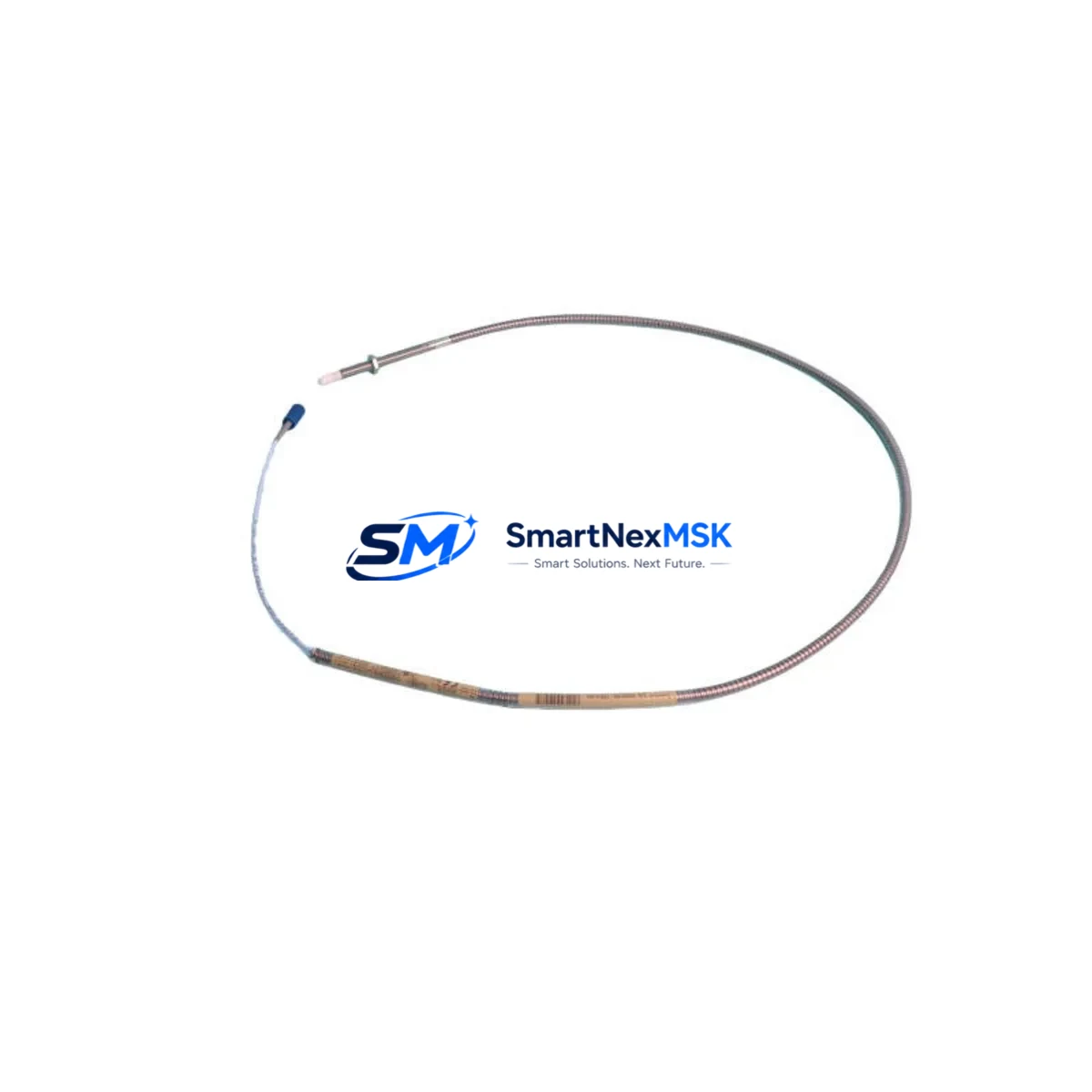

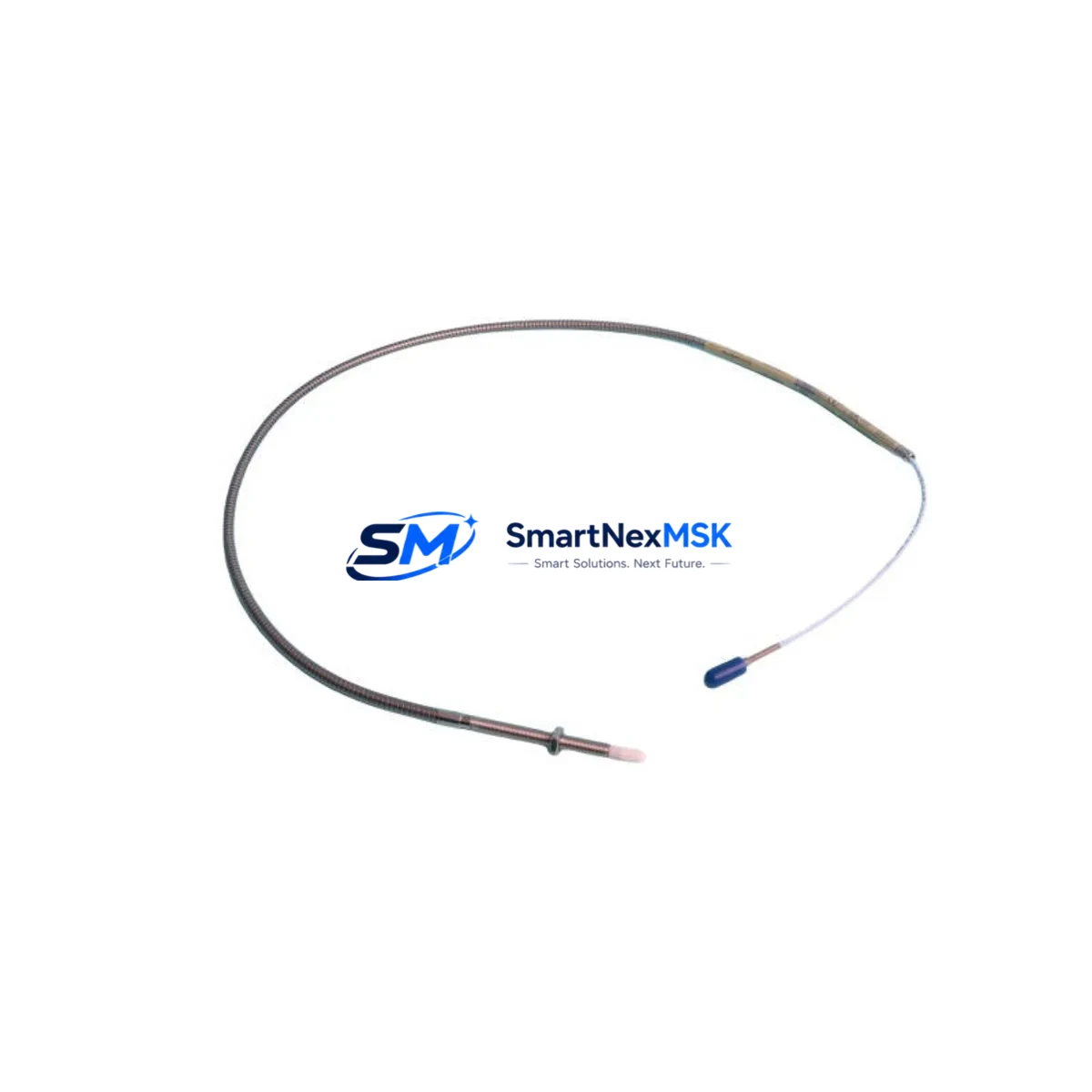

Bently Nevada 330903-00-07-05-01-00 Retrofit-Ready Proximity Transducer

Bently Nevada 330903-00-07-05-01-00 Retrofit-Ready Proximity Transducer for 3300 XL NSv Control Systems

The Bently Nevada 330903-00-07-05-01-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL NSv series vibration monitoring platform. As legacy rotating machinery protection systems age and original spare parts become increasingly difficult to source, this transducer serves as a direct retrofit solution for facilities managing turbines, compressors, pumps, and gearboxes that rely on continuous shaft vibration and position monitoring. Whether you are replacing a failed sensor in an emergency shutdown scenario or executing a planned upgrade of an aging 3300 Series installation, the 330903-00-07-05-01-00 delivers the signal conditioning performance and dimensional compatibility required for a smooth, low-risk transition.

This transducer is designed to work within the complete 3300 XL NSv measurement chain. In a typical retrofit deployment, it pairs with the 330130 extension cable and the 330180 proximitor/oscillator to form a calibrated sensing loop. Engineers replacing older 3300 Series transducers — such as the 330900 or 330901 families — will find that the 330903-00-07-05-01-00 maintains the same 5 mm nominal gap range and -24 VDC bias voltage output characteristics, allowing existing Bently Nevada 3500 Series rack monitors and 3300 Series monitors to accept the signal without reconfiguration of the monitor’s input card or scale factor settings.

Before completing a retrofit, site engineers should verify the following parameters against the existing installation: power supply capacity at the junction box (typically -24 VDC at the proximitor), terminal block wiring polarity and shield grounding at the I/O terminal strip, cable routing and conduit fill for the extension cable run, transducer mounting thread (M8 x 1.0 standard), and the gap voltage set point recorded in the original commissioning report. If the plant’s DCS or safety system — such as a Triconex TMR controller or a Honeywell Safety Manager — is configured to monitor the 3500/40M or 3500/42M vibration monitor output, no changes to the DCS I/O card or logic solver input range are required, provided the proximitor model remains within the same series.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330903-00-07-05-01-00 into an operating plant begins well before the maintenance window opens. The first step is a full audit of the existing measurement chain: confirm the proximitor model (typically a 330180 or 330185 XL NSv unit mounted in the field junction box), inspect the 330130 extension cable for insulation damage or connector corrosion, and review the 3500 rack’s channel configuration in the Rack Configuration Software to confirm the scale factor and gap alarm setpoints. If the plant is running an older 3300 Series monitor rather than the 3500 rack, verify that the monitor’s input impedance and power supply rail are within specification for the NSv transducer family.

For facilities upgrading from a legacy 3300 Series installation to a 3500/40M or 3500/42M monitor rack, the retrofit scope expands to include the I/O terminal strip rewiring, backplane slot assignment in the 3500 rack, and — if the plant uses a Bently Nevada 3500/92 communication gateway — the Modbus register map update to reflect the new channel addresses. Plants that have integrated their vibration monitoring into a DCS historian (such as an Emerson DeltaV or Honeywell Experion PKS system) will need to update the OPC tag mapping to match the new rack channel configuration. This is typically a low-risk change but should be validated in a factory acceptance test (FAT) environment before live cutover.

During the physical installation, pay close attention to the transducer tip-to-target gap. Use a calibrated gap tool or a digital multimeter referenced to the proximitor’s output voltage: the target gap voltage for the 330903-00-07-05-01-00 is -10.0 VDC ± 0.5 V at the nominal 1.0 mm gap. After gap setting, torque the locknut to the manufacturer’s specification and verify that the extension cable shield is grounded at one end only — typically at the proximitor junction box — to prevent ground loop interference on the vibration signal. If the plant’s control cabinet houses a Bently Nevada 3500/20 power supply module, confirm that the supply rail can support the additional current draw of the new transducer without exceeding the module’s rated output capacity.

Plants operating mixed-vintage installations — where some measurement points use 330900-series transducers and others use the newer 330903 NSv family — should document the scale factor differences in the 3500 RCS configuration file to prevent alarm threshold mismatches. A common oversight during phased retrofits is failing to update the HMI faceplate engineering units on the operator workstation; ensure that the SCADA or DCS display reflects the correct vibration units (µm pk-pk or mil pk-pk) and that the alarm annunciation logic in the safety PLC or TMR system is tested after each transducer swap.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer retrofit requires a structured pre-outage preparation protocol. Before the maintenance window, pre-configure the replacement 330903-00-07-05-01-00 on a bench test rig using a spare 330180 proximitor and a 330130 extension cable cut to the same length as the field cable. Record the bench gap voltage and scale factor verification results in the commissioning log so that field installation time is limited to physical mounting, gap setting, and a final electrical check — typically achievable within 30 to 45 minutes per measurement point.

To protect the original program logic during the cutover, export a backup of the 3500 rack configuration file from the Rack Configuration Software before disconnecting any field wiring. If the plant’s safety system includes a Triconex or Rockwell GuardLogix safety PLC that receives a discrete trip signal from the 3500 monitor, place the relevant safety function in bypass mode through the approved management-of-change procedure before breaking the measurement loop. This prevents a spurious trip from propagating to the emergency shutdown system during the transducer swap interval.

For multi-point retrofits covering an entire machine train — for example, replacing all radial and axial transducers on a steam turbine-generator set — a phased approach is recommended: complete and verify one measurement point before moving to the next, and restore the 3500 rack to normal monitoring mode between phases. This strategy ensures that at least partial vibration protection remains active throughout the outage and that any wiring or configuration errors are caught before the full measurement chain is committed. Upon completion, perform a full functional test of all alarm and trip setpoints using the 3500 rack’s built-in self-test function and document the results for the plant’s maintenance management system.

Retrofit Support FAQ

Q1: Is the 330903-00-07-05-01-00 a direct drop-in replacement for the 330900-50-05 or 330901 series transducers?
A: In most installations, yes. The 330903-00-07-05-01-00 shares the same M8 x 1.0 mounting thread, the same nominal gap range, and the same -24 VDC bias voltage output as the 330900 and 330901 families. However, the NSv series uses a slightly different scale factor (7.87 V/mm vs. 7.87 V/mm nominal — verify against your specific 330900 variant). Always confirm the scale factor setting in the 3500 RCS or 3300 monitor configuration before declaring the swap complete.

Q2: What wiring changes are required when replacing an older 3300 Series transducer with the 330903-00-07-05-01-00?
A: If you are replacing within the same 3300 XL NSv measurement chain (same proximitor model and extension cable series), no wiring changes are required at the monitor end. If you are migrating from an older 3300 non-NSv installation, verify the junction box terminal block pinout against the 330903 installation drawing and confirm that the cable shield grounding scheme matches the NSv specification. A wiring diagram comparison review is recommended before the maintenance window.

Q3: How is the 330903-00-07-05-01-00 tested before shipment?
A: Each unit undergoes functional verification including gap voltage linearity check, scale factor confirmation, and insulation resistance test prior to packaging. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional performance under normal operating conditions.

Q4: Can this transducer be used with a Bently Nevada 3500/92 Modbus gateway for DCS integration?
A: Yes. The 330903-00-07-05-01-00 is fully compatible with the 3500 rack ecosystem, including the 3500/92 communication gateway. The gateway maps the transducer’s vibration and gap data to Modbus registers accessible by any DCS or SCADA system with a Modbus RTU or TCP/IP driver. After installation, update the Modbus register map in the gateway configuration to reflect the correct channel assignment and verify the data in your DCS historian before closing the maintenance work order.
