Bently Nevada 330903-00-09-05-02-CN Retrofit Extension Cable: Compatible Modernization for 3300 XL Proximity Probe Systems

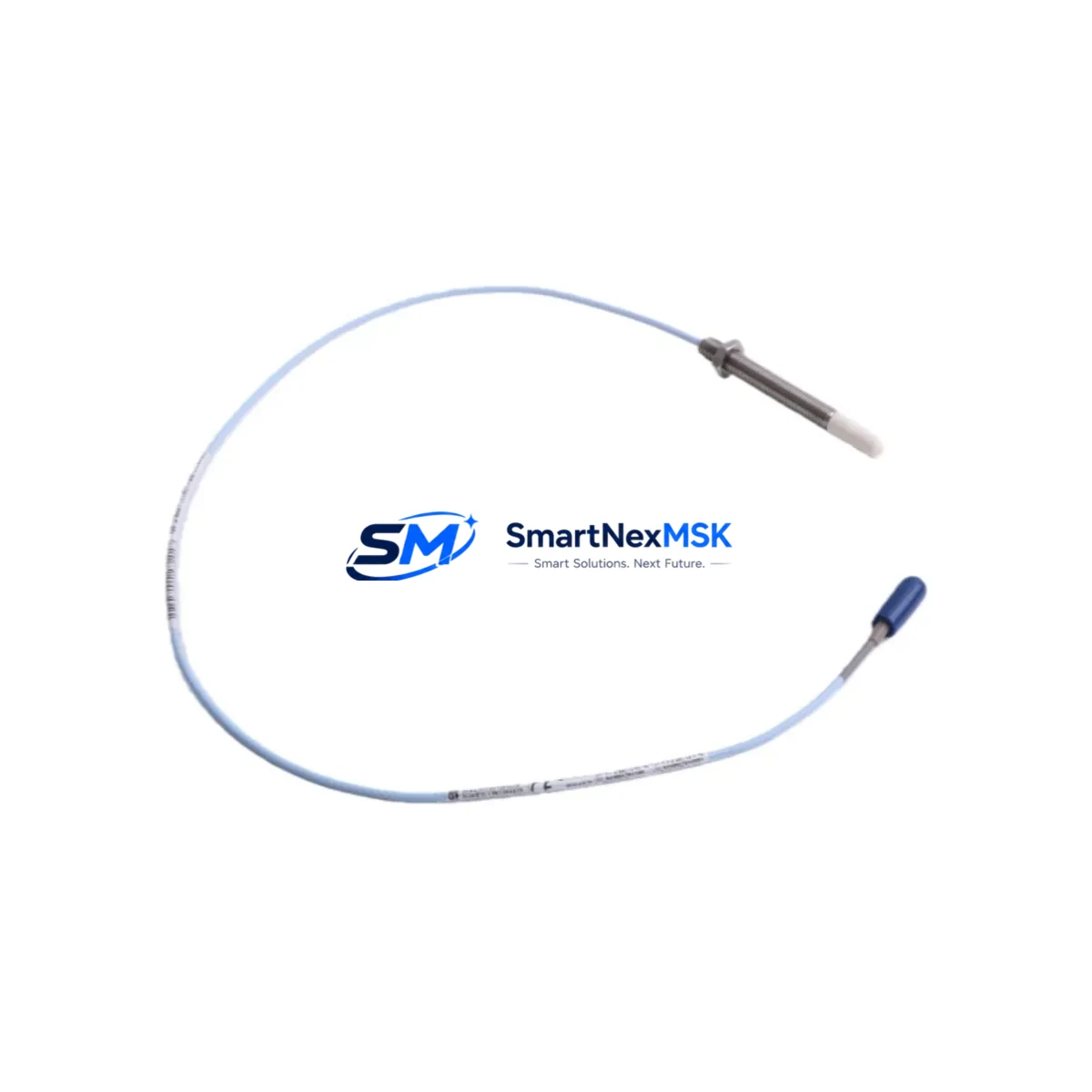

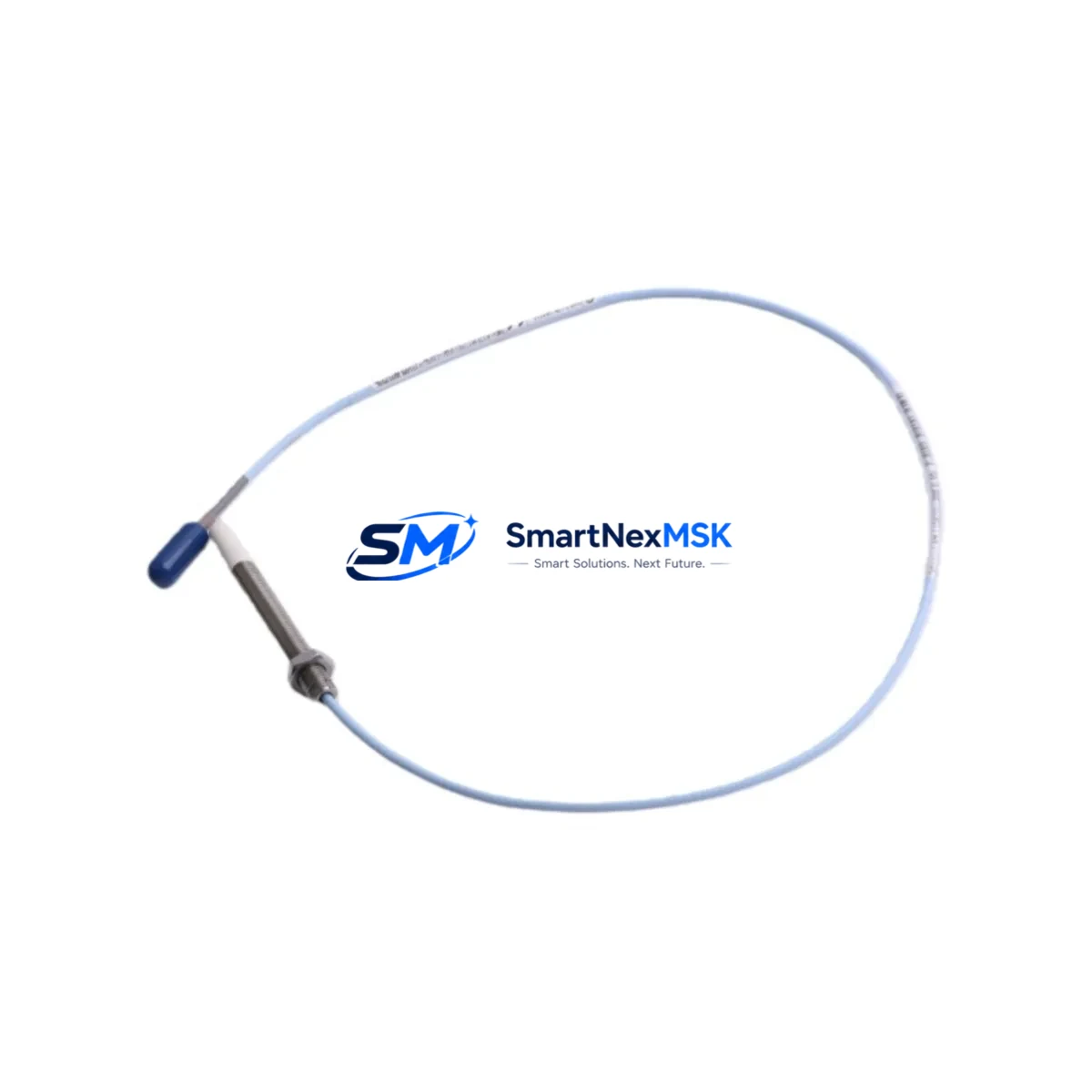

The Bently Nevada 330903-00-09-05-02-CN is a NSv (Non-Standard Version) extension cable engineered for the Bently Nevada 3300 XL Proximity Probe System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. As legacy installations age and original cables reach end-of-service life, this retrofit-ready replacement enables facilities to restore full system functionality without replacing the entire monitoring chain, minimizing capital expenditure and unplanned downtime.

This extension cable serves as the critical signal link between the proximity probe tip and the Proximitor® sensor, transmitting raw eddy-current signals with the precision required for shaft displacement, eccentricity, and thrust position measurements. The 330903-00-09-05-02-CN designation specifies a 5-meter cable length in the CN (Chinese market) configuration, compatible with standard 3300 XL Proximitor® modules including the 3300/16 and 3300/20 series. When planning a cable replacement, engineers must verify that the replacement cable’s integral resistance and capacitance values match the original system calibration — a mismatch will shift the gap voltage baseline and trigger false alerts on the 3500/42M or 3500/45 position monitor cards.

In retrofit and upgrade projects, the 330903-00-09-05-02-CN is frequently deployed alongside the Bently Nevada 330730-080-00-00 proximity probe and the 330180-91-00 Proximitor® sensor to form a complete replacement measurement chain. Facilities migrating from older 7200 Series monitors to the current 3500 Series rack will find this cable fully compatible with the updated signal conditioning requirements, provided the probe-cable-Proximitor® combination is recalibrated as a matched set using the System 1 configuration software.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the 330903-00-09-05-02-CN extension cable in an operating plant requires careful pre-outage planning. Before the maintenance window opens, the engineering team should pull the existing System 1 configuration file to document the current gap voltage setpoints, OK limit thresholds, and alert/danger levels programmed into the 3500 Series rack. This baseline is essential for post-installation verification.

In the field, the cable routes from the probe tip — typically a Bently Nevada 330730-080-00-00 or equivalent 8 mm probe — through conduit to the junction box, where it connects to the extension cable before terminating at the Proximitor® sensor mounted on or near the machinery skid. Technicians should inspect the conduit for moisture ingress, mechanical damage, and bend radius violations before pulling the new cable. The 330903-00-09-05-02-CN uses a coaxial construction that is sensitive to sharp bends; maintaining the manufacturer-specified minimum bend radius prevents signal degradation that would otherwise appear as elevated noise on the 3500/42M vibration channel.

For facilities running a 3500 rack with a 3500/20 Rack Interface Module (RIM) and Modbus or Ethernet/IP communication to a DCS or SCADA system, the cable replacement itself does not affect the communication link — but the brief interruption of the OK relay during installation will generate a system fault that must be acknowledged in the control room. Coordinate with the DCS operator to suppress the alarm in the Honeywell Experion or Emerson DeltaV historian before beginning work to avoid spurious trip records.

Where the existing installation uses a 3300/16 Proximitor® that is itself approaching end-of-life, this cable replacement is an ideal opportunity to upgrade the Proximitor® to the current 330180-91-00 model simultaneously. Doing so requires updating the System 1 transducer database entry and re-entering the calibration coefficients, but eliminates a second outage within the next maintenance cycle. Similarly, if the 3500/45 position monitor card shows any history of OK relay chatter, consider replacing it alongside the cable to resolve the root cause rather than the symptom.

For multi-channel machinery protection panels housing both radial vibration and axial thrust channels, the retrofit scope may also include the 3500/40M proximitor I/O module and associated field wiring. Confirm terminal block assignments against the original loop drawings before disconnecting any wiring — the CN-market cable uses the same pinout as the standard international version, but field-modified installations may have non-standard terminations that must be documented before removal.

Downtime Control During System Migration

Minimizing production impact during a proximity probe cable replacement depends on three factors: pre-staging, parallel verification, and a clear return-to-service checklist. Before the outage, pre-terminate the new 330903-00-09-05-02-CN cable at both ends in the workshop, verify continuity and insulation resistance, and confirm the gap voltage reads within the –10 VDC to –18 VDC OK window when connected to a bench-mounted 330180-91-00 Proximitor®. This pre-test eliminates the most common cause of extended outages — a defective replacement cable discovered only after the machine is shut down.

During the outage, follow a strict sequence: isolate the channel at the 3500 rack front panel, disconnect the old cable at both the probe junction and the Proximitor® input, install the new cable, reconnect, and restore the channel. Do not bypass the OK relay for extended periods — the 3500/42M card logs bypass duration, and extended bypass events may trigger a compliance review under API 670 machinery protection standards.

After reconnection, confirm the gap voltage is within specification before releasing the machine for restart. Document the as-found and as-left gap voltages in the maintenance management system. If the facility uses System 1 Evolution for online trending, verify that the channel resumes data acquisition and that the historical trend shows no discontinuity that could be misinterpreted as a process event. The entire replacement procedure, when pre-staged correctly, can be completed within a two-hour maintenance window on a single channel.

Retrofit Support FAQ

Q1: Is the 330903-00-09-05-02-CN a direct drop-in replacement for the standard 330903-00-09-05-02?
A: The CN suffix denotes the Chinese market configuration. The cable is electrically identical to the standard international version and is a direct drop-in replacement in terms of signal performance. However, always verify the matched-set calibration with the specific Proximitor® sensor in use, as gap voltage characteristics are a function of the probe-cable-Proximitor® combination, not the cable alone.

Q2: What commissioning checks are required after installation?
A: After installation, measure the static gap voltage at the Proximitor® output with the shaft stationary at the design air gap. The reading should fall within –10 VDC to –18 VDC for a standard 3300 XL system. Confirm the OK relay is energized, check the vibration channel for noise floor below the alert setpoint, and verify the channel is logging correctly in System 1 or the connected DCS historian before returning the machine to service.

Q3: Can this cable be used with older 7200 Series Proximitor® sensors?
A: The 330903-00-09-05-02-CN is designed for the 3300 XL system. Use with 7200 Series sensors requires verification of the integral resistance and capacitance values against the 7200 Series calibration curves. In most cases, a full recalibration of the probe-cable-Proximitor® set is required. Consult the Bently Nevada System 1 transducer database for the applicable calibration coefficients before proceeding.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from improper installation, bend radius violations, moisture ingress due to inadequate conduit sealing, or use outside the specified operating temperature range. All units are function-tested prior to shipment. Warranty claims are processed through sales@smartnexmsk.com with proof of purchase and a description of the failure mode.
