Bently Nevada 330903-00-09-10-01-CN Retrofit 3300 NSv Probe

Bently Nevada 330903-00-09-10-01-CN Retrofit-Ready 3300 NSv Proximity Probe: Compatible Modernization for Legacy Vibration Monitoring Systems

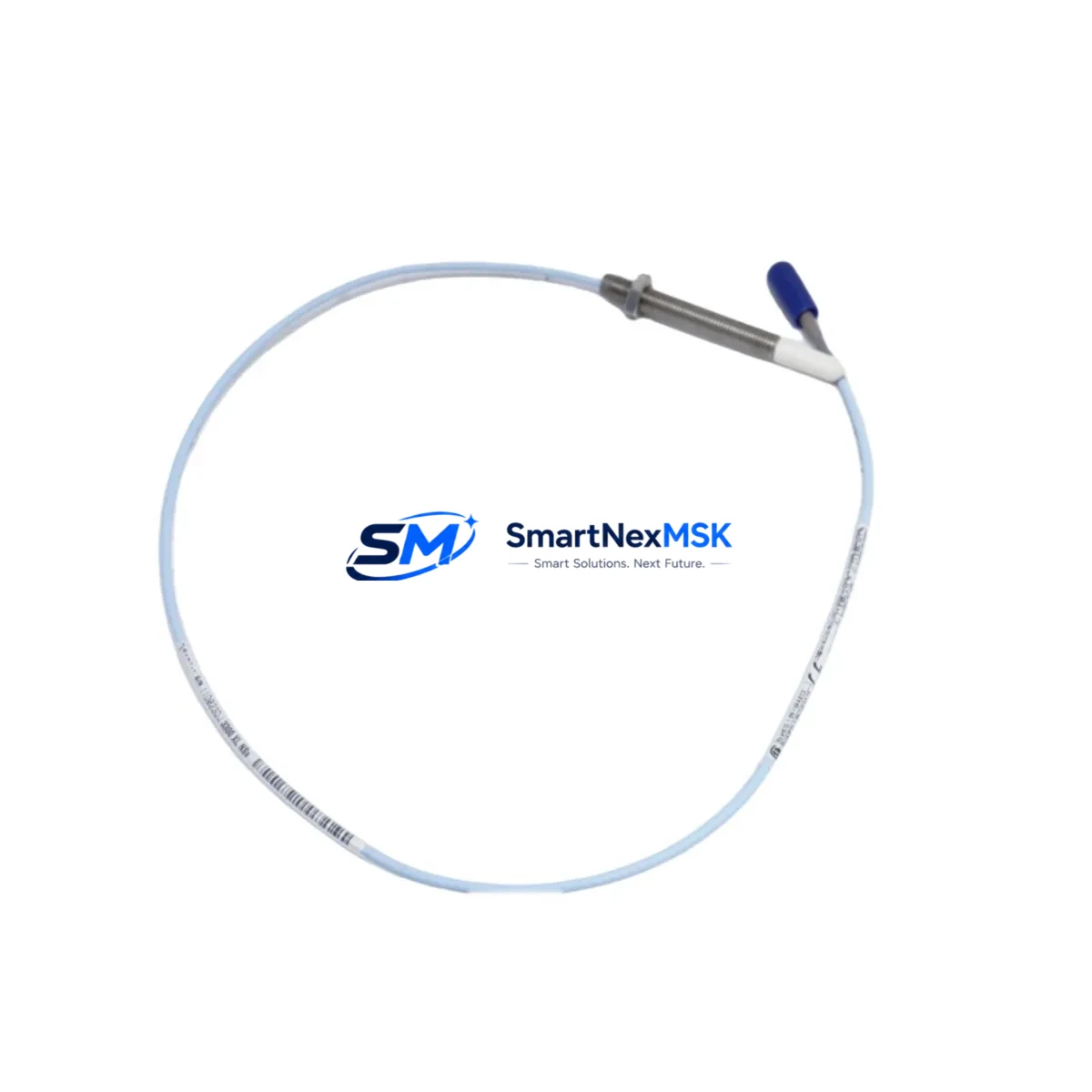

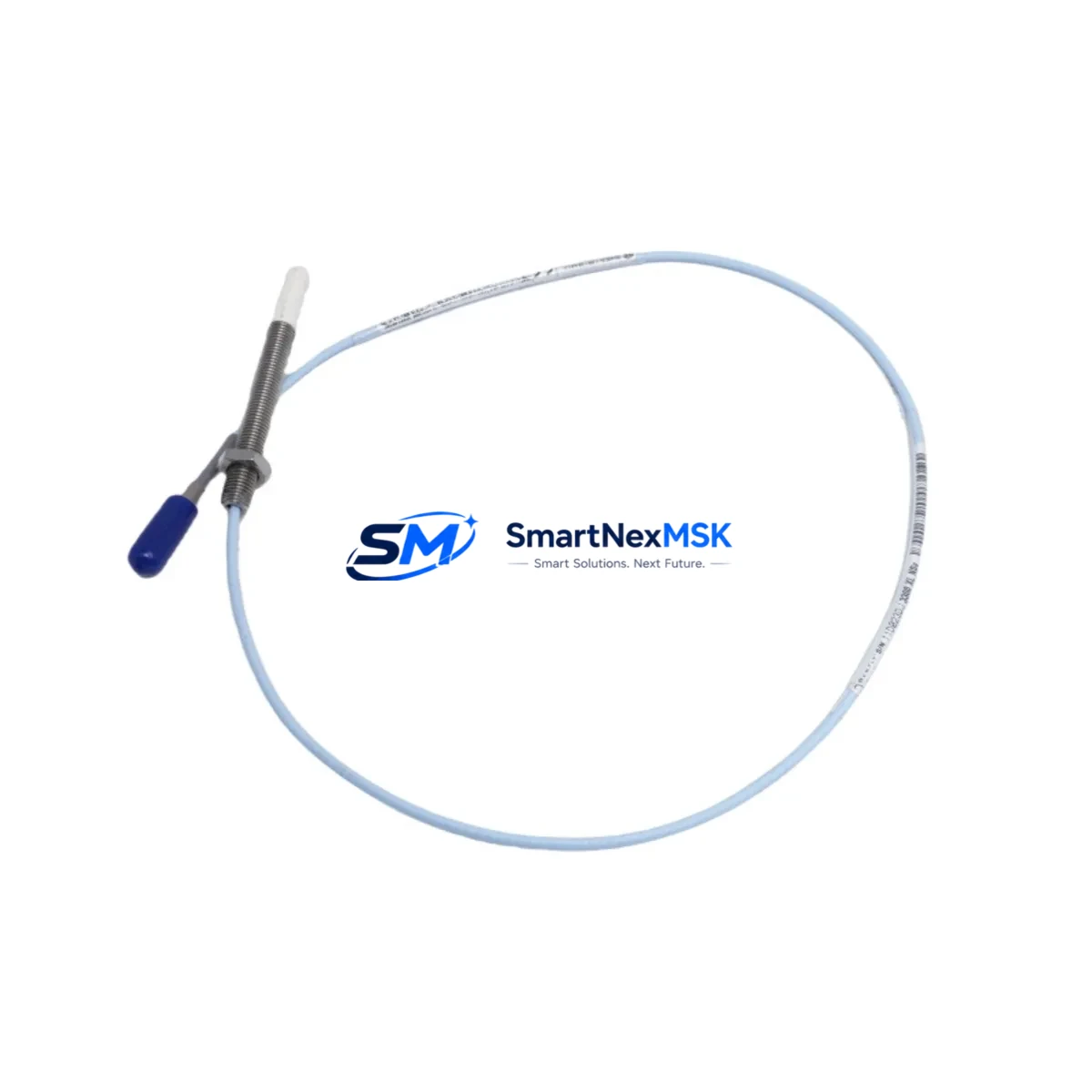

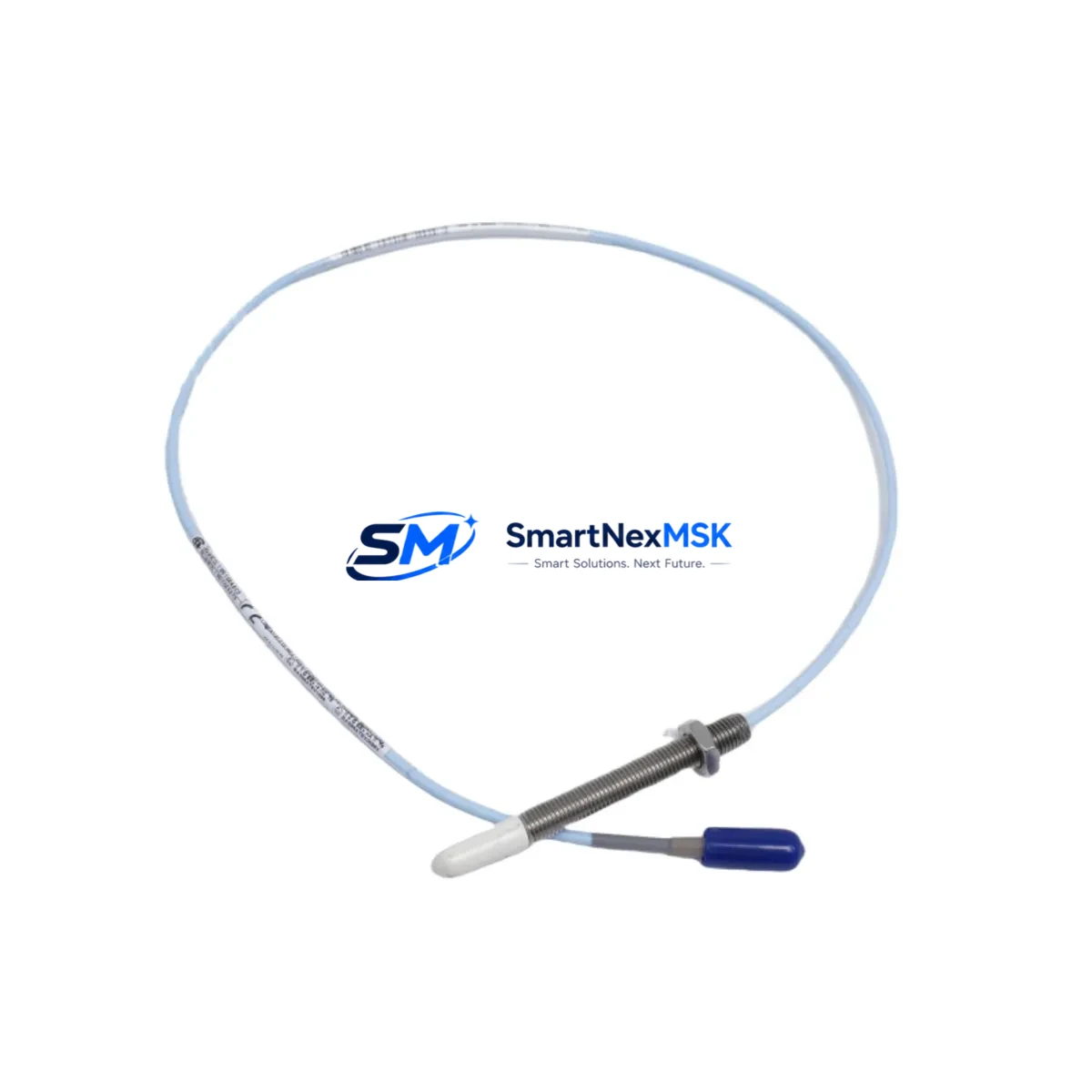

The Bently Nevada 330903-00-09-10-01-CN is an 8mm eddy current proximity probe engineered for the 3300 NSv (Non-contact Shaft Vibration) monitoring platform. As legacy Bently Nevada 3300 series installations approach end-of-support cycles, plant engineers and reliability teams increasingly require verified drop-in replacements that preserve existing wiring, signal conditioning chains, and DCS integration without triggering full system re-qualification. This probe is stocked and tested to meet that exact requirement.

Whether you are replacing a failed sensor on a critical rotating machine, upgrading a deteriorated cable assembly, or consolidating spare parts inventory ahead of a planned outage, the 330903-00-09-10-01-CN delivers the dimensional accuracy, gap voltage linearity, and sensitivity factor (V/mm) that the 3300 NSv signal conditioner expects. It is compatible with the standard Bently Nevada 3300 XL 8mm probe system architecture, including the 330130 extension cable and the 330180 proximitor sensor, which together form the complete measurement chain for shaft radial vibration and axial position monitoring.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330903-00-09-10-01-CN within an operating plant requires a structured approach that accounts for the full measurement chain and the downstream monitoring architecture. The probe does not operate in isolation — it works in conjunction with the 330130 extension cable, which must be inspected for jacket integrity and connector condition before reuse. If the extension cable shows signs of abrasion, moisture ingress, or connector corrosion, it should be replaced simultaneously to avoid introducing a new failure point immediately after probe replacement.

The 330180 Proximitor Sensor mounted in the 3300 rack provides the –24 VDC excitation and converts the probe’s impedance change into a calibrated voltage signal. Before removing the failed probe, technicians should record the current OK relay status and the DC gap voltage displayed on the 3300 rack front panel or via the System 1 software interface. This baseline reading confirms whether the fault is probe-side or conditioner-side, and it establishes the reference for post-installation verification.

For plants running the Bently Nevada 3500 series rack alongside legacy 3300 installations, the probe and cable assembly are mechanically identical, but the proximitor module differs — the 3500/42M Proximitor I/O Module uses a different internal scaling. Confirm the rack type before ordering to ensure the correct sensitivity factor is applied. In mixed-rack environments, labeling and documentation discipline is critical to prevent cross-installation errors during night-shift maintenance windows.

Where the 3300 NSv rack interfaces with a DCS via a 3300/20 Rack Interface Module or a 3300/25 Dual Voting Trip Module, the analog output signals feeding the DCS historian and the trip logic must be verified after probe replacement. A temporary bypass of the trip output — coordinated with the control room — is standard practice during the gap-setting procedure to prevent spurious machine trips. Once the gap voltage is confirmed within the –10 VDC ± 0.5 VDC acceptance window, the bypass is removed and the OK relay status is confirmed before returning the machine to service.

Plants that have migrated their condition monitoring data to a modern PI historian or OSIsoft infrastructure should verify that the tag mapping for the replaced channel remains intact after the maintenance event. The 3300 rack’s analog output is passive and does not require re-configuration after a probe swap, but any channel inhibit flags set in System 1 or the DCS faceplate must be cleared by the authorized operator before the measurement is considered live.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging all components before the maintenance window opens. The replacement 330903-00-09-10-01-CN, the appropriate extension cable, a calibrated gap-setting tool, and the proximitor datasheet should all be at the work site before the machine is taken offline. A pre-written work order that includes the nominal gap distance, the acceptance voltage range, and the OK relay confirmation step eliminates decision delays during the replacement.

For critical machines where continuous monitoring is contractually required, a temporary portable vibration monitor can be connected to the existing extension cable during the probe swap interval. This approach maintains data continuity in the historian and satisfies API 670 monitoring requirements without requiring a full machine shutdown extension.

The original program logic in the DCS or safety system is not affected by a probe replacement — the 3300 rack’s analog output is hardware-defined and does not require software re-download. However, if the replacement is part of a broader rack upgrade that introduces a new 3300/16D Power Supply or a replacement 3300 rack backplane, the rack configuration file should be backed up before any hardware changes and restored after the upgrade to preserve channel scaling, alarm setpoints, and trip multiplier settings.

Post-replacement, a 30-minute observation period at normal operating speed is recommended to confirm stable gap voltage, absence of OK relay dropouts, and consistent vibration trend data in the historian. This observation window, combined with a signed commissioning record, constitutes the minimum acceptance test for a proximity probe replacement on a critical rotating machine.

Retrofit Support FAQ

Q1: Is the 330903-00-09-10-01-CN a direct drop-in replacement for the original Bently Nevada part?
Yes. The 330903-00-09-10-01-CN is dimensionally and electrically equivalent to the original OEM part. It uses the same M10 thread, the same cable length and connector type, and produces the same sensitivity factor when paired with the 330180 Proximitor Sensor. No re-calibration of the proximitor is required; only the standard gap-setting procedure at installation is needed.

Q2: What wiring checks should be performed before installing the replacement probe?
Inspect the extension cable connector at both the probe end and the proximitor end for pin corrosion, bent contacts, and moisture ingress. Measure the cable continuity and shield integrity with a multimeter before connecting the new probe. Confirm that the –24 VDC supply at the proximitor terminal is within specification. Any deviation in supply voltage will shift the gap voltage reading and may cause a false OK relay dropout after installation.

Q3: Has this probe been tested before shipment?
Yes. Every unit undergoes functional verification prior to shipment, including sensitivity factor confirmation and OK relay output check when paired with a reference proximitor. A test record is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q4: Can this probe be used in a 3500 series rack environment?
The probe body and extension cable are mechanically compatible with 3500 series installations, but the 3500/42M Proximitor I/O Module applies a different internal scaling compared to the 330180 used in the 3300 NSv system. Verify the proximitor module part number in your rack before installation. If you are operating a 3500 series rack, contact our technical team to confirm the correct probe and cable assembly for your specific channel configuration.
