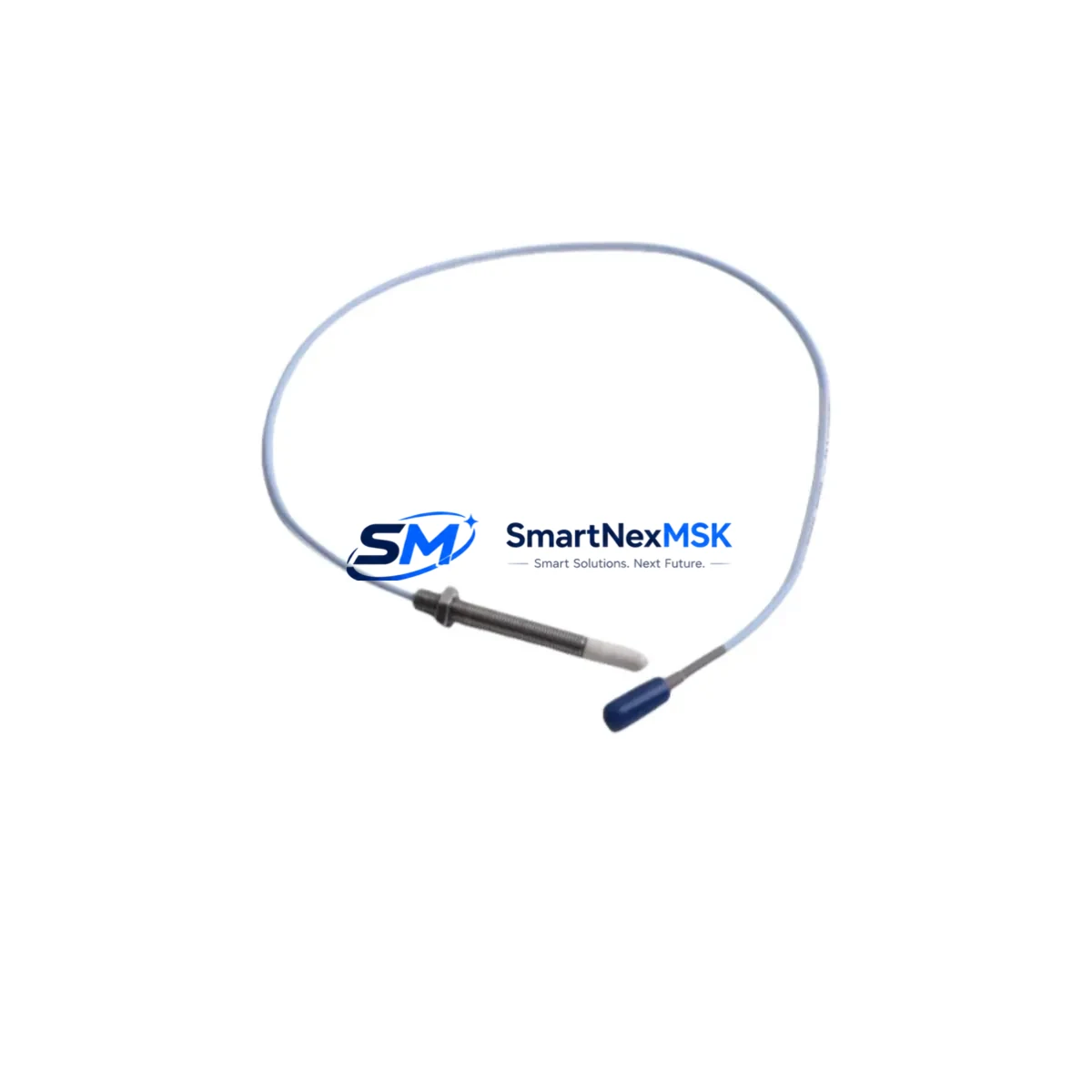

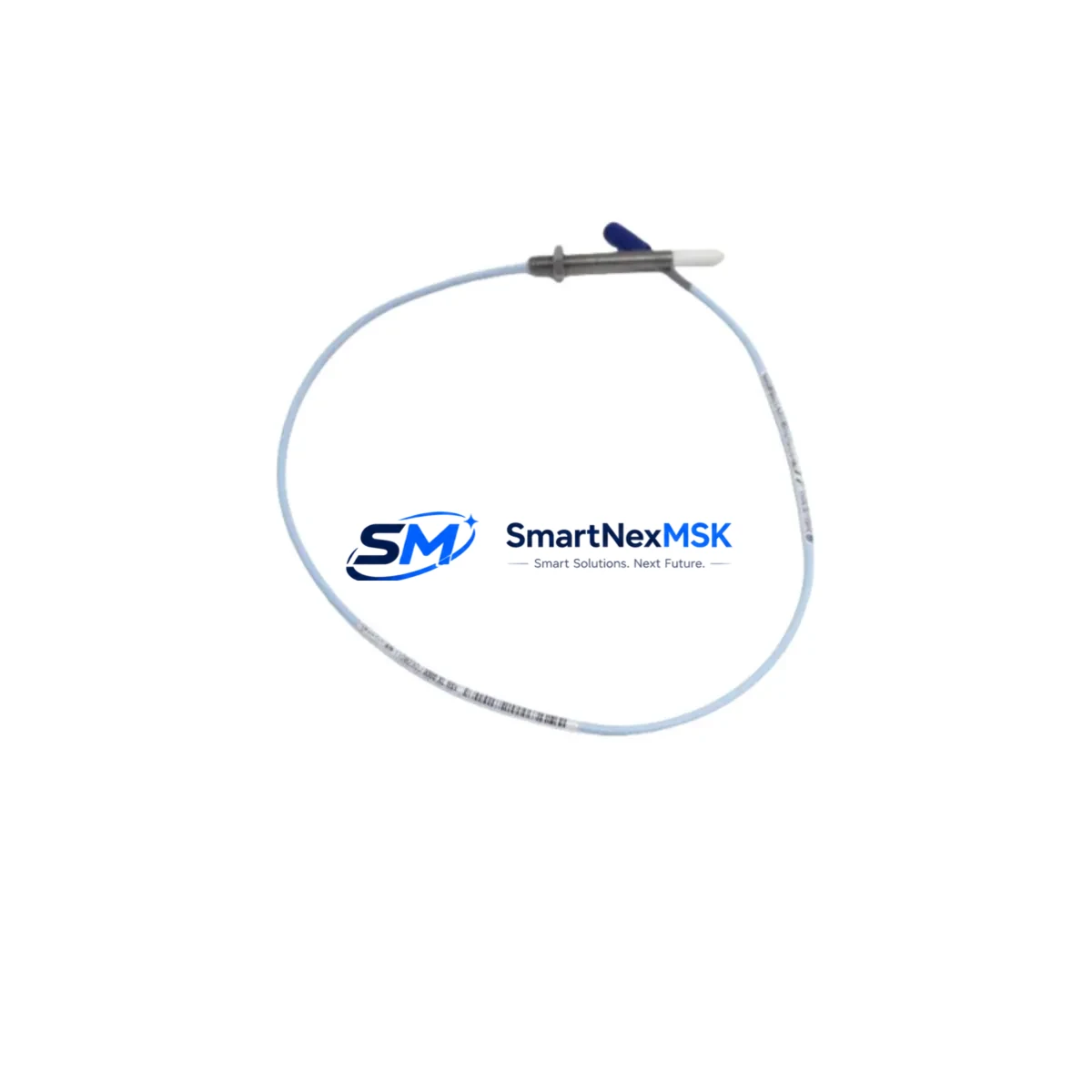

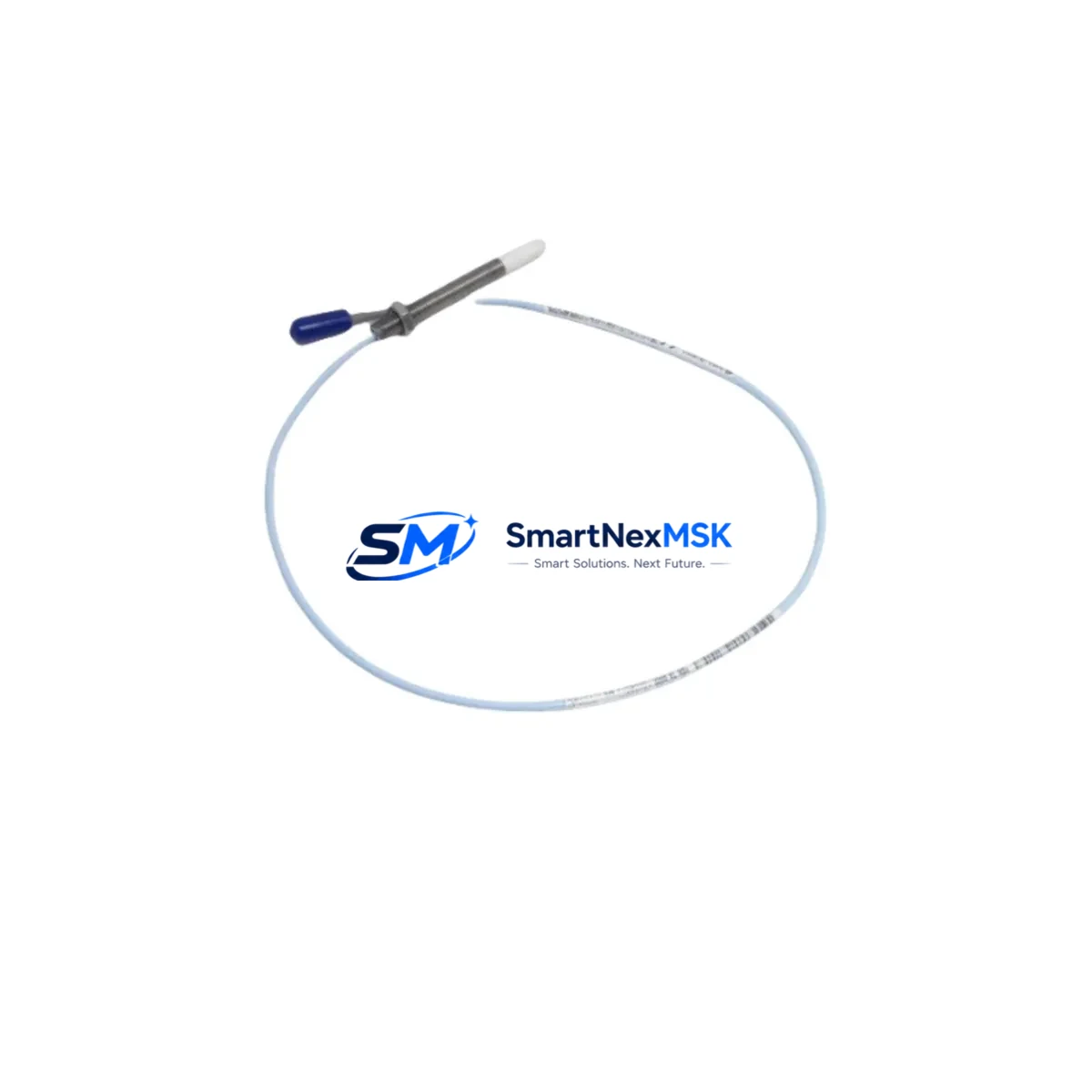

Bently Nevada 330903-00-09-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330903-00-09-10-02-05 is an 8mm eddy-current proximity probe engineered for seamless integration into existing 3300 XL vibration monitoring systems. As legacy machinery protection platforms age and OEM support windows close, this probe serves as a verified drop-in replacement that preserves signal chain integrity without requiring firmware changes, rack reconfiguration, or HMI screen redesign. Whether you are managing a planned outage, responding to an unplanned failure, or executing a phased modernization of your rotating machinery protection infrastructure, the 330903-00-09-10-02-05 delivers the dimensional accuracy, cable length, and sensitivity range required to restore full system functionality with minimal engineering effort.
Industrial facilities running Bently Nevada 3300 XL monitor racks — including the 3300/16 Dual Voting, 3300/20 Radial Vibration, and 3300/25 Thrust Position monitors — rely on precise probe-to-driver matching to maintain API 670 compliance. The 330903-00-09-10-02-05 is factory-calibrated to pair with the 330130 series extension cables and the 330180 Proximitor® sensor driver, ensuring the output voltage-gap relationship remains within the ±0.5% linearity specification required for machinery protection trip logic. When replacing a failed probe in a live rack, technicians should verify the existing 330130-080-00-00 or 330130-045-00-00 extension cable condition before reinstallation, as cable degradation is a common secondary failure mode in high-temperature or high-vibration environments.
For facilities transitioning from older 3300/05 or 7200 series probe assemblies, the 330903-00-09-10-02-05 provides a compatible upgrade path that avoids the cost and schedule risk of full rack replacement. The 3300 XL rack accepts standard 3-wire Proximitor output signals, and no I/O mapping changes are required in the host DCS or safety instrumented system when substituting this probe into an existing channel. If the plant historian or DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA — is configured to monitor gap voltage and direct vibration amplitude, those tag assignments remain valid after probe swap.
Retrofit planning should include a pre-installation bench test of the replacement probe using a 330910 calibration fixture or equivalent gap simulator to confirm sensitivity (200 mV/mil ±10%) before the unit is installed in the field. During installation, technicians should confirm the probe tip-to-target gap is set to the midpoint of the linear range — typically 50 mils (1.27 mm) for 8mm probes — using a non-ferrous feeler gauge or a calibrated gap meter. The armored probe cable should be routed away from high-voltage conduit and secured with stainless steel cable ties to prevent signal noise from electromagnetic interference sources such as variable frequency drives or motor control centers.
In multi-channel rack configurations, replacing a single probe while adjacent channels remain in service requires careful coordination with the control room to avoid nuisance trips. The 3300/16 Dual Voting monitor can be placed in bypass mode on the affected channel using the front-panel keyswitch or via the System 1 condition monitoring software, allowing the replacement to proceed without triggering a machinery protection shutdown. After reinstallation, the channel should be verified against the adjacent reference channel before bypass is removed and the monitor is returned to normal protection mode.
Upgrade Compatibility Table
| Parameter | 330903-00-09-10-02-05 (This Unit) | Notes / Retrofit Guidance |
|---|---|---|
| Probe Diameter | 8 mm | Matches standard 3300 XL 8mm probe bore; no housing modification required |
| Cable Length | 0.9 m (probe) + extension | Pair with 330130 series extension cable to reach Proximitor driver |
| Compatible Driver | 330180 Proximitor® Sensor | Verify driver firmware version if upgrading from pre-2005 rack assemblies |
| Compatible Monitors | 3300/16, 3300/20, 3300/25, 3300/46, 3300/50 | Confirm channel configuration in System 1 software before swap |
| Output Sensitivity | 200 mV/mil ±10% | Calibrate gap to 50 mil nominal; verify with 330910 calibration fixture |
| Target Material | AISI 4140 steel or equivalent | Non-standard alloys require sensitivity correction factor |
| Installation Gap | 50 mil (1.27 mm) nominal | Set using non-ferrous feeler gauge; confirm with gap voltage reading |
| API 670 Compliance | Yes | Maintains compliance when installed per OEM specification |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
A successful probe retrofit begins well before the maintenance window opens. The engineering team should pull the existing loop drawing to confirm the Proximitor driver model — typically a 330180-51-05 or 330180-91-00 — and verify that the driver’s power supply input (typically −24 VDC from a dedicated instrument power rail) is within specification. A failing instrument power supply, such as an aging Phoenix Contact QUINT or Puls PIANO unit, can cause intermittent gap voltage drift that mimics probe failure; replacing the probe without addressing the power supply will result in repeat failures.
The rack backplane should be inspected for corrosion on the I/O connector pins, particularly in coastal or high-humidity environments. The 3300 XL rack uses a proprietary backplane connector that mates with the Proximitor driver module; bent or oxidized pins will cause high-resistance connections that degrade signal quality. If the rack is being upgraded as part of a broader modernization, consider replacing the entire rack assembly with a current-production 3500 series rack, which accepts 3500/42M Proximitor/Seismic Monitor modules and provides Modbus TCP and EtherNet/IP communication options for integration with modern DCS platforms.
For facilities that have already migrated to the Bently Nevada 3500 platform, the 330903-00-09-10-02-05 probe remains compatible with 3500 series Proximitor drivers when used with the appropriate extension cable. The 3500/42M monitor accepts the same 200 mV/mil probe output and can be configured via the 3500 Rack Configuration Software to match the existing alarm and trip setpoints from the legacy 3300 XL system, minimizing the need to revise the machinery protection philosophy document.
Communication protocol migration is another key consideration. Legacy 3300 XL racks typically communicate via RS-232 or RS-485 serial links to a System 1 condition monitoring workstation. If the plant is upgrading to a System 1 Evolution platform or integrating vibration data into a Emerson AMS Device Manager or OSIsoft PI historian, the serial communication link may need to be replaced with an Ethernet-based gateway module. The Bently Nevada 3500/92 Communication Gateway provides OPC DA/UA output that can feed directly into PI or a DCS data highway without requiring changes to the probe or Proximitor driver configuration.
Downtime Control During System Migration
Minimizing unplanned downtime during a probe replacement or rack upgrade requires a structured pre-outage checklist and a clear bypass and restoration procedure. Before the maintenance window, the control room should confirm that the affected machinery protection channel is in bypass mode and that the bypass status is logged in the permit-to-work system. The original program logic in the safety instrumented system — whether a Triconex Tricon, Rockwell GuardLogix, or Siemens S7-300F — should be exported and archived before any field work begins, ensuring that a known-good configuration is available for restoration if the upgrade introduces unexpected behavior.
During the probe swap, the technician should document the as-found gap voltage reading from the System 1 display or the Proximitor driver test point before disconnecting the probe. This reading serves as a baseline for verifying that the replacement probe is installed at the correct gap after the work is complete. If the as-found gap voltage is outside the expected range (typically −10 VDC ±1 VDC at 50 mil gap), the root cause should be investigated before the new probe is installed — a worn shaft, a damaged probe tip, or a contaminated target surface can all cause gap errors that will persist after probe replacement.
After installation, the channel should be verified in the following sequence: confirm gap voltage at the Proximitor driver test point, confirm direct vibration amplitude at the monitor front panel, confirm alarm and trip setpoints in the System 1 software, and confirm that the DCS or historian is receiving a valid signal on the associated tag. Only after all four checks are complete should the bypass be removed and the channel returned to normal protection mode. This structured restoration sequence ensures that the machinery protection system is fully functional before the equipment is returned to service, protecting both the asset and the personnel working in the area.
Retrofit Support FAQ
Q: Is the 330903-00-09-10-02-05 a direct drop-in replacement for my existing 3300 XL probe?
A: Yes. The 330903-00-09-10-02-05 is dimensionally and electrically compatible with the standard 3300 XL 8mm probe mounting configuration. No modifications to the probe housing, extension cable, or Proximitor driver are required for a like-for-like replacement. Confirm the existing extension cable model and length before ordering to ensure the complete probe-cable-driver assembly meets your installation requirements.
Q: What pre-shipment testing is performed on this unit?
A: Each 330903-00-09-10-02-05 unit undergoes a functional test that verifies output sensitivity (200 mV/mil ±10%), cable continuity, and connector integrity before shipment. A test report is included with each unit. The 12-month warranty covers manufacturing defects identified during installation or normal operation and is supported by our technical team at sales@smartnexmsk.com.
Q: Can this probe be used with a Bently Nevada 3500 series rack?
A: Yes. The 330903-00-09-10-02-05 is compatible with 3500 series Proximitor drivers, including the 3500/42M Proximitor/Seismic Monitor, when paired with the appropriate 330130 series extension cable. Configure the 3500/42M channel parameters in the 3500 Rack Configuration Software to match the probe sensitivity and gap range specifications.
Q: What is the lead time and warranty coverage?
A: Units are available from stock for immediate shipment. Standard lead time is 3–7 business days for international orders. All units carry a 12-month warranty from the date of shipment, covering manufacturing defects. Expedited shipping options are available for emergency breakdown situations — contact our team directly for priority order processing.
