Bently Nevada 330903-00-14-10-01-00 Spare for 3300 XL NSv

Bently Nevada 330903-00-14-10-01-00 Spare for 3300 XL NSv Automation

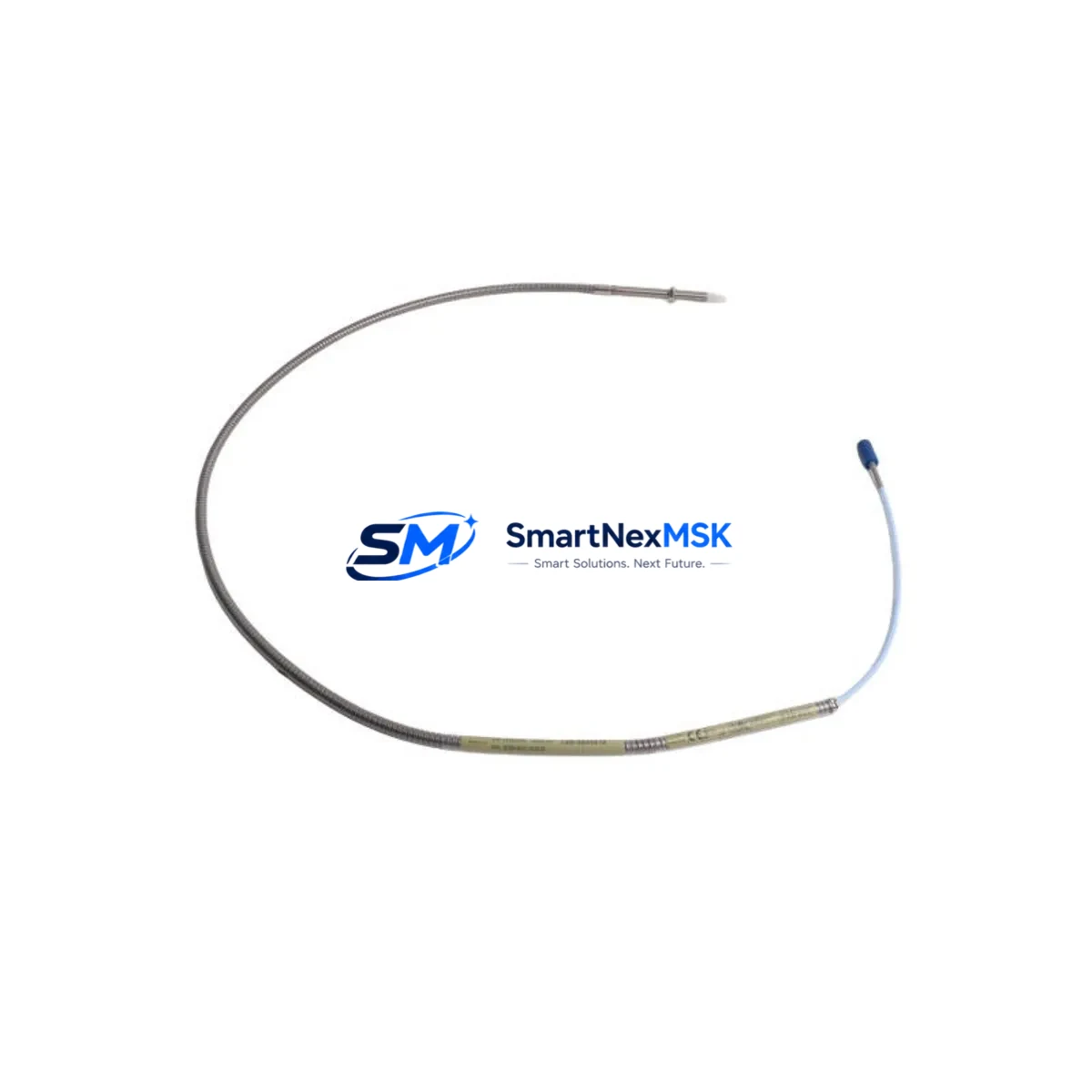

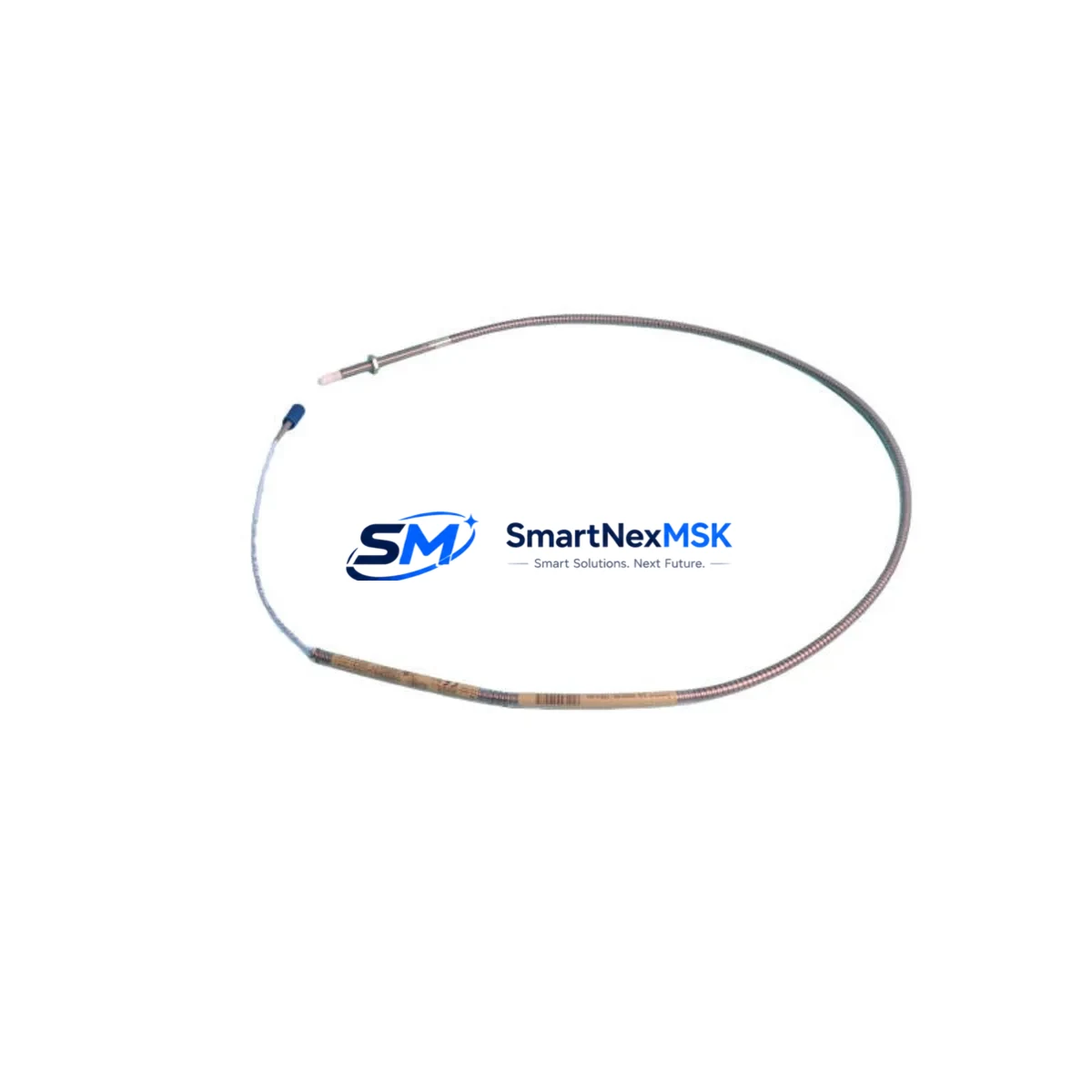

The Bently Nevada 330903-00-14-10-01-00 is an original proximity transducer system engineered for continuous vibration monitoring in rotating machinery applications. Designed for the 3300 XL NSv series, this transducer delivers precise non-contact displacement measurement critical to turbine, compressor, and pump protection systems. For maintenance engineers managing aging machinery protection infrastructure, sourcing a verified original spare is the first step in minimizing unplanned downtime and restoring system integrity after a fault event.

This unit ships fully tested and is backed by a 12-month warranty, ensuring confidence in every replacement deployment. Whether you are executing a planned outage, responding to a vibration alarm, or building a strategic spare parts inventory for a critical asset, the 330903-00-14-10-01-00 is a direct, compatible replacement that requires no firmware reconfiguration when installed into an existing 3300 XL NSv rack.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330903-00-14-10-01-00 proximity transducer during a scheduled or emergency maintenance event, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure the monitoring system returns to full accuracy. Maintenance engineers should begin by verifying the condition of the Bently Nevada 3300 XL NSv Proximitor Sensor (typically mounted in the field junction box), as transducer faults are frequently caused by a degraded driver rather than the probe itself.

The 3300 XL 16-channel monitor or equivalent rack-mounted monitor card should be checked for alarm setpoint integrity and channel configuration after any transducer swap. Inspect the field wiring and armored extension cable connecting the transducer to the Proximitor — damaged shielding or connector corrosion is a common root cause of erratic vibration readings. Verify that the -24 VDC power supply module feeding the Proximitor is within specification, as undervoltage conditions can cause false high-vibration alarms.

For installations in hazardous areas, confirm that the Zener barrier or galvanic isolator in the intrinsically safe circuit is functioning correctly and has not been compromised by a previous fault. If the machine protection system interfaces with a DCS or safety PLC, validate the 4–20 mA or voltage output signal at the I/O card after replacement to confirm end-to-end signal integrity. Procurement engineers building a resilient spare parts kit for a 3300 XL NSv-equipped train should also stock a matched Proximitor Sensor extension cable, a spare power supply fuse and terminal block assembly, and at minimum one additional 3300 XL monitor I/O module to cover the most common failure modes in a single outage.

For plants running older Bently Nevada 7200 series or 3300/20 series legacy monitors alongside newer 3300 XL NSv racks, maintaining cross-compatible transducer spares reduces the risk of extended downtime when a legacy channel fails unexpectedly. A well-structured spare parts register for a rotating machinery protection system should include transducers, Proximitor sensors, extension cables, monitor cards, power supply modules, and terminal blocks — all sourced and pre-tested to eliminate field verification delays during an emergency shutdown.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the -24 VDC supply to the affected Proximitor channel before disconnecting the transducer.

Step 2 — Transducer Removal: Unthread the 330903-00-14-10-01-00 from the mounting bracket. Note the gap voltage reading (typically -10 VDC at nominal gap) for reference during reinstallation.

Step 3 — Inspection: Inspect the probe tip for mechanical damage, the integral cable for chafing or connector corrosion, and the mounting threads for wear. If the Proximitor driver shows abnormal output, replace it concurrently to avoid a repeat callout.

Step 4 — Installation: Thread the replacement 330903-00-14-10-01-00 into the bracket. Set the air gap per the 3300 XL NSv system documentation (typically 1.0 mm / 40 mil for 8 mm probes). Reconnect the extension cable and restore power.

Step 5 — Verification: Confirm gap voltage is within the linear range (-10 VDC ± 1 VDC at nominal gap). Check the monitor display for a valid vibration reading and confirm no active alarms. Document the replacement in the maintenance management system.

This workflow is compatible with direct replacement of legacy 330903 series transducers and supports system continuity without requiring monitor reconfiguration, minimizing total downtime to under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 330903-00-14-10-01-00 a direct replacement for older 330903 series transducers?
Yes. The 330903-00-14-10-01-00 is backward compatible with existing 3300 XL NSv Proximitor sensors and mounting hardware. No recalibration of the monitor is required provided the Proximitor sensor is also from the matched 3300 XL NSv system. Always verify the gap voltage after installation to confirm correct positioning.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes functional output verification, insulation resistance check, and cable continuity testing before dispatch. Units are shipped with a test report confirming compliance with Bently Nevada 3300 XL NSv system specifications. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q3: How should this transducer be stored as a long-term spare?
Store in original packaging or an ESD-safe bag in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Avoid coiling the integral cable tightly. Inspect the probe tip and connector annually. Shelf life under proper storage conditions exceeds five years without performance degradation.

Q4: Can this unit be used in hazardous area (Ex) installations?
The 330903-00-14-10-01-00 is designed for use with Bently Nevada-approved intrinsic safety barriers or galvanic isolators in Zone 1/Zone 2 (ATEX/IECEx) classified areas. Always verify the hazardous area certification of the complete measurement loop — transducer, extension cable, Proximitor, and associated barrier — before installation in an Ex-rated environment. Consult the Bently Nevada system certification documentation for your specific installation.
