Bently Nevada 330903-00-16-05-01-00 Retrofit-Ready Proximity Transducer for 3300 XL NSv

Bently Nevada 330903-00-16-05-01-00 Retrofit-Ready Proximity Transducer for 3300 XL NSv Control Systems

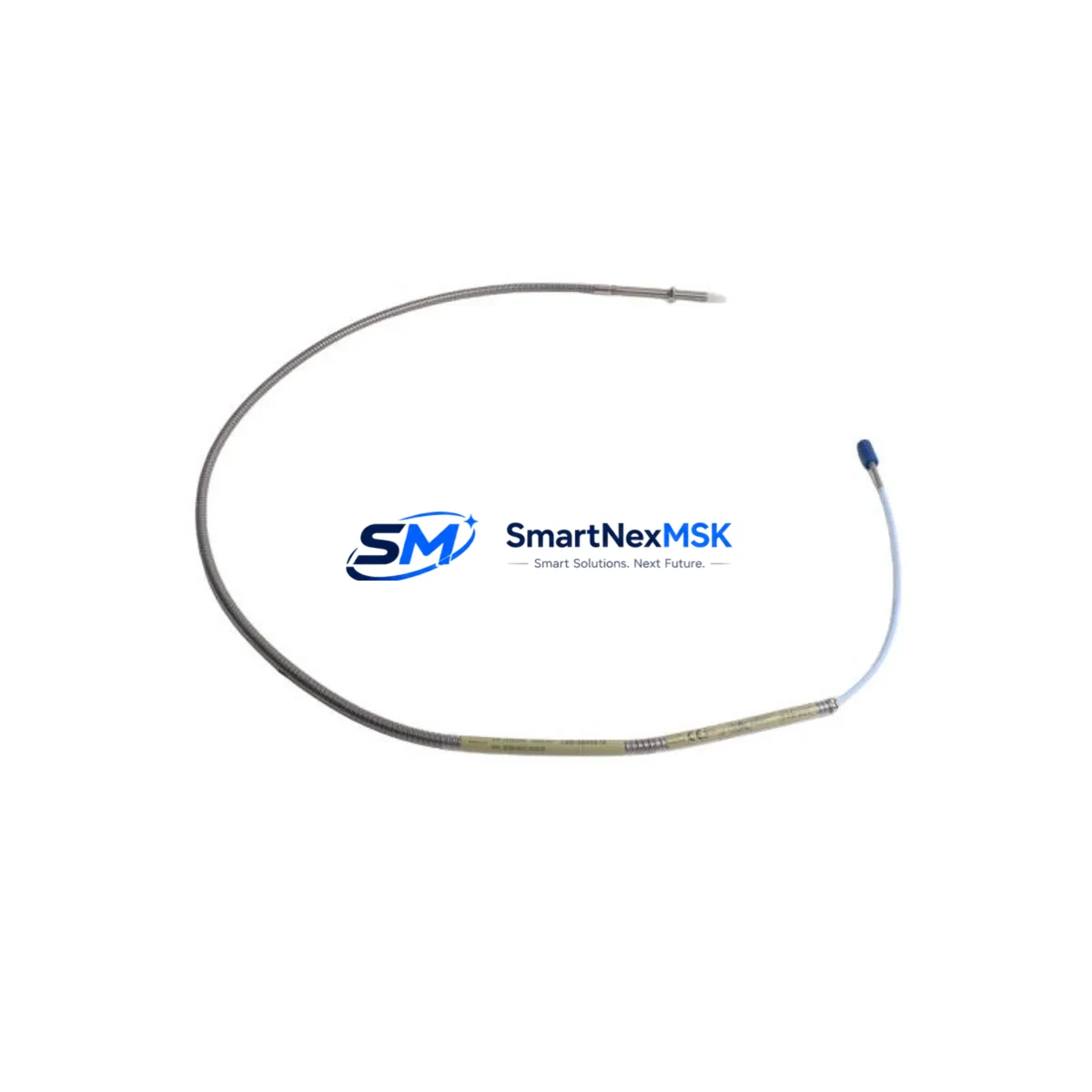

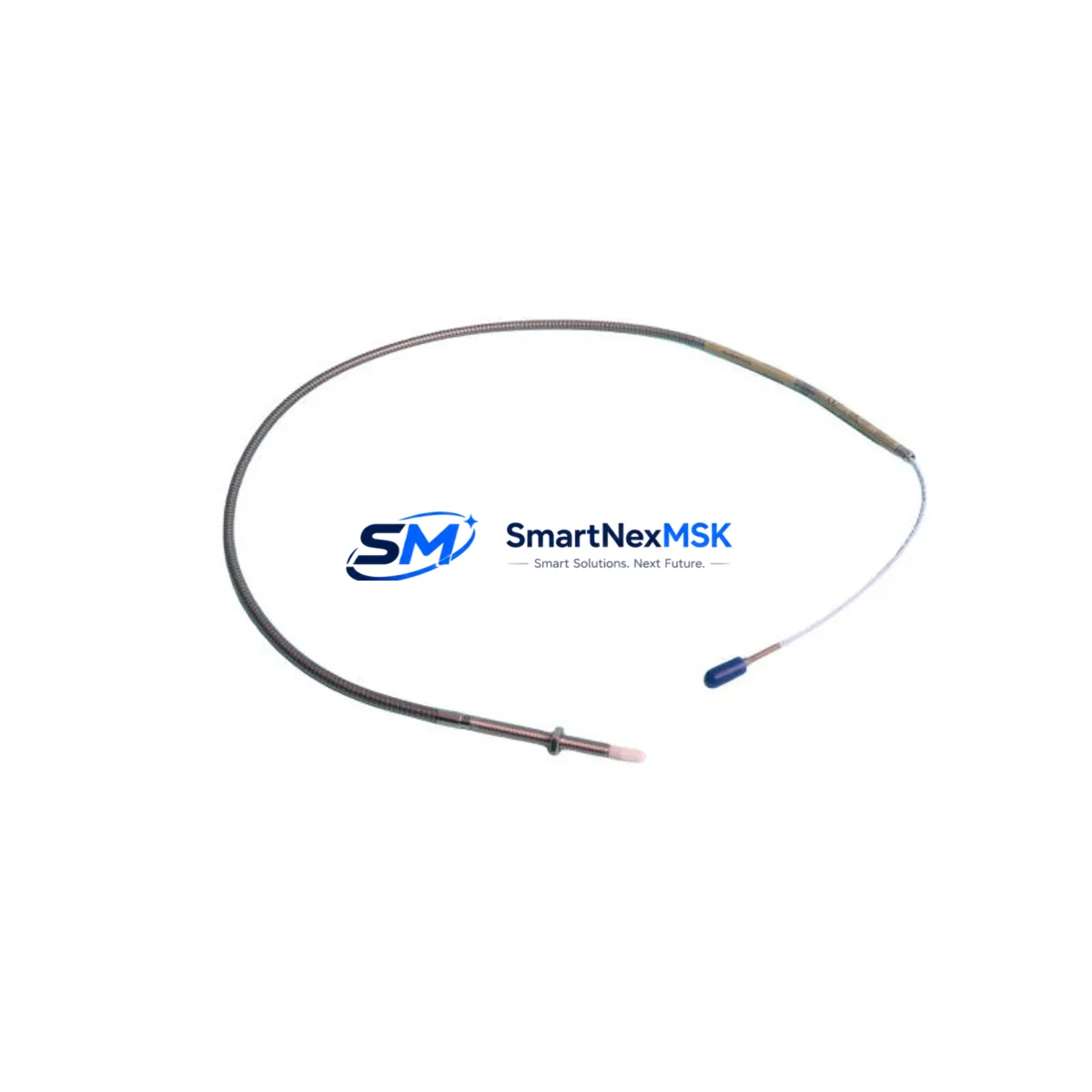

The Bently Nevada 330903-00-16-05-01-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL NSv vibration monitoring platform. Designed to deliver reliable shaft displacement and radial vibration measurements in rotating machinery applications, this transducer is a direct retrofit solution for aging 3300 Series installations where original components have been discontinued or are approaching end-of-service life. Whether you are upgrading a legacy turbine protection system, replacing worn proximity probes in a compressor train, or migrating from an older 3300/5 or 3300/16 rack to the current 3300 XL NSv architecture, this transducer provides the dimensional compatibility, signal output, and connector interface required for a smooth, low-risk transition.

Industrial facilities operating continuous-process equipment — including gas turbines, steam turbines, centrifugal compressors, and large induction motors — depend on uninterrupted vibration monitoring to satisfy API 670 machinery protection requirements. When a proximity transducer fails or a spare is no longer available through the OEM, the risk of unplanned downtime escalates rapidly. The 330903-00-16-05-01-00 addresses this challenge directly: it is stocked, tested, and ready for immediate dispatch with a 12-month warranty, giving maintenance engineers a verified replacement path without waiting for long-lead OEM procurement cycles.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330903-00-16-05-01-00 into an existing machinery protection system requires a structured pre-installation review. Before removing the legacy transducer, maintenance teams should document the current gap voltage reading at the monitor input — typically displayed on the front panel of the 3300 XL NSv monitor module or readable via the System 1 condition monitoring software. This baseline reading confirms the target air gap (commonly 1.0 mm to 2.0 mm for 16 mm probes) and provides a reference for post-installation verification.

Wiring and terminal adaptation is the next critical checkpoint. The 330130 extension cable or 330180 armored extension cable must be inspected for continuity and shield integrity before reuse. If the existing cable shows signs of insulation degradation or connector corrosion — common in high-temperature or high-humidity environments — replacement with a new matched-length extension cable is strongly recommended to avoid introducing signal noise into the vibration channel. The coaxial connector at the junction box must be torqued to specification and sealed against moisture ingress.

At the rack level, confirm that the 3300 XL NSv monitor card installed in the backplane is configured for the correct transducer type and gap range. If the rack also houses a 3300 XL 8mm proximity transducer on an adjacent channel, verify that channel-specific configuration parameters are not inadvertently shared. Facilities migrating from a legacy 3300/16 rack to the current 3300 XL NSv architecture should also audit the 3300 XL power supply module capacity: adding channels or replacing transducers with higher-sensitivity variants can shift the total current draw, and the power supply must be confirmed within its rated output before energizing the updated rack.

For plants that also operate Bently Nevada 3500 Series machinery protection systems on adjacent equipment trains, note that the 330903-00-16-05-01-00 transducer is signal-compatible with 3500/42M proximitor monitor inputs when used with the appropriate driver. This cross-platform compatibility simplifies spare parts inventory management for facilities running mixed 3300 XL and 3500 Series installations. Similarly, if the control system includes a Keyphasor® module for phase reference, the transducer’s output signal can serve as a Keyphasor input on a dedicated channel, provided the target notch geometry and shaft speed are within the module’s detection range.

Plants integrating vibration data into a DCS or safety instrumented system via a 3300 XL communication gateway or Modbus/TCP interface should verify that the channel address mapping in the gateway configuration reflects the physical slot position of the updated monitor card. Address mismatches after a card swap are a common source of false alarms during post-maintenance startup. A full loop check — from transducer gap through monitor output to DCS analog input — should be completed before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement requires advance preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure and bench-test the replacement 330903-00-16-05-01-00 transducer alongside its extension cable and monitor card before the machine is taken offline. Using a calibrated gap simulator or a reference target block, technicians can verify the transducer’s output voltage at the nominal gap distance and confirm that the monitor card’s OK relay trips correctly at the configured gap limits. This pre-verification step eliminates the most common cause of extended downtime: discovering a configuration mismatch only after the machine has been shut down.

During the physical swap, the original program logic in the associated PLC or safety controller — whether a GE Fanuc Series 90, Rockwell ControlLogix, or a dedicated Bently Nevada System 1 server — does not require modification, provided the replacement transducer is installed in the same physical channel and the gap voltage is restored to within the monitor’s configured OK band. The monitor’s internal alarm setpoints, stored in non-volatile memory, are preserved through a power cycle, so there is no need to re-enter vibration alarm thresholds after the swap.

If the HMI displays a dedicated vibration trend screen for the affected machine train, operators should be briefed to expect a brief signal interruption during the transducer disconnection and reconnection sequence. The 3300 XL NSv monitor will assert a NOT OK condition during this interval; the DCS or safety system should be placed in bypass mode for the affected channel to prevent a spurious trip. Once the new transducer is installed and the gap voltage is confirmed within the OK band, the bypass can be removed and the channel returned to normal monitoring service. Total elapsed time for a prepared, single-channel transducer swap is typically 30 to 90 minutes, depending on access conditions and the need for scaffolding or confined-space entry.

Retrofit Support FAQ

Q1: Is the 330903-00-16-05-01-00 a direct replacement for the legacy 330903 series proximity transducers?
Yes. The 330903-00-16-05-01-00 is dimensionally and electrically compatible with earlier 330903 series variants used in 3300 XL NSv and compatible 3300 Series monitor racks. The probe tip diameter, thread pitch, and coaxial connector interface are unchanged. After installation, a gap voltage verification and OK relay check are the only commissioning steps required before returning the channel to service.

Q2: What wiring changes are needed when replacing the transducer in an existing installation?
In most cases, no wiring changes are required if the existing 330130 or 330180 extension cable is in good condition. The replacement transducer connects directly to the existing cable at the junction box using the standard coaxial connector. If the cable is being replaced simultaneously, ensure the new cable length matches the original to maintain the system’s calibrated sensitivity. Always verify shield continuity and connector torque before energizing the channel.

Q3: Can this transducer be used with Bently Nevada 3500 Series monitor modules?
Yes, with the appropriate driver configuration. The 330903-00-16-05-01-00 produces a standard eddy-current output signal that is compatible with 3500/42M and 3500/45 monitor inputs when the monitor is configured for the correct transducer type and gap range. Confirm the channel configuration in the 3500 rack’s System 1 software before commissioning.

Q4: What does the 12-month warranty cover, and how is it supported?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing, including gap voltage output verification and OK relay actuation, before dispatch. Warranty claims are handled directly through SMARTNEXMSK. For support, contact sales@smartnexmsk.com or call +86 18259474341.
