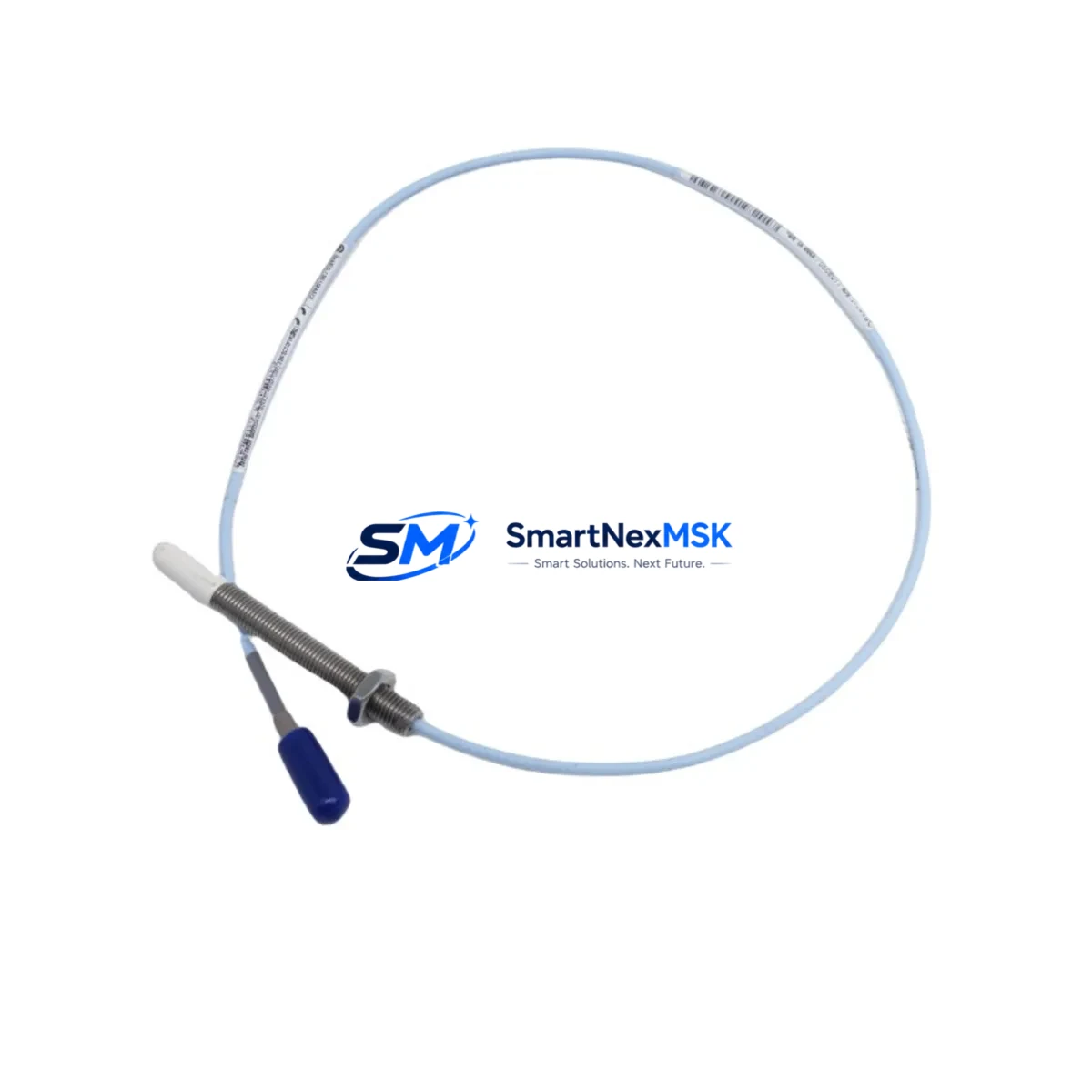

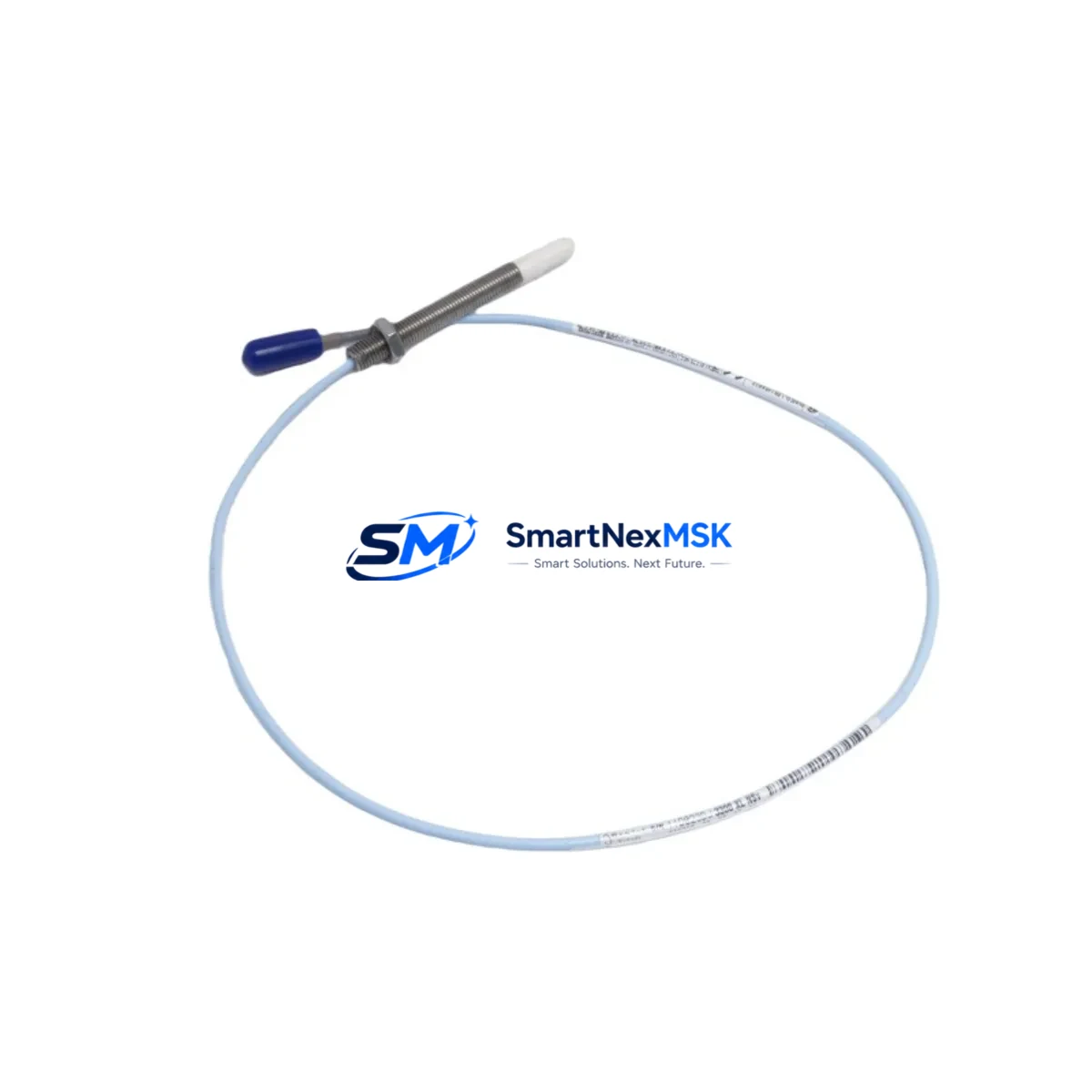

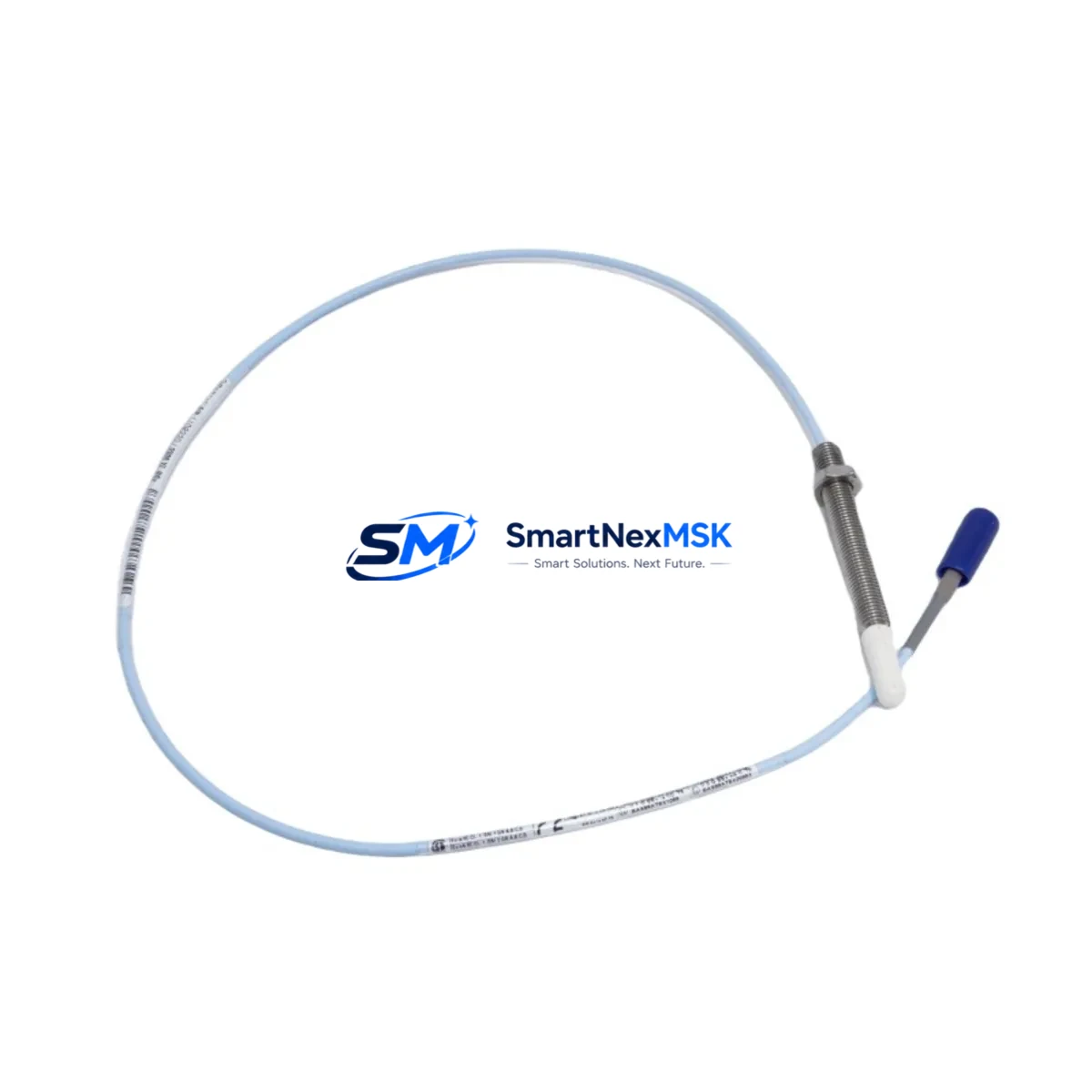

Bently Nevada 330903-00-17-10-02-05/CN 3300 NSv Retrofit Probe

Bently Nevada 330903-00-17-10-02-05/CN 3300 NSv Retrofit-Ready Proximity Probe: Seamless Compatibility & Legacy System Upgrade

The Bently Nevada 330903-00-17-10-02-05/CN is a high-precision eddy-current proximity probe engineered for direct retrofit into existing 3300 NSv vibration monitoring systems. As original Bently Nevada 3300 Series hardware reaches end-of-life and spare parts become increasingly scarce, plant engineers and reliability teams face mounting pressure to source verified drop-in replacements that preserve signal integrity, wiring topology, and system calibration without triggering a full platform migration. This probe addresses that challenge directly — delivering a wiring-compatible, specification-matched replacement that minimises commissioning time and protects the investment already made in your 3300 NSv infrastructure.

Designed for radial and axial shaft displacement measurement on rotating machinery including steam turbines, gas compressors, centrifugal pumps, and gearboxes, the 330903-00-17-10-02-05/CN operates within the standard 3300 NSv signal conditioning chain. It is compatible with the 3300 XL 8mm extension cable assemblies and interfaces directly with the 3300 XL proximitor sensor (driver) modules already installed in your control cabinet. No re-ranging of the proximitor output, no recalibration of the 3500/22M or 3500/42M monitor cards, and no modification to existing Bently Nevada System 1 software configurations are required when this probe replaces a like-for-like 330903 series unit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330903-00-17-10-02-05/CN into a legacy 3300 NSv installation begins well before the probe arrives on site. The first step is a thorough audit of the existing wiring harness. The 3300 NSv system uses a dedicated coaxial cable architecture: the probe body connects to a 330130 or 330180 series extension cable, which in turn terminates at the 3300 XL proximitor sensor mounted inside the junction box or control cabinet. Before removing the old probe, technicians should photograph the terminal block layout, record the existing gap voltage reading (typically between –9.5 VDC and –10.5 VDC for a healthy installation), and note the probe-to-target gap in millimetres as a baseline reference.

Inside the control cabinet, the 3500 rack housing the 3500/22M transient data interface or 3500/42M vibration monitor card must be checked for any active alarms or bypasses before the probe is swapped. If the machine is part of a turbine protection loop, the relevant channel should be placed in bypass mode via the 3500 rack front panel or through Bently Nevada System 1 software before disconnecting the probe. This prevents spurious trip signals from propagating to the DCS or safety instrumented system during the changeover window.

For plants running a broader Bently Nevada ecosystem, the retrofit may also involve verifying compatibility with the 3300 RAM (Rack Adapter Module) if the existing installation uses a 3300/55 or 3300/65 monitor. In multi-channel installations, the 3500/20 power supply module should be checked to confirm it can sustain the additional current draw if multiple probes are being replaced simultaneously. Where the control system interfaces with a GE Mark VIe or Mark VI turbine controller via Modbus or PROFIBUS, no protocol reconfiguration is needed — the proximitor output remains analogue and the signal conditioning chain is unchanged.

Technicians should also confirm that the 3300 NSv proximitor driver module (typically a 330180-90-05 or 330180-51-05 unit) is within its calibration interval. A worn or out-of-tolerance proximitor will produce incorrect gap voltage readings even with a new probe installed, leading to false diagnostics. If the proximitor is due for replacement, sourcing it alongside the 330903-00-17-10-02-05/CN probe allows both components to be commissioned together, reducing the number of planned outage windows. Similarly, if the existing 330130 extension cable shows signs of jacket damage or connector corrosion, replacing it during the same maintenance window eliminates a common source of intermittent signal faults.

For facilities upgrading from an older 3300/16 or 3300/20 monitor to the current 3500 platform, the 330903-00-17-10-02-05/CN probe remains compatible provided the proximitor sensitivity and gap range are correctly configured in the new monitor card. The 3500 rack’s I/O module addressing should be verified in the rack configuration software before the machine is returned to service, and any changes to channel scaling or full-scale range must be reflected in the associated HMI faceplate — whether that is a GE iFIX, Wonderware InTouch, or Emerson DeltaV display.

Downtime Control During System Migration

Minimising unplanned downtime is the primary concern for any rotating machinery reliability programme. When replacing the 330903-00-17-10-02-05/CN in a live production environment, the recommended approach is to pre-stage all replacement components — probe, extension cable, and proximitor if required — and complete a bench verification of gap voltage and sensitivity before the machine is taken offline. This allows the actual swap to be completed within a single planned maintenance window, typically under two hours for a single-channel replacement.

Where the machine cannot be taken offline, a hot-standby strategy using a parallel monitoring channel (if available in the 3500 rack) allows the new probe to be installed and verified against the live channel before the original is disconnected. Once the new probe’s gap voltage and vibration signal are confirmed to match the baseline, the channel bypass can be released and the original probe removed without interrupting the protection loop.

Original program logic in the DCS or safety PLC does not need to be modified for a like-for-like probe replacement. The 3500 rack handles all signal conditioning and alarm relay outputs independently of the upstream control system. However, if the replacement is part of a broader platform migration — for example, moving from a 3300 NSv rack to a 3500 rack — the DCS I/O mapping, alarm setpoints, and historian tag assignments must all be updated before the new system is placed in service. Retaining a backup of the existing 3500 rack configuration file and the System 1 database export is strongly recommended before any rack-level changes are made.

All units dispatched by SMARTNEXMSK undergo pre-shipment functional testing, including gap voltage verification and insulation resistance checks, to confirm the probe meets 3300 NSv specification before leaving the warehouse. This reduces the risk of commissioning failures caused by transit damage or latent manufacturing defects, and supports the 12-month warranty coverage from the date of dispatch.

Retrofit Support FAQ

Q1: Is the 330903-00-17-10-02-05/CN a direct replacement for the non-CN suffix version?
Yes. The /CN suffix denotes the country of manufacture (China) and does not affect the electrical specification, mechanical dimensions, or signal output. The probe is a direct drop-in replacement for the standard 330903-00-17-10-02-05 and is fully compatible with all 3300 NSv proximitor sensors and 3500 series monitor cards.

Q2: What wiring checks are required before installation?
Verify that the existing coaxial extension cable (typically a 330130 or 330180 series assembly) is undamaged and that the BNC or integral connector is clean and corrosion-free. Measure the cable resistance and confirm it falls within the 3300 NSv specification. Check the terminal block inside the junction box for correct polarity and secure terminations before connecting the new probe.

Q3: How do I confirm the probe is correctly commissioned after installation?
With the probe installed at the correct gap (typically 1.0–1.5 mm for an 8 mm probe on a steel target), the proximitor output should read between –9.5 VDC and –10.5 VDC. Confirm this reading at the proximitor output terminals using a calibrated multimeter. Then verify that the 3500 rack channel shows an OK status and that the vibration reading is within the expected baseline range for the machine at its normal operating speed.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, over-range mechanical impact, or operation outside the specified temperature and gap range. In the event of a warranty claim, SMARTNEXMSK will arrange replacement or repair of the affected unit. All units are pre-tested before dispatch to minimise the likelihood of field failures.
