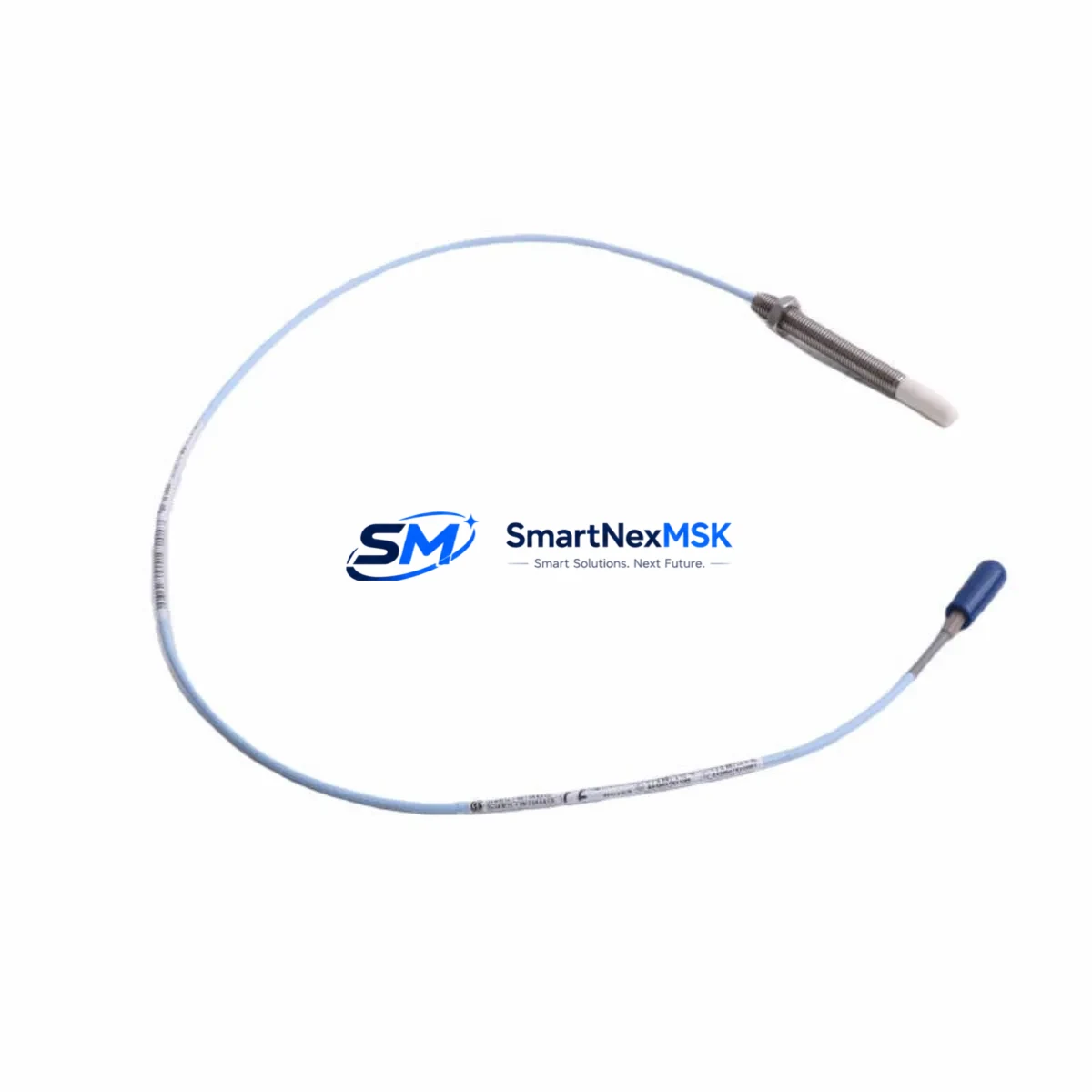

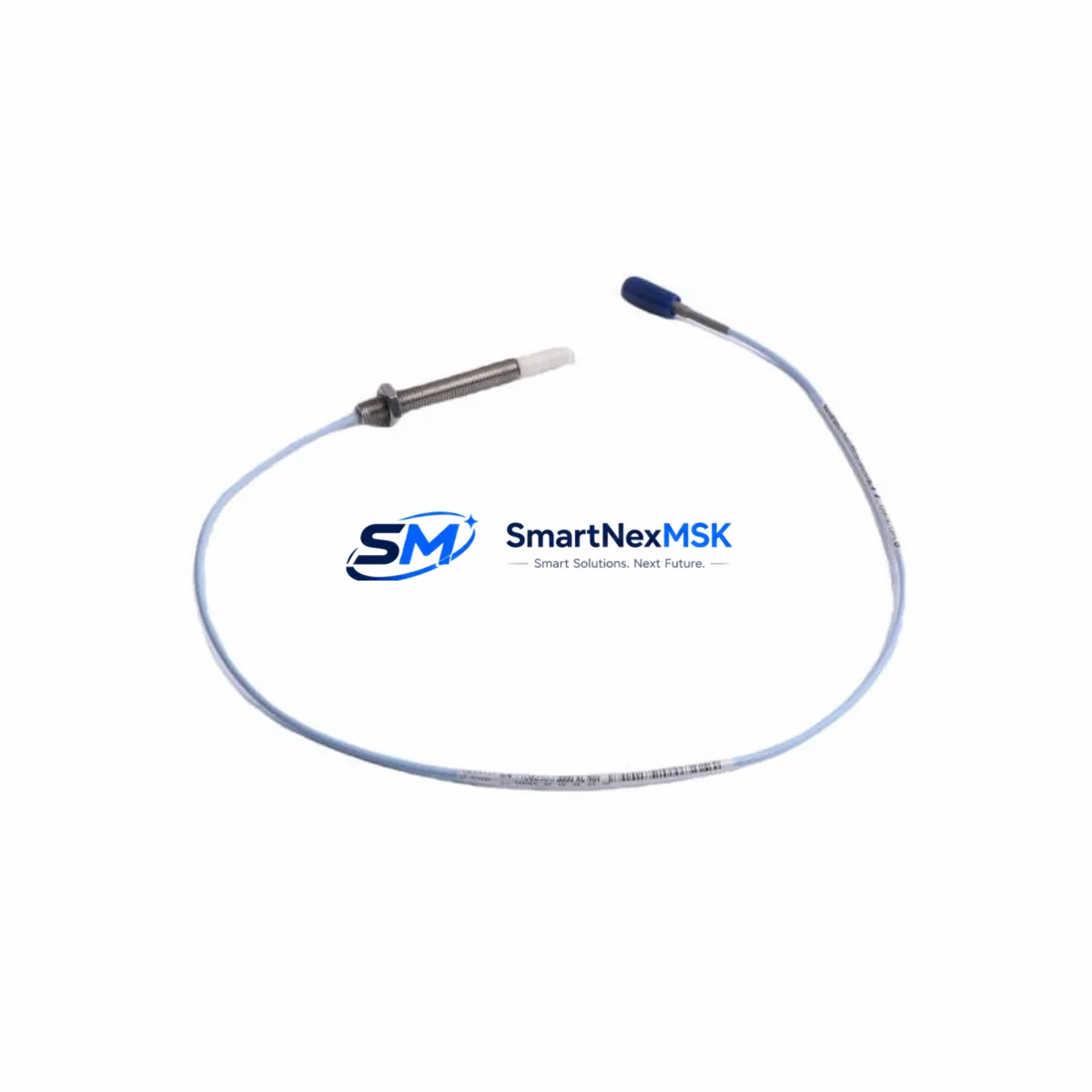

The Bently Nevada 330903-00-18-05-02-CN is an original 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring platform. In rotating machinery protection systems — turbines, compressors, pumps, and gearboxes — this probe is a front-line component for shaft displacement and radial vibration measurement. When this probe degrades or fails, the entire vibration channel goes blind, creating an unacceptable risk of undetected rotor instability and unplanned shutdown. Stocking a verified original spare is the single most effective action a maintenance team can take to protect uptime in critical machinery trains.

This unit ships tested, with full electrical verification against Bently Nevada factory specifications. Each probe is confirmed for sensitivity output (200 mV/mil ±10%), gap voltage linearity, and cable continuity before dispatch. A 12-month warranty covers all units from date of shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330903-00-18-05-02-CN probe is scheduled for replacement during a planned outage or triggered by a gap voltage alarm, experienced maintenance engineers treat the event as an opportunity to inspect the entire vibration measurement loop. The 330180-91-00 Proximitor Sensor (the signal conditioning driver paired with this probe) should be checked for output voltage stability and housing integrity — a degraded Proximitor can cause false readings even with a new probe installed. The 330130-080-00-00 extension cable connecting probe to Proximitor is a frequent failure point due to mechanical fatigue at conduit entry points; replace it whenever the probe is changed.

At the monitor rack level, verify the 3300/16 Radial Vibration Monitor channel card for alarm setpoint integrity and confirm that the 3500/42M Proximitor I/O Module is seated correctly and free of corrosion on its backplane connectors. If the plant runs a 3500 Series rack, inspect the 3500/20 Rack Interface Module for communication faults that could mask a genuine vibration alarm.

For the power supply feeding the monitoring rack, the 3500/15 Power Supply Module should be load-tested during the outage window — an under-voltage condition on the 24 VDC rail is a known cause of Proximitor output drift that mimics probe failure. Terminal blocks and field wiring at the junction box should be torqued to specification and inspected for moisture ingress, particularly in outdoor or coastal installations.

If the machinery train also uses axial position monitoring, the paired 330905-00-18-05-02-CN axial probe should be inspected simultaneously, as both probes share the same installation environment and thermal cycling history. Procurement engineers building a minimum viable spare parts kit for a 3300 XL-equipped train should include at minimum: one radial probe (330903 series), one axial probe (330905 series), one Proximitor sensor (330180 series), one extension cable set, and one spare channel card for the monitor rack.

Site Replacement Workflow

Replacing the 330903-00-18-05-02-CN on-site follows a structured sequence to minimize downtime and avoid introducing new faults. Before removing the old probe, record the current gap voltage from the Proximitor output (typically –10 VDC at the 50-mil nominal gap for steel shafts). This baseline is your primary acceptance criterion for the new probe after installation.

De-energize the Proximitor driver before disconnecting the probe cable — hot-swapping the coaxial connector can damage the driver’s input stage. Install the new probe to the same thread depth, verify gap with a feeler gauge or by monitoring gap voltage as the probe is advanced, and lock the jam nut to the torque value specified in Bently Nevada installation drawing 141536. Reconnect the extension cable, re-energize the Proximitor, and confirm gap voltage is within ±0.5 VDC of the recorded baseline. Clear any latched alarms at the 3300/16 or 3500/42 monitor only after gap voltage is confirmed stable.

This workflow replaces the legacy 330903-00-18-05-02 (without CN suffix) and is backward-compatible with all 3300 XL 8mm Proximitor installations. No firmware changes or monitor reconfiguration are required. The CN connector variant is dimensionally and electrically identical to the standard variant, differing only in the field-termination connector style. This compatibility eliminates the need for system recertification after replacement, significantly reducing the administrative burden of the maintenance event.

Spare Parts Support FAQ

Q: Is the 330903-00-18-05-02-CN a direct replacement for the non-CN suffix version?
A: Yes. The CN suffix denotes the coaxial connector style at the field termination end. Electrically and mechanically, the probe is identical to the standard 330903-00-18-05-02. It is fully compatible with all 3300 XL 8mm Proximitor sensors and 3300/3500 series monitors without any reconfiguration.

Q: How is each unit tested before shipment?
A: Every 330903-00-18-05-02-CN is bench-tested for sensitivity output (200 mV/mil ±10%), gap voltage linearity across the full measurement range, and cable/connector continuity. A test report is available upon request. Units that do not meet factory specification are not shipped.

Q: What is the recommended spare inventory strategy for a plant with multiple 3300 XL-equipped machines?
A: Industry best practice for critical rotating machinery is to hold a minimum of one probe per monitored shaft position as a ready spare, with a full channel kit (probe + extension cable + Proximitor) for each machine train classified as production-critical. For plants with 10 or more monitored positions, a consignment or scheduled replenishment agreement ensures stock is available without tying up excessive capital.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects, electrical performance outside published specification, and connector integrity from the date of shipment. It does not cover damage resulting from installation errors, mechanical impact, or operation outside the specified temperature and gap range. Warranty claims are processed within 5 business days of receipt of the returned unit.
