Bently Nevada 330903-00-19-10-02-05/CN Spare 3300 NSv: Precision Replacement for Industrial Vibration Monitoring

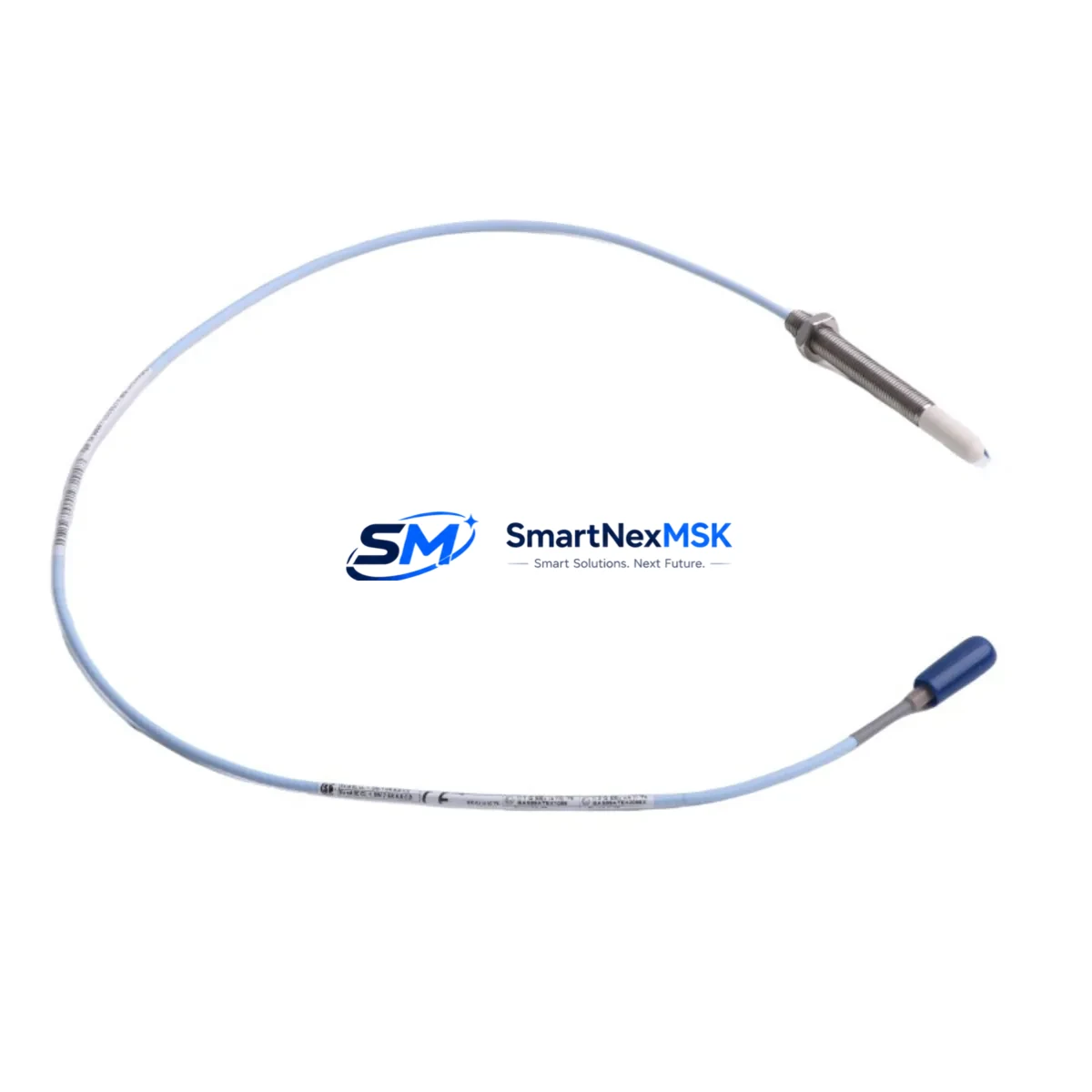

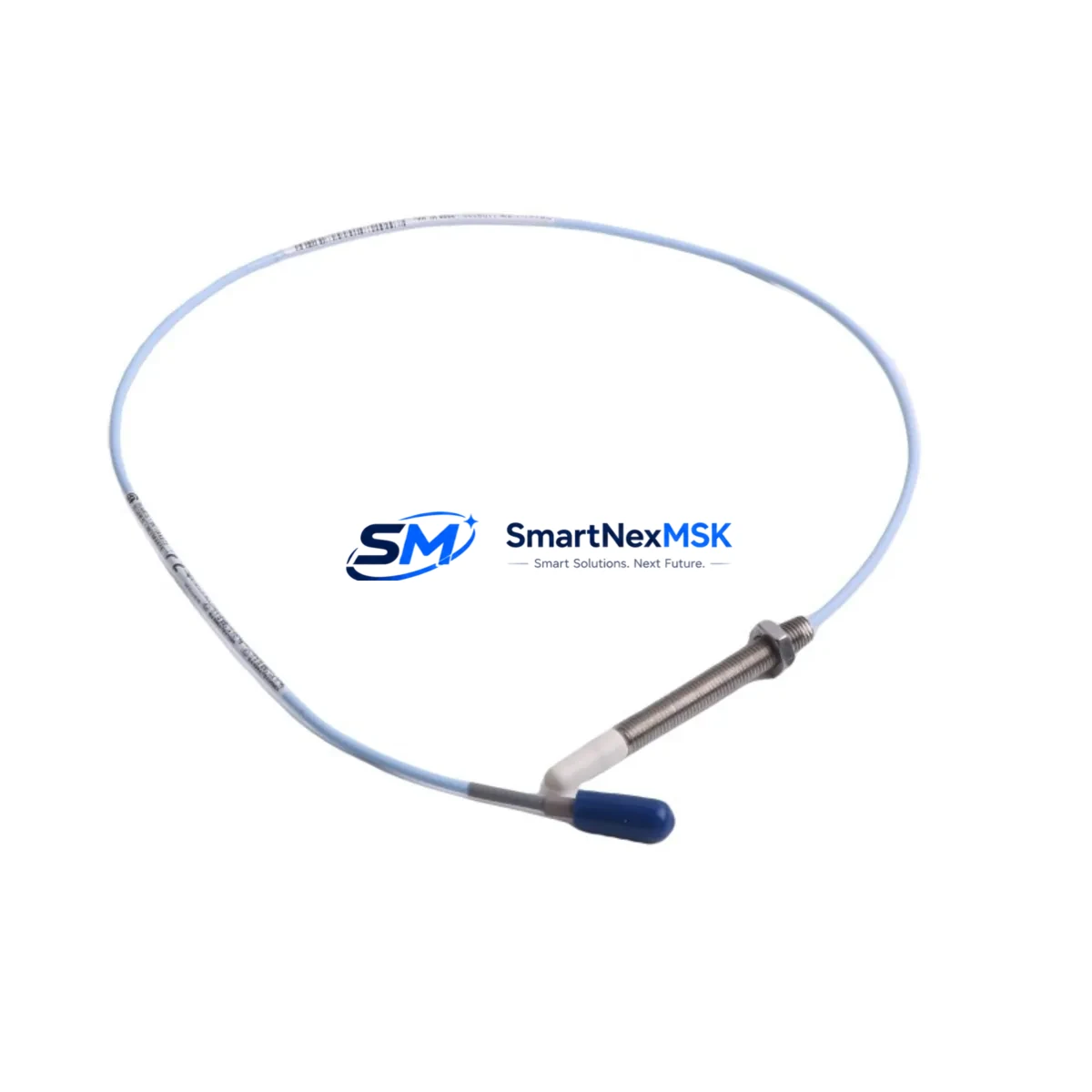

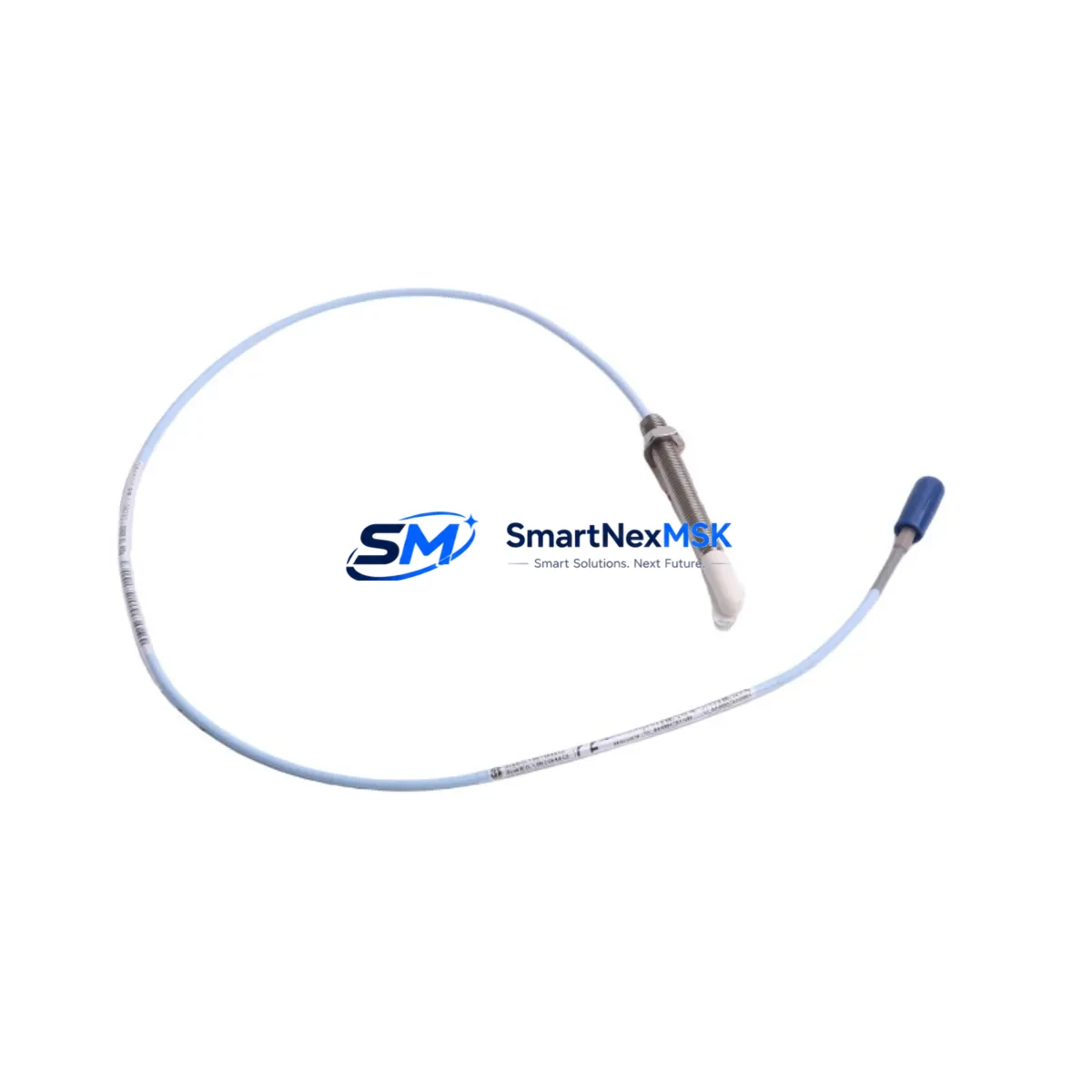

The Bently Nevada 330903-00-19-10-02-05/CN is an 8mm eddy current proximity probe engineered for the 3300 NSv (Non-contacting Vibration) monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor responsible for continuous shaft vibration, radial position, and axial thrust measurement. When this component fails or degrades, the entire vibration monitoring loop is compromised, exposing critical assets to undetected mechanical faults and potential catastrophic failure.

Sourced as an original Bently Nevada spare, the 330903-00-19-10-02-05/CN is fully compatible with the 3300 NSv signal conditioning system and integrates directly with the 3300 XL 8mm extension cable and driver assemblies. Each unit is function-tested prior to dispatch and ships with a 12-month warranty, supporting both planned maintenance cycles and emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing rotating machinery protection systems, replacing the 330903-00-19-10-02-05/CN probe in isolation is rarely sufficient. A comprehensive inspection of the entire measurement chain is essential to restore full system integrity and prevent repeat failures.

Begin with the 3300 XL 8mm extension cable (e.g., 330130-045-00-CN or equivalent length variant) — cable insulation degradation and connector corrosion are leading causes of erratic gap voltage readings that are often misattributed to probe failure. Inspect the 3300 NSv Proximitor sensor (driver/oscillator module, typically 330180-X1-05) for output voltage drift; a faulty driver will cause the replacement probe to read incorrectly even when the probe itself is serviceable.

Within the control cabinet, verify the 3300/16-channel monitor or 3500/40M proximitor monitor input card for channel calibration and alarm setpoint integrity. If the system has been running in a high-temperature or high-vibration environment, inspect the terminal block assemblies and field wiring connectors for fretting corrosion — a common but overlooked failure mode in long-running installations.

For plants operating legacy 3300 series racks, it is advisable to maintain buffer stock of the 3300/55 power supply module, as power rail instability directly affects probe gap voltage stability. Similarly, the 3300/25 keyphasor module should be inspected if phase-referenced vibration data is used for balancing or diagnostics — a degraded keyphasor signal corrupts the entire vibration spectrum analysis.

Where the 330903-00-19-10-02-05/CN is installed in a system also monitoring axial thrust, cross-check the paired axial position probe (typically a second 330903 or 330905 series unit) and its associated thrust position monitor card. Asymmetric wear between radial and axial probes is a common finding during planned outages on steam turbines and centrifugal compressors.

For facilities transitioning from 3300 to 3500 series architecture, the 330903-00-19-10-02-05/CN remains backward-compatible with 3500/42M and 3500/40M monitor cards when used with the appropriate Proximitor sensor, making it a cost-effective bridge component during phased system upgrades. Procurement engineers should also consider stocking the 330130 series extension cables in multiple standard lengths (5 ft, 9 ft, 15 ft) to cover the full range of machine configurations in the plant.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the existing probe, record the current gap voltage at the Proximitor output (nominal –10.0 VDC ± 0.5 V for a properly gapped 8mm probe). This baseline confirms whether the fault is in the probe, cable, or driver, and provides a reference for post-installation validation.

Step 2 — Safe isolation: Coordinate with the control room to bypass or inhibit the vibration channel alarm to prevent spurious trips during probe swap. Do not defeat the monitor entirely — use the channel inhibit function available on 3300 and 3500 series monitors.

Step 3 — Mechanical removal: Using the correct probe wrench, back out the 330903-00-19-10-02-05/CN from the M10 x 1.0 probe mount. Inspect the probe tip for impact damage, pitting, or contamination — these findings indicate a bearing or seal issue that must be addressed before reinstallation.

Step 4 — Installation and gapping: Thread the replacement probe to finger-tight, then adjust gap to achieve –10.0 VDC ± 0.2 V at the Proximitor output using a calibrated gap tool or feeler gauge. Lock the probe with the jam nut to the torque specification in the Bently Nevada installation manual.

Step 5 — System restoration: Re-enable the channel, confirm alarm setpoints are active, and verify the vibration reading is within the expected baseline range for the machine at operating speed. Document the replacement in the plant CMMS with the new probe serial number and gap voltage.

This workflow minimizes downtime to under 60 minutes for a single-channel replacement on accessible machinery, and supports full traceability for ISO 55001 asset management compliance.

Spare Parts Support FAQ

Q1: Is the 330903-00-19-10-02-05/CN a direct drop-in replacement for older 330903 series probes?
Yes. The 330903-00-19-10-02-05/CN is dimensionally and electrically compatible with earlier 330903 series variants used in 3300 NSv and 3300 XL systems. The “/CN” suffix denotes the connector type. Verify the connector pinout against your existing cable assembly before installation; in most cases, no cable modification is required.

Q2: What is the recommended spare parts inventory strategy for this probe?
For plants with 4 or more 3300 NSv channels monitoring critical rotating equipment, we recommend maintaining a minimum of 2 spare probes per machine train, plus 1 spare extension cable per 3 channels. Probes stored in original packaging in a climate-controlled environment have a shelf life exceeding 10 years with no recalibration required prior to installation.

Q3: How is each unit tested before shipment?
Every 330903-00-19-10-02-05/CN is bench-tested using a calibrated Proximitor sensor and a steel target to verify gap voltage linearity across the full measurement range (0.25–2.25 mm). Test results are logged and available upon request. Units that do not meet Bently Nevada factory specifications are rejected and not shipped.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and out-of-specification gap voltage performance. It does not cover damage resulting from mechanical impact, incorrect installation, or operation outside the rated temperature range. Warranty claims are processed within 5 business days with advance replacement available for critical applications.
