Bently Nevada 330903-00-20-05-02-CN Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330903-00-20-05-02-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

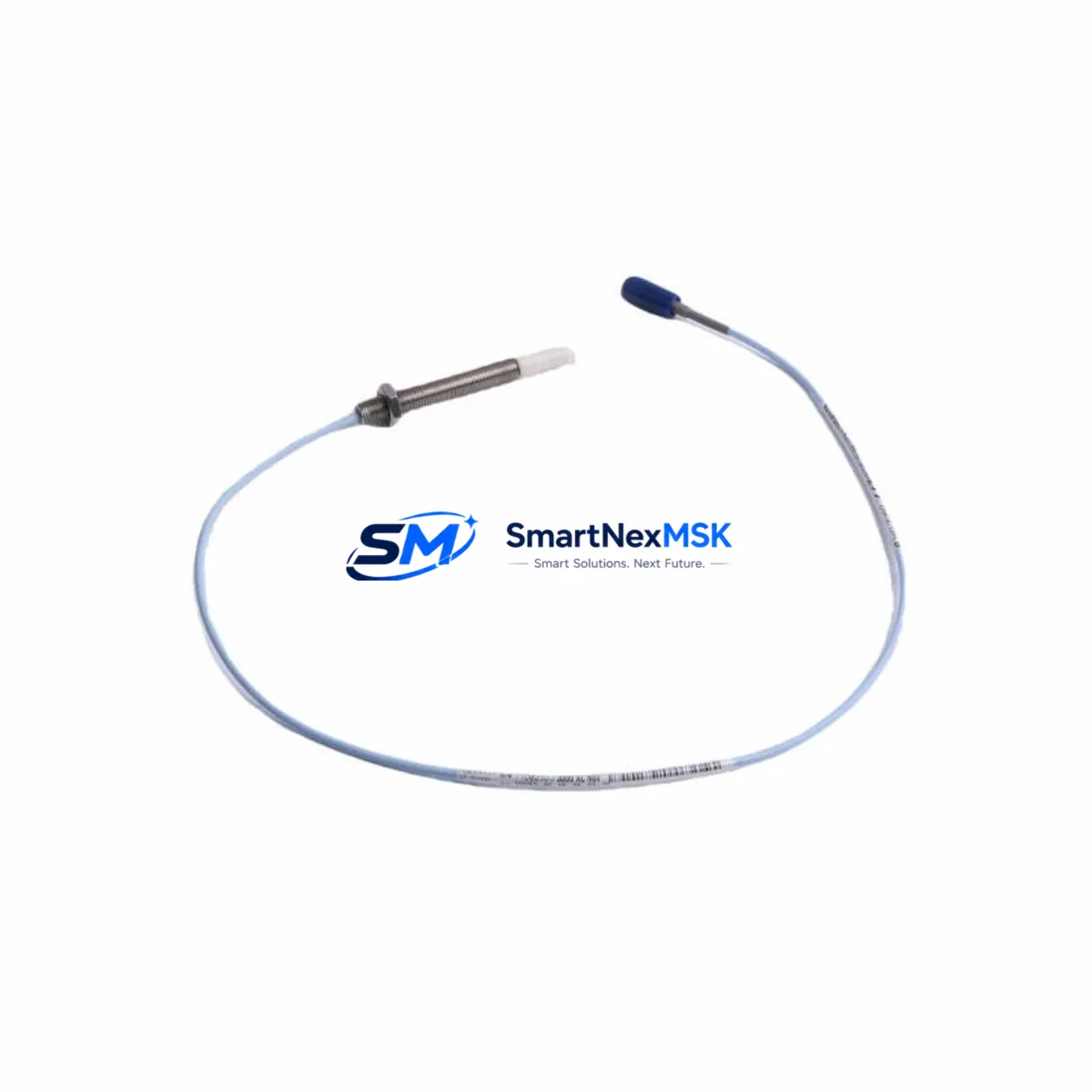

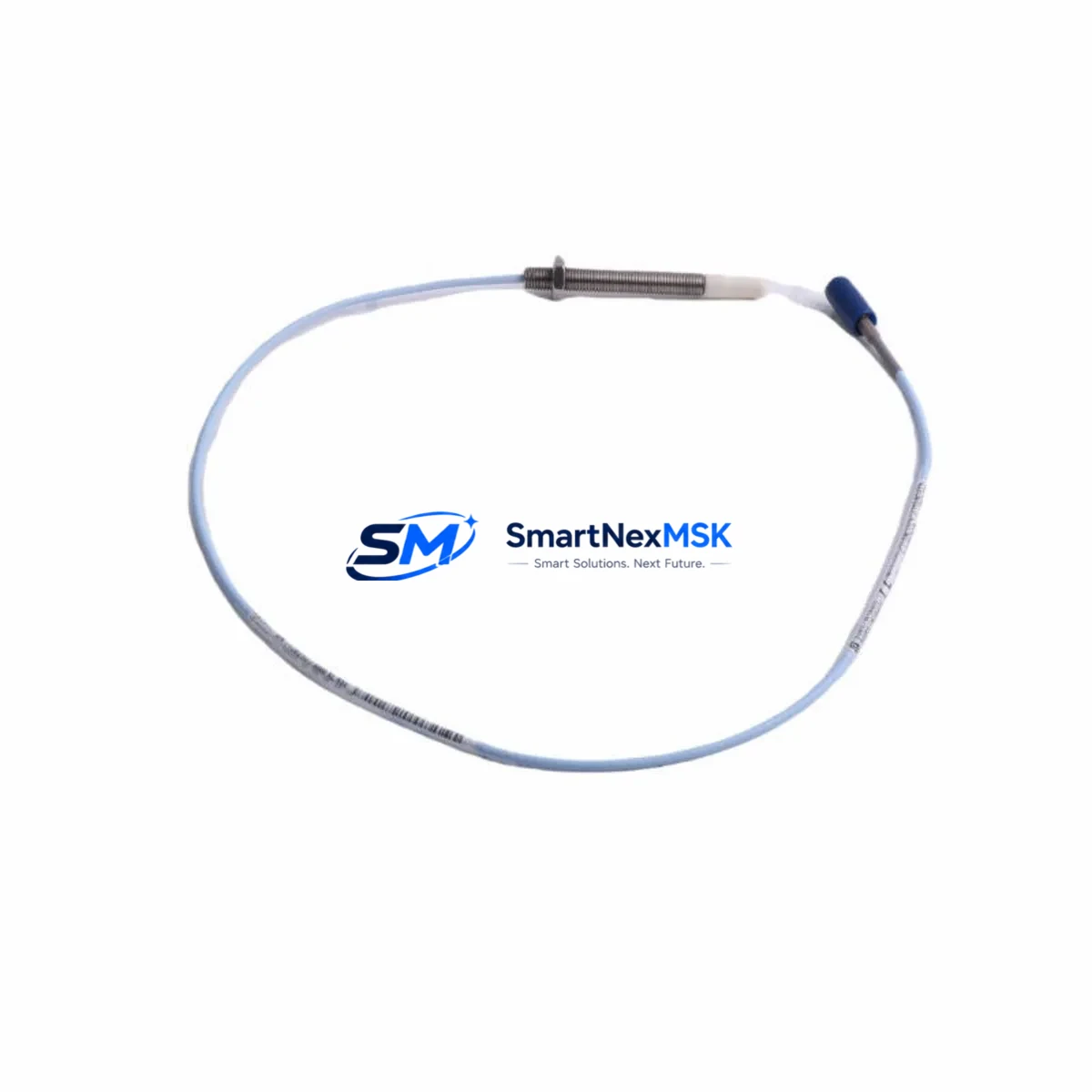

The Bently Nevada 330903-00-20-05-02-CN is a 5mm eddy-current proximity probe engineered for the 3300 XL series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-service life, this probe serves as a verified drop-in replacement for discontinued or worn-out field sensors — enabling smooth retrofit execution without requiring changes to the existing 3300 XL proximitor/driver, field wiring, or Bently Nevada System 1 software configuration. Whether you are upgrading a turbine protection panel, replacing a failed shaft-sensing probe on a compressor train, or restoring a mothballed unit to operational status, the 330903-00-20-05-02-CN delivers the electrical and mechanical compatibility your retrofit plan demands.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When replacing the 330903-00-20-05-02-CN in an operating plant, the first step is to audit the existing 3300 XL rack configuration. Confirm which proximitor module — typically a 330780-50-00 or 330730-50-00 — is paired with the failed probe, and verify that the extension cable (commonly a 330130-080-00-00 or 330180-080-00-00) is undamaged and within its rated length budget. The total cable system length — probe cable plus extension cable — must remain within the 3300 XL specification to maintain calibrated sensitivity.

Next, review the I/O assignment in the 3300 XL monitor module. The 3500/40M or 3500/42M proximity monitor cards that receive the probe signal must have their channel configuration verified in Bently Nevada System 1 software before the swap. If the plant runs a DCS integration — for example, via a 3500 Gateway or a Modbus/TCP link to a Honeywell Experion or Emerson DeltaV system — confirm that the tag mapping and alarm setpoints are preserved in the historian before taking the channel offline. This prevents nuisance alarms and protects the integrity of the vibration trend data.

For plants that also need to replace the proximitor at the same time, the 330780-50-00 proximitor is the standard companion module. If the control cabinet houses a 3500 rack, ensure the rack backplane and power supply module — such as the 3500/15 Power Supply — can support the additional load if multiple channels are being restored simultaneously. In older installations where the 3500/01 rack is nearing capacity, this is also an appropriate time to evaluate whether a 3500/05 I/O module expansion is warranted to accommodate future I/O growth.

Wiring adaptation is another critical checkpoint. The 330903-00-20-05-02-CN uses a standard coaxial signal path; however, if the field junction box or marshalling cabinet uses older terminal blocks that have corroded or loosened over years of service, replace them during the same outage window. Confirm shield grounding at one end only — typically at the proximitor — to avoid ground loops that can corrupt the vibration signal. If the plant uses a Bently Nevada 3300 RAM (Rack Adapter Module) for remote mounting, verify that the RAM’s internal wiring harness is intact before reinstalling the probe.

Finally, if the retrofit scope includes migrating from an older 3300 series (non-XL) platform to the 3300 XL, note that the probe connector and sensitivity specifications differ. In this scenario, a full channel recalibration using a Bently Nevada calibration fixture is mandatory, and the System 1 software database must be updated to reflect the new probe model and sensitivity coefficient before the unit is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clear bypass strategy. Before isolating the channel, use System 1 or the local 3500 rack display to confirm the current vibration reading and OK status. If the machine can continue operating on the remaining channels during the swap — for example, on a two-probe XY configuration where one probe is being replaced — configure the monitor to bypass the affected channel and inhibit the associated trip relay. This prevents a spurious machine trip while the probe is disconnected.

Have the replacement 330903-00-20-05-02-CN, the calibration tool, and a gap-setting gauge ready before breaking the coaxial connection. Once the new probe is installed and the gap is set to the nominal –10 VDC (approximately 1.0 mm for a 5mm probe), restore the channel in System 1 and confirm the OK LED on the 3500/40M or 3500/42M monitor card illuminates. Re-enable the trip relay only after the vibration reading is stable and within the expected baseline range.

For plants with a Bently Nevada TDXnet or System 1 Evolution historian, verify that the channel data gap is annotated with a maintenance event tag so that the vibration trend record remains clean and auditable. If the DCS integration uses a 3500 Gateway with OPC-DA or OPC-UA output to a Yokogawa CENTUM VP or ABB 800xA system, confirm that the OPC tag resumes updating correctly after the channel is restored. This end-to-end verification — from probe gap to DCS display — is the final step that confirms the retrofit is complete and the machine protection system is fully operational.

Retrofit Support FAQ

Q1: Is the 330903-00-20-05-02-CN a direct replacement for the original Bently Nevada part?
Yes. The 330903-00-20-05-02-CN is manufactured to the same dimensional, electrical, and sensitivity specifications as the original Bently Nevada part. It is compatible with the 3300 XL proximitor and monitor system without modification to existing wiring or software configuration. A gap voltage verification is recommended after installation as standard commissioning practice.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to achieve a –10 VDC output (nominal 1.0 mm for a 5mm probe). Verify the OK status on the 3500/40M or 3500/42M monitor card. Confirm the vibration reading in System 1 matches the expected baseline. Re-enable any bypassed trip relays and document the commissioning result in the plant maintenance record.

Q3: Can this probe be used with extension cables from the existing installation?
Yes, provided the total cable system length (probe cable + extension cable) remains within the 3300 XL specification. Standard Bently Nevada 330130 and 330180 series extension cables are compatible. Inspect the extension cable connector and coaxial shield for damage before reuse.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical performance deviations from the published 3300 XL specification. Each unit undergoes pre-shipment functional testing including gap sensitivity verification and OK output confirmation. Warranty claims are supported by SMARTNEXMSK with replacement or repair at no additional cost within the warranty period.
