Bently Nevada 330903-00-24-05-01-00 Spare 3300 XL NSv Automation

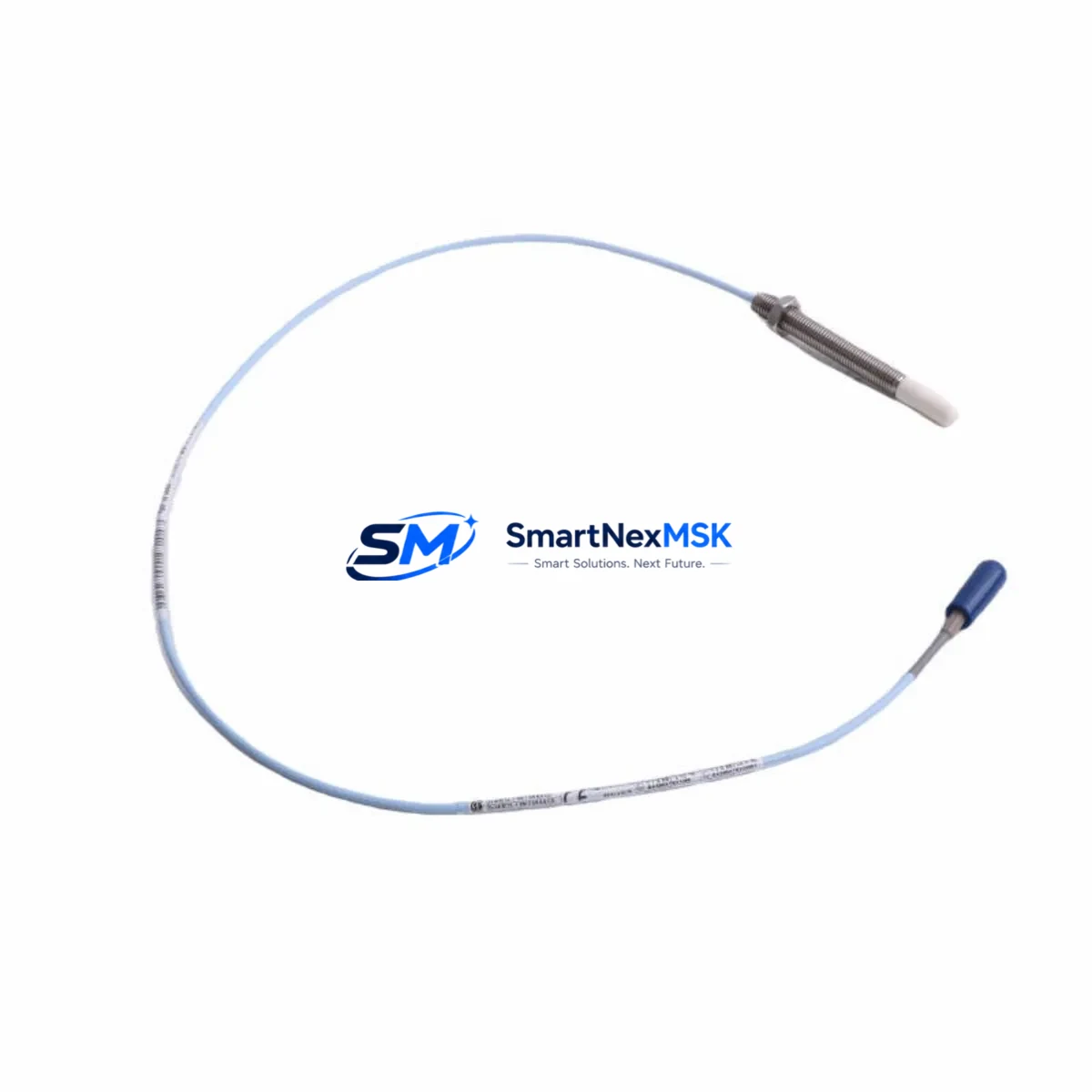

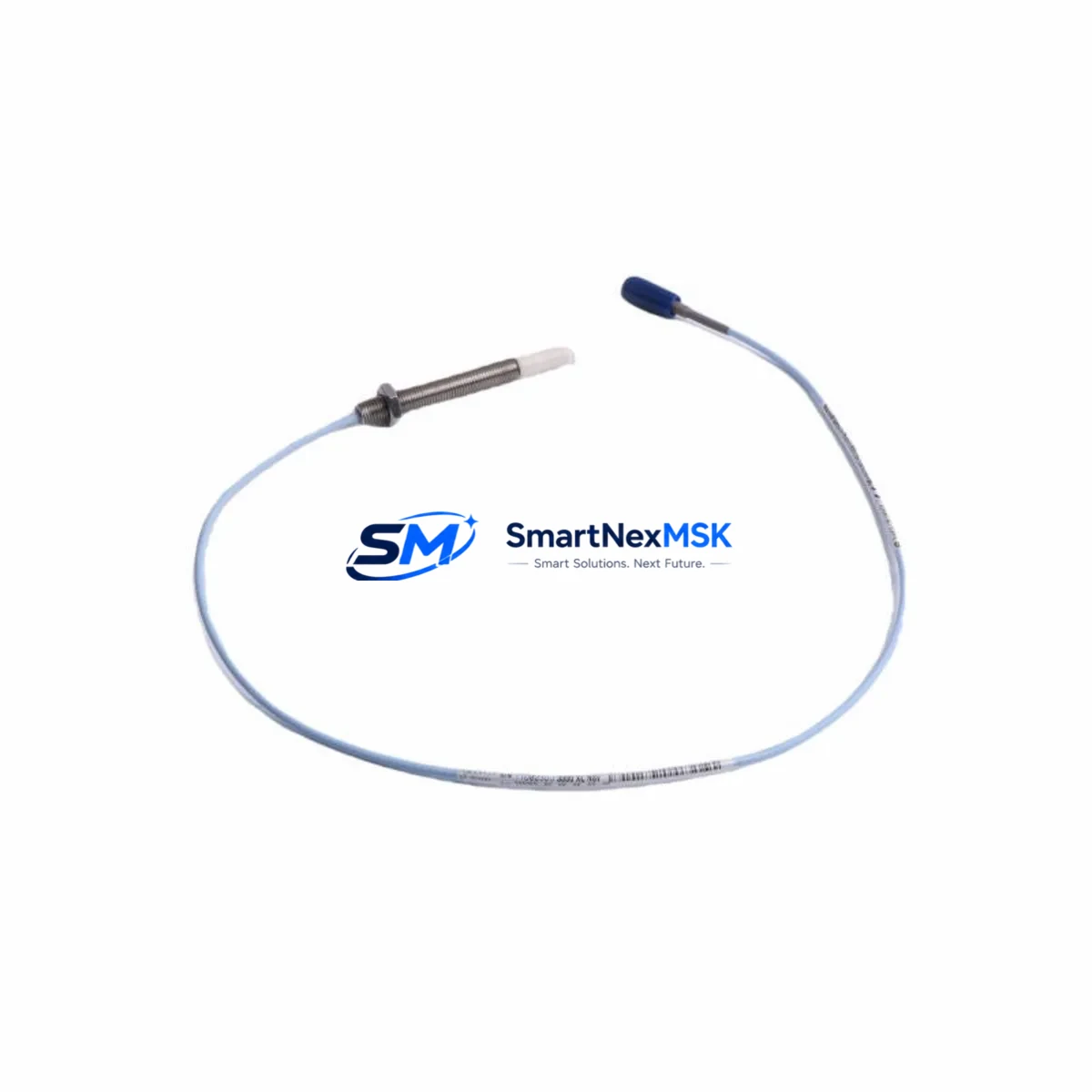

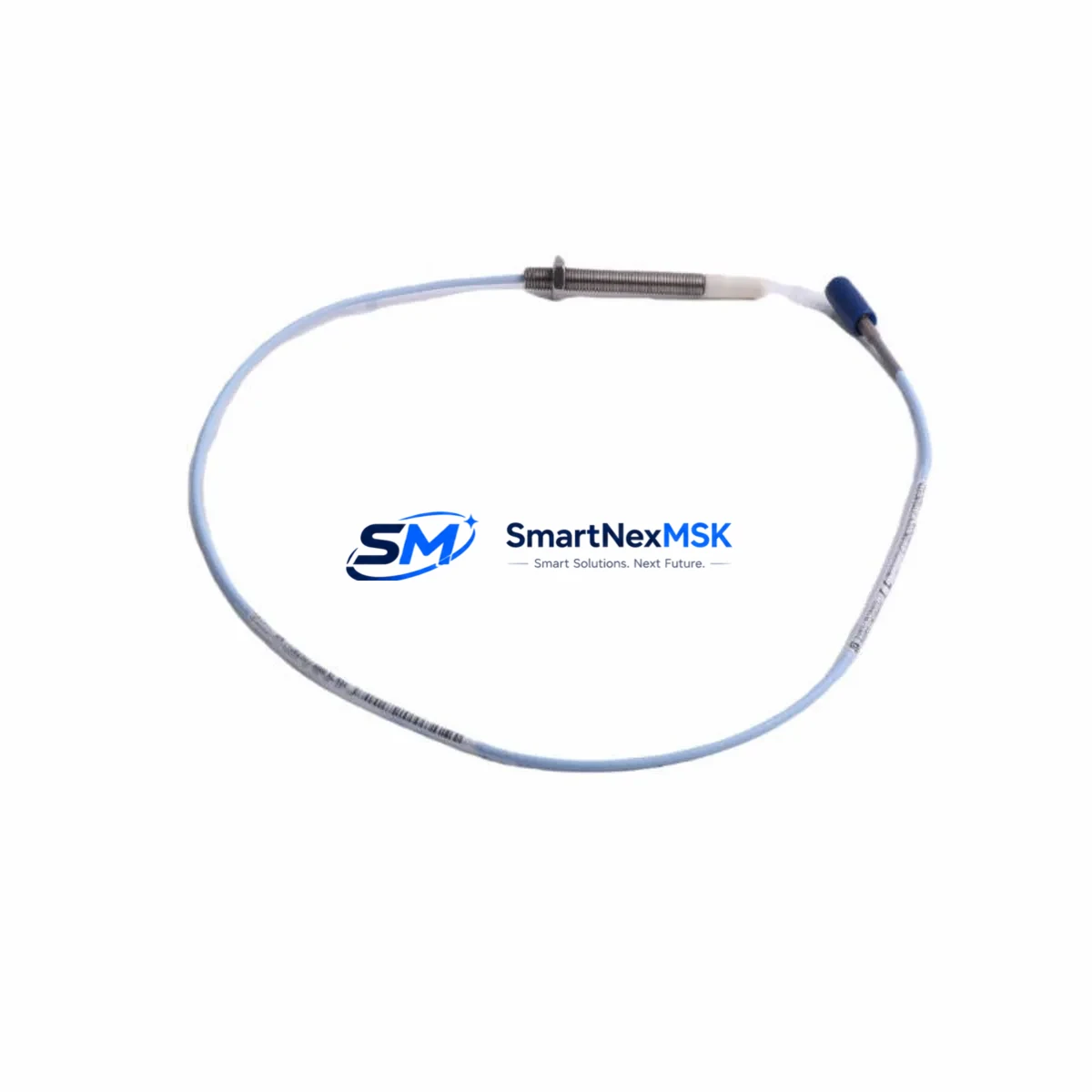

The Bently Nevada 330903-00-24-05-01-00 is an original proximity transducer engineered for the 3300 XL NSv series vibration monitoring system — one of the most widely deployed continuous machinery protection platforms in rotating equipment applications worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes in oil & gas, power generation, petrochemical, and heavy industrial facilities, this transducer is a critical front-line sensing element whose failure directly triggers unplanned downtime and machinery protection alarms.
Sourced as an original Bently Nevada component, the 330903-00-24-05-01-00 is stocked and tested to ensure drop-in compatibility with existing 3300 XL NSv monitor racks. Every unit undergoes pre-shipment functional verification and ships with a 12-month warranty, giving procurement and reliability teams confidence in both quality and long-term supply continuity.
Spare Maintenance Table
| Part Number | 330903-00-24-05-01-00 |
| Brand | Bently Nevada |
| Series | 3300 XL NSv |
| Product Type | Proximity Transducer (Eddy-Current) |
| Probe Length | 24 inches (610 mm) armored cable |
| Tip Diameter | 5 mm |
| Thread Size | M10 × 1 (standard 3300 XL mounting) |
| Operating Gap Range | 0.25 – 2.25 mm (nominal linear range) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Supply Voltage | –24 VDC (via Proximitor® driver) |
| Target Material Compatibility | AISI 4140 steel shaft (standard); verify for non-ferrous targets |
| Temperature Range | –35°C to +177°C (probe tip) |
| Ingress Protection | IP67 (connector end sealed) |
| System Compatibility | 3300 XL NSv Monitor, 3300 XL 8mm Proximitor® Sensor |
| Application | Radial vibration, axial position, differential expansion monitoring |
| Origin | USA |
| Warranty | 12 Months |
| Condition | Original, new or reconditioned — tested before shipment |
Maintenance Planning for Continuous Operation
When a 330903-00-24-05-01-00 proximity transducer is flagged during routine point inspection or triggers a Not OK alarm on the 3300 XL NSv monitor, experienced maintenance engineers know that replacing the probe alone is rarely sufficient for a complete corrective action. A thorough site assessment should extend to the full measurement loop and the surrounding control cabinet infrastructure.
Begin with the 3300 XL 8mm Proximitor® Sensor (driver module), which conditions the transducer signal and is the most common co-failure component — a degraded probe can mask a failing driver, and vice versa. Inspect the interconnect extension cable (typically 330130-series) for jacket cracking, connector corrosion, or continuity loss caused by vibration fatigue over years of service. Verify the –24 VDC power supply module feeding the Proximitor® rack; voltage sag or ripple outside specification will produce erratic gap readings even with a healthy transducer.
At the monitor rack level, check the 3300 XL monitor card for alarm relay contact wear and confirm that the terminal input module (TIM) or field wiring barrier is seated correctly and free of moisture ingress. If the machine train includes thrust position monitoring, the paired 330905-series axial position probe should be inspected simultaneously, as both probes share the same Proximitor® power rail and a common ground reference.
For facilities running integrated machinery protection with a DCS or safety system, verify that the 4–20 mA output signal from the monitor is reaching the DCS I/O card cleanly — a failed transducer can corrupt trend data and trigger nuisance trips. Where signal isolation is required between the 3300 XL output and the DCS analog input, inspect any installed signal isolator or galvanic separator for drift. On older installations, terminal blocks and DIN rail connectors in the junction box should be re-torqued and checked for oxidation, particularly in humid or offshore environments.
If the machine is part of a planned overhaul, this is also the right time to audit the keyphasor® transducer (330500-series) used for phase reference and speed measurement — its cable routing and gap setting directly affect the accuracy of all vibration vectors reported by the 3300 XL system. Finally, confirm that the rack power supply (3300 XL PSU) has adequate load margin after adding any replacement modules, and that the system’s configuration software (System 1® or Rack Configuration Tool) reflects the updated transducer parameters before returning the machine to service.
Site Replacement Workflow
Replacing the 330903-00-24-05-01-00 in the field follows a structured sequence designed to minimize downtime and avoid secondary faults. Before removing the old probe, record the installed gap voltage (typically –10.0 to –11.0 VDC for a 1.0 mm gap on a steel shaft) as a baseline for the replacement setup. Isolate the Proximitor® driver from the –24 VDC supply rail, then carefully extract the probe from the bearing housing bracket, noting the thread engagement depth for reinstallation reference.
Install the replacement 330903-00-24-05-01-00 to the same thread depth, reconnect the extension cable, and restore power. Use a calibrated gap-setting tool or feeler gauge to achieve the target gap within the linear range (0.25–2.25 mm). Confirm the output voltage at the Proximitor® output terminals matches the expected sensitivity curve before reconnecting to the monitor card. Clear any latched alarms in the 3300 XL monitor, verify the OK relay status, and perform a brief coast-down or bump test if operationally feasible to confirm vibration signal integrity.
This workflow is compatible with direct replacement of legacy 330903-series probes across all 3300 XL NSv rack configurations, eliminating the need for recalibration of the monitor card or changes to the system database — a key advantage for emergency replacements where minimizing restart time is critical.
Spare Parts Support FAQ
Q1: Is the 330903-00-24-05-01-00 a direct drop-in replacement for older 330903-series probes?
Yes. The 330903-00-24-05-01-00 maintains dimensional and electrical compatibility with all prior 330903-series variants used in 3300 XL NSv systems. No monitor reconfiguration is required for a like-for-like swap, provided the extension cable and Proximitor® driver are also in good condition.
Q2: What is your inventory and lead time policy for this part?
We maintain buffer stock of high-demand 3300 XL NSv components to support emergency and planned maintenance requirements. Standard orders ship within 1–3 business days. For critical shutdown situations, contact our sales team directly for expedited dispatch options.
Q3: How is each unit tested before shipment?
Every 330903-00-24-05-01-00 unit undergoes pre-shipment electrical verification including output sensitivity check, insulation resistance test, and connector integrity inspection. Units are packaged in anti-static, shock-protected packaging to prevent transit damage.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation gap settings, mechanical impact, or operation outside the specified temperature and voltage range. Warranty claims are processed with full technical support from our team.
