Bently Nevada 330903-04-10-10-01-00 Retrofit-Ready Proximity Probe

Bently Nevada 330903-04-10-10-01-00 Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

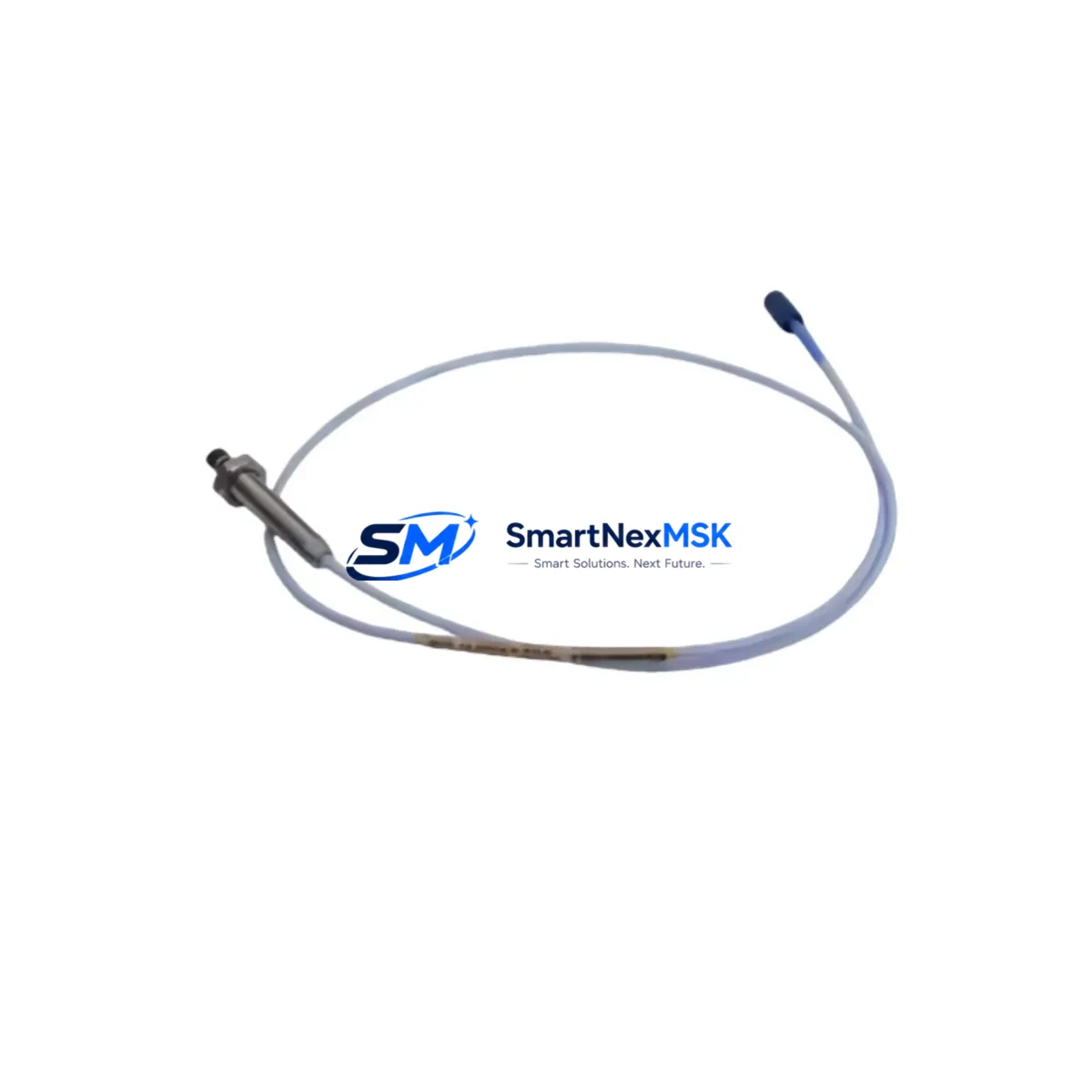

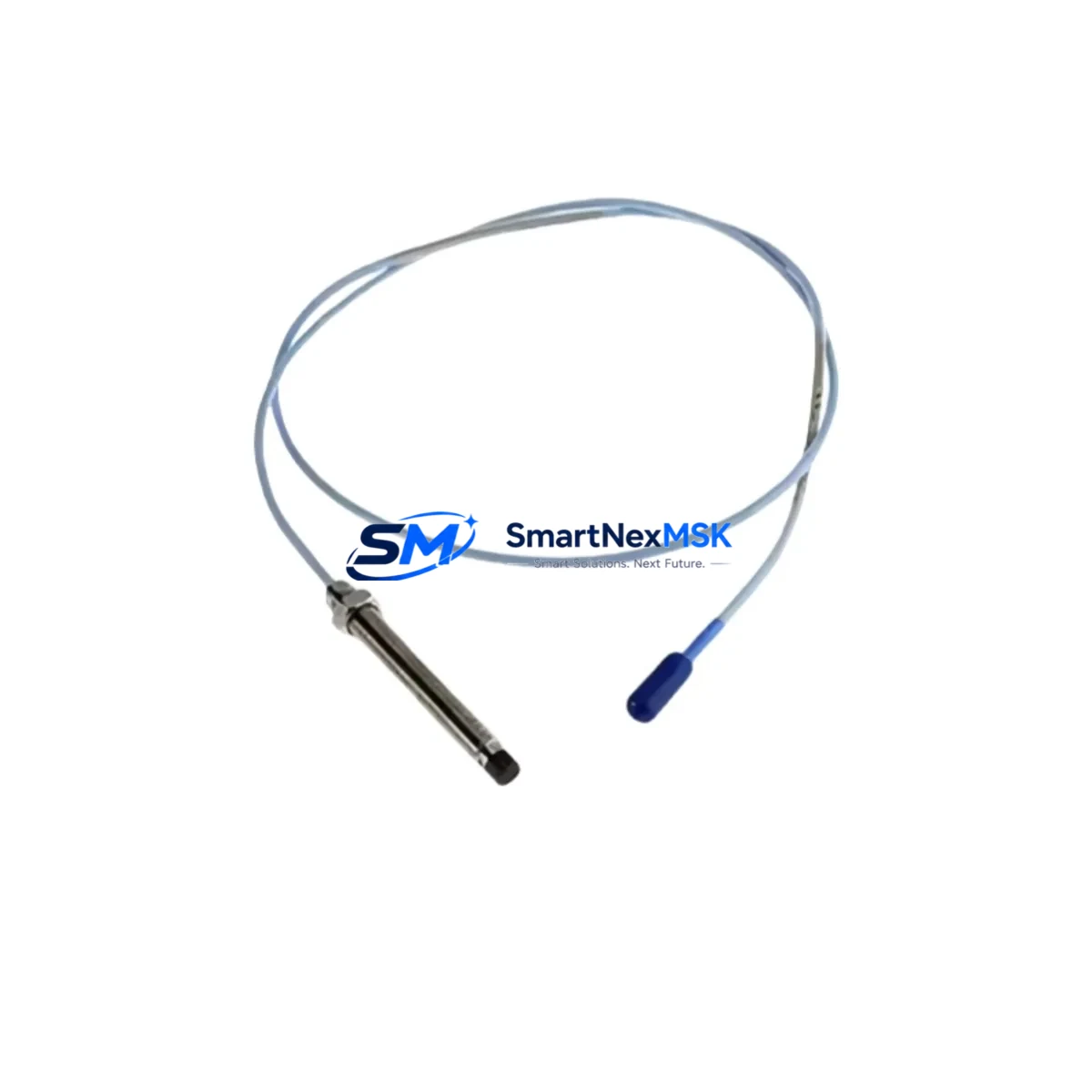

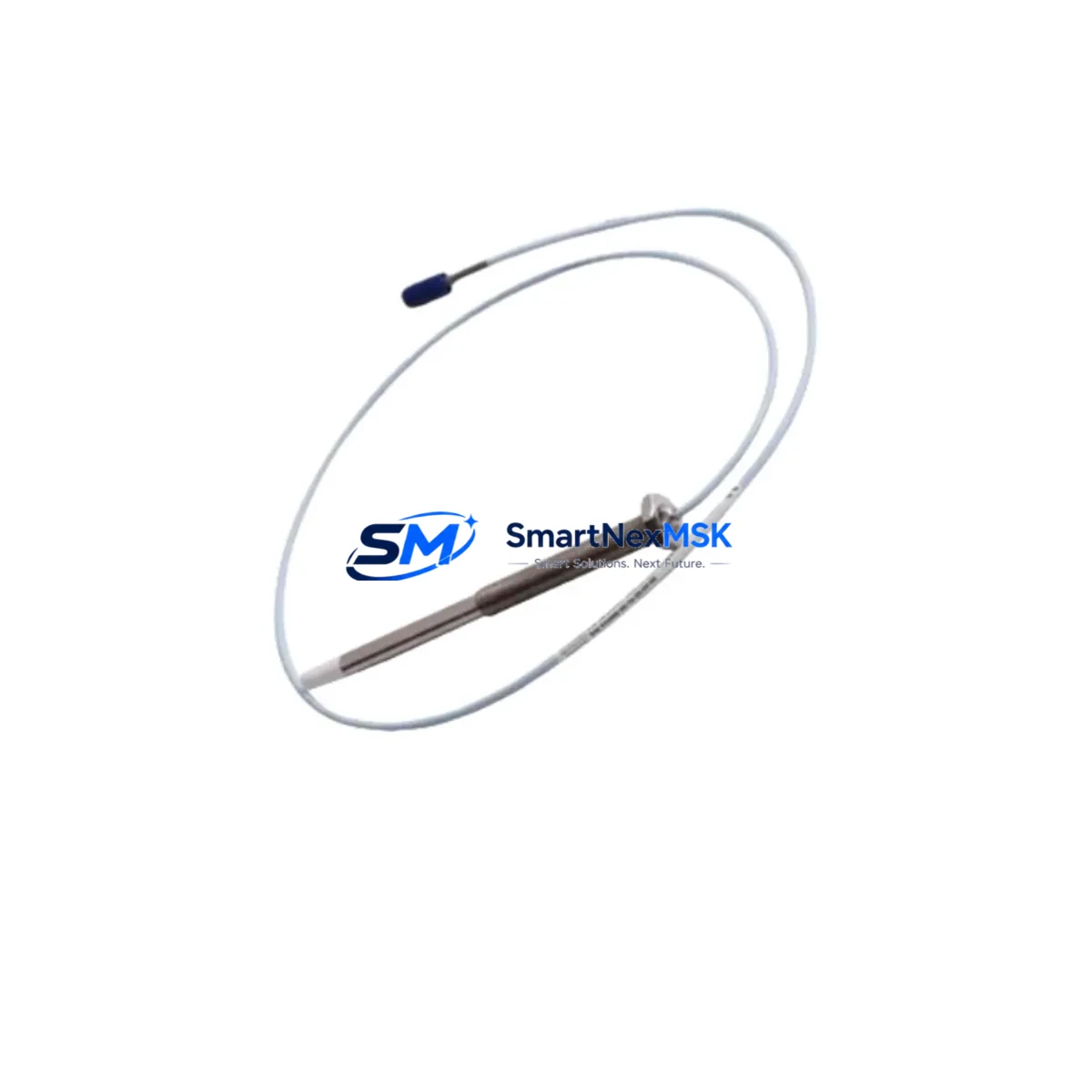

The Bently Nevada 330903-04-10-10-01-00 is a high-precision eddy-current proximity probe engineered for the 3300 NSv Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life or face discontinued spare parts availability, this drop-in replacement module provides a validated upgrade path that preserves existing wiring infrastructure, connector pinouts, and gap voltage calibration — minimizing retrofit risk and unplanned downtime across turbine, compressor, and pump train applications.

Designed for engineers and maintenance teams executing planned overhauls or emergency replacements, the 330903-04-10-10-01-00 integrates directly into existing 3300 NSv monitor racks without requiring re-engineering of the signal chain. The probe’s 8 mm tip diameter, standard 5-metre armored extension cable, and -24 VDC bias voltage output are fully compatible with the 3300/16 Monitor and 3300/20 Monitor channel cards, ensuring continuity of vibration, position, and speed measurement functions during the transition.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330903-04-10-10-01-00 into an operating plant environment requires systematic pre-work across several interdependent subsystems. Before scheduling the outage window, maintenance engineers should audit the full probe-to-monitor signal chain, beginning at the 3300 NSv Proximitor® Sensor (driver/oscillator module) mounted in the field junction box. The Proximitor converts the raw eddy-current signal into a calibrated DC voltage; if the existing Proximitor shows drift or connector corrosion, it should be replaced concurrently using the matched 330180-91-05 or equivalent NSv-series driver to avoid introducing a new measurement offset after probe swap.

Wiring continuity from the probe tip through the 3300 XL Extension Cable to the Proximitor input must be verified with a calibrated ohmmeter before energizing the new probe. Pay particular attention to the shield drain wire termination at the 3300 Series I/O Module terminal block — improper shield grounding is the most common source of noise injection that triggers nuisance trips on the 3300/16 Monitor after a probe replacement.

For plants running the System 1 Condition Monitoring Software (formerly GE Bently Nevada System 1), the probe replacement does not require a software configuration change provided the channel sensitivity (200 mV/mil or 7.87 V/mm) remains unchanged. However, the 3500/42M Proximitor/Seismic Monitor — if installed in a hybrid rack alongside 3300-series cards — may require a channel re-scan after the probe is swapped to re-establish the baseline vibration reference. Engineers should also confirm that the 3300/55 Keyphasor® Module phase reference signal is unaffected, as Keyphasor timing is used for synchronous vibration analysis across all channels in the rack.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a standalone 3300 rack to a 3500 Series Machinery Protection System — the 330903-04-10-10-01-00 probe remains mechanically compatible, but the signal conditioning path changes. In this scenario, the field wiring from the probe can be re-terminated directly to the 3500/42 I/O Module terminal block without re-pulling cables, provided the total cable run does not exceed the system’s specified maximum loop resistance. This approach is particularly valuable in brownfield compressor train upgrades where conduit re-routing is cost-prohibitive.

For I/O expansion projects adding new measurement points to an existing 3300 rack, the 3300/25 Dual Voting Monitor accepts the same probe/Proximitor combination and can be installed in an open rack slot without disrupting adjacent channels. All units are shipped with pre-tested gap voltage documentation and a factory inspection report to support your incoming quality verification process.

Downtime Control During System Migration

Minimizing mean time to repair (MTTR) during a proximity probe replacement begins with pre-staging. Before the planned outage, verify that the replacement 330903-04-10-10-01-00 probe, the matched Proximitor sensor, and all required hand tools (gap-setting gauge, torque wrench, coaxial termination kit) are physically present at the work site. A pre-outage bench test — connecting the new probe to a portable 3300 NSv Calibrator or equivalent signal simulator — confirms the probe’s sensitivity and linearity before it enters the machine.

During the outage, follow a structured sequence: isolate the monitor channel (place the 3300/16 Monitor channel in bypass mode via the front-panel keyswitch or System 1 software command), remove the old probe, install the new 330903-04-10-10-01-00, set the air gap to the manufacturer-specified value (typically 1.0–1.5 mm for 8 mm probes on steel targets), and re-energize the Proximitor. Record the as-found and as-left gap voltage readings in the maintenance management system before releasing the channel from bypass.

Original program logic in the 3300/16 Monitor — including alarm setpoints, danger setpoints, time delays, and voting logic — is stored in non-volatile memory on the monitor card and is not affected by a probe replacement. There is no need to re-download configuration from System 1 unless the channel sensitivity or transducer type is being changed. This preserves control continuity and eliminates the risk of inadvertent setpoint modification during the maintenance window.

For sites with redundant probe installations (XY probe pairs on critical machinery), the replacement can be performed one probe at a time while the complementary channel remains in service, further reducing exposure to unprotected operation. All units supplied by SMARTNEXMSK are covered by a 12-month warranty and are shipped with full functional test documentation to support your site acceptance procedure.

Retrofit Support FAQ

Q1: Is the 330903-04-10-10-01-00 a direct drop-in replacement for all 3300 NSv proximity probe variants?
A: Yes, for the standard 8 mm, 5-metre system configuration. The probe tip geometry, connector type, and bias voltage output are identical to the original NSv-series specification. If your installation uses a non-standard cable length (e.g., 9-metre or 15-metre extension), please confirm the total system length before ordering, as the Proximitor driver must be matched to the total cable capacitance.

Q2: What commissioning steps are required after installation?
A: After mechanical installation, set the probe-to-target air gap using a non-ferrous feeler gauge and verify the Proximitor output voltage falls within the linear range (typically -10 VDC ± 1 VDC at nominal gap for a steel target). Confirm the monitor channel alarm and danger setpoints are unchanged. Perform a slow-roll vibration check before returning the machine to full-speed operation.

Q3: How do I verify wiring compatibility before installation?
A: Use the existing terminal block labeling on the 3300 Series I/O Module as the reference. The 330903-04-10-10-01-00 uses the same 3-conductor coaxial wiring convention (center conductor, shield, and drain) as all NSv-series probes. No rewiring is required if the existing extension cable and Proximitor are in serviceable condition.

Q4: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects in materials and workmanship under normal operating conditions. Each unit is functionally tested prior to shipment, and a test report is included in the packaging. Warranty claims are processed directly through SMARTNEXMSK — contact sales@smartnexmsk.com with your order number and a description of the fault.
