Bently Nevada 330904-00-06-10-02-05/CN Spare 3300 NSv

Bently Nevada 330904-00-06-10-02-05/CN Maintenance-Ready Spare for 3300 NSv Automation

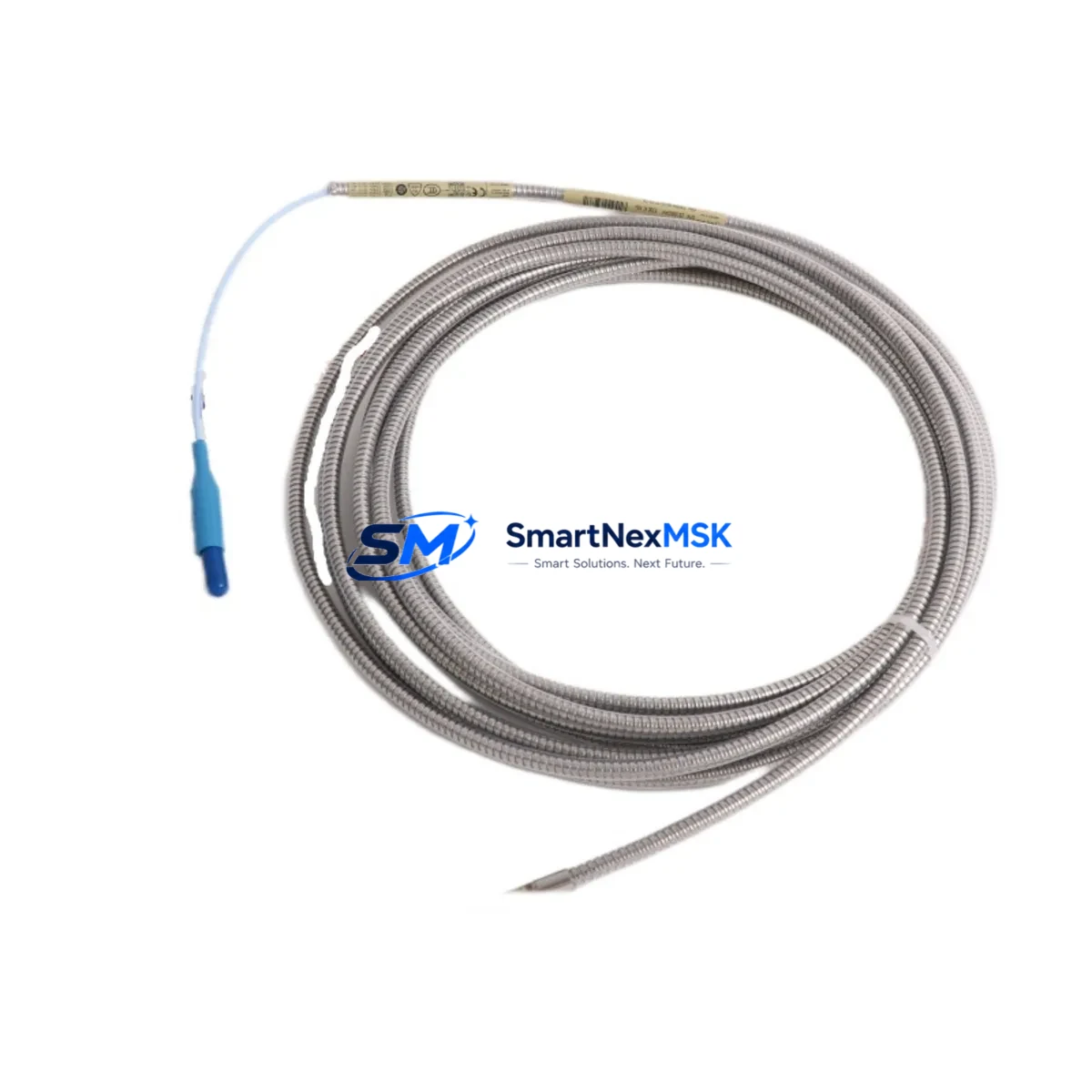

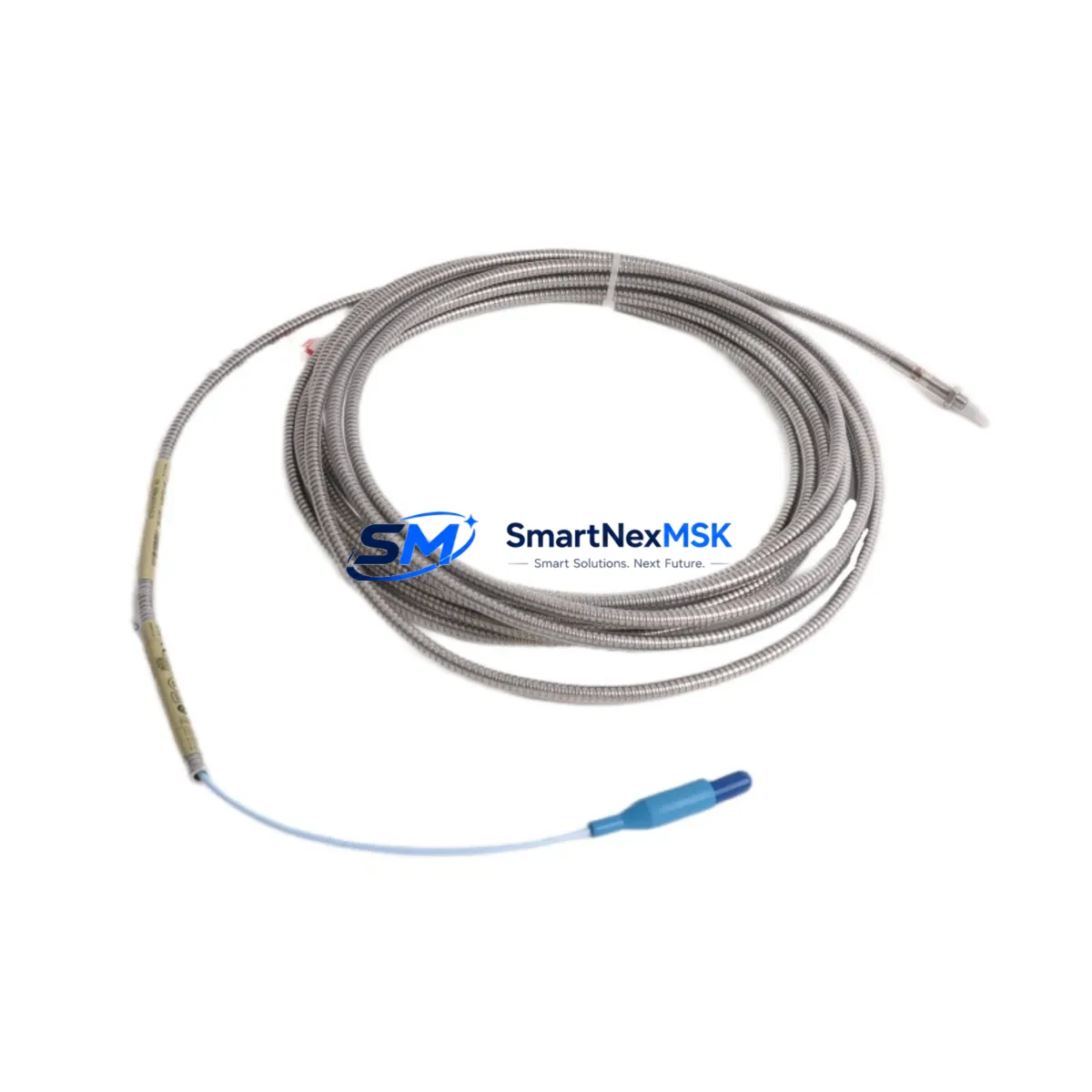

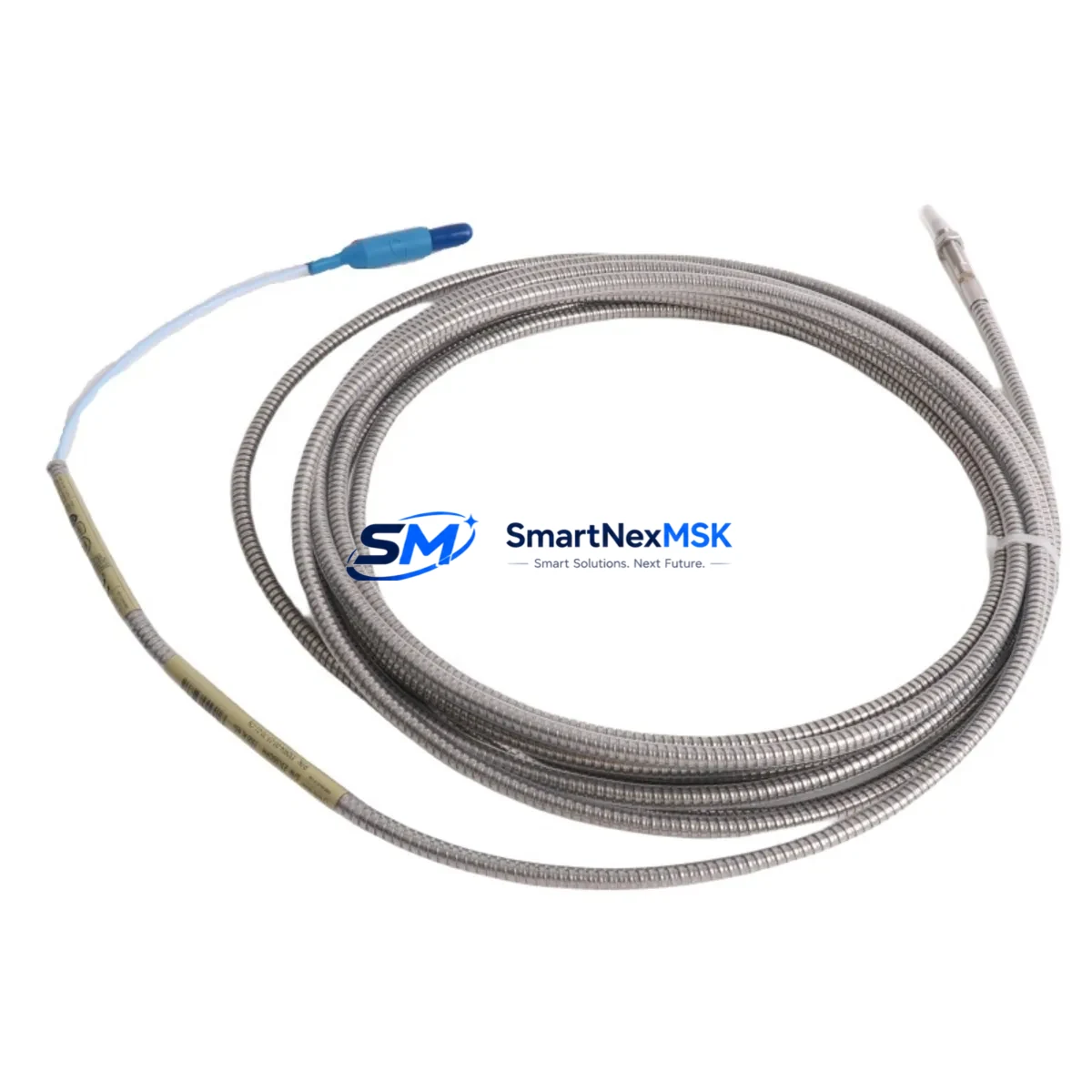

The Bently Nevada 330904-00-06-10-02-05/CN is an original eddy current proximity probe engineered for continuous vibration and position monitoring in rotating machinery protection systems. Designed as a direct-fit replacement within the 3300 NSv Series, this probe delivers the measurement accuracy and signal integrity that maintenance engineers depend on to prevent unplanned shutdowns in turbines, compressors, pumps, and gearboxes across oil & gas, power generation, petrochemical, and heavy industrial facilities.

When a proximity probe fails or degrades, the consequences extend far beyond a single sensor. The entire vibration monitoring loop — from probe tip to the 3300 NSv monitor rack — must be validated before returning the machine to service. Sourcing a tested, original-specification replacement like the 330904-00-06-10-02-05/CN from a reliable spare parts supplier is the fastest path to restoring full protection coverage and minimizing mean time to repair (MTTR).

Every unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification, is packaged for transit protection, and is backed by a 12-month warranty covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330904-00-06-10-02-05/CN probe in isolation is rarely sufficient for a complete maintenance intervention. Experienced maintenance engineers treat a proximity probe replacement as the trigger for a broader inspection of the entire measurement chain and the surrounding control cabinet infrastructure.

Begin with the extension cable (typically a 330130 or 330140 series matched cable). The probe and extension cable form a tuned system — mismatched lengths or a damaged cable will produce erroneous gap voltages even with a new probe installed. Inspect the cable jacket for abrasion, heat damage, or connector corrosion before reuse.

Next, verify the 3300 NSv driver/oscillator module (such as the 330180 proximitor). The driver conditions the probe signal and converts it to a usable DC output. A worn or thermally stressed driver can mask probe degradation or introduce offset errors that only appear under load. If the probe has failed due to electrical overstress, the driver should be treated as suspect and bench-tested or replaced preventively.

Within the 3300 NSv monitor rack, inspect the monitor card for alarm setpoint integrity, OK relay status, and any latched fault indicators. The 3300/16 or 3300/20 monitor cards should be checked for firmware currency and calibration date. While the cabinet is open, inspect the terminal strip and field wiring for loose terminations, insulation breakdown, or moisture ingress — common failure contributors in high-vibration environments.

For machines where the proximity probe feeds a 3500 Series machinery protection system, confirm that the 3500/42M or 3500/44M monitor module is correctly configured for the probe sensitivity and gap range. A probe swap without reconfiguring the monitor’s OK limits will generate nuisance trips or, worse, suppress valid alarms.

If the machine is also equipped with a Keyphasor module (such as the 3300/25 or 3500/17), verify that the Keyphasor signal is clean and phase-referenced correctly after the probe replacement, as vibration vector calculations depend on it. Additionally, check any associated 4–20 mA output isolators or signal conditioners feeding the DCS or SCADA system — these components can introduce ground loops that corrupt vibration readings at the historian level.

Finally, review the power supply module feeding the 3300 NSv rack. Voltage sag or ripple on the -24 VDC rail will directly affect probe output linearity. A healthy spare power supply module in the maintenance stockroom is a low-cost insurance policy against extended downtime.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement probe part number matches the installed probe exactly, including cable length suffix and connector type. The 330904-00-06-10-02-05/CN is a specific configuration; substituting a different length or sensitivity variant without recalibration will produce measurement errors.

Step 2 — Safe isolation: Follow site LOTO procedures. Note the current gap voltage reading from the monitor before disconnecting — this serves as a baseline for post-installation verification.

Step 3 — Probe removal and inspection: Remove the probe from the mounting bracket. Inspect the probe tip for physical damage, pitting, or contamination. Inspect the target surface (shaft) for runout, scratches, or residue that could affect the new probe’s reading.

Step 4 — Installation and gap setting: Install the new 330904-00-06-10-02-05/CN probe and set the gap to the manufacturer-specified nominal gap (typically 50 mil / 1.27 mm for 8 mm probes). Use a calibrated gap-setting tool or feeler gauge. Torque the locknut to specification.

Step 5 — Signal verification: With the system energized, confirm the gap voltage at the monitor is within the OK band (typically -10 to -18 VDC for a 200 mV/mil probe at 50 mil gap). Verify the OK relay is energized and no alarms are active.

Step 6 — Documentation: Record the new probe serial number, installation date, gap voltage, and technician ID in the equipment maintenance log. Update the spare parts inventory to reflect consumption and trigger a reorder if stock falls below the minimum level.

This workflow applies equally when upgrading from an older 330900 series probe to the current 330904 specification, ensuring backward compatibility with existing 3300 NSv and 3500 Series monitor infrastructure without requiring rack reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330904-00-06-10-02-05/CN a direct replacement for older 330900 series probes?
In most installations, yes. The 330904 series maintains the same sensitivity (200 mV/mil), connector interface, and gap range as the 330900 series. However, always verify the extension cable length and driver compatibility before installation, as some legacy systems use non-standard cable configurations.

Q2: How do you verify the probe is functioning correctly before installation?
Each unit shipped by SMARTNEXMSK is pre-tested for output linearity, OK voltage range, and connector integrity. On-site, you can verify probe function using a Bently Nevada proximitor tester or a calibrated bench setup with a -24 VDC supply and a non-ferrous target at a known gap distance.

Q3: What is your lead time and inventory policy for the 330904-00-06-10-02-05/CN?
We maintain ready stock of high-demand Bently Nevada 3300 NSv and 3500 Series components to support emergency and planned maintenance requirements. Standard lead time for in-stock units is 1–3 business days for international express shipment. Contact sales@smartnexmsk.com for current availability and volume pricing.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, performance non-conformance to published specifications, and DOA (dead on arrival) units. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed with return authorization; replacement units are dispatched within 5 business days of claim approval.
