Bently Nevada 330904-00-07-05-01-00 3300 XL NSv Retrofit

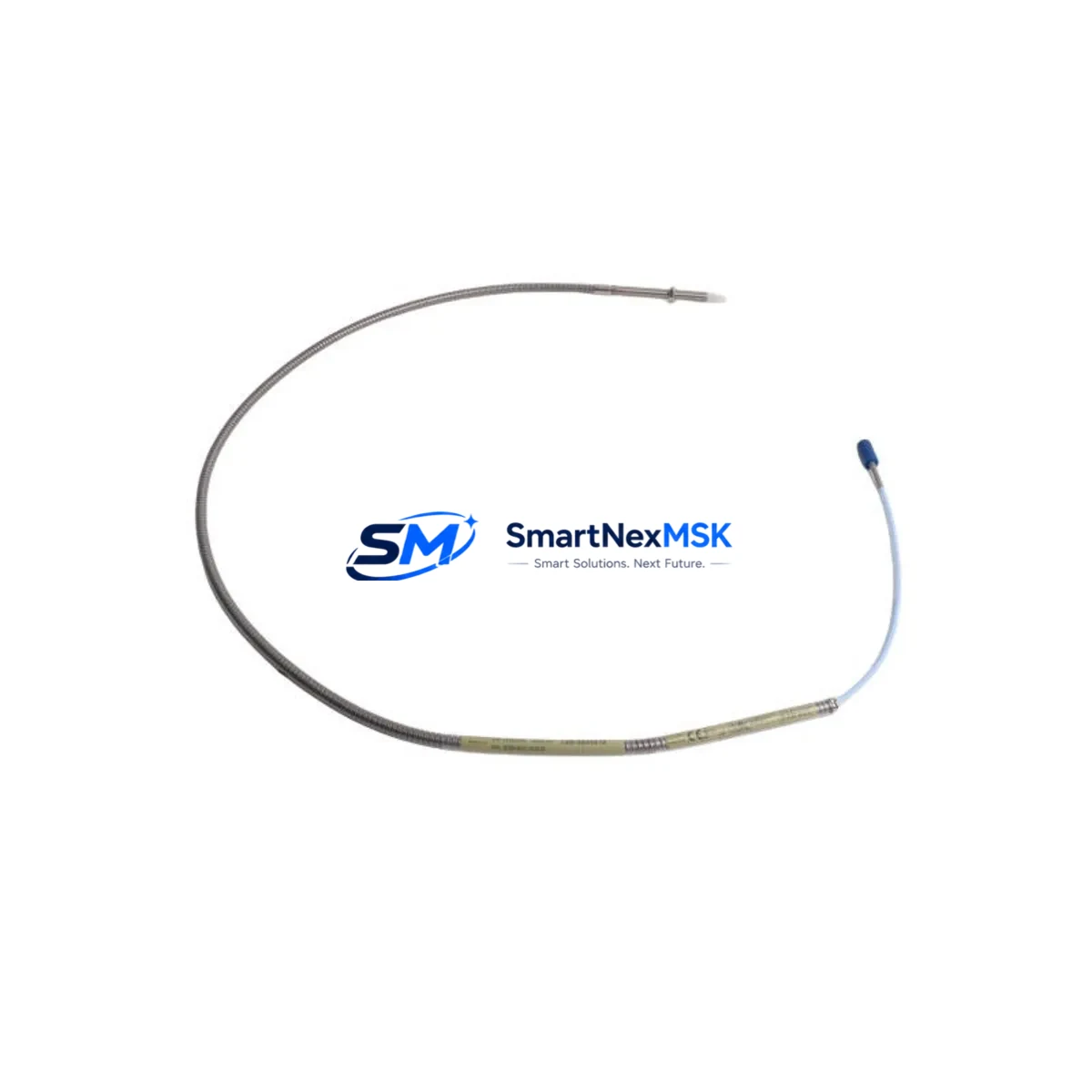

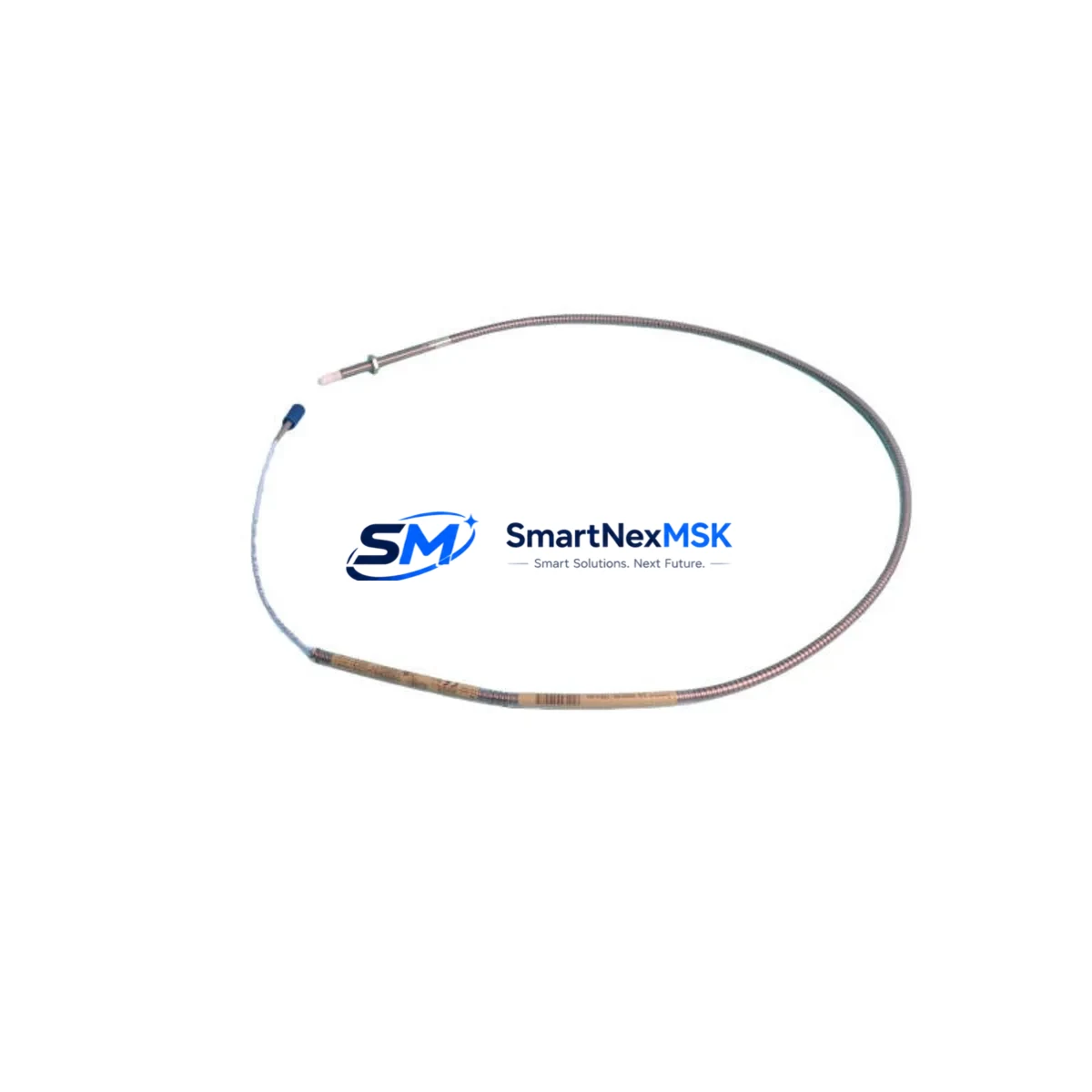

Bently Nevada 330904-00-07-05-01-00 Retrofit-Ready Proximity Transducer for 3300 XL NSv Control Systems

The Bently Nevada 330904-00-07-05-01-00 is a high-precision proximity transducer designed for seamless integration into Bently Nevada 3300 XL NSv vibration monitoring systems. As legacy machinery protection platforms approach end-of-life or face discontinued spare parts availability, this module serves as a verified drop-in replacement that preserves existing wiring configurations, signal conditioning parameters, and rack-level compatibility — enabling plant engineers to execute controlled retrofits without redesigning the entire monitoring architecture.

This transducer operates within the eddy-current sensing principle, delivering non-contact displacement measurement for rotating machinery including turbines, compressors, pumps, and gearboxes. Its output signal is fully compatible with the 3300 XL NSv monitor cards, allowing direct substitution without recalibration of the signal processing chain. Engineers migrating from earlier 3300 series hardware — including the 3300/16 and 3300/20 monitor modules — will find that the 330904-00-07-05-01-00 maintains backward signal compatibility while meeting current API 670 machinery protection standards.

When planning a retrofit around this transducer, field teams should verify the existing extension cable length and connector type. The standard Bently Nevada 330130 extension cable and 330180 armored extension cable are both compatible with this probe, and the total system length — probe plus extension — must be confirmed against the driver module’s calibrated range. The paired driver, typically a 3300 XL 8mm driver such as the 330180-91-00 or 330180-90-00, must be checked for firmware revision compatibility before commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330904-00-07-05-01-00 begins well before the maintenance window opens. Plant engineers should pull the existing loop drawings to confirm terminal assignments on the 3300 XL NSv monitor card — specifically the barrier terminal block wiring that connects the transducer signal to the monitor’s input channel. In intrinsically safe installations, the associated Zener barrier or galvanic isolator must be rated for the probe’s output impedance and current draw.

The 3300 XL NSv rack system typically houses multiple monitor modules alongside the 330904 transducer loop. During the retrofit, teams commonly encounter the need to simultaneously address adjacent components: the 3300 XL 16-channel I/O module, the 3300 XL power supply module (such as the 3300/05 or 3300/10 rack power supply), and the 3300 XL keyphasor module if shaft reference signals are part of the monitoring scheme. Replacing the transducer without auditing the power supply rail voltage and ripple can introduce measurement noise that masks genuine machinery faults.

For plants running a Bently Nevada System 1 or System 1 Evolution software platform, the transducer channel configuration — including sensitivity factor (mV/mil or mV/µm), gap voltage, and alarm setpoints — is stored in the monitor database. After physical replacement of the 330904-00-07-05-01-00, the System 1 configuration must be validated against the new probe’s calibration certificate. If the plant uses a DCS integration via Modbus RTU or OPC-DA through a 3500/92 communication gateway, the data mapping should be verified to ensure no channel offset has been introduced.

In older installations where the control cabinet also houses a Bently Nevada 3500 rack alongside legacy 3300 hardware, the retrofit may present an opportunity to consolidate monitoring onto the 3500/42M or 3500/45 monitor modules, which offer enhanced diagnostics and direct Ethernet/IP connectivity. The 330904-00-07-05-01-00 probe is mechanically and electrically compatible with 3500 series drivers when the appropriate 3500/20 rack interface module is present, making it a bridge component in phased migration strategies.

Field teams should also account for the HMI layer: if the plant uses a Rockwell FactoryTalk View or Wonderware InTouch SCADA screen that displays vibration trends from the 3300 XL NSv system, the tag addresses and engineering unit scaling must be confirmed after the transducer swap. A mismatch in sensitivity factor between the old and new probe will shift the displayed vibration amplitude, potentially triggering nuisance alarms or — more critically — masking a real trip condition.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer retrofit requires a structured pre-outage checklist. Before the maintenance window, the replacement 330904-00-07-05-01-00 should be bench-tested using a Bently Nevada 330180 calibration fixture or equivalent gap simulator to confirm the output voltage at the nominal gap distance matches the calibration certificate. This pre-verification step eliminates the risk of installing a unit with a latent defect and discovering the fault only after the machine is back online.

During the outage, the original probe should be removed carefully to preserve the mounting bracket and thread condition. The new 330904-00-07-05-01-00 should be installed to the same gap setting — typically 1.0 mm to 2.0 mm depending on the target material and driver calibration — and the gap voltage confirmed at the monitor terminal before the extension cable is fully dressed and secured. The 3300 XL NSv monitor card’s OK relay should be verified to reset cleanly after the new probe is connected, confirming that the signal is within the monitor’s acceptance window.

Original program logic in the DCS or safety PLC — such as a Triconex TMR controller or a Yokogawa CENTUM VP DCS — should not require modification for a like-for-like transducer replacement, provided the sensitivity factor and gap voltage are matched. However, if the retrofit is part of a broader migration from 3300 to 3500 series hardware, the function block parameters in the safety logic should be reviewed by a qualified functional safety engineer before the system is returned to service. Maintaining a parallel monitoring path — keeping the old 3300 XL NSv channel active while commissioning the new loop — is the most effective strategy for preserving control continuity during phased migrations.

Retrofit Support FAQ

Q1: Is the 330904-00-07-05-01-00 a direct replacement for all 330904 series variants?
The 330904-00-07-05-01-00 is the standard 8mm, 5-meter cable variant in the 330904 family. It is a direct replacement for units with the same cable length and connector specification. Variants with different cable lengths (e.g., 330904-00-07-10-01-00 for 10-meter cable) are not interchangeable without recalibrating the driver module for the new total system length. Always confirm the cable length suffix before ordering.

Q2: What commissioning steps are required after installation?
After physical installation, set the probe gap to the value specified on the driver module’s calibration label (typically expressed as a gap voltage, e.g., –10.0 VDC at 1.0 mm gap). Verify the OK relay on the 3300 XL NSv monitor card resets. Confirm the vibration reading at the System 1 workstation or DCS display matches the expected baseline for the machine at rest. Check alarm and danger setpoints against the machinery protection philosophy document before returning the machine to service.

Q3: Can this transducer be used with a Bently Nevada 3500 series rack?
Yes, with the appropriate 3500 series driver module (such as the 3500/25 or 3500/42M configured for 8mm probes), the 330904-00-07-05-01-00 can be integrated into a 3500 rack. The driver must be calibrated for the specific probe and extension cable combination. This makes the 330904-00-07-05-01-00 a practical choice for plants executing a phased migration from 3300 to 3500 series hardware.

Q4: What does the 12-month warranty cover, and how is it supported?
The 12-month warranty covers manufacturing defects, signal output deviations outside the published specification, and connector integrity failures under normal operating conditions. Each unit shipped by SMARTNEXMSK undergoes outgoing inspection including gap voltage verification and output linearity check. Warranty claims are supported by our technical team with replacement dispatch within 5 business days upon confirmation of the defect. Contact sales@smartnexmsk.com for warranty registration and RMA procedures.
