Bently Nevada 330904-00-09-50-02-00 3300 XL NSv Transducer

Bently Nevada 330904-00-09-50-02-00 3300 XL NSv Retrofit-Ready Proximity Transducer: Compatible Modernization for Legacy Vibration Monitoring Systems

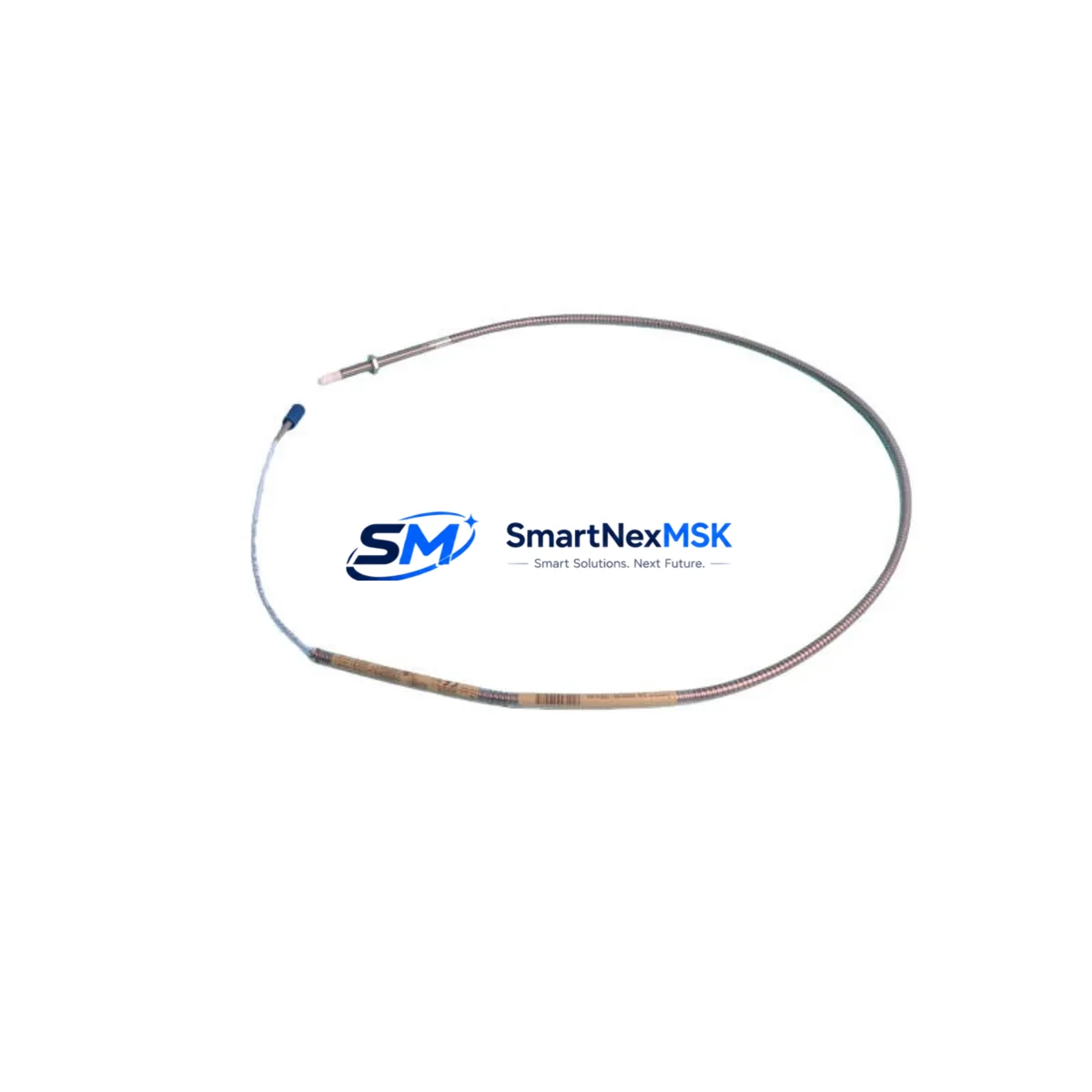

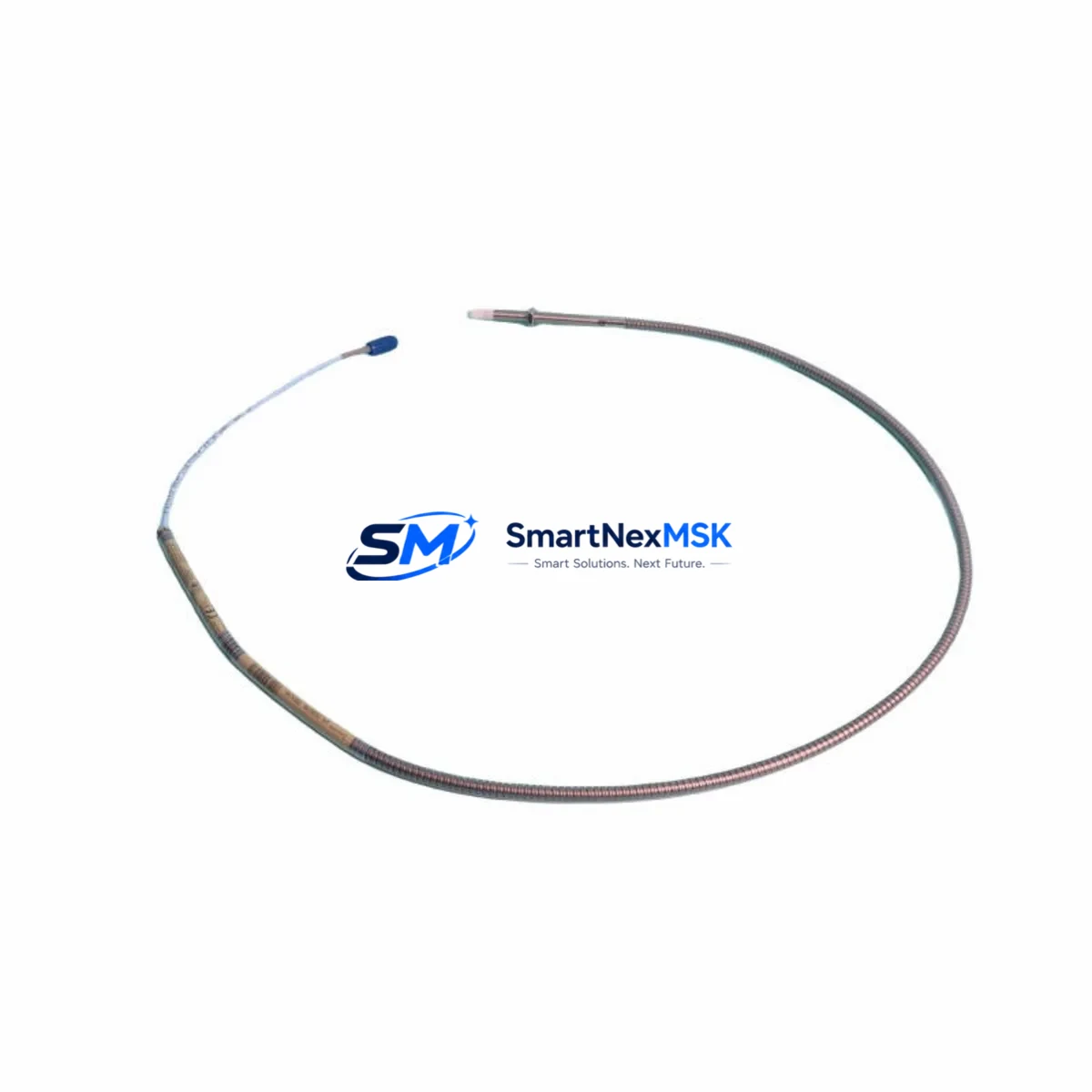

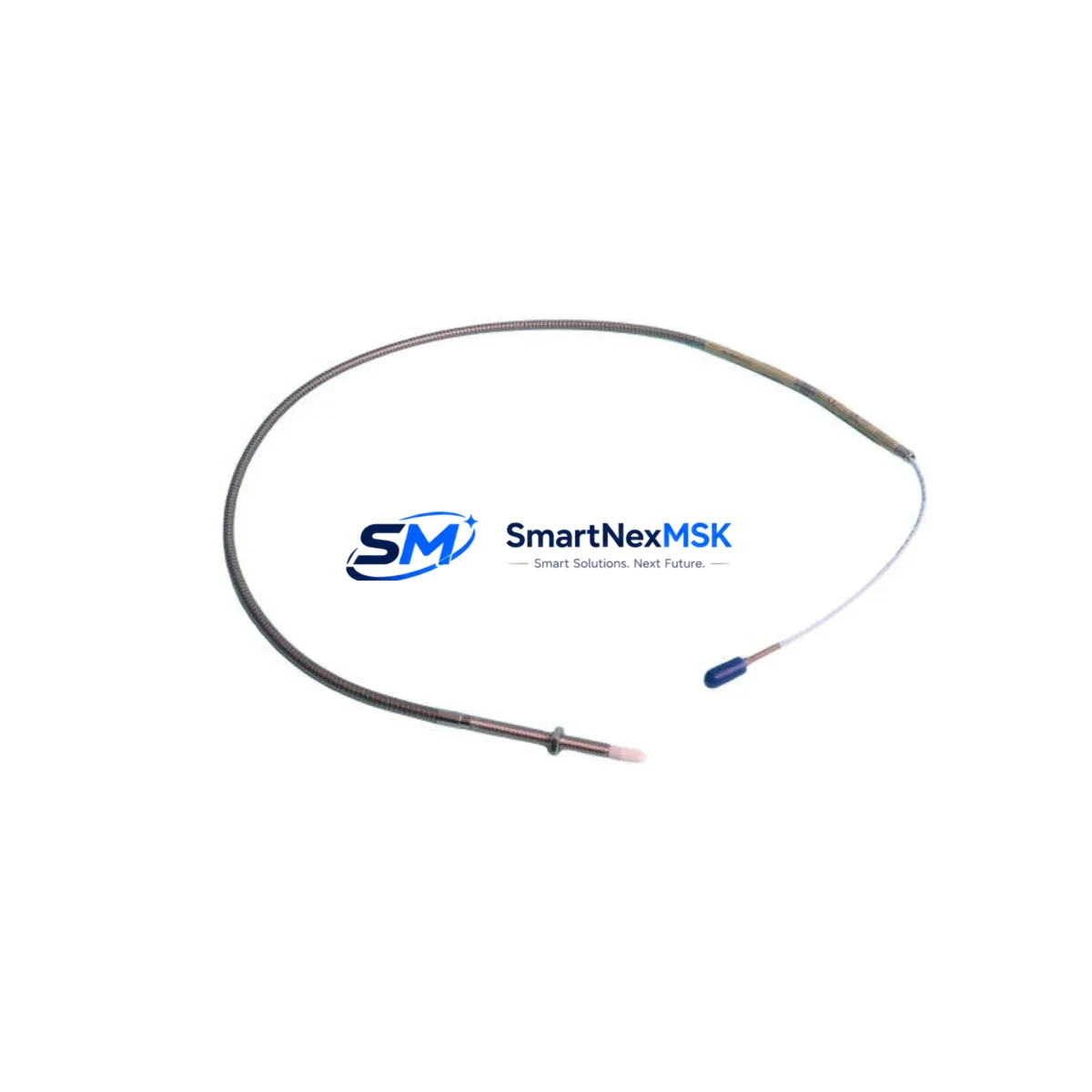

The Bently Nevada 330904-00-09-50-02-00 is a precision proximity transducer engineered for the 3300 XL NSv (Non-contacting Vibration) monitoring platform. As legacy Bently Nevada 3300 series installations age and original spare parts become increasingly difficult to source, this retrofit-ready replacement unit provides a verified drop-in solution for rotating machinery protection systems in power generation, petrochemical, oil & gas, and heavy industrial environments.

This transducer operates within the standard Bently Nevada eddy-current sensing architecture, delivering radial vibration, axial position, and speed measurement signals fully compatible with existing 3300 XL rack-mounted monitor modules. Whether you are replacing a failed unit on a critical compressor train, upgrading a turbine protection panel, or restoring a dormant production line, the 330904-00-09-50-02-00 integrates without requiring firmware changes, rack reconfiguration, or HMI screen remapping.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330904-00-09-50-02-00 into an existing 3300 XL NSv system begins with a thorough review of the installed rack architecture. Most 3300 XL installations use a 19-inch rack housing a combination of monitor modules, a power supply module (typically the 3300/20 or 3300/25 series), a communication gateway, and a keyphasor module for phase reference. Before removing the failed transducer, document the existing terminal block wiring assignments — particularly the positive signal lead, negative (common) lead, and shield drain wire — to ensure the replacement is landed identically.

In systems where the 3300 XL rack communicates upstream via a Modbus RTU or Modbus TCP gateway module, no protocol reconfiguration is required when swapping a like-for-like transducer. The monitor module continues to publish the same register map to the DCS or SCADA host. However, if the retrofit is part of a broader migration from a 3300 XL rack to a newer System 1 Evolution platform or a third-party vibration monitoring system, the engineering team must remap analog output channels and verify that the new monitor’s scale factors match the original 3300 XL configuration.

For installations that include a 3300/46 or 3300/55 Keyphasor module, confirm that the replacement transducer’s output scale (mV/mil) is consistent with the existing system calibration. Mismatched scale factors will cause erroneous vibration amplitude readings and may trigger spurious alarms on the 3300 XL 16-channel vibration monitor. If the rack also houses a 3300/15 or 3300/16 thrust position monitor, verify that the axial channel gap voltage setpoints remain within the configured alert and danger thresholds after the transducer swap.

In multi-machine installations — such as a compressor train with a high-pressure body, low-pressure body, and a gearbox — it is common to find a mix of 330900 series and 330500 series transducers on the same rack. When planning a partial retrofit, ensure that the replacement 330904-00-09-50-02-00 units are installed on the correct machine bearing locations and that the channel-to-bearing mapping in the System 1 database or the DCS historian tag list is updated accordingly. Extension cables from the 330130 series are frequently used to bridge the distance between the probe holder and the junction box; inspect these cables for insulation damage and connector corrosion before reuse.

Where the control cabinet also houses a Bently Nevada 3500 series rack for critical machinery protection alongside the 3300 XL for general monitoring, the two systems share a common grounding bus. Verify ground loop integrity before commissioning the replacement transducer to avoid noise injection into the vibration signal chain. If the site uses a 3300 XL with a TDI (Transient Data Interface) module for startup and coast-down data capture, confirm that the TDI configuration file references the correct transducer sensitivity value after the swap.

Downtime Control During System Migration

Minimizing unplanned downtime during a transducer replacement on a live rotating machine requires a structured pre-outage checklist. Before the maintenance window opens, obtain the current gap voltage readings from the 3300 XL monitor front panel or from the System 1 operator display and record them as the baseline. This baseline allows the commissioning technician to verify that the replacement 330904-00-09-50-02-00 is correctly gapped without relying solely on mechanical measurement.

Where the process cannot be fully shut down, coordinate with the control room to place the affected monitor channel in bypass mode using the 3300 XL front-panel keyswitch or via the System 1 software before disconnecting the transducer. This prevents a spurious danger trip from propagating to the emergency shutdown system (ESD) or the distributed control system (DCS) during the swap. Ensure that the bypass is logged in the permit-to-work system and that a time limit is set to prevent the bypass from being left in place after commissioning is complete.

Once the replacement transducer is installed and the gap is set, restore the channel from bypass and observe the gap voltage on the monitor display. A stable reading within ±0.5 VDC of the original baseline confirms correct installation. Run the machine at low speed if possible and verify that the vibration amplitude readings are consistent with historical trend data before returning the unit to full-load operation. All commissioning readings should be documented and uploaded to the site’s predictive maintenance database to establish a new baseline for the replacement transducer.

For sites operating under IEC 61511 or ISA-84 functional safety requirements, the transducer replacement must be followed by a proof test of the complete measurement loop — from the transducer tip through the monitor module to the ESD logic solver — before the safety function is declared restored. Our team can provide factory acceptance test (FAT) documentation and calibration certificates to support your site’s safety case.

Retrofit Support FAQ

Q1: Is the 330904-00-09-50-02-00 a direct drop-in replacement for the original Bently Nevada OEM part?
Yes. This unit is manufactured to the same dimensional, electrical, and performance specifications as the original 330904-00-09-50-02-00. It uses the same 8 mm eddy-current probe tip, the same 9 m integral cable, and the same output scale factor (mV/mil), ensuring full compatibility with existing 3300 XL NSv monitor modules without any rack modification or recalibration of the monitor’s internal setpoints.

Q2: What wiring checks should I perform before installing the replacement transducer?
Before installation, verify the terminal block assignments for the signal (positive), common (negative), and shield connections at both the junction box and the monitor module input card. Inspect the extension cable (if used) for continuity and insulation resistance. Confirm that the probe holder thread is clean and undamaged, and that the target material and surface finish are within Bently Nevada’s specified range for eddy-current sensing. After installation, measure the gap voltage with the machine stationary before energizing the monitor channel.

Q3: Has this unit been tested before shipment?
Yes. Every 330904-00-09-50-02-00 unit undergoes a pre-shipment functional test that verifies output voltage linearity across the full gap range, cable continuity, and connector integrity. A test report is available upon request. Units are shipped in anti-static packaging with individual serial number labeling to support traceability requirements.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, electrical failures, and performance deviations from the published specification under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, chemical contamination, or operation outside the specified environmental limits. Warranty claims are processed within 5 business days of receipt of the returned unit, and a replacement is dispatched immediately upon confirmation of the defect.
