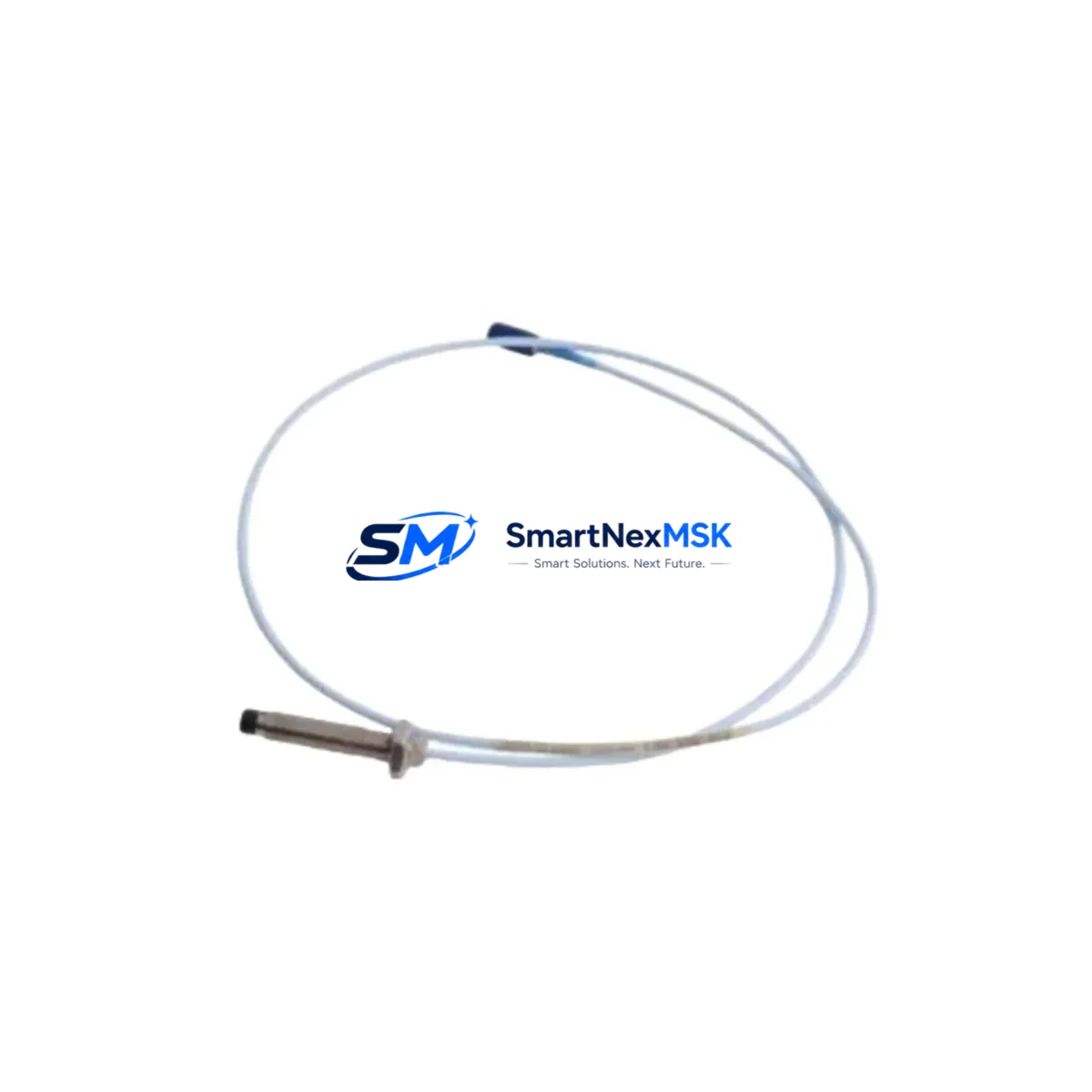

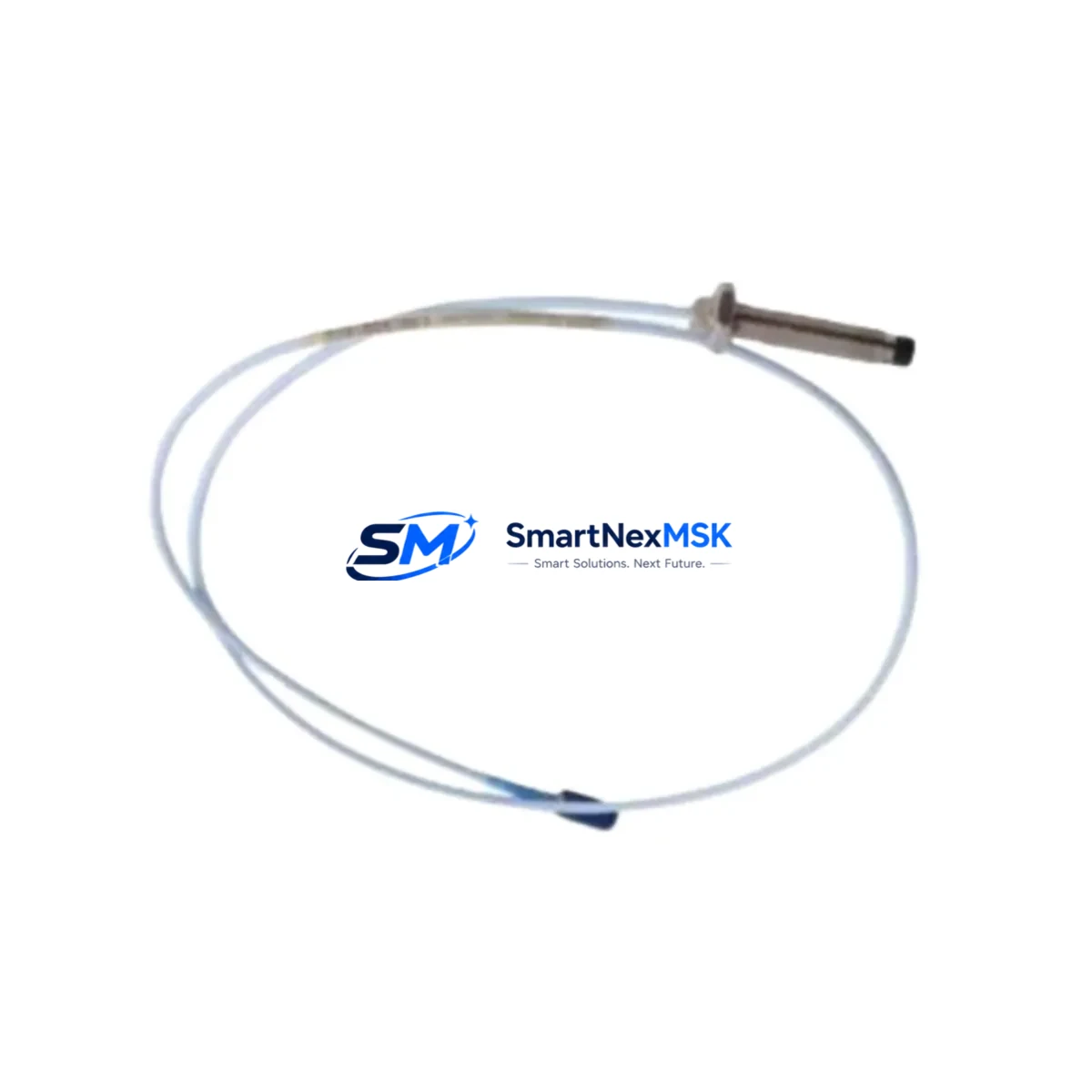

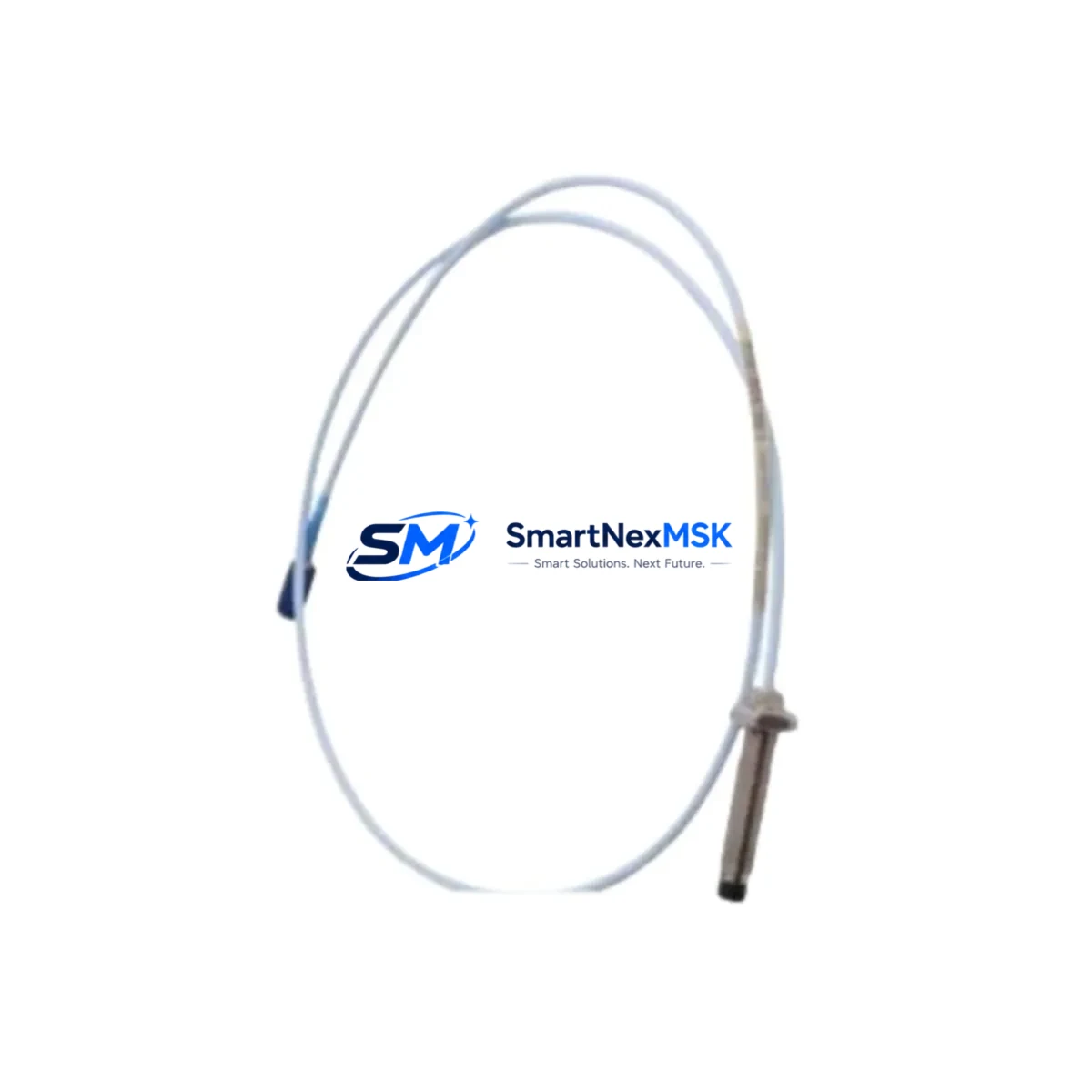

Bently Nevada 330904-00-10-10-02-05/CN Retrofit Proximity Probe

Bently Nevada 330904-00-10-10-02-05/CN Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

The Bently Nevada 330904-00-10-10-02-05/CN is a high-precision eddy-current proximity probe engineered for seamless integration into legacy 3300 NSv vibration monitoring systems. As original Bently Nevada 3300 series hardware approaches end-of-life and spare parts become increasingly scarce, this probe provides a verified drop-in retrofit solution that preserves existing wiring infrastructure, signal conditioning chains, and machinery protection logic without requiring a full system overhaul.

Designed for rotating machinery protection in turbines, compressors, pumps, and gearboxes, the 330904-00-10-10-02-05/CN delivers the same 5 mm gap range, 200 mV/mil sensitivity, and -24 VDC bias voltage output as the original factory specification. Engineers undertaking control system modernization projects can install this probe directly into existing Bently Nevada 3300 XL 8mm probe holders and extension cable assemblies without re-routing field wiring or recalibrating the 3500/40M proximitor monitor cards already installed in the rack.

Sourced from verified supply channels and subjected to pre-shipment functional testing, each unit ships with a 12-month warranty covering manufacturing defects and signal performance. In-stock availability supports urgent maintenance windows and unplanned outage recovery scenarios where lead time on OEM procurement is not acceptable.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330904-00-10-10-02-05/CN into an operating plant begins well before the maintenance window opens. The first step is a physical audit of the existing probe holder, confirming that the 8 mm threaded bore and locknut arrangement match the replacement probe’s body dimensions. In most 3300 NSv installations, the 330130-series extension cable — typically in 5 m or 9 m lengths — remains serviceable and can be reused, eliminating one of the most time-consuming aspects of a full probe replacement.

At the junction box or marshalling cabinet, technicians should verify terminal block wiring against the original loop drawing. The three-conductor shielded cable carries the drive signal, return, and shield ground; polarity errors at this stage will produce a reversed bias voltage that trips the 3500/40M monitor card on power-up. Where the existing 3300/16 proximitor module is still in service, confirm that the OK relay output is wired to the DCS input card — typically a Yokogawa CENTUM VP or Honeywell Experion PKS analog input module — so that probe fault alarms propagate correctly to the operator console.

For plants migrating from a legacy 3300 NSv rack to a newer 3500 Series machinery protection system, the 330904-00-10-10-02-05/CN is fully compatible with the 3500/40M proximitor monitor without any hardware modification. The 3500 rack’s I/O module addressing must be confirmed in System 1 Evolution software before the new rack is energized, and any existing vibration trend data archived from the old system should be exported and preserved for baseline comparison after commissioning.

Plants running Rockwell Automation ControlLogix or CompactLogix PLCs as the primary safety interlock controller should verify that the analog input card — such as the 1756-IF16 or 1769-IF4 — is configured for the correct voltage input range to accept the proximitor’s output signal. Similarly, where a Siemens S7-300 or S7-400 system handles the machinery protection interlock, the SM 331 analog input module’s input range parameter must match the probe’s output specification. HMI screens built in FactoryTalk View or WinCC should be reviewed to confirm that the vibration trend faceplate references the correct tag address after any I/O module address changes.

Where the control cabinet also houses a Bently Nevada 3500/22M transient data interface or a 3500/92 communication gateway, no firmware changes are required when substituting the 330904-00-10-10-02-05/CN for an earlier 330900 or 330903 probe. The gateway’s Modbus TCP or OPC DA configuration remains unchanged, preserving the data path to the plant historian — whether that is OSIsoft PI, Aspentech IP.21, or a custom SQL-based trending database.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, the existing vibration baseline — including 1X, 2X, and overall vibration amplitude trends — should be documented from the System 1 Evolution or equivalent condition monitoring platform. This baseline serves as the acceptance criterion for post-installation commissioning and allows the maintenance team to confirm that the replacement probe is performing within the expected envelope before the machine is returned to service.

During the physical swap, the original probe should be removed with the machine at rest and the 3500/40M monitor card placed in bypass mode to prevent spurious trip signals from propagating to the ESD system. The replacement 330904-00-10-10-02-05/CN is installed, the gap set to the nominal 1.0 mm using a feeler gauge, and the bias voltage confirmed at the proximitor output terminals before the monitor card is taken out of bypass. This sequence protects the original program logic in the safety PLC and prevents nuisance shutdowns that would extend the outage beyond the planned window.

Where a hot-standby or redundant monitoring channel is available — as is common in API 670-compliant installations — the replacement can be performed on the standby channel while the primary channel remains in service, reducing effective downtime to near zero. After the replacement channel is commissioned and verified, the channels are swapped and the procedure repeated on the second probe if required. This approach is particularly effective in compressor trains and steam turbine applications where continuous operation is a contractual requirement.

Retrofit Support FAQ

Q1: Is the 330904-00-10-10-02-05/CN a direct replacement for the 330900 and 330903 proximity probes?
Yes. The 330904-00-10-10-02-05/CN is dimensionally and electrically compatible with the 330900 and 330903 series probes. The probe body diameter, thread pitch, connector pinout, sensitivity, and bias voltage output are identical, allowing direct substitution without modification to the probe holder, extension cable, or proximitor module.

Q2: What commissioning checks are required after installation?
After installation, confirm the air gap at the probe tip using a feeler gauge (nominal 1.0 mm), then measure the DC bias voltage at the proximitor output terminals. A reading of -12 VDC ±0.5 V at nominal gap indicates correct installation. Verify the OK relay output is active and that the vibration amplitude reading on the 3500/40M monitor card is within the expected baseline range before releasing the machine to service.

Q3: Can this probe be used with Modbus TCP or OPC-connected monitoring systems?
Yes. The probe’s analog output is compatible with all standard Bently Nevada 3500 Series proximitor modules, including those equipped with the 3500/92 communication gateway for Modbus TCP and OPC DA connectivity. No changes to the gateway configuration or PLC tag mapping are required when substituting this probe for an earlier 330900 or 330903 unit.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, connector integrity, cable continuity, and signal performance within the published specification. Units that fail to meet the -24 VDC bias voltage output or 200 mV/mil sensitivity specification on arrival are replaced at no charge. Warranty claims are processed through sales@smartnexmsk.com with a return merchandise authorization issued within 2 business days.
