Bently Nevada 330904-00-12-50-02-00 3300 XL NSv Transducer

Bently Nevada 330904-00-12-50-02-00 3300 XL NSv Retrofit-Ready Proximity Transducer: Compatible Upgrade for Legacy Vibration Monitoring Systems

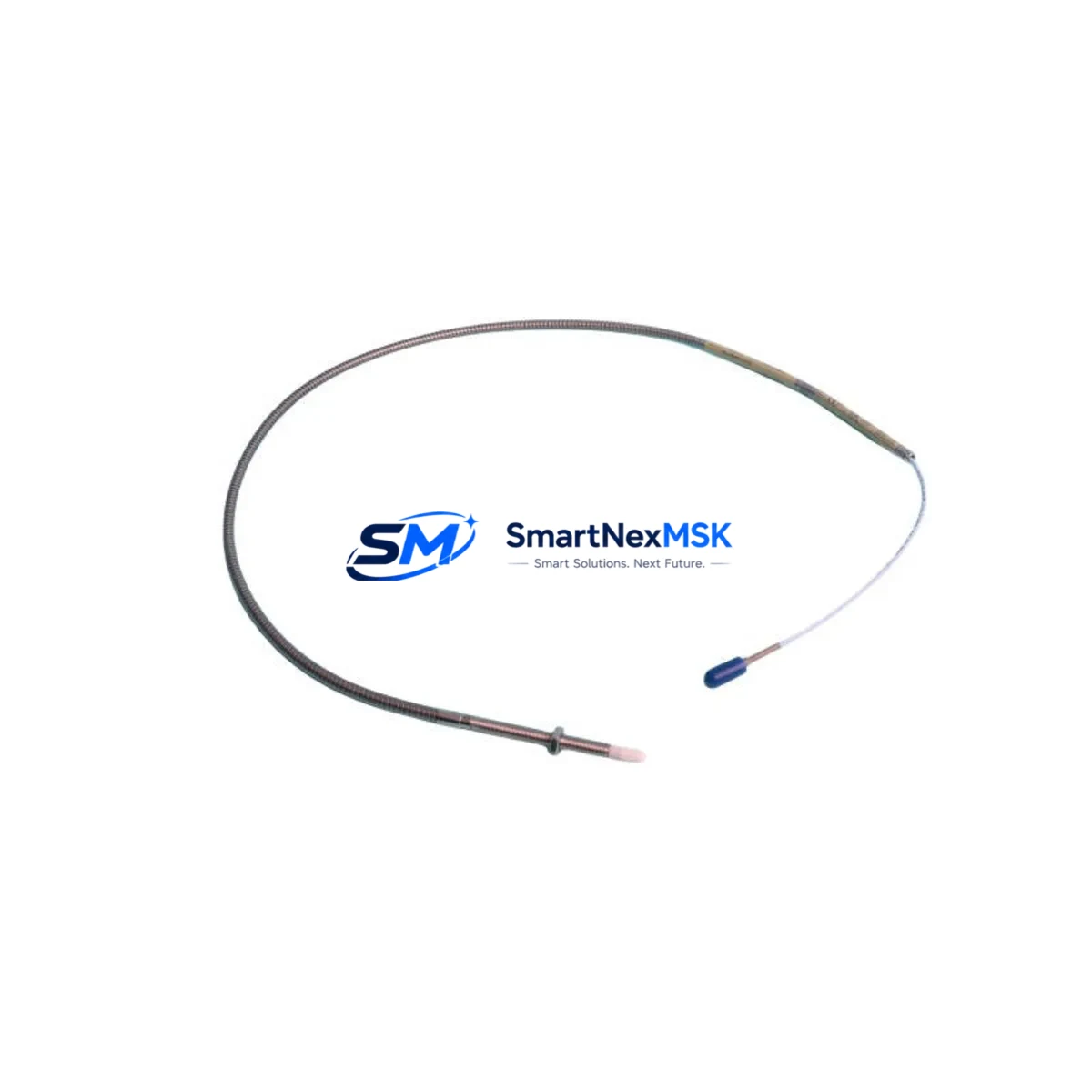

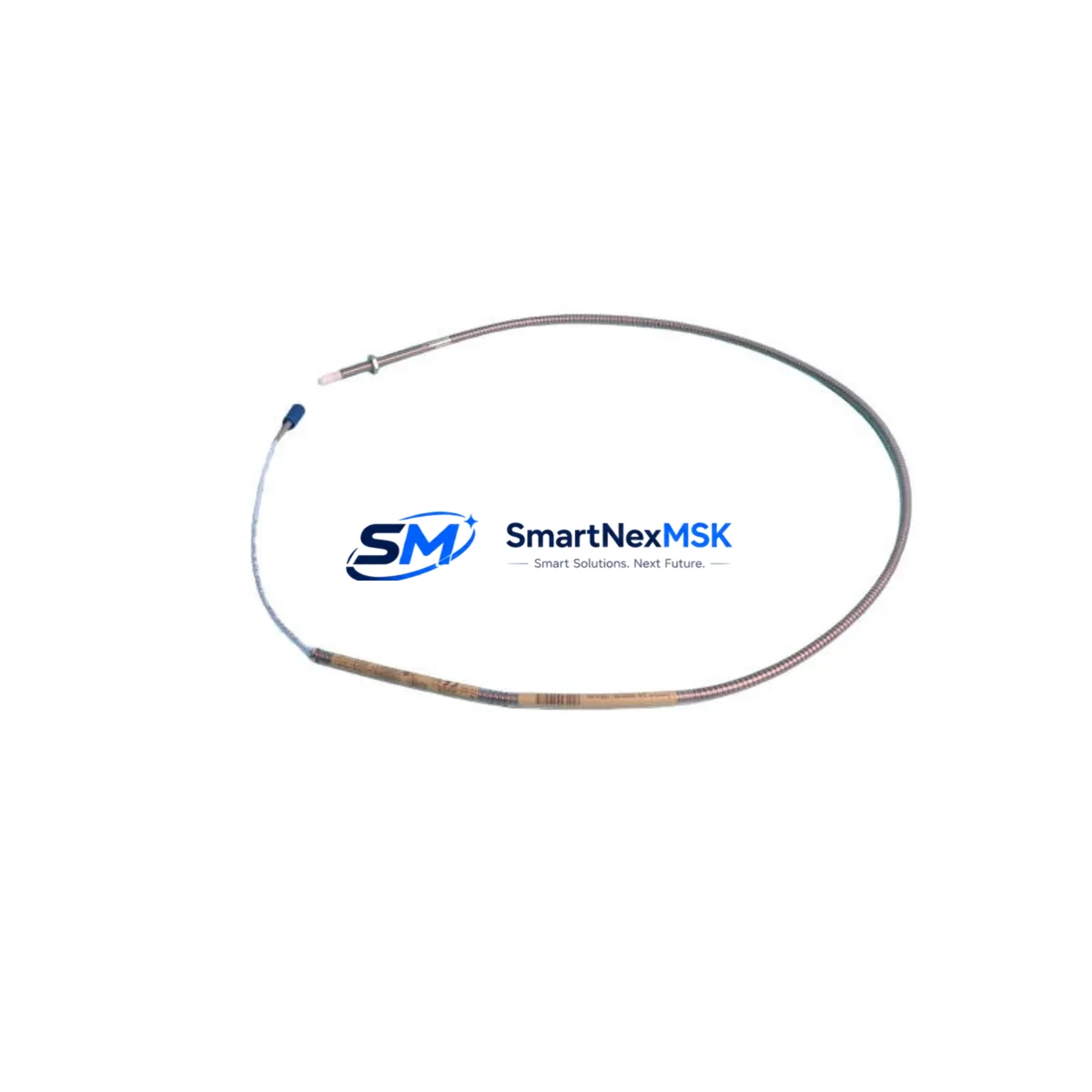

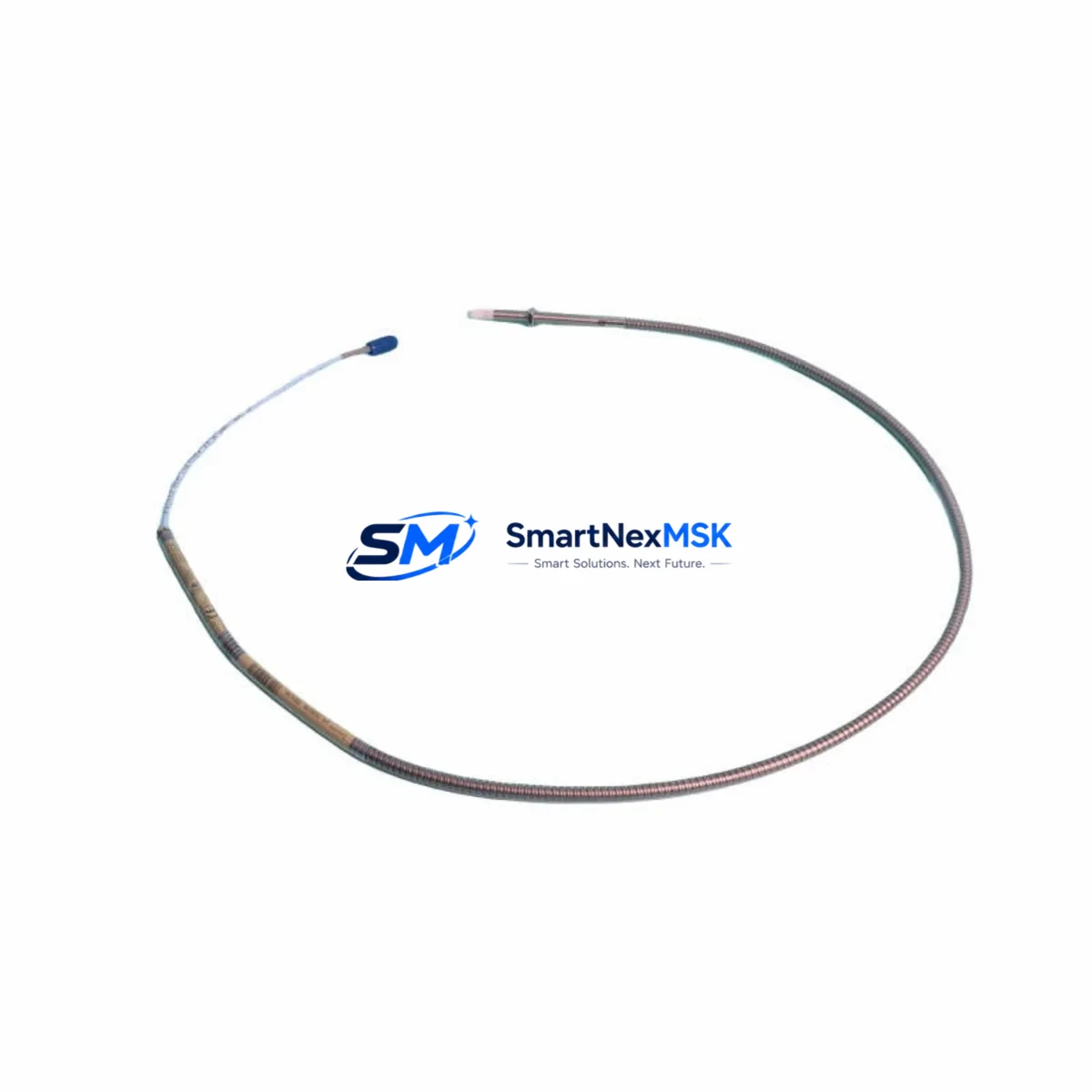

The Bently Nevada 330904-00-12-50-02-00 is a high-precision eddy-current proximity transducer designed for the 3300 XL NSv (Non-contact Shaft Vibration) monitoring platform. As aging machinery protection systems reach end-of-life or face discontinued spare parts availability, this transducer serves as a verified retrofit-ready replacement for facilities operating legacy Bently Nevada 3300 series monitor racks. Whether you are managing a planned control system upgrade or responding to an unplanned failure of an obsolete sensor, the 330904-00-12-50-02-00 provides a direct, drop-in compatible solution that preserves your existing wiring infrastructure, signal conditioning chain, and monitor configuration.

This transducer is engineered to interface directly with the 3300 XL NSv monitor modules installed in standard 19-inch rack enclosures. It operates within the established Bently Nevada signal chain, working in conjunction with the 330130 extension cable and the 330180 proximitor/oscillator driver to deliver calibrated output signals to the monitoring rack. When replacing a failed or end-of-life sensor in an existing installation, engineers must verify the gap voltage setting at the proximitor, confirm the target material (typically AISI 4140 steel or equivalent), and re-validate the scale factor against the monitor’s configuration. The 330904-00-12-50-02-00 maintains the standard 200 mV/mil (7.87 V/mm) scale factor, ensuring compatibility with pre-configured alarm and danger setpoints stored in the 3300 XL monitor cards without requiring reprogramming.

In retrofit scenarios involving the migration from older 3300 series hardware to the current System 1 Evolution platform, the 330904-00-12-50-02-00 transducer can be retained as part of a phased upgrade strategy. Rather than replacing the entire sensor network simultaneously, maintenance teams can upgrade the monitor rack — transitioning from legacy 3300/20 or 3300/25 monitor cards to current 3500/42M or 3500/45 modules — while keeping the existing transducer and cable assemblies in place. This approach significantly reduces installation downtime, eliminates the need for re-routing conduit or replacing junction box wiring, and allows the control room team to validate new monitor configurations against known sensor behavior before full commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330904-00-12-50-02-00 into an existing vibration monitoring installation requires a structured pre-replacement assessment. Before removing the failed transducer, the maintenance team should document the current gap voltage reading at the 330180 proximitor output, record the installed cable length and routing path, and photograph the terminal block connections at the junction box. This baseline documentation ensures that the replacement transducer can be installed and set to the identical operating gap, typically between -10 VDC and -18 VDC at the proximitor output, without requiring a full system re-characterization.

In control cabinets where the 3300 XL NSv rack is installed alongside other Bently Nevada components — such as the 3300/20 Keyphasor monitor, 3300/25 dual-channel monitor cards, or the 3300/55 temperature monitor — the replacement procedure must account for the shared power supply loading. The 3300 XL power supply module (typically a 3300/10 or 3300/15 unit) should be verified to have sufficient capacity to support the transducer loop current after replacement, particularly in installations where additional I/O modules or communication gateway cards have been added since the original commissioning.

For facilities migrating from the 3300 XL platform to the 3500 rack system, the 330904-00-12-50-02-00 transducer is fully compatible with the 3500 series monitor inputs when used with the appropriate 3500/42M or 3500/45 monitor module. The migration process typically involves installing the new 3500 rack in parallel with the existing 3300 XL rack, connecting the transducer outputs to both systems simultaneously during a validation period, and then cutting over the alarm and trip outputs to the new rack after confirming signal agreement. This parallel-run approach, combined with the use of the existing 330130 extension cables and 330904-00-12-50-02-00 transducers, eliminates the need for a full sensor replacement campaign and allows the migration to proceed bearing point by bearing point across multiple planned maintenance windows.

Where the existing installation includes a Bently Nevada 3300/95 communication gateway or a Modbus/TCP interface card connecting the monitor rack to a DCS or SCADA system, the retrofit plan must include a communication link verification step. After the new monitor rack is commissioned, the engineering team should confirm that all vibration, gap, and alarm status tags are correctly mapped in the DCS historian and that the HMI faceplate displays are reading the correct engineering units. In plants using GE Mark VIe or Emerson DeltaV as the primary control platform, this step often requires coordination between the rotating equipment team and the DCS configuration team to update tag addresses and alarm priority assignments.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement or monitor rack migration is the primary operational concern for rotating equipment engineers. The 330904-00-12-50-02-00 is stocked as a ready-to-ship replacement unit, allowing facilities to maintain a single spare in the instrument warehouse and avoid the extended lead times associated with factory-order-only obsolete parts. When a transducer failure is detected through a gap voltage alarm or a not-OK (N/OK) status indication on the 3300 XL monitor front panel, the replacement procedure can typically be completed within a single shift if the spare unit is on hand and the installation documentation is current.

To protect the original program logic and alarm configuration during a monitor rack replacement, the engineering team should export the full monitor configuration from the existing 3300 XL rack using the Bently Nevada System 1 software or the rack’s front-panel configuration interface before beginning the physical swap. This configuration backup preserves all setpoint values, scale factors, transducer type assignments, and communication tag mappings, allowing the new rack to be pre-configured and bench-tested before it is installed in the control cabinet. Pre-staging the replacement rack in this way reduces the live installation window to the time required for physical mounting, cable termination, and a final gap voltage verification — typically two to four hours per rack position.

For critical machinery protection applications where continuous monitoring is required, a temporary portable vibration monitoring system can be connected to the transducer outputs at the junction box during the rack replacement window. This approach maintains the ability to detect abnormal vibration levels and initiate a manual trip if required, even while the permanent monitor rack is offline for replacement. After the new rack is installed and commissioned, the portable system is disconnected and the permanent alarm and trip outputs are restored to the machinery protection relay panel.

Retrofit Support FAQ

Q1: Is the 330904-00-12-50-02-00 a direct drop-in replacement for the 330900 and 330903 series transducers?
Yes. The 330904-00-12-50-02-00 is the current production variant that supersedes the earlier 330900 and 330903 series proximity transducers in the same physical configuration. It uses the same threaded tip geometry, the same connector interface for the 330130 extension cable, and produces the same 200 mV/mil scale factor output. No changes to the proximitor driver, extension cable, or monitor configuration are required for a direct replacement. A gap voltage verification after installation is always recommended to confirm the transducer is operating within the linear range.

Q2: What wiring checks are required before installing the replacement transducer?
Before installing the 330904-00-12-50-02-00, inspect the extension cable connector and the junction box terminal block for corrosion, moisture ingress, or mechanical damage. Verify that the cable shield is properly grounded at the proximitor end only, with the machine end of the shield left floating, in accordance with Bently Nevada installation guidelines. Check the terminal block screw torque and confirm that the cable routing does not create a ground loop through contact with the machine frame or conduit. If the extension cable shows signs of insulation damage or connector wear, replace the 330130 extension cable at the same time as the transducer to avoid a repeat failure.

Q3: Can this transducer be used with a 3500 series monitor rack without modification?
Yes, with signal conditioning verification. The 330904-00-12-50-02-00 is compatible with the 3500/42M and 3500/45 monitor modules when the monitor is configured for the correct transducer type and scale factor. During commissioning on a 3500 rack, use the Rack Configuration Software (RCS) to set the transducer type to the appropriate NSv proximity transducer profile and confirm that the full-scale range and alarm setpoints match the values used in the previous 3300 XL installation. A bench calibration check using a calibration target of known material and surface finish is recommended before final installation.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects, signal output performance outside the published specification, and connector or housing failures under normal operating conditions. It does not cover damage resulting from incorrect installation gap, reverse polarity wiring, mechanical impact, or operation outside the specified temperature and cable length limits. To initiate a warranty claim, contact SMARTNEXMSK with the original order number, a description of the failure symptom, and the gap voltage reading at the time of failure. Replacement units are dispatched after fault verification, with the goal of minimizing the time the monitored machine operates without a functioning protection channel.
