Bently Nevada 330904-00-13-05-02-00 Retrofit-Ready Probe

Bently Nevada 330904-00-13-05-02-00 Retrofit-Ready Probe for 3300 NSv Control Systems

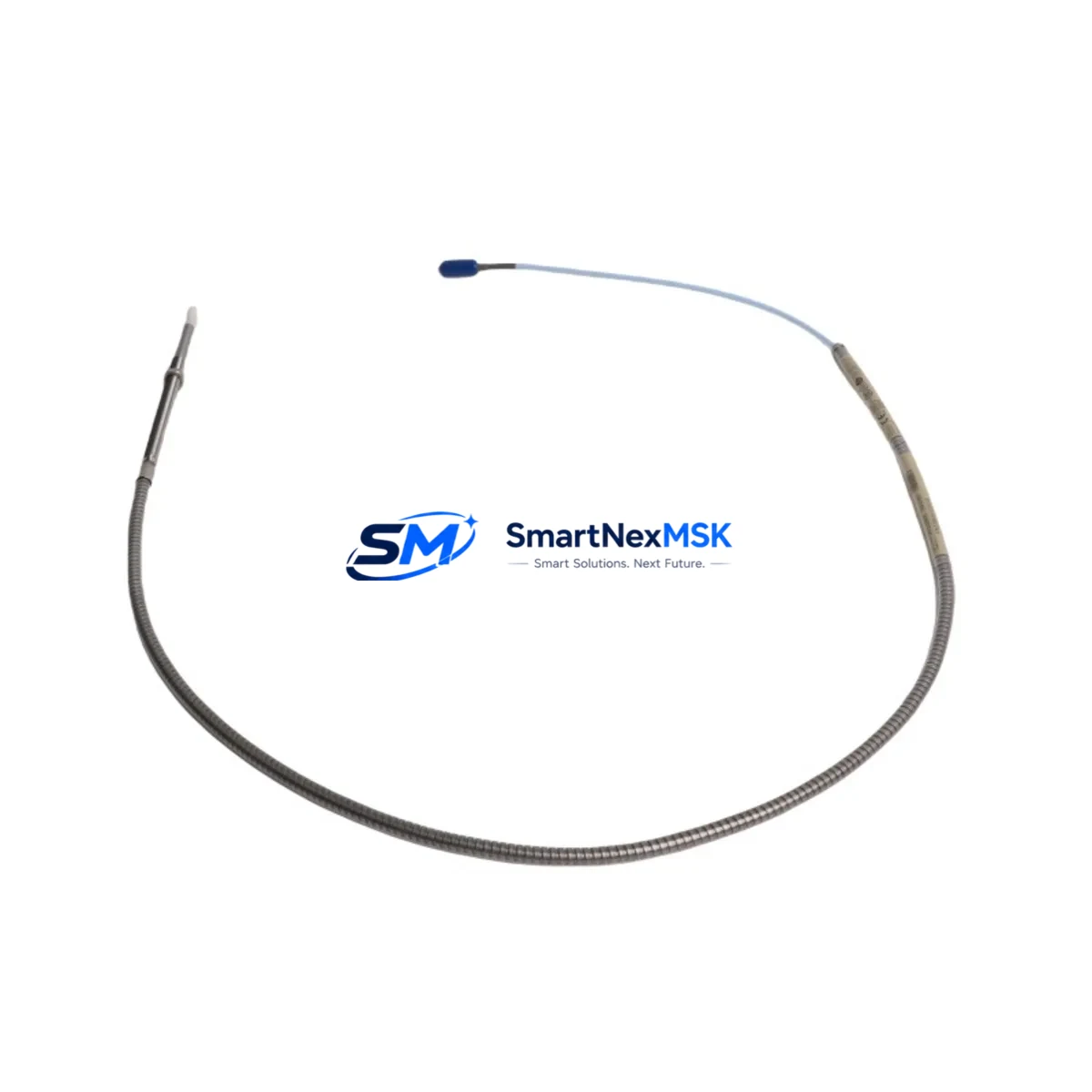

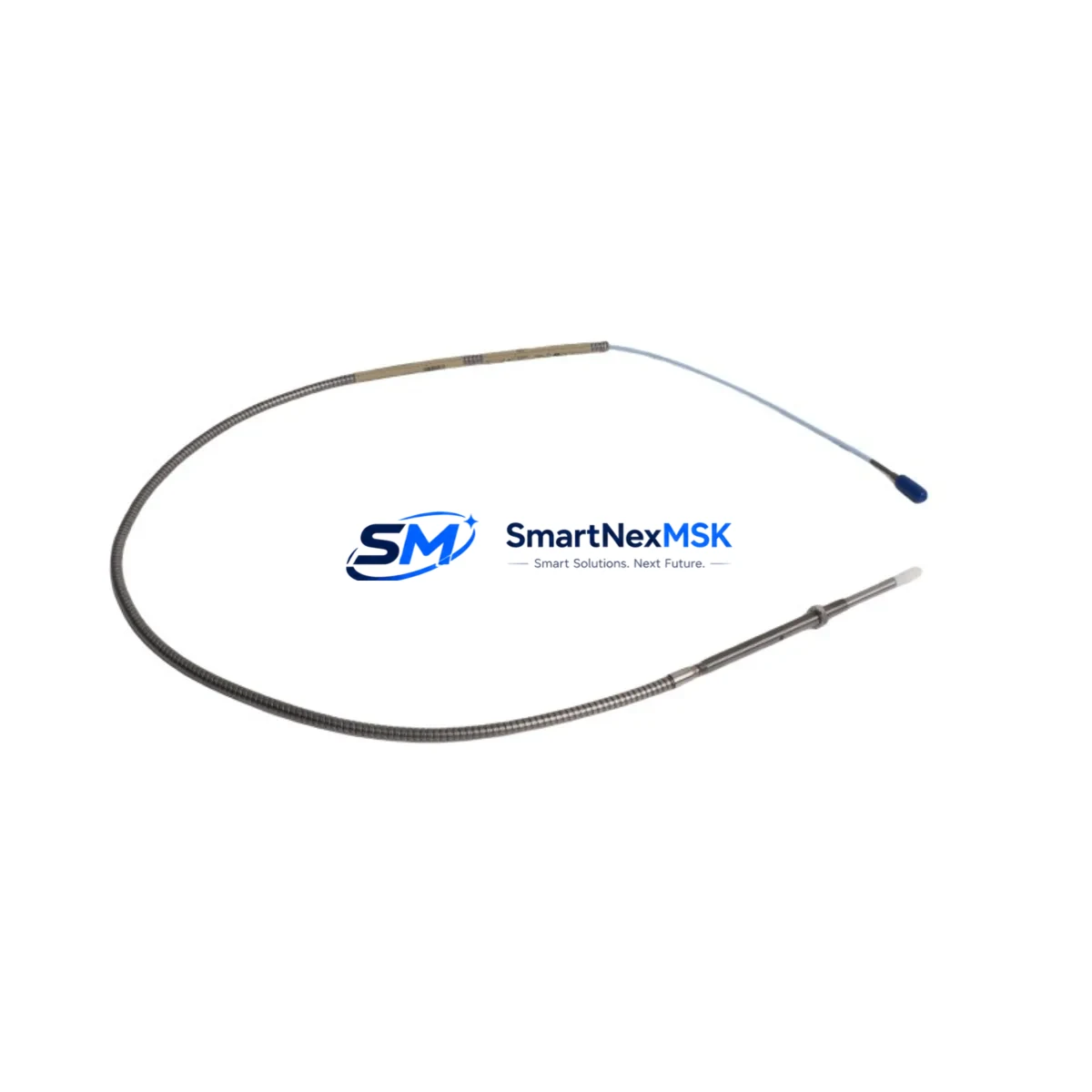

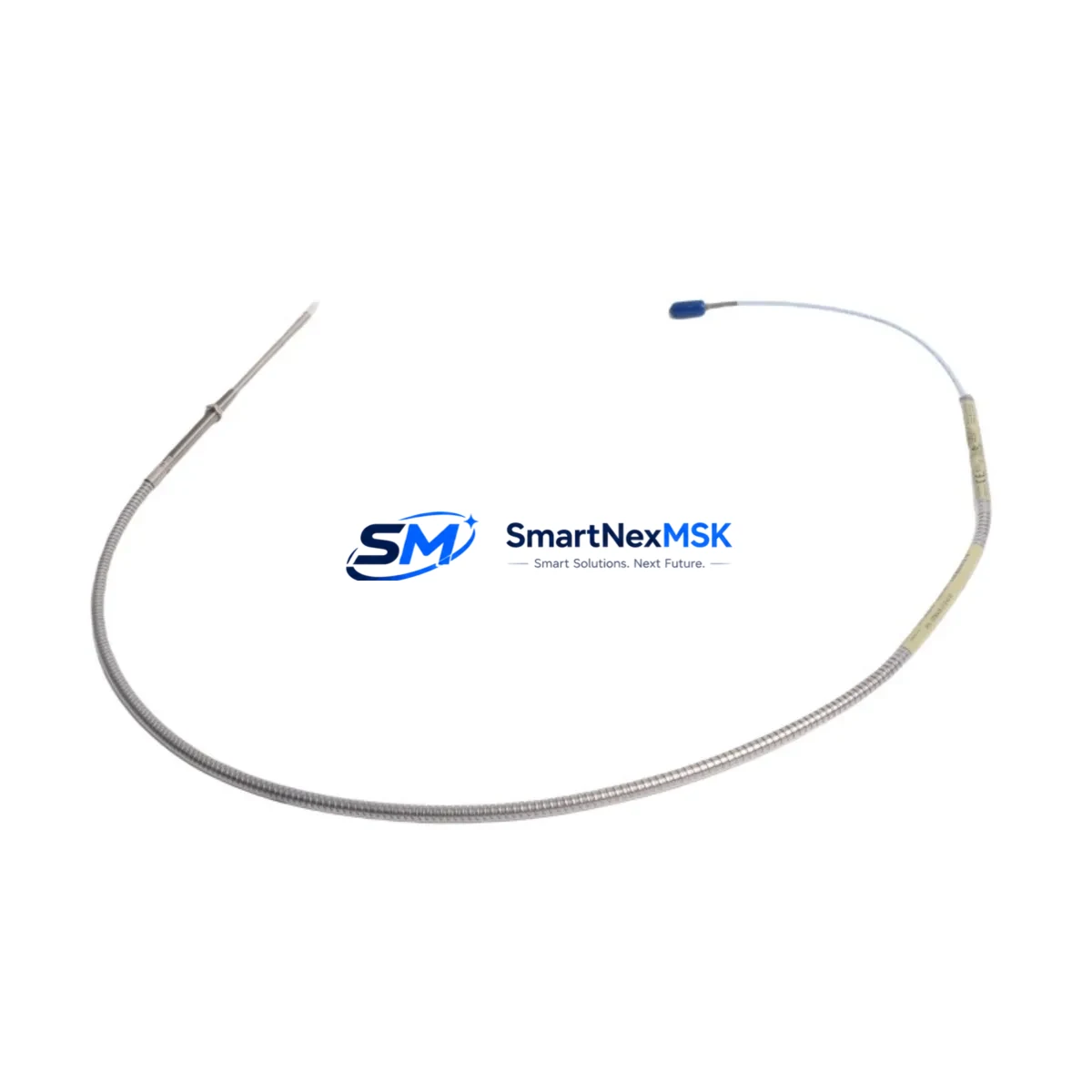

The Bently Nevada 330904-00-13-05-02-00 is a high-precision eddy-current proximity probe engineered for the 3300 NSv Series vibration monitoring platform. Designed as a direct retrofit replacement for aging or discontinued probe assemblies, this unit enables maintenance teams to restore full vibration monitoring capability with minimal downtime and zero compromise on measurement accuracy. Whether you are upgrading a legacy turbomachinery protection system or replacing a failed sensor in a critical rotating equipment loop, the 330904-00-13-05-02-00 delivers the dimensional compatibility, signal integrity, and environmental resilience required for continuous industrial operation.

This probe is part of the Bently Nevada 3300 NSv proximity transducer system, which includes the companion 330130-080-01-00 extension cable and the 330180-X1-05 Proximitor sensor. When planning a retrofit, it is essential to verify that the existing Proximitor module, typically mounted inside the control cabinet on a 3300/16 or 3300/20 rack, is compatible with the 8 mm probe tip diameter and the 5 mm nominal gap range of this assembly. The 330904 series uses a standard armored coaxial cable construction with a 2-metre probe cable length, making it suitable for most turbine bearing housings, compressor pedestals, and pump shaft monitoring installations where the original probe has reached end-of-life or suffered mechanical damage.

During retrofit planning, engineers must confirm several critical parameters before installation. First, verify the power supply voltage feeding the Proximitor — the 3300 NSv system operates on a –24 VDC supply, and any deviation caused by an aging 3300/05 power supply module or a shared rail with other I/O cards can introduce gap voltage errors. Second, inspect the terminal wiring at the junction box: the 330904 probe uses a standard BNC-to-MIL connector interface, and corroded or improperly torqued terminals are a common source of signal drift after replacement. Third, confirm the Proximitor output scaling — 200 mV/mil (7.87 V/mm) — matches the configuration stored in the 3500/42M Proximitor I/O module or the legacy 3300/55 monitor card that receives the signal.

For sites running a Bently Nevada 3500 Series machinery protection system, the 330904-00-13-05-02-00 is fully compatible with the 3500/42 and 3500/44 monitor modules when used with the appropriate extension cable. If the existing installation uses a 330130-080-01-00 or 330130-050-01-00 extension cable, no cable replacement is required — the probe can be swapped in place with only a gap re-adjustment procedure. This significantly reduces the scope of the retrofit and allows the control loop to be restored within a single maintenance window, keeping turbine or compressor downtime to a minimum.

In systems where the vibration monitoring data feeds into a DCS historian or safety instrumented system (SIS), such as a Honeywell Experion or Emerson DeltaV platform, the analog output from the Proximitor must be re-verified after probe replacement. Any shift in the DC gap voltage — typically caused by a difference in probe tip-to-target distance — will appear as a false position offset in the HMI trend display and may trigger nuisance alarms on the overspeed or high-vibration trip channels. A calibrated gap setting of –10.0 VDC ±0.2 V at the nominal 1.0 mm air gap is the standard acceptance criterion for this probe model.

SMARTNEXMSK maintains verified stock of the 330904-00-13-05-02-00 and its associated system components, including the 330180-51-05 Proximitor sensor, 330130-080-01-00 extension cable, and 3300/16 rack assemblies. All units are subject to pre-shipment functional testing, dimensional inspection, and packaging verification before dispatch. Each probe ships with a 12-month warranty covering manufacturing defects and signal performance under normal operating conditions. Long-term supply continuity is supported through our global sourcing network, ensuring availability even for models that have been discontinued by the OEM.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330904-00-13-05-02-00 begins well before the maintenance window opens. The first step is a full audit of the existing transducer system: confirm the installed 330130 extension cable length and condition, check the 330180 Proximitor sensor for housing damage or connector corrosion, and verify that the 3300/16 rack or 3500 Series chassis has no backplane faults that could mask a probe signal error after replacement.

Power integrity is a frequently overlooked factor in probe retrofit projects. The –24 VDC rail feeding the Proximitor must be stable within ±0.5 V under load. If the site uses a shared 3300/05 power supply module that also feeds I/O cards or communication modules, a voltage sag during high-load periods can cause the Proximitor to report a false gap shift. In such cases, installing a dedicated power feed or replacing the aging power supply before the probe swap eliminates this variable from the commissioning process.

Terminal wiring adaptation is another critical checkpoint. The 330904 probe uses a standard coaxial cable with a BNC connector at the Proximitor end. If the existing installation uses a junction box with screw-terminal adapters, verify that the adapter impedance matches the 50-ohm coaxial specification. Mismatched impedance at the junction point introduces reflections that degrade the eddy-current signal at high shaft speeds, particularly in applications above 10,000 RPM such as gas turbine compressors or high-speed centrifugal pumps.

For sites migrating from a legacy 3300 Series monitor to a modern 3500/42M Proximitor I/O module, the probe itself does not change — but the rack address, channel configuration, and alarm setpoint database must be updated in the Rack Configuration Software (RCS). Ensure that the new module’s channel scaling matches the 200 mV/mil sensitivity of the 330904 probe, and re-enter the danger and alert setpoints from the original machinery protection philosophy document. If the site uses a System 1 Evolution condition monitoring platform, the probe channel must also be re-mapped in the asset configuration tree to restore trend data continuity.

Downtime Control During System Migration

Minimizing downtime during a proximity probe retrofit requires a structured pre-outage preparation protocol. Before the machine is taken offline, download and archive the current Rack Configuration Software (RCS) configuration file from the 3500 rack. This preserves all channel setpoints, transducer parameters, and communication settings, and serves as the baseline for post-replacement verification. If the site operates a redundant monitoring channel — common in API 670-compliant turbine protection systems — the redundant channel can remain active during the single-channel probe swap, maintaining trip protection throughout the procedure.

During the physical swap, use a calibrated gap-setting tool to achieve the –10.0 VDC ±0.2 V target at the nominal air gap. Do not rely on the previous probe’s gap setting as a reference, as mechanical wear on the shaft journal or probe mounting boss may have shifted the optimal gap distance. After re-gapping, verify the Proximitor output voltage at the monitor card input terminals before re-energizing the full protection loop. This step catches wiring errors and connector faults before they propagate to the trip logic.

Once the probe is installed and gapped, perform a slow-roll check at low shaft speed to confirm that the vibration signal baseline is within the expected range for the machine type. For steam turbines and large centrifugal compressors, a slow-roll vibration reading above 0.5 mil pk-pk at the probe location typically indicates a mechanical issue unrelated to the probe replacement and should be investigated before returning the machine to full load. Document the as-left gap voltage, slow-roll vibration level, and Proximitor output scaling in the maintenance record to support future retrofit planning and warranty claims.

Retrofit Support FAQ

Q1: Is the 330904-00-13-05-02-00 a direct replacement for the original Bently Nevada part?
Yes. The 330904-00-13-05-02-00 is manufactured to the original Bently Nevada dimensional and electrical specification. It is a direct drop-in replacement for the same part number from the OEM. No wiring changes or Proximitor reconfiguration are required beyond the standard gap re-adjustment procedure.

Q2: What pre-shipment testing is performed on each unit?
Every 330904-00-13-05-02-00 unit undergoes functional testing of the eddy-current coil resistance, cable continuity, connector integrity, and dimensional inspection of the probe tip and mounting thread before shipment. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and signal performance under normal operating conditions.

Q3: Can this probe be used with a 3500 Series rack as well as the legacy 3300 Series?
Yes. The 330904-00-13-05-02-00 is compatible with both the legacy 3300 Series monitors and the current 3500/42M and 3500/44 Proximitor I/O modules, provided the correct 330180 Proximitor sensor and 330130 extension cable are used. Confirm the channel scaling is set to 200 mV/mil in the Rack Configuration Software after installation.

Q4: What is the lead time and long-term supply availability?
SMARTNEXMSK maintains ready stock of the 330904-00-13-05-02-00 for immediate dispatch. For large-volume retrofit projects or scheduled maintenance programs requiring multiple units, contact our sales team to arrange a dedicated inventory reservation. Long-term supply is supported through our global sourcing network, ensuring continued availability for sites with multi-year maintenance contracts.
