Bently Nevada 330904-00-13-10-02-05/CN 3300 NSv Proximity Probe

Bently Nevada 330904-00-13-10-02-05/CN: Retrofit-Ready 3300 NSv Proximity Probe for Legacy Control System Upgrades

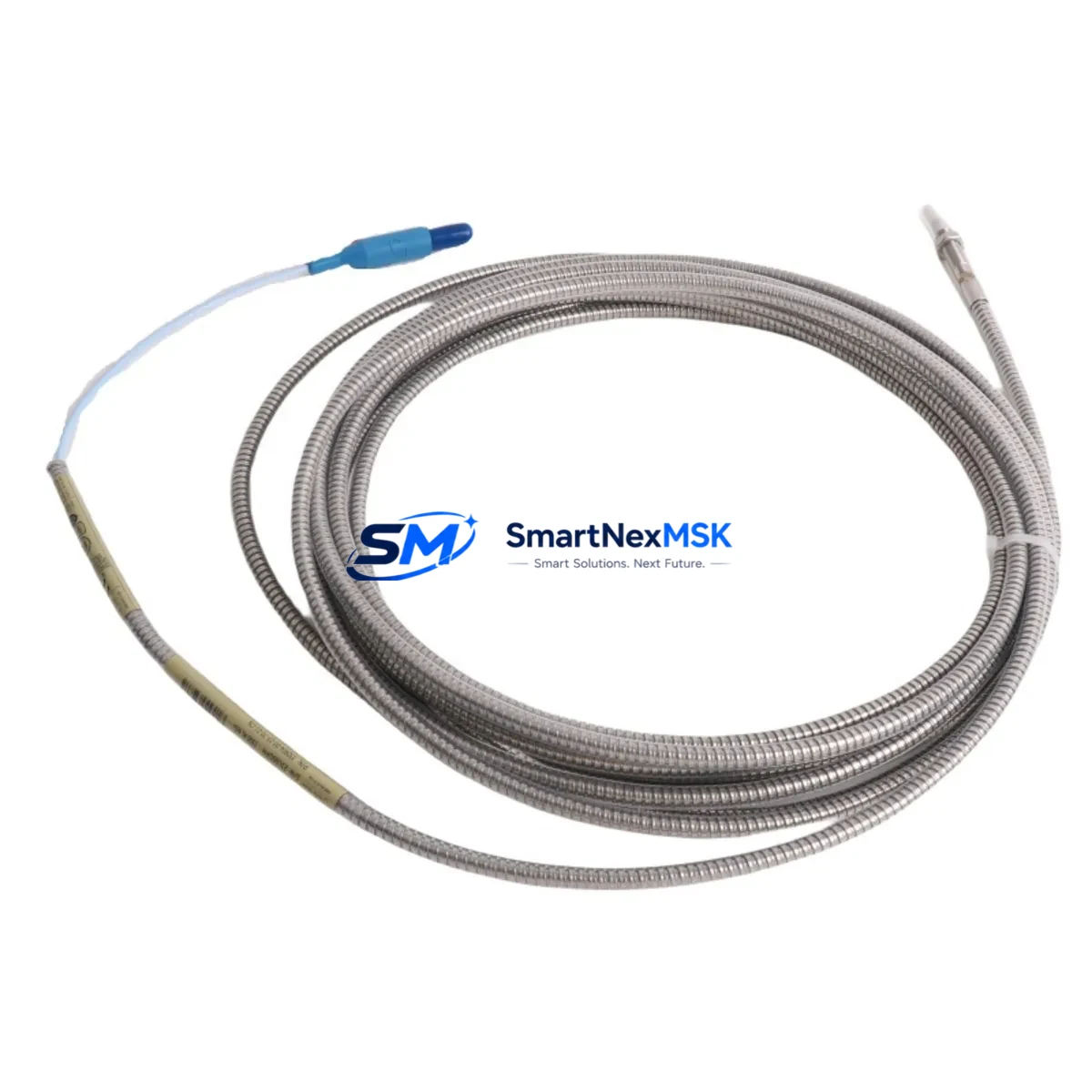

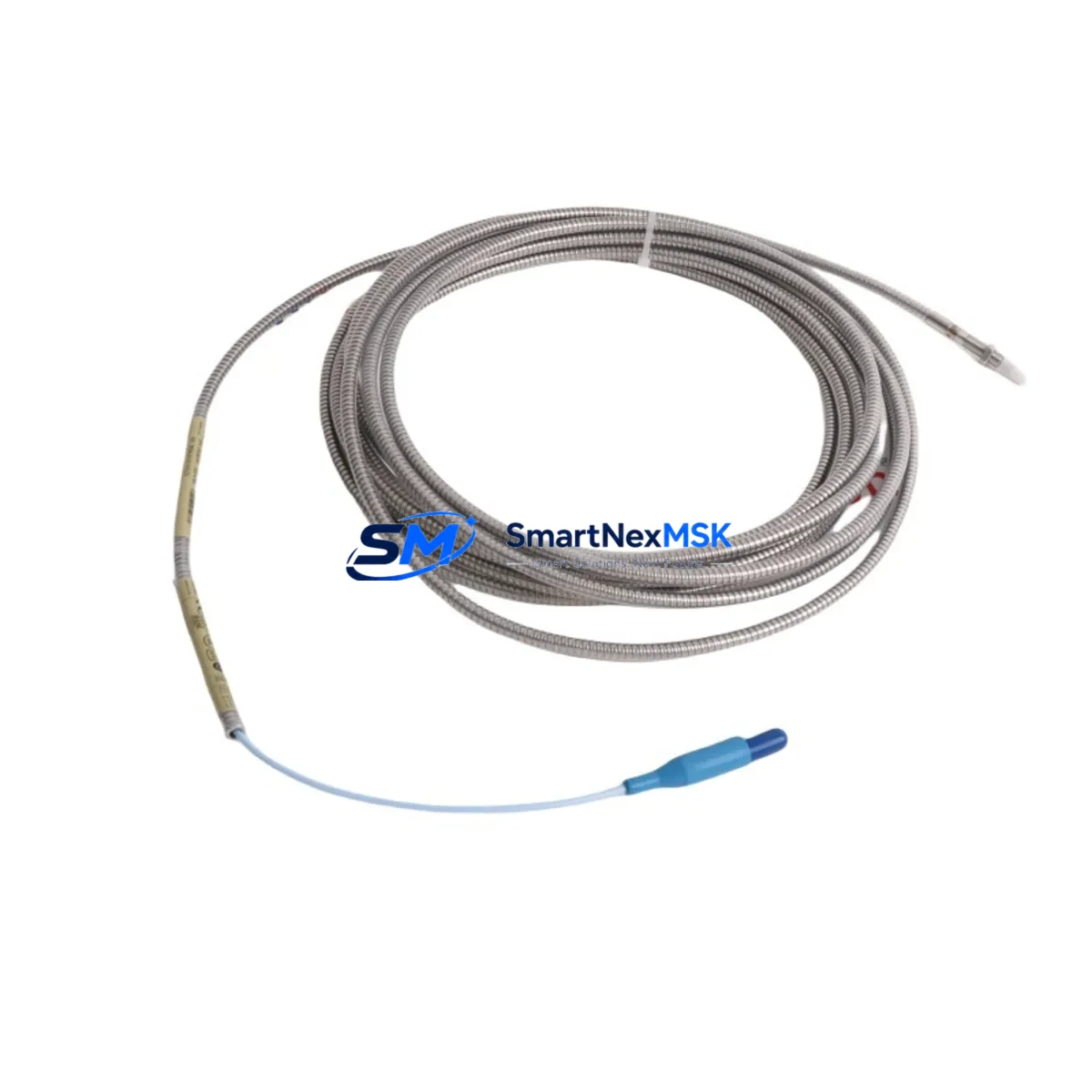

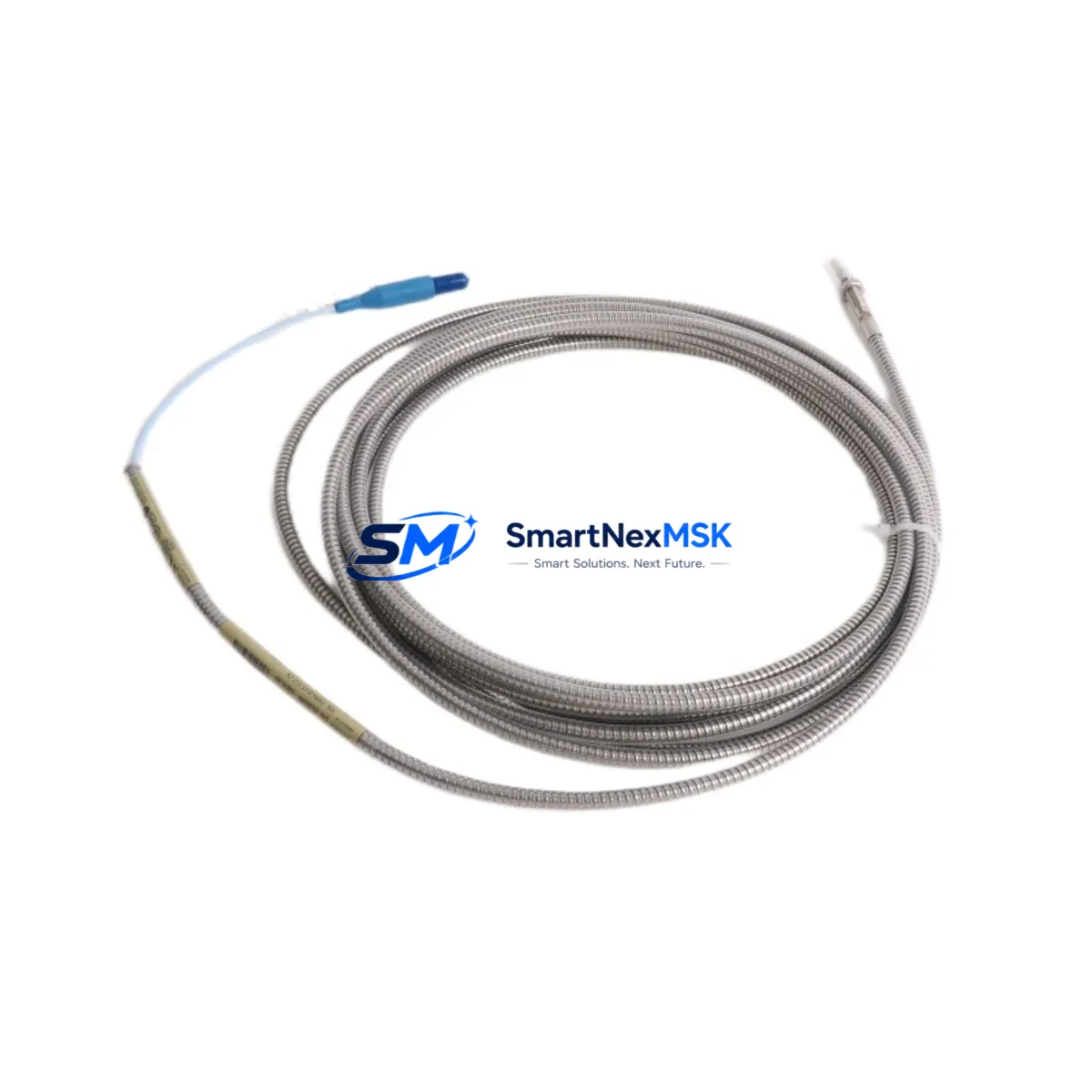

The Bently Nevada 330904-00-13-10-02-05/CN is an 8mm eddy-current proximity probe engineered for the 3300 NSv series vibration monitoring platform. As original equipment manufacturers phase out legacy transducer assemblies, this probe serves as a verified drop-in replacement for discontinued 330900-series and early 330903-series units deployed across rotating machinery protection systems in power generation, petrochemical, and heavy industrial environments. Whether you are executing a planned control system modernization or responding to an unplanned component failure, the 330904-00-13-10-02-05/CN delivers the signal conditioning characteristics, cable length, and connector geometry required to restore full vibration monitoring capability with minimal downtime.

This probe is designed to interface directly with the Bently Nevada 3300 XL 8mm Proximity Transducer System, which includes the companion 330130-series extension cable and the 330180-series proximitor sensor. When retrofitting an existing installation, engineers must confirm that the proximitor driver card—typically housed in a 3300/16 or 3300/20 rack module—is configured for the correct gap voltage range. The 330904-00-13-10-02-05/CN operates within the standard –24 VDC supply rail and produces a linear output of approximately –7.87 V/mm, consistent with the 3300 NSv calibration curve. Verifying this output against the existing System 1 or System 1 Evolution software configuration before energizing the loop prevents false trip events during commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. Start by auditing the existing 3300 NSv rack assembly: identify the number of occupied slots in the 3300/16 or 3300/20 rack, confirm the firmware revision of each monitor card, and document the current gap voltage readings for every installed probe. If the plant is running a mixed fleet of 330903 and 330904 probes on the same rack, standardizing on the 330904-00-13-10-02-05/CN simplifies spare-parts inventory and reduces the risk of cross-wiring errors during a hot-swap procedure.

The extension cable is a frequently overlooked element in proximity probe retrofits. The 330130-series extension cable must be matched to the probe’s cable length to maintain the total system cable length within the proximitor’s calibrated range—typically 5 m, 8 m, or 9 m total. If the existing 330130-080-00-00 extension cable shows signs of jacket degradation or connector corrosion, replace it concurrently with the probe to avoid introducing a new failure point. Similarly, inspect the 330180-series proximitor sensor for output drift; a proximitor that has been in service for more than ten years may no longer hold calibration even when paired with a new probe.

For installations where the 3300 NSv rack feeds a DCS or safety instrumented system via a 4–20 mA analog output, coordinate with the control room team to place the affected loop in manual mode before breaking the signal circuit. If the plant uses a Bently Nevada 3500 series rack in parallel for overspeed or thrust monitoring, confirm that the 3500/42M or 3500/45 monitor cards are not sharing the same proximitor power supply rail as the 3300 NSv rack—cross-supply loading can cause nuisance trips during the swap. After reinstalling the 330904-00-13-10-02-05/CN and re-terminating the extension cable at the junction box, perform a static gap check using a calibrated DC voltmeter before restoring the rack to online monitoring mode.

HMI screens tied to the vibration monitoring loop—whether running on a Wonderware InTouch, FactoryTalk View, or Ignition SCADA platform—should be reviewed to confirm that the tag associated with the replaced channel still maps correctly to the physical rack slot address. A slot address mismatch between the 3300 rack configuration and the SCADA tag database is a common source of post-retrofit alarm anomalies. If the plant is simultaneously upgrading from a legacy 3300 NSv rack to a 3500 series rack, the I/O mapping exercise becomes more involved: the 3500 rack uses a different Modbus register map, and the System 1 Evolution historian will require a new device template to resume trend logging.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clearly defined rollback procedure. Before the maintenance window, stage all replacement components at the work site: the 330904-00-13-10-02-05/CN probe, the matched extension cable, a calibrated gap-setting tool, and a copy of the original rack configuration printout. If the plant’s safety management system requires a permit-to-work, obtain it at least 24 hours in advance to avoid delays at the start of the window.

During the swap, preserve the original program logic in the monitor card by exporting the rack configuration from System 1 or the 3300 rack configuration software before disconnecting power. This export serves as both a backup and a commissioning reference—if the replacement probe produces an unexpected gap voltage after installation, the configuration file allows the technician to verify whether the issue lies with the probe, the extension cable, the proximitor, or the rack card settings. Keep the original probe in a labeled anti-static bag until the replacement has been verified online; if the new probe fails acceptance testing, the original can be reinstalled to restore monitoring while the root cause is investigated.

For critical machinery where continuous vibration monitoring is contractually required, consider deploying a temporary portable vibration analyzer—such as a CSI 2140 or equivalent—on the shaft during the swap window. This provides a parallel monitoring channel that satisfies the protection requirement without keeping the permanent rack online during the physical probe change. Once the 330904-00-13-10-02-05/CN is installed, gapped, and verified, transfer monitoring back to the rack and remove the portable analyzer. Document the as-found and as-left gap voltages, the OK relay status, and the date of replacement in the plant’s maintenance management system to support future reliability analysis.

Retrofit Support FAQ

Q1: Is the 330904-00-13-10-02-05/CN a direct replacement for the 330903-00-13-10-02-05/CN?
Yes. The 330904 series supersedes the 330903 series for 8mm 3300 NSv applications. The probe body dimensions, connector type, and sensitivity specification are identical. The primary difference is an updated temperature rating and improved cable jacket material on the 330904 variant. No changes to the proximitor configuration or rack card settings are required when substituting a 330904 for a 330903 of the same cable-length suffix.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the air gap to the manufacturer’s nominal value (typically 1.0 mm for 8mm probes) and measure the DC output voltage at the proximitor OK terminal. The target gap voltage is –10.0 VDC ± 0.5 V. Confirm the OK relay is energized, check the vibration channel for a clean noise floor below 0.5 mil pk-pk, and verify that the System 1 or DCS historian is logging the channel before returning the loop to automatic mode.

Q3: Can this probe be used with a Bently Nevada 3500 series rack?
The 330904-00-13-10-02-05/CN is calibrated for the 3300 NSv proximitor system. While the physical probe is electrically compatible with the 3500/42M proximity monitor when used with the correct 3500-series proximitor, the system must be re-calibrated as a complete transducer set (probe + extension cable + proximitor) to meet 3500 rack accuracy specifications. Do not mix 3300 NSv proximitors with 3500 rack cards without performing a full system calibration.

Q4: What does the 12-month warranty cover, and is a test report included?
The 12-month warranty covers all manufacturing defects in materials and workmanship from the date of shipment. Each unit ships with a pre-shipment functional test report confirming gap voltage linearity, OK relay operation, and cable continuity. Warranty claims are processed by returning the defective unit with the original test report; a replacement unit is dispatched within 5 business days of claim verification. The warranty does not cover damage resulting from incorrect installation, over-range mechanical contact, or exposure to fluids outside the probe’s rated chemical compatibility.
